36. Application Exercise: Version 16


36.1. Introduction

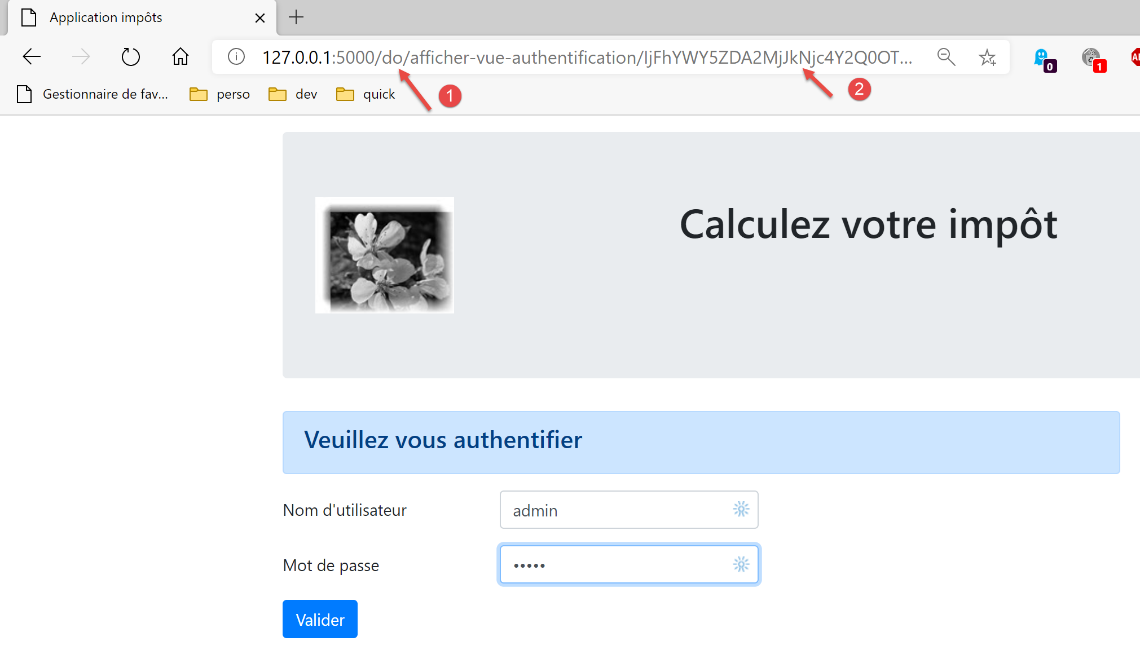

The URLs in our application currently have the form [/action/param1/param2/…]. We would like to be able to prefix these URLs. For example, with the prefix [/do], we would have URLs of the form [/do/action/param1/param2/…].

36.2. The new route configuration

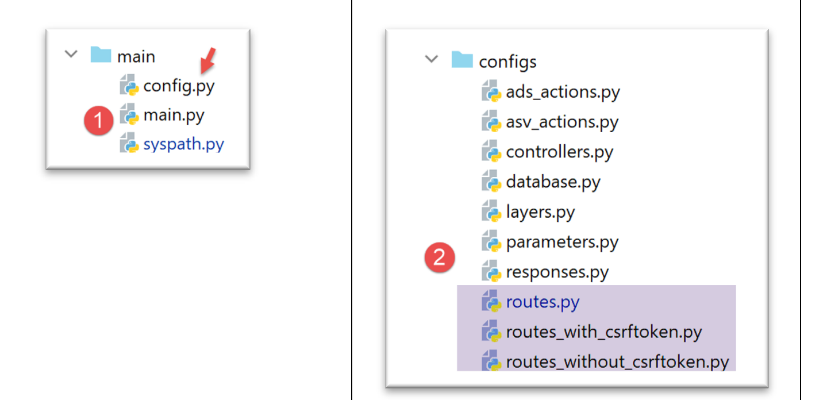

  • In [2], the route calculation will be modified;
  • in [1], the [config] file is modified to reflect this change;

The [config] configuration becomes the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
def configure(config: dict) -> dict:
    #  syspath configuration
    import syspath
    config['syspath'] = syspath.configure(config)

    #  application setup
    import parameters
    config['parameters'] = parameters.configure(config)

    #  database configuration
    import database
    config["database"] = database.configure(config)

    #  instantiation of application layers
    import layers
    config['layers'] = layers.configure(config)

    #  configuration MVC of the [web] layer
    config['mvc'] = {}

    #  web] layer controller configuration
    import controllers
    config['mvc'].update(controllers.configure(config))

    #  actions ASV (Action Show View)
    import asv_actions
    config['mvc'].update(asv_actions.configure(config))

    #  actions ADS (Action Do Something)
    import ads_actions
    config['mvc'].update(ads_actions.configure(config))

    #  response configuration HTTP
    import responses
    config['mvc'].update(responses.configure(config))

    #  route configuration
    import routes
    routes.configure(config)

    #  we return the configuration
    return config
  • lines 37–39: the [routes] module (line 38) handles configuring the routes (line 39);

The routes file without a CSRF token [configs/routes_without_csrftoken] evolves as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
#  dependencies

from flask import redirect, request, session, url_for
from flask_api import status

#  application configuration
config = {}

#  the front controller
def front_controller() -> tuple:
    #  forward the request to the main controller
    main_controller = config['mvc']['controllers']['main-controller']
    return main_controller.execute(request, session, config)

#  application root
def index() -> tuple:
    #  redirect to /init-session/html
    return redirect(url_for("init_session", type_response="html"), status.HTTP_302_FOUND)

#  init-session
def init_session(type_response: str) -> tuple:
    #  execute the controller associated with the action
    return front_controller()

#  authenticate-user
def authentifier_utilisateur() -> tuple:
    #  execute the controller associated with the action
    return front_controller()

#  calculate-tax
def calculer_impot() -> tuple:
    #  execute the controller associated with the action
    return front_controller()

…

The file has been stripped of its routes. Only the functions associated with them remain.

The routes file with the CSRF token [configs/routes_with_csrftoken] suffers the same fate:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#  dependencies

from flask import redirect, request, session, url_for
from flask_api import status
from flask_wtf.csrf import generate_csrf

#  configuration
config = {}

#  the front controller
def front_controller() -> tuple:
    #  forward the request to the main controller
    main_controller = config['mvc']['controllers']['main-controller']
    return main_controller.execute(request, session, config)

#  application root
def index() -> tuple:
    #  redirect to /init-session/html
    return redirect(url_for("init_session", type_response="html", csrf_token=generate_csrf()), status.HTTP_302_FOUND)

#  init-session
def init_session(type_response: str, csrf_token: str) -> tuple:
    #  execute the controller associated with the action
    return front_controller()

#  authenticate-user
def authentifier_utilisateur(csrf_token: str) -> tuple:
    #  execute the controller associated with the action
    return front_controller()

…

#  init-session-without-csrftoken for json and xml clients
def init_session_without_csrftoken(type_response: str) -> tuple:
    #  redirect to /init-session/type_response
    return redirect(url_for("init_session", type_response=type_response, csrf_token=generate_csrf()),
                    status.HTTP_302_FOUND)

Routes are calculated by the following [configs/routes] module:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
from flask import Flask

def configure(config: dict):
    #  route settings

    #  flask application
    app = Flask(__name__, template_folder="../flask/templates", static_folder="../flask/static")
    config['app'] = app

    #  import routes from web application
    if config['parameters']['with_csrftoken']:
        import routes_with_csrftoken as routes
    else:
        import routes_without_csrftoken as routes

    #  inject configuration into routes
    routes.config = config

    #  the application's URL prefix
    prefix_url = config["parameters"]["prefix_url"]

    #  token CSRF
    with_csrftoken = config["parameters"]['with_csrftoken']
    if with_csrftoken:
        csrftoken_param = f"/<string:csrf_token>"
    else:
        csrftoken_param = ""

    #  flask application routes
    #  application root
    app.add_url_rule(f'{prefix_url}/', methods=['GET'],
                     view_func=routes.index)

    #  init-session
    app.add_url_rule(f'{prefix_url}/init-session/<string:type_response>{csrftoken_param}', methods=['GET'],
                     view_func=routes.init_session)

    #  init-session-without-csrftoken
    if with_csrftoken:
        app.add_url_rule(f'{prefix_url}/init-session-without-csrftoken/<string:type_response>',
                         methods=['GET'],
                         view_func=routes.init_session_without_csrftoken)

    #  authenticate-user
    app.add_url_rule(f'{prefix_url}/authentifier-utilisateur{csrftoken_param}', methods=['POST'],
                     view_func=routes.authentifier_utilisateur)

    #  calculate-tax
    app.add_url_rule(f'{prefix_url}/calculer-impot{csrftoken_param}', methods=['POST'],
                     view_func=routes.calculer_impot)

    #  batch tax calculation
    app.add_url_rule(f'{prefix_url}/calculer-impots{csrftoken_param}', methods=['POST'],
                     view_func=routes.calculer_impots)

    #  lister-simulations
    app.add_url_rule(f'{prefix_url}/lister-simulations{csrftoken_param}', methods=['GET'],
                     view_func=routes.lister_simulations)

    #  delete-simulation
    app.add_url_rule(f'{prefix_url}/supprimer-simulation/<int:numero>{csrftoken_param}', methods=['GET'],
                     view_func=routes.supprimer_simulation)

    #  end of session
    app.add_url_rule(f'{prefix_url}/fin-session{csrftoken_param}', methods=['GET'],
                     view_func=routes.fin_session)

    #  display-calculation-tax
    app.add_url_rule(f'{prefix_url}/afficher-calcul-impot{csrftoken_param}', methods=['GET'],
                     view_func=routes.afficher_calcul_impot)

    #  get-admindata
    app.add_url_rule(f'{prefix_url}/get-admindata{csrftoken_param}', methods=['GET'],
                     view_func=routes.get_admindata)

    #  afficher-vue-calcul-impot
    app.add_url_rule(f'{prefix_url}/afficher-vue-calcul-impot{csrftoken_param}', methods=['GET'],
                     view_func=routes.afficher_vue_calcul_impot)

    #  display-view-authentication
    app.add_url_rule(f'{prefix_url}/afficher-vue-authentification{csrftoken_param}', methods=['GET'],
                     view_func=routes.afficher_vue_authentification)

    #  display-view-list-simulations
    app.add_url_rule(f'{prefix_url}/afficher-vue-liste-simulations{csrftoken_param}', methods=['GET'],
                     view_func=routes.afficher_vue_liste_simulations)

    #  display-view-error_list
    app.add_url_rule(f'{prefix_url}/afficher-vue-liste-erreurs{csrftoken_param}', methods=['GET'],
                     view_func=routes.afficher_vue_liste_erreurs)

    #  special case
    if with_csrftoken:
        #  init-session-without-csrftoken for json and xml clients
        app.add_url_rule(f'{prefix_url}/init-session-without-csrftoken', methods=['GET'],
                         view_func=routes.init_session_without_csrftoken)
  • lines 6–8: the Flask application is created and added to the configuration;
  • lines 10–14: The route file appropriate for the situation is imported. Note that the imported file actually contains no routes; it contains only the functions associated with them;
  • line 17: the functions associated with the routes need to know the application’s configuration;
  • line 20: We specify the URL prefix. This can be empty;
  • lines 22–27: Routes with a CSRF token have an additional parameter compared to those without one. To handle this difference, we use the [csrftoken_param] variable:
    • it contains an empty string if there is no CSRF token in the routes;
    • it contains the string [/<string:csrf_token>] if there is a CSRF token;
  • lines 29–96: Each route in the application is associated with a function from the routes file imported in lines 10–14;

36.3. The new controllers

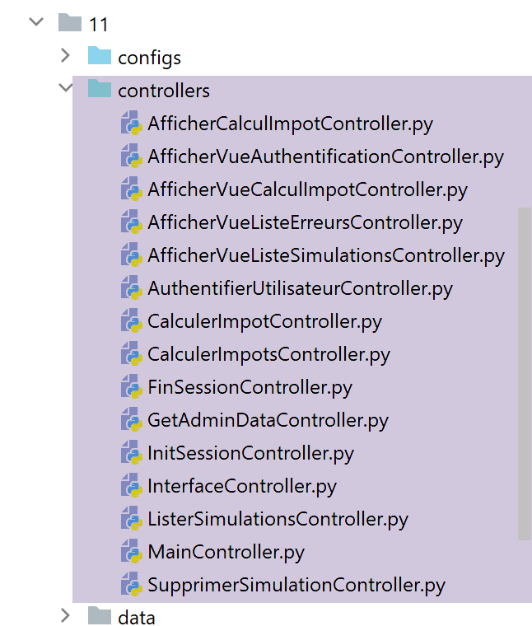

In the previous version, all controllers obtained the currently processed action as follows:

1
2
3
4
    def execute(self, request: LocalProxy, session: LocalProxy, config: dict) -> (dict, int):
        #  path elements are retrieved
        params = request.path.split('/')
        action = params[1]

This code no longer works if there is a prefix, for example [/do/lister-simulations]. In this case, the action on line 3 would be [do] and would therefore be incorrect.

We modify this code as follows:

1
2
3
4
5
    def execute(self, request: LocalProxy, session: LocalProxy, config: dict) -> (dict, int):
        #  path elements are retrieved
        prefix_url = config["parameters"]["prefix_url"]
        params = request.path[len(prefix_url):].split('/')
        action = params[1]

We do this in all controllers.

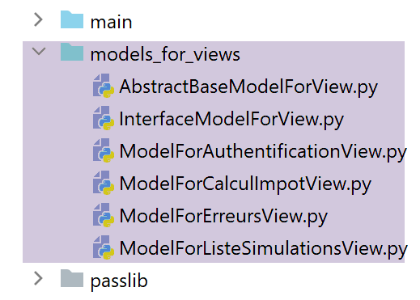

36.4. The new models


In the previous version, each model class generated a model as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
def get_model_for_view(self, request: Request, session: LocalProxy, config: dict, résultat: dict) -> dict:
        #  we encapsulate the paged data in the model
        modèle = {}
        #  application status
        état = résultat["état"]
        #  the model depends on the state
        …

        #  csrf token
        modèle['csrf_token'] = super().get_csrftoken(config)

        #  possible actions from the view
        modèle['actions_possibles'] = […]

        #  we render the model
        return modèle

Now the model will have an additional key, the URL prefix:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
def get_model_for_view(self, request: Request, session: LocalProxy, config: dict, résultat: dict) -> dict:
        #  we encapsulate the paged data in the model
        modèle = {}
        #  application status
        état = résultat["état"]
        #  the model depends on the state
        …

        #  csrf token
        modèle['csrf_token'] = super().get_csrftoken(config)

        #  possible actions from the view
        modèle['actions_possibles'] = […]

        #  URL prefix
        modèle["prefix_url"] = config["parameters"]["prefix_url"]

        #  we render the model
        return modèle

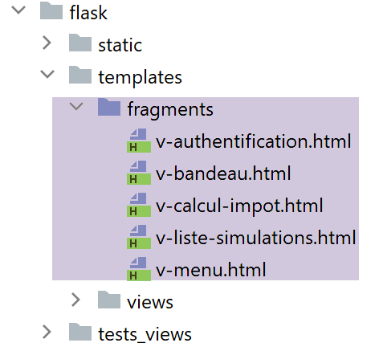

36.5. The new fragments


All fragments containing URLs must be modified.

The [v-authentication] fragment


<!-- form HTML - post its values with the [authenticate-user] action -->
<form method="post" action="{{modèle.prefix_url}}/authentifier-utilisateur{{modèle.csrf_token}}">

    <!-- title -->
    <div class="alert alert-primary" role="alert">
        <h4>Veuillez vous authentifier</h4>
    </div>
…

</form>

The [v-calcul-impot] fragment


<!-- form HTML posted -->
<form method="post" action="{{modèle.prefix_url}}/calculer-impot{{modèle.csrf_token}}">
    <!-- 12-column message on blue background -->
    …

</form>

The [v-liste-simulations] fragment


…

{% if modèle.simulations is defined and modèle.simulations|length!=0 %}
…

<!-- simulation table -->
<table class="table table-sm table-hover table-striped">
    …
    <tr>
        <th scope="row">{{simulation.id}}</th>
        <td>{{simulation.marié}}</td>
        <td>{{simulation.enfants}}</td>
        <td>{{simulation.salaire}}</td>
        <td>{{simulation.impôt}}</td>
        <td>{{simulation.surcôte}}</td>
        <td>{{simulation.décôte}}</td>
        <td>{{simulation.réduction}}</td>
        <td>{{simulation.taux}}</td>
        <td><a href="{{modèle.prefix_url}}/supprimer-simulation/{{simulation.id}}{{modèle.csrf_token}}">Supprimer</a></td>
    </tr>
    {% endfor %}
    </tr>
    </tbody>
</table>
{% endif %}

The [v-menu] fragment


<!-- bootstrap menu -->
<nav class="nav flex-column">
    <!-- display a list of links HTML -->
    {% for optionMenu in modèle.optionsMenu %}
    <a class="nav-link" href="{{modèle.prefix_url}}{{optionMenu.url}}{{modèle.csrf_token}}">{{optionMenu.text}}</a>
    {% endfor %}
</nav>

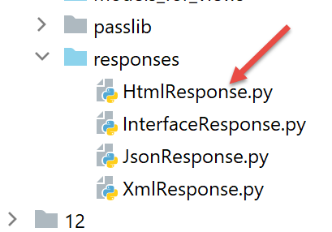

36.6. The new HTML response


In the previous version, the HTML response code ended with a redirect:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
class HtmlResponse(InterfaceResponse):

    def build_http_response(self, request: LocalProxy, session: LocalProxy, config: dict, status_code: int,
                            résultat: dict) -> (Response, int):
        #  the HTML response depends on the status code returned by the controller
        état = résultat["état"]

        …

        #  now it's time to generate the URL redirection, not forgetting the CSRF token if requested
        if config['parameters']['with_csrftoken']:
            csrf_token = f"/{generate_csrf()}"
        else:
            csrf_token = ""

        #  redirect response
        return redirect(f"{ads['to']}{csrf_token}"), status.HTTP_302_FOUND

This code now becomes the following:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
def build_http_response(self, request: LocalProxy, session: LocalProxy, config: dict, status_code: int,
                            résultat: dict) -> (Response, int):
        …

        #  now it's time to generate the URL redirection, not forgetting the CSRF token if requested
        if config['parameters']['with_csrftoken']:
            csrf_token = f"/{generate_csrf()}"
        else:
            csrf_token = ""

        #  redirect response
        return redirect(f"{config['parameters']['prefix_url']}{ads['to']}{csrf_token}"), status.HTTP_302_FOUND

36.7. Tests

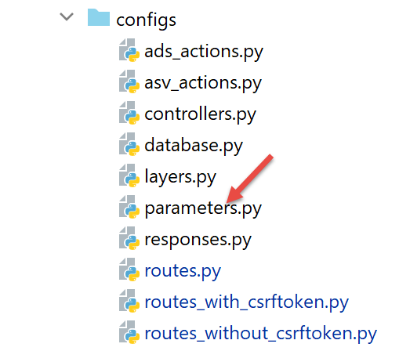

Let's add the following prefix to the [parameters] configuration file:


…
        # token csrf
        "with_csrftoken": True,
        # bases gérées MySQL (mysql), PostgreSQL (pgres)
        "databases": ["mysql", "pgres"],
        # préfixe des URL de l'application
        # mettre la chaîne vide si on ne veut pas de préfixe ou /préfixe sinon
        "prefix_url": "/do",
…

Let’s launch the application and then request the URL [http://localhost:5000/do]; the response is as follows:


  • in [1], the URL prefix;
  • in [2], the CSRF token;

The application can also be tested using the console tests from [http-clients/09]:

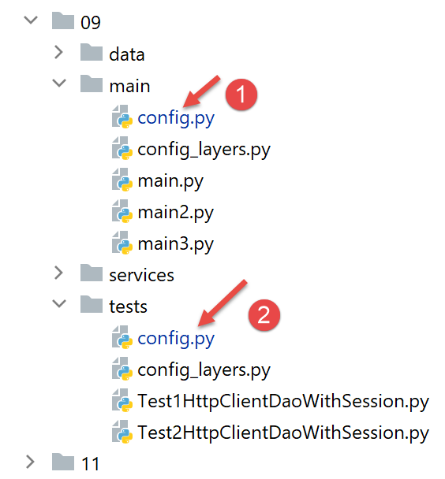

In the configuration files [1] and [2], the URL prefix must be included in the server URL:


        "server": {
            # "urlServer": "http://127.0.0.1:5000",
            "urlServer": "http://127.0.0.1:5000/do",
            "user": {
                "login": "admin",
                "password": "admin"
            },
            "url_services": {
                …
            }
  • Line 3: The server URL now includes the URL prefix;

With this change, all console tests should work.

https://stahe.github.io
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
