29. Application exercise: version 11

29.1. Introduction

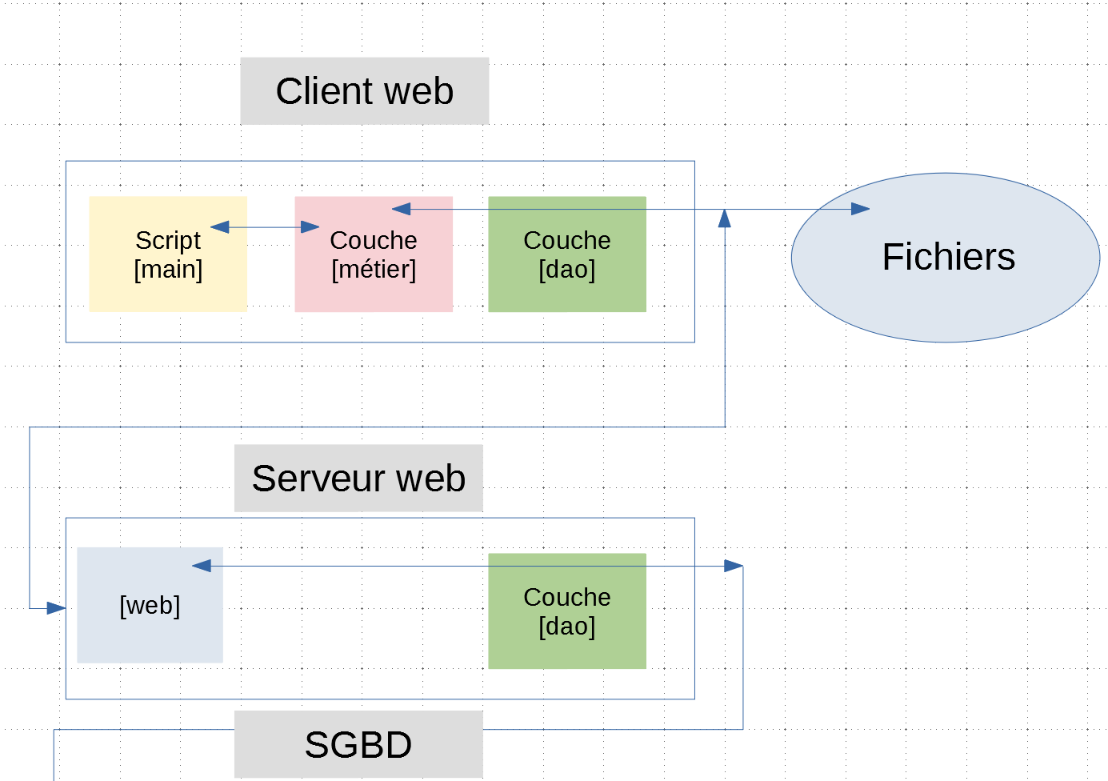

In previous versions of the client/server tax calculation application, the [business logic] layer that implements the business rules for this calculation was on the server side. We now propose to move it to the client side. What is the benefit? Some of the work previously done by the server will be moved to the client side. Consider a scenario where a server is queried by N clients; N tax business calculations will be performed by the clients. In previous versions, the server performed these N business calculations. Because it no longer performs the business calculation, the server will respond more quickly to its clients and will therefore be able to serve more of them simultaneously.

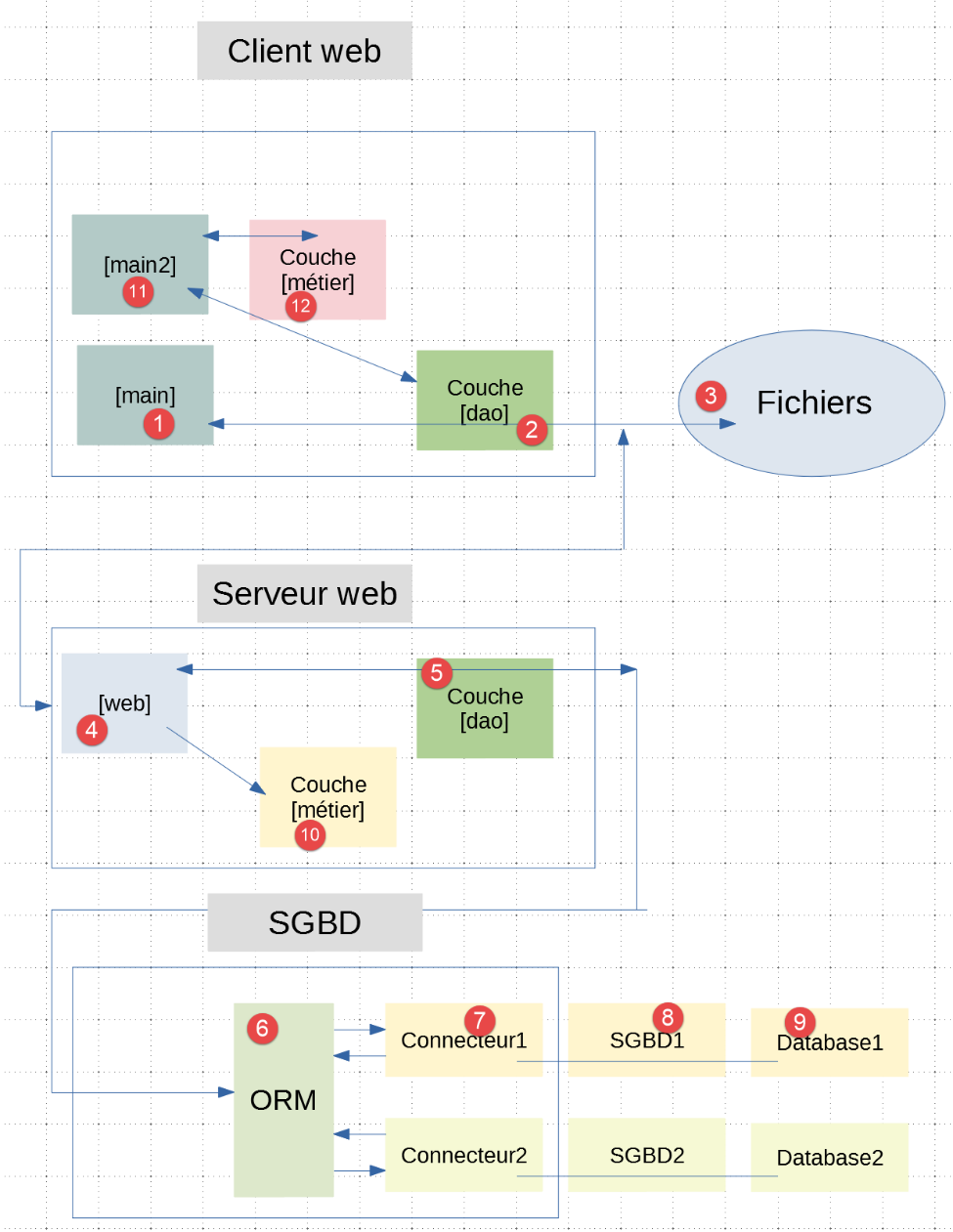

The client/server architecture becomes as follows:


  • the [business] layer [10] has been duplicated [12] on the client;
  • a new script [main2] [11] has been added to the client;

The web client will have two ways to calculate the tax for the list of taxpayers found in [3]:

  • use the method from the previous version. It uses the server’s [business] layer [10]. The [main] script will use this method;
  • simply request the tax authority data from the server [2-4] and then use the client-side [business] layer [12];

We will compare the performance of the two methods.

29.2. The web server

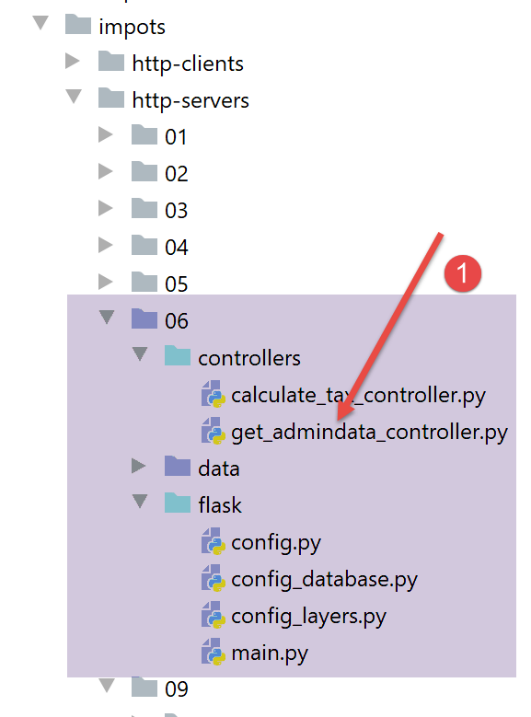

The web server directory structure will be as follows:


  • The [http-servers/06] directory is initially created by copying the [http-servers/05] directory. We will indeed retain the features of the previous version 10. We will simply add a new feature to it. This is implemented by the presence of a new controller [get_admindata_controller] [1]. The other controller [calculate_tax_controller] is none other than the old [index_controller] that has been renamed;

29.3. Configuration

The server will offer two service URLs:

  • [/calculate-tax] to calculate the tax for a list of taxpayers passed in the body of a POST request. It therefore corresponds to the [/] URL from the previous version 10;
  • [/get-admindata] returns the JSON string of tax administration data;

The configuration [config] associates each of these URLs with the controller that handles it:

1
2
3
4
    #  web application controller dictionary
    import calculate_tax_controller, get_admindata_controller
    controllers = {"calculate-tax": calculate_tax_controller, "get-admindata": get_admindata_controller}
    config['controllers'] = controllers

29.4. The main script [main]

The main script [main] restructures the [main] script from the previous version:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
#  a mysql or pgres parameter is expected
import sys
syntaxe = f"{sys.argv[0]} mysql / pgres"
erreur = len(sys.argv) != 2
if not erreur:
    sgbd = sys.argv[1].lower()
    erreur = sgbd != "mysql" and sgbd != "pgres"
if erreur:
    print(f"syntaxe : {syntaxe}")
    sys.exit()

#  configure the application
import config
config = config.configure({'sgbd': sgbd})

#  dependencies
…

#  data recovery from tax authorities
erreur = False
try:
    #  admindata will be read-only application data
    config["admindata"] = config["layers"]["dao"].get_admindata()
    #  success log
    logger.write("[serveur] connexion à la base de données réussie\n")
except ImpôtsError as ex:
    #  we note the error
    …
…
#  if there has been an error, we stop
if erreur:
    sys.exit(2)

#  the Flask application can be started
app = Flask(__name__)

#  main controller
def main_controller() -> tuple:
    #  the requested action is retrieved
    dummy, action=request.path.split('/')
    logger = None
    try:
        #  logger
        logger = Logger(config["logsFilename"])
        #  we store it in a config associated with the thread
        thread_config = {"logger": logger}
        thread_name = threading.current_thread().name
        config[thread_name] = {"config": thread_config}
        #  log the request
        logger.write(f"[index] requête : {request}\n")
        #  the thread is interrupted if requested
        sleep_time = config["sleep_time"]
        if sleep_time != 0:
            #  pause is randomized so that some threads are interrupted and others not
            aléa = randint(0, 1)
            if aléa == 1:
                #  log before break
                logger.write(f"[index] mis en pause du thread pendant {sleep_time} seconde(s)\n")
                #  break
                time.sleep(sleep_time)
        #  the request is executed by the request controller
        controller = config['controllers'][action]
        résultat, status_code = controller.execute(request, config)
        #  was there a fatal error?
        if status_code == status.HTTP_500_INTERNAL_SERVER_ERROR:
            #  send an e-mail to the application administrator
            config_mail = config["adminMail"]
            config_mail["logger"] = logger
            SendAdminMail.send(config_mail, json.dumps(résultat, ensure_ascii=False))
        #  we log the answer
        logger.write(f"[index] {résultat}\n")
        #  we send the answer
        print(résultat)
        return json_response(résultat, status_code)
    except BaseException as erreur:
        #  log the error if possible
        if logger:
            logger.write(f"[index] {erreur}")
        #  we prepare the response to the customer
        résultat = {"réponse": {"erreurs": [f"{erreur}"]}}
        #  we send the answer
        return json_response(résultat, status.HTTP_500_INTERNAL_SERVER_ERROR)
    finally:
        #  close the log file if it has been opened
        if logger:
            logger.close()

#  tAX CALCULATION
@app.route('/calculate-tax', methods=['POST'])
@auth.login_required
def calculate_tax():
    #  we hand over to the main controller
    return main_controller()

#  obtain data from tax authorities
@app.route('/get-admindata', methods=['GET'])
@auth.login_required
def get_admindata():
    #  we hand over to the main controller
    return main_controller()

#  hand only
if __name__ == '__main__':
    #  start the server
    app.config.update(ENV="development", DEBUG=True)
    app.run(threaded=True)
  • lines 88–93: the [calculate_tax] function handles the URL [/calculate-tax];
  • lines 95–100: the [get_admindata] function handles the URL [/get-admindata];
  • These two functions do nothing on their own. They immediately hand control over to the main controller [main_controller] in lines 37–86;
  • lines 37–86: the main controller [main_controller] is nothing more than the [index] function from the previous version, with one minor difference: whereas the [index] function handled only a single URL, here [main_controller] handles two URLs. It must therefore have these processed by one of the two controllers [calculate_tax_controller, get_admin_data_controller];
  • Lines 39–40: We retrieve the requested action [calculate_tax] or [get_admindata]. This information is in the URL path [request.path]. Depending on the case, [request.path] is either [/get-admindata] or [/calculate_tax]. The split on line 40 will yield two elements:
    • the empty string for the part preceding the /;
    • the name of the requested action for the part following the /;
  • lines 62-63: once the URL action has been retrieved, we know which controller to use to handle the URL. This information is in the configuration [config];

29.5. Controllers

The [calculate_tax_controller] is none other than the [index_controller] from the previous version.

The [get_admindata_controller] controller is as follows:

1
2
3
4
5
6
from flask_api import status
from werkzeug.local import LocalProxy

def execute(request: LocalProxy, config: dict) -> tuple:
    #  we return the answer
    return {"réponse": {"result": config["admindata"].asdict()}}, status.HTTP_200_OK
  • The URL [/get-admindata] must return the JSON string of the tax administration data;
  • line 6: this data was retrieved by the main script [main] and placed in the dictionary [config] as an [AdminData] object. We return the dictionary of this object;

29.6. Postman Tests

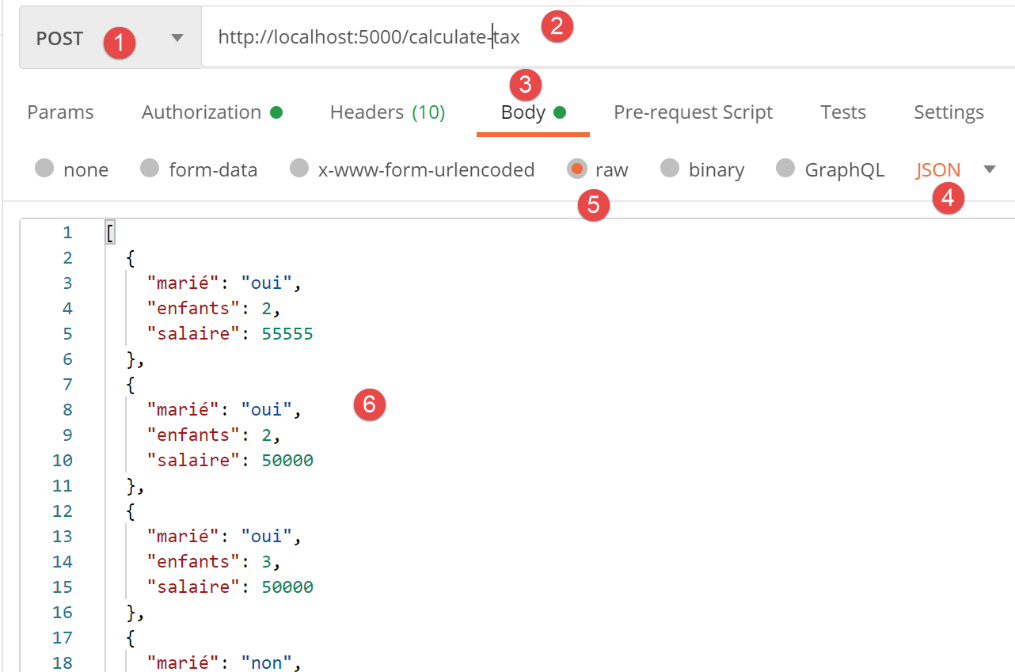

We start the web server, the DBMS, and the mail server [hMailServer]. Then, using a Postman client, we calculate the tax for several taxpayers:


In the Postman console, the client/server dialogue is as follows:


POST /calculate-tax HTTP/1.1
Authorization: Basic YWRtaW46YWRtaW4=
Content-Type: application/json
User-Agent: PostmanRuntime/7.26.2
Accept: */*
Cache-Control: no-cache
Postman-Token: 5e71461a-fec8-4315-85e8-41721de939e5
Host: localhost:5000
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
Content-Length: 824

[
{
"marié": "oui",
"enfants": 2,
"salaire": 55555
},
…
{
"marié": "oui",
"enfants": 3,
"salaire": 200000
}
]

HTTP/1.0 200 OK
Content-Type: application/json; charset=utf-8
Content-Length: 1461
Server: Werkzeug/1.0.1 Python/3.8.1
Date: Wed, 29 Jul 2020 07:02:07 GMT

{"réponse": {"results": [{"marié": "oui", "enfants": 2, "salaire": 55555, "impôt": 2814, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}, {"marié": "oui", "enfants": 2, "salaire": 50000, "impôt": 1384, "surcôte": 0, "taux": 0.14, "décôte": 384, "réduction": 347…]}}

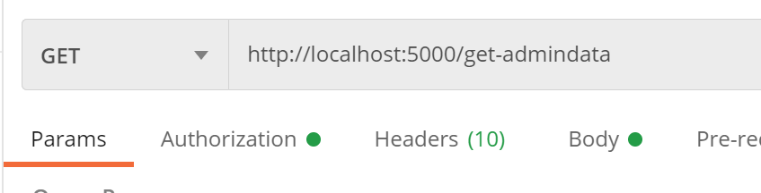

Now let’s request the URL [/get-admindata] with a GET request:


The client/server dialogue in the Postman console is as follows:


GET /get-admindata HTTP/1.1
Authorization: Basic YWRtaW46YWRtaW4=
User-Agent: PostmanRuntime/7.26.2
Accept: */*
Cache-Control: no-cache
Postman-Token: 4af342c4-7ecb-4ab2-9e12-d653f81da424
Host: localhost:5000
Accept-Encoding: gzip, deflate, br
Connection: keep-alive

HTTP/1.0 200 OK
Content-Type: application/json; charset=utf-8
Content-Length: 596
Server: Werkzeug/1.0.1 Python/3.8.1
Date: Wed, 29 Jul 2020 07:07:24 GMT

{"réponse": {"result": {"limites": [9964.0, 27519.0, 73779.0, 156244.0, 93749.0], "coeffr": [0.0, 0.14, 0.3, 0.41, 0.45], "coeffn": [0.0, 1394.96, 5798.0, 13913.7, 20163.4], "plafond_decote_couple": 1970.0, "valeur_reduc_demi_part": 3797.0, "plafond_revenus_celibataire_pour_reduction": 21037.0, "plafond_qf_demi_part": 1551.0, "abattement_dixpourcent_max": 12502.0, "plafond_impot_celibataire_pour_decote": 1595.0, "plafond_decote_celibataire": 1196.0, "plafond_revenus_couple_pour_reduction": 42074.0, "id": 1, "abattement_dixpourcent_min": 437.0, "plafond_impot_couple_pour_decote": 2627.0}}}

29.7. The web client

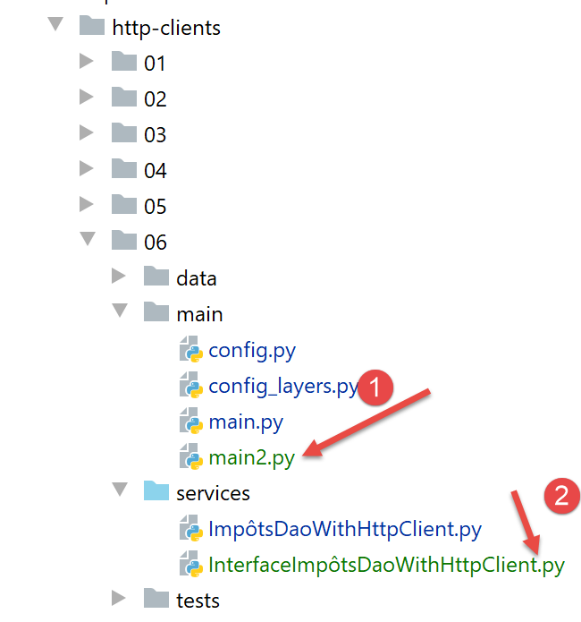

The [http-clients/06] folder is initially created by copying the [http-clients/05] folder. The modification work essentially consists of:

  • modifying the [config_layers] configuration so that it now includes a [business] layer. Previously, it only had a [DAO] layer;
  • adding a new method to the [dao] layer;
  • writing a script [main2] that will rely on the client’s [business] layer to calculate taxpayers’ taxes;

29.7.1. Client Layer Configuration

Layer configuration occurs in two places:

  • in the [config] configuration, which must include the folder containing the [business] layer implementation in the client’s dependencies. This folder was already included in the dependencies:

absolute_dependencies = [
        # dossiers du projet
        # BaseEntity, MyException
        f"{root_dir}/classes/02/entities",
        # InterfaceImpôtsDao, InterfaceImpôtsMétier, InterfaceImpôtsUi
        f"{root_dir}/impots/v04/interfaces",
        # AbstractImpôtsdao, ImpôtsConsole, ImpôtsMétier
        f"{root_dir}/impots/v04/services",
        # ImpotsDaoWithAdminDataInDatabase
        f"{root_dir}/impots/v05/services",
        # AdminData, ImpôtsError, TaxPayer
        f"{root_dir}/impots/v04/entities",
        # Constantes, tranches
        f"{root_dir}/impots/v05/entities",
        # ImpôtsDaoWithHttpClient
        f"{script_dir}/../services",
        # scripts de configuration
        script_dir,
        # Logger
        f"{root_dir}/impots/http-servers/02/utilities",
    ]

Then the [config_layers] file must be modified:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
def configure(config: dict) -> dict:
    #  instantiation of applicatuon layers

    #  layer [profession]
    from ImpôtsMétier import ImpôtsMétier
    métier = ImpôtsMétier()

    #  dao layer
    from ImpôtsDaoWithHttpClient import ImpôtsDaoWithHttpClient
    dao = ImpôtsDaoWithHttpClient(config)

    #  make the layer configuration
    return {
        "dao": dao,
        "métier": métier
    }
  • lines 4–6: instantiation of the [business] layer;
  • lines 13-16: the [business] layer is returned in the layer dictionary;

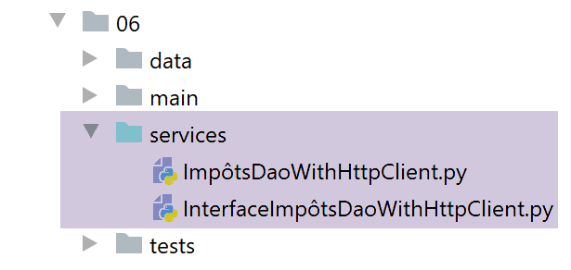

29.7.2. Implementation of the [dao] layer


The [dao] layer will implement the following [InterfaceImpôtsDaoWithHttpClient] interface:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from abc import abstractmethod

from AbstractImpôtsDao import AbstractImpôtsDao

class InterfaceImpôtsDaoWithHttpClient(AbstractImpôtsDao):

    #  tAX CALCULATION
    @abstractmethod
    def calculate_tax_in_bulk_mode(self, taxpayers: list):
        pass
  • line 5: the interface [InterfaceImpôtsDaoWithHttpClient] inherits from the abstract class [AbstractImpôtsDao], which manages access to the client’s file system. Note that it has an abstract method [get_admindata];
  • lines 7–10: the method [calculate_tax_in_bulk_mode] that we defined in the previous version allows for the calculation of tax for a list of taxpayers;

This interface is implemented by the following [ImpôtsDaoWithHttpClient] class:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
#  imports

import json

import requests
from flask_api import status

from AbstractImpôtsDao import AbstractImpôtsDao
from AdminData import AdminData
from ImpôtsError import ImpôtsError
from InterfaceImpôtsDaoWithHttpClient import InterfaceImpôtsDaoWithHttpClient

class ImpôtsDaoWithHttpClient(InterfaceImpôtsDaoWithHttpClient):

    #  manufacturer
    def __init__(self, config: dict):
        #  parent initialization
        AbstractImpôtsDao.__init__(self, config)
        #  saving configuration items
        #  general configuration
        self.__config = config
        #  server
        self.__config_server = config["server"]
        #  debug mode
        self.__debug = config["debug"]
        #  logger
        self.__logger = None

    def get_admindata(self) -> AdminData:
        #  we let the exceptions rise

        #  service url
        config_server = self.__config_server
        config_services = config_server['url_services']
        url_service = f"{config_server['urlServer']}{config_services['get-admindata']}"

        #  connection
        if config_server['authBasic']:
            response = requests.get(url_service,
                                    auth=(
                                        config_server["user"]["login"],
                                        config_server["user"]["password"]))
        else:
            response = requests.get(url_service)

        #  debug mode?
        if self.__debug:
            #  logger
            if not self.__logger:
                self.__logger = self.__config['logger']
            #  log on
            self.__logger.write(f"{response.text}\n")

        #  status code
        status_code = response.status_code
        #  result in the form of a dictionary
        résultat = json.loads(response.text)
        #  if status code other than 200 OK
        if status_code != status.HTTP_200_OK:
            raise ImpôtsError(58, résultat['réponse']['erreurs'])
        #  return the result (a dictionary)
        return AdminData().fromdict(résultat["réponse"]["result"])

    #  bulk tax calculation
    def calculate_tax_in_bulk_mode(self, taxpayers: list):
        #  we let the exceptions rise

        …
  • line 13: the [TaxDaoWithHttpClient] class implements the [TaxDaoWithHttpClientInterface] interface. It therefore derives from the [AbstractTaxDao] class;
  • lines 65–66: the [calculate_tax_in_bulk_mode] method discussed in the previous version;
  • lines 29–62: the [get_admindata] method, which the parent class [AbstractImpôtsDao] has declared as abstract. It is therefore implemented in the child class;
  • lines 33–35: the URL of the web service that the [get-admindata] method must query is determined. These service URLs are defined in the client’s [config] configuration:

       # le serveur de calcul de l'impôt
        "server": {
            "urlServer": "http://127.0.0.1:5000",
            "authBasic": True,
            "user": {
                "login": "admin",
                "password": "admin"
            },
            "url_services": {
                "calculate-tax": "/calculate-tax",
                "get-admindata": "/get-admindata"
            }
        },
  • (continued)
    • lines 9–12: the two web server URLs;
  • lines 37–44: the service URL is queried synchronously;
  • lines 46–42: if the configuration requires it, the server’s response is logged;
  • line 57: we know that the server sent a JSON string of a dictionary;
  • lines 58–60: if the HTTP status of the response is not 200, then an exception is thrown;
  • lines 61-62: the [AdminData] object encapsulating the tax administration data sent by the server is returned;

29.8. The [main, main2] scripts

The [main] script is the one from the previous version. It uses the [calculate_tax_in_bulk_mode] method from the [dao] layer and therefore uses the server’s [business] layer;

The [main2] script does the same thing as the [main] script but uses the client’s [business] layer:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
#  configure the application

import config
config = config.configure({})

#  dependencies
from ImpôtsError import ImpôtsError
from Logger import Logger

logger = None
#  code
try:
    #  logger
    logger = Logger(config["logsFilename"])
    #  we save it in the config
    config["logger"] = logger
    #  start log
    logger.write("début du calcul de l'impôt des contribuables\n")
    #  we recover the [dao] layer
    dao = config["layers"]["dao"]
    #  we get the taxpayers back
    taxpayers = dao.get_taxpayers_data()["taxpayers"]
    #  taxpayers?
    if not taxpayers:
        raise ImpôtsError(36, f"Pas de contribuables valides dans le fichier {config['taxpayersFilename']}")
    #  we retrieve data from the tax authorities
    admindata = dao.get_admindata()
    #  calculation of taxpayers' taxes by the [business] layer
    métier = config['layers']['métier']
    for taxpayer in taxpayers:
        métier.calculate_tax(taxpayer, admindata)
    #  save the results in the jSON file
    dao.write_taxpayers_results(taxpayers)
#  except BaseException as error:
#      # error display
#      print(f "The following error has occurred: {error}")
finally:
    #  close the logger
    if logger:
        #  end log
        logger.write("fin du calcul de l'impôt des contribuables\n")
        #  closing the logger
        logger.close()
    #  we're done
    print("Travail terminé...")
  • lines 26-27: retrieve data from the tax authority’s server;
  • lines 28-31: then the taxpayers' tax is calculated locally;

29.9. Client tests

In each of the scripts [main, main2], we log the start and end of the script. This allows us to calculate the script’s execution time. Let’s make some predictions:

  • the [main] script from the previous version:
    • creates N threads that run simultaneously;
    • each thread processes a batch of taxpayers for whom it calculates the tax via a single request to the server;
    • because the N threads run simultaneously, the N+1 request is sent before the N request has received its response. Thus, the N requests cost more than a single request but probably not much more. There are also 11 (the number of taxpayers) business calculations on the server;
  • the [main2] script in this version:
    • makes a single request to the server;
    • performs 11 business calculations locally on the client;

The business calculations will take the same amount of time whether performed on the server or the client. The difference will therefore lie in the requests. We can therefore expect the execution time of [main] to be slightly longer than that of [main2].

We launch the version 11 server, the DBMS, and the [hMailServer] mail server. On the server side, we set the [sleep_time] parameter to zero so that both tests are executed under the same conditions.

Execution 1 [main]

The execution of [main] produces the following logs:


2020-07-29 14:35:50.016079, MainThread : début du calcul de l'impôt des contribuables
2020-07-29 14:35:50.016079, Thread-1 : début du calcul de l'impôt des 1 contribuables
2020-07-29 14:35:50.016079, Thread-2 : début du calcul de l'impôt des 4 contribuables
2020-07-29 14:35:50.016079, Thread-3 : début du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.016079, Thread-4 : début du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.024426, Thread-5 : début du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.050473, Thread-1 : {"réponse": {"results": [{"marié": "oui", "enfants": 2, "salaire": 55555, "impôt": 2814, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}]}}
2020-07-29 14:35:50.050473, Thread-1 : fin du calcul de l'impôt des 1 contribuables
2020-07-29 14:35:50.050473, Thread-3 : {"réponse": {"results": [{"marié": "oui", "enfants": 3, "salaire": 100000, "impôt": 9200, "surcôte": 2180, "taux": 0.3, "décôte": 0, "réduction": 0}, {"marié": "oui", "enfants": 5, "salaire": 100000, "impôt": 4230, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}]}}
2020-07-29 14:35:50.051214, Thread-3 : fin du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.051214, Thread-5 : {"réponse": {"results": [{"marié": "non", "enfants": 0, "salaire": 200000, "impôt": 64210, "surcôte": 7498, "taux": 0.45, "décôte": 0, "réduction": 0}, {"marié": "oui", "enfants": 3, "salaire": 200000, "impôt": 42842, "surcôte": 17283, "taux": 0.41, "décôte": 0, "réduction": 0}]}}
2020-07-29 14:35:50.051214, Thread-5 : fin du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.051214, Thread-2 : {"réponse": {"results": [{"marié": "oui", "enfants": 2, "salaire": 50000, "impôt": 1384, "surcôte": 0, "taux": 0.14, "décôte": 384, "réduction": 347}, {"marié": "oui", "enfants": 3, "salaire": 50000, "impôt": 0, "surcôte": 0, "taux": 0.14, "décôte": 720, "réduction": 0}, {"marié": "non", "enfants": 2, "salaire": 100000, "impôt": 19884, "surcôte": 4480, "taux": 0.41, "décôte": 0, "réduction": 0}, {"marié": "non", "enfants": 3, "salaire": 100000, "impôt": 16782, "surcôte": 7176, "taux": 0.41, "décôte": 0, "réduction": 0}]}}
2020-07-29 14:35:50.051214, Thread-2 : fin du calcul de l'impôt des 4 contribuables
2020-07-29 14:35:50.051214, Thread-4 : {"réponse": {"results": [{"marié": "non", "enfants": 0, "salaire": 100000, "impôt": 22986, "surcôte": 0, "taux": 0.41, "décôte": 0, "réduction": 0}, {"marié": "oui", "enfants": 2, "salaire": 30000, "impôt": 0, "surcôte": 0, "taux": 0.0, "décôte": 0, "réduction": 0}]}}
2020-07-29 14:35:50.051214, Thread-4 : fin du calcul de l'impôt des 2 contribuables
2020-07-29 14:35:50.051214, MainThread : fin du calcul de l'impôt des contribuables

The execution time was [051214-016079] nanoseconds (line 17 – line 1), i.e., 35 milliseconds and 135 nanoseconds.

We can see that between the first request made to the server and the last response received by the client, the duration is the same [051214-016079] (line 15 – line 1), 35 milliseconds and 135 nanoseconds.

Execution 2 [main2]

The execution of [main2] yields the following logs:


2020-07-29 14:41:03.303520, MainThread : début du calcul de l'impôt des contribuables
2020-07-29 14:41:03.345084, MainThread : {"réponse": {"result": {"limites": [9964.0, 27519.0, 73779.0, 156244.0, 13500.0], "coeffr": [0.0, 0.14, 0.3, 0.41, 0.45], "coeffn": [0.0, 1394.96, 5798.0, 13913.7, 20163.4], "plafond_decote_couple": 1970.0, "valeur_reduc_demi_part": 3797.0, "plafond_revenus_celibataire_pour_reduction": 21037.0, "plafond_qf_demi_part": 1551.0, "abattement_dixpourcent_max": 12502.0, "plafond_impot_celibataire_pour_decote": 1595.0, "plafond_decote_celibataire": 1196.0, "plafond_revenus_couple_pour_reduction": 42074.0, "id": 1, "abattement_dixpourcent_min": 437.0, "plafond_impot_couple_pour_decote": 2627.0}}}
2020-07-29 14:41:03.349975, MainThread : fin du calcul de l'impôt des contribuables

The execution time was [349975-303520] nanoseconds (line 3 - line 1), i.e., 46 milliseconds and 455 nanoseconds. Quite unexpectedly, [main] is faster than [main2].

We see that the single request from [main2] took [345084-303520] (line 2 – line 1), i.e., 41 milliseconds and 564 nanoseconds. The tax calculation then took [349975-345084] (line 3 – line 2), i.e., 4 milliseconds and 91 nanoseconds. It is the HTTP request that accounts for the execution time. Surprisingly, we see here that the single request from [main2] took longer [41 milliseconds] than the four simultaneous requests from [main] [35 milliseconds].

On the server side, the logs are as follows:


2020-07-29 14:35:27.047721, MainThread : [serveur] démarrage du serveur
2020-07-29 14:35:27.140927, MainThread : [serveur] connexion à la base de données réussie
2020-07-29 14:35:28.790716, MainThread : [serveur] démarrage du serveur
2020-07-29 14:35:28.847518, MainThread : [serveur] connexion à la base de données réussie
2020-07-29 14:35:50.039178, Thread-2 : [index] requête : <Request 'http://127.0.0.1:5000/calculate-tax' [POST]>
2020-07-29 14:35:50.039178, Thread-3 : [index] requête : <Request 'http://127.0.0.1:5000/calculate-tax' [POST]>
2020-07-29 14:35:50.043220, Thread-4 : [index] requête : <Request 'http://127.0.0.1:5000/calculate-tax' [POST]>
2020-07-29 14:35:50.044307, Thread-5 : [index] requête : <Request 'http://127.0.0.1:5000/calculate-tax' [POST]>
2020-07-29 14:35:50.045796, Thread-2 : [index] {'réponse': {'results': [{'marié': 'oui', 'enfants': 3, 'salaire': 100000, 'impôt': 9200, 'surcôte': 2180, 'taux': 0.3, 'décôte': 0, 'réduction': 0}, {'marié': 'oui', 'enfants': 5, 'salaire': 100000, 'impôt': 4230, 'surcôte': 0, 'taux': 0.14, 'décôte': 0, 'réduction': 0}]}}
2020-07-29 14:35:50.045796, Thread-3 : [index] {'réponse': {'results': [{'marié': 'oui', 'enfants': 2, 'salaire': 55555, 'impôt': 2814, 'surcôte': 0, 'taux': 0.14, 'décôte': 0, 'réduction': 0}]}}
2020-07-29 14:35:50.046825, Thread-6 : [index] requête : <Request 'http://127.0.0.1:5000/calculate-tax' [POST]>
2020-07-29 14:35:50.046825, Thread-6 : [index] {'réponse': {'results': [{'marié': 'oui', 'enfants': 2, 'salaire': 50000, 'impôt': 1384, 'surcôte': 0, 'taux': 0.14, 'décôte': 384, 'réduction': 347}, {'marié': 'oui', 'enfants': 3, 'salaire': 50000, 'impôt': 0, 'surcôte': 0, 'taux': 0.14, 'décôte': 720, 'réduction': 0}, {'marié': 'non', 'enfants': 2, 'salaire': 100000, 'impôt': 19884, 'surcôte': 4480, 'taux': 0.41, 'décôte': 0, 'réduction': 0}, {'marié': 'non', 'enfants': 3, 'salaire': 100000, 'impôt': 16782, 'surcôte': 7176, 'taux': 0.41, 'décôte': 0, 'réduction': 0}]}}
2020-07-29 14:35:50.046825, Thread-4 : [index] {'réponse': {'results': [{'marié': 'non', 'enfants': 0, 'salaire': 200000, 'impôt': 64210, 'surcôte': 7498, 'taux': 0.45, 'décôte': 0, 'réduction': 0}, {'marié': 'oui', 'enfants': 3, 'salaire': 200000, 'impôt': 42842, 'surcôte': 17283, 'taux': 0.41, 'décôte': 0, 'réduction': 0}]}}
2020-07-29 14:35:50.046825, Thread-5 : [index] {'réponse': {'results': [{'marié': 'non', 'enfants': 0, 'salaire': 100000, 'impôt': 22986, 'surcôte': 0, 'taux': 0.41, 'décôte': 0, 'réduction': 0}, {'marié': 'oui', 'enfants': 2, 'salaire': 30000, 'impôt': 0, 'surcôte': 0, 'taux': 0.0, 'décôte': 0, 'réduction': 0}]}}
2020-07-29 14:41:03.341582, Thread-7 : [index] requête : <Request 'http://127.0.0.1:5000/get-admindata' [GET]>
2020-07-29 14:41:03.341582, Thread-7 : [index] {'réponse': {'result': {'limites': [9964.0, 27519.0, 73779.0, 156244.0, 13500.0], 'coeffr': [0.0, 0.14, 0.3, 0.41, 0.45], 'coeffn': [0.0, 1394.96, 5798.0, 13913.7, 20163.4], 'plafond_decote_couple': 1970.0, 'valeur_reduc_demi_part': 3797.0, 'plafond_revenus_celibataire_pour_reduction': 21037.0, 'plafond_qf_demi_part': 1551.0, 'abattement_dixpourcent_max': 12502.0, 'plafond_impot_celibataire_pour_decote': 1595.0, 'plafond_decote_celibataire': 1196.0, 'plafond_revenus_couple_pour_reduction': 42074.0, 'id': 1, 'abattement_dixpourcent_min': 437.0, 'plafond_impot_couple_pour_decote': 2627.0}}}
  • line 5: the first request from the client [main];
  • line 14: the last response to the client [main]. There are 6 milliseconds and 647 nanoseconds between the two;
  • lines 15–16: the single request from client [main2]. The response is instantaneous;
https://stahe.github.io
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
