25. Application Exercise: Version 8

25.1. Introduction

We are going to write a new client/server application. The new feature of the server is that it will manage a session. Instead of placing the tax administration data in an [application] scope object, we will place it in a [session] scope object. Doing so will degrade the code’s performance. When an object can be shared in read-only mode by all users, it is preferable to make it an [application] scope object rather than a [session] scope object. We gain at least some bandwidth since this reduces the size of the session cookie. But we want to demonstrate a client/server application where the client and server exchange a session cookie.

The application architecture remains unchanged:


25.2. The web server

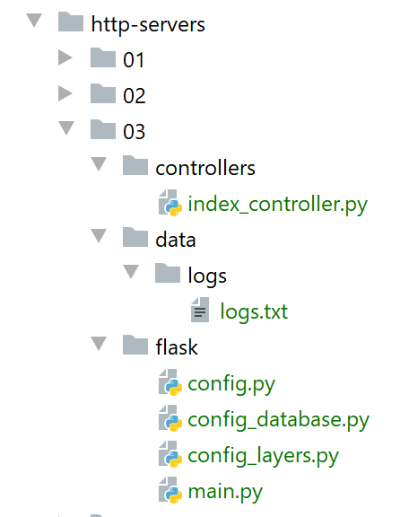

The directory structure of the server scripts is as follows:


The [http-servers/03] folder is initially created by copying the [http-servers/02] folder. Modifications are then made.

25.2.1. The configuration

It is the same as in the |previous version| with a few changes in the [config] script:


# dépendances absolues
    absolute_dependencies = [
        # dossiers du projet
        # BaseEntity, MyException
        f"{root_dir}/classes/02/entities",
        # InterfaceImpôtsDao, InterfaceImpôtsMétier, InterfaceImpôtsUi
        f"{root_dir}/impots/v04/interfaces",
        # AbstractImpôtsdao, ImpôtsConsole, ImpôtsMétier
        f"{root_dir}/impots/v04/services",
        # ImpotsDaoWithAdminDataInDatabase
        f"{root_dir}/impots/v05/services",
        # AdminData, ImpôtsError, TaxPayer
        f"{root_dir}/impots/v04/entities",
        # Constantes, Tranches
        f"{root_dir}/impots/v05/entities",
        # index_controller
        f"{script_dir}/../controllers",
        # scripts [config_database, config_layers]
        script_dir,
        # Logger, SendAdminMail
        f"{root_dir}/impots/http-servers/02/utilities",
    ]
  • line 17: we will rewrite a controller for the [index] function that handles the / URL;
  • line 21: we use the utilities from the |previous version|;

25.2.2. The main script [main]

The new [main] script introduces a few changes to the main [main] script from the previous version:


# l'application Flask peut démarrer
app = Flask(__name__)
# clé secrète de la session
app.secret_key = os.urandom(12).hex()
  • Line 4: We create a secret key for the application. We know this is necessary for session management;

Next, tax data is no longer requested in the [main] code. The following lines are removed:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
#  data recovery from tax authorities
erreur = False
try:
    #  admindata will be read-only application data
    config["admindata"] = config["layers"]["dao"].get_admindata()
    #  success log
    logger.write("[serveur] connexion à la base de données réussie\n")
except ImpôtsError as ex:
    #  we note the error
    erreur = True
    #  error log
    log = f"L'erreur suivante s'est produite : {ex}"
    #  console
    print(log)
    #  log file
    logger.write(f"{log}\n")
    #  mail to administrator
    send_adminmail(config, log)

Additionally, the [index_controller] controller accepts an additional parameter, the Flask session:

1
2
3
4
from flask import request, Flask, session
….
        #  the request is executed by a controller
        résultat, status_code = index_controller.execute(request, session, config)

25.2.3. The [index_controller] controller

The [index_controller] controller now manages a session:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#  import dependencies
import os
import re
import threading

from flask_api import status
from werkzeug.local import LocalProxy

#  URL set: /?married=xx&children=yy&salary=zz
from AdminData import AdminData
from ImpôtsError import ImpôtsError


def execute(request: LocalProxy, session: LocalProxy, config: dict) -> tuple:
    #  dependencies
    from TaxPayer import TaxPayer

    #  initially no errors
    erreurs = []
    …

    #  mistakes?
    if erreurs:
        #  an error response is returned to the client
        return {"réponse": {"erreurs": erreurs}}, status.HTTP_400_BAD_REQUEST

    #  no mistakes, we can work
    #  retrieve the config associated with the thread
    thread_name = threading.current_thread().name
    logger = config[thread_name]["config"]["logger"]
    #  execute the query
    réponse = None
    try:
        #  the simplest case - admindata is already in session
        if session.get('client_id') is not None:
            #  retrieve session information
            client_id = session.get('client_id')
            admindata = AdminData().fromdict(session.get('admindata'))
            #  log
            logger.write(f"[index_controller] client [{client_id}], données fiscales prises en session\n")
        else:
            #  data recovery from tax authorities
            admindata = config["layers"]["dao"].get_admindata()
            #  admindata session
            session['admindata'] = admindata.asdict()
            #  we give the customer a number and put it in the session
            #  this will allow us to track it in the server logs
            client_id = os.urandom(12).hex()
            session['client_id'] = client_id
            #  log
            logger.write(f"[index_controller] client [{client_id}], données fiscales prises dans la couche dao\n")
        #  tAX CALCULATION
        taxpayer = TaxPayer().fromdict({'marié': marié, 'enfants': enfants, 'salaire': salaire})
        config["layers"]["métier"].calculate_tax(taxpayer, admindata)
        #  we return the answer to the customer
        return {"réponse": {"result": taxpayer.asdict()}}, status.HTTP_200_OK
    except (BaseException, ImpôtsError) as erreur:
        #  we return the answer to the customer
        return {"réponse": {"erreurs": [f"{erreur}"]}}, status.HTTP_500_INTERNAL_SERVER_ERROR
  • line 14: the controller receives the current session from the web client;
  • lines 35–38: if the client has a session, then it contains two keys:
    • [client_id]: a client ID (line 37);
    • [admindata]: tax administration data in the form of a dictionary (line 38);
  • line 35: we check if the session contains one of the two expected keys;
  • lines 42–51: case where the client’s session has not yet been initialized;
    • line 43: retrieve tax authority data from the [dao] layer;
    • line 45: this data is placed in the session in the form of a dictionary;
    • line 48: a random number is assigned to the client. This number will be different for each client;
    • line 49: this number is stored in the session;
    • line 51: we log the fact that the tax authority data was retrieved by the [dao] layer. Access to the [dao] layer is generally costly. That is why it must be limited. The idea here is to retrieve the tax data from the [dao] layer once, store it in the session, and fetch it from there during subsequent requests from the same client. Note that this is not the best solution. Since the tax data from the administration is the same for all clients, it belongs in an application-scope object;
  • lines 35–40: case where the client’s session was initialized during a previous request;
    • line 37: retrieve the client ID from the session;
    • line 38: we retrieve the administration’s tax data from the session;
    • line 40: we log the fact that the client has obtained the administration’s tax data from the session;

25.3. The web client


25.3.1. The [dao] layer

25.3.1.1. The [ImpôtsDaoWithHttpSession] class

The [dao] layer is implemented by the following [ImpôtsDaoWithHttpSession] class:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
#  imports

import requests
from flask_api import status
from myutils import decode_flask_session

from AbstractImpôtsDao import AbstractImpôtsDao
from AdminData import AdminData
from ImpôtsError import ImpôtsError
from InterfaceImpôtsMétier import InterfaceImpôtsMétier
from TaxPayer import TaxPayer


class ImpôtsDaoWithHttpSession(AbstractImpôtsDao, InterfaceImpôtsMétier):

    #  manufacturer
    def __init__(self, config: dict):
        #  parent initialization
        AbstractImpôtsDao.__init__(self, config)
        #  saving configuration items
        #  general configuration
        self.__config = config
        #  server
        self.__config_server = config["server"]
        #  debug mode
        self.__debug = config["debug"]
        #  logger
        self.__logger = None
        #  cookies
        self.__cookies = None

    #  unused method
    def get_admindata(self) -> AdminData:
        pass

    #  tAX CALCULATION
    def calculate_tax(self, taxpayer: TaxPayer, admindata: AdminData = None):
        #  we let the exceptions rise
        #  get parameters
        params = {"marié": taxpayer.marié, "enfants": taxpayer.enfants, "salaire": taxpayer.salaire}
        #  connection with Auth Basic authentication?
        if self.__config_server['authBasic']:
            response = requests.get(
                #  URL of the queried server
                self.__config_server['urlServer'],
                #  URL parameters
                params=params,
                #  basic authentication
                auth=(
                    self.__config_server["user"]["login"],
                    self.__config_server["user"]["password"]),
                cookies=self.__cookies)

        else:
            #  connection without Auth Basic authentication
            response = requests.get(self.__config_server['urlServer'], params=params, cookies=self.__cookies)
        #  retrieve response cookies, if any
        if response.cookies:
            self.__cookies = response.cookies
            #  retrieve the session cookie
            session_cookie = response.cookies.get('session')
            #  we decode it to log it
            if session_cookie:
                #  logger
                if not self.__logger:
                    self.__logger = self.__config['logger']
                #  log on
                self.__logger.write(f"cookie de session={decode_flask_session(session_cookie)}\n")

        #  debug mode?
        if self.__debug:
            #  logger
            if not self.__logger:
                self.__logger = self.__config['logger']
            #  log on
            self.__logger.write(f"{response.text}\n")
        #  response status code HTTP
        status_code = response.status_code
        #  we put the response jSON in a dictionary
        résultat = response.json()
        #  error if status code other than 200 OK
        if status_code != status.HTTP_200_OK:
            #  we know that the errors have been associated with the [errors] key in the response
            raise ImpôtsError(87, résultat['réponse']['erreurs'])
        #  we know that the result has been associated with the [result] key in the response
        #  modify the input parameter with this result
        taxpayer.fromdict(résultat["réponse"]["result"])
  • line 30: the [dao] layer will manage a dictionary of cookies;
  • line 58: the [response.cookies] property is a dictionary containing the cookies sent by the server in the [Set-Cookie] HTTP headers;
  • line 59: these cookies are stored in the [dao] layer. They will be sent back to the server during subsequent requests from the same client;
  • lines 60–68: although not strictly necessary, we retrieve the session cookie. In the dictionary of cookies sent by the server, the session cookie is associated with the key [session];
  • lines 62–68: we decode the session cookie to log the user in;
  • line 68: we will return later to the [decode_flask_session] function, which decodes the session cookie;
  • lines 52 and 57: With each request from the same client, the cookies sent by the server are returned to it. This is how the Flask session is maintained between the client and the server;

We must now remember that the [dao] layer will be executed simultaneously by multiple threads. We must therefore examine all the properties of the class instance and see if simultaneous access to these properties poses a problem. Here we have added the [self.__cookies] property on line 30. This property is modified on line 59. We therefore have write access to data shared by all threads. However, this access poses a problem: each thread representing a given client has its own session cookie. In fact, it contains a unique client ID (=thread) for each client. If we do nothing, thread T2 can overwrite the cookies of thread T1.

We have already seen a method to handle this problem: we can create different keys for each thread in the [config] file passed as a parameter to the constructor (line 17). For example, we can use the thread name as the key:

  • line 59, we could write:

config[thread_name][‘cookies’]=cookies
  • on line 52, we could then write:

cookies=config[thread_name][‘cookies’]

Here, we’ll use a different technique: each thread (=client) will have its own [dao] layer. This way, line 59 is no longer an issue because the cookies used are those of a single client.

To do this, we will create a new class [ImpôtsDaoWithHttpSessionFactory].

25.3.1.2. The Flask session decoding function

The [decode_flask_session] function is defined in the [myutils] script:

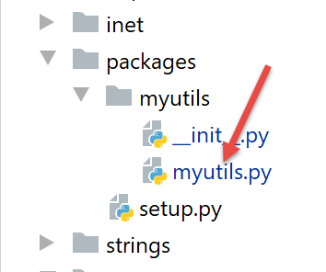

We have already studied the |myutils| script. This script is a machine-scope module that the various scripts in this course can import using the statement:

import myutils

In it, we define the [decode_flask_session] function as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
def decode_flask_session(cookie: str) -> str:
    #  source : https://www.kirsle.net/wizards/flask-session.cgi
    compressed = False
    payload = cookie

    if payload.startswith('.'):
        compressed = True
        payload = payload[1:]

    data = payload.split(".")[0]

    data = base64_decode(data)
    if compressed:
        data = zlib.decompress(data)

    return data.decode("utf-8")
  • line 2: the URL where I found this function;
  • line 1: the [cookie] parameter is the string associated with the [session] key in the dictionary of cookies received by a web client;
  • lines 3–16: I won’t comment on this code, as I don’t fully understand it;

We add a new import to the [__init__.py] file:


from .myutils import set_syspath, json_response, decode_flask_session

The new version of [myutils] is installed among the machine-wide modules using the [pip install .] command in a PyCharm terminal:


(venv) C:\Data\st-2020\dev\python\cours-2020\python3-flask-2020\packages>pip install .
Processing c:\data\st-2020\dev\python\cours-2020\python3-flask-2020\packages
Using legacy setup.py install for myutils, since package 'wheel' is not installed.
Installing collected packages: myutils
  Attempting uninstall: myutils
    Found existing installation: myutils 0.1
    Uninstalling myutils-0.1:
      Successfully uninstalled myutils-0.1
    Running setup.py install for myutils ... done
Successfully installed myutils-0.1
  • Line 1: You must be in the [packages] folder to enter this command;

25.3.1.3. The [ImpôtsDaoWithHttpSessionFactory] class

The [ImpôtsDaoWithHttpSessionFactory] class is as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
from ImpôtsDaoWithHttpSession import ImpôtsDaoWithHttpSession


class ImpôtsDaoWithHttpSessionFactory:

    def __init__(self, config: dict):
        #  the parameter
        self.__config = config

    def new_instance(self):
        #  render an instance of the [dao] layer
        return ImpôtsDaoWithHttpSession(self.__config)
  • The [ImpôtsDaoWithHttpSessionFactory] class allows us to create a new implementation of the [dao] layer using the [new_instance] method in lines 10–12;

25.3.2. Configuration

The [config_layers] script, which configures the web client layers, is modified as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
def configure(config: dict) -> dict:
    #  instantiation of applicatuon layers

    #  dao layer
    from ImpôtsDaoWithHttpSessionFactory import ImpôtsDaoWithHttpSessionFactory
    dao_factory = ImpôtsDaoWithHttpSessionFactory(config)

    #  make the layer configuration
    return {
        "dao_factory": dao_factory
    }
  • lines 5-6: instead of instantiating a single [DAO] layer as was done previously, we instantiate a ‘factory’ for this layer (factory = object production factory, in this case the [DAO] layer);
  • lines 9-11: we return the layer configuration;

25.3.3. The client’s main script

The [main] script has changed as follows compared to the previous version:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
#  configure the application

import config
config = config.configure({})

#  dependencies
from ImpôtsError import ImpôtsError
import random
import sys
import threading
from Logger import Logger


#  executing the [dao] layer in a thread
#  taxpayers is a list of taxpayers
def thread_function(thread_dao, logger, taxpayers: list):
    …


#  list of client threads
threads = []
logger = None
#  code
try:
    …
    l_taxpayers = len(taxpayers)
    while i < len(taxpayers):
        …
        #  each thread must have its own [dao] layer to properly manage its session cookie
        thread_dao = dao_factory.new_instance()
        #  create the thread
        thread = threading.Thread(target=thread_function, args=(thread_dao, logger, thread_taxpayers))
        #  we add it to the list of threads in the main script
        threads.append(thread)
        #  we launch the thread - this operation is asynchronous - we don't wait for the thread's result
        thread.start()
    #  the main thread waits for all threads it has launched to finish
    …
except BaseException as erreur:
    #  error display
    print(f"L'erreur suivante s'est produite : {erreur}")
finally:
    #  close the logger
    if logger:
        logger.close()
    #  we're done
    print("Travail terminé...")
    #  end of threads that might still exist if we stopped on error
    sys.exit()
  • lines 29-30: each thread has its own [dao] layer;

25.3.4. Client execution

The web server is launched, the DBMS is launched, the mail server [hMailServer] is launched. Then we launch the web client's [main] script. The execution logs in [data/logs/logs.txt] are then as follows:


2020-07-25 10:21:46.478511, Thread-1 : début du thread [Thread-1] avec 1 contribuable(s)
2020-07-25 10:21:46.479111, Thread-1 : début du calcul de l'impôt de {"id": 1, "marié": "oui", "enfants": 2, "salaire": 55555}
2020-07-25 10:21:46.479111, Thread-2 : début du thread [Thread-2] avec 1 contribuable(s)
2020-07-25 10:21:46.480195, Thread-3 : début du thread [Thread-3] avec 2 contribuable(s)
2020-07-25 10:21:46.480195, Thread-2 : début du calcul de l'impôt de {"id": 2, "marié": "oui", "enfants": 2, "salaire": 50000}
2020-07-25 10:21:46.481137, Thread-4 : début du thread [Thread-4] avec 3 contribuable(s)
2020-07-25 10:21:46.481137, Thread-3 : début du calcul de l'impôt de {"id": 3, "marié": "oui", "enfants": 3, "salaire": 50000}
2020-07-25 10:21:46.482279, Thread-5 : début du thread [Thread-5] avec 3 contribuable(s)
2020-07-25 10:21:46.482622, Thread-6 : début du thread [Thread-6] avec 1 contribuable(s)
2020-07-25 10:21:46.482622, Thread-4 : début du calcul de l'impôt de {"id": 5, "marié": "non", "enfants": 3, "salaire": 100000}
2020-07-25 10:21:46.485923, Thread-5 : début du calcul de l'impôt de {"id": 8, "marié": "non", "enfants": 0, "salaire": 100000}
2020-07-25 10:21:46.485923, Thread-6 : début du calcul de l'impôt de {"id": 11, "marié": "oui", "enfants": 3, "salaire": 200000}
2020-07-25 10:21:46.725910, Thread-4 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,90000.0],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"fa3c83b82761c83e13217967"}
2020-07-25 10:21:46.725910, Thread-4 : {"réponse": {"result": {"marié": "non", "enfants": 3, "salaire": 100000, "impôt": 16782, "surcôte": 7176, "taux": 0.41, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:46.725910, Thread-4 : fin du calcul de l'impôt de {"id": 5, "marié": "non", "enfants": 3, "salaire": 100000, "impôt": 16782, "surcôte": 7176, "taux": 0.41, "décôte": 0, "réduction": 0}
2020-07-25 10:21:46.726960, Thread-4 : début du calcul de l'impôt de {"id": 6, "marié": "oui", "enfants": 3, "salaire": 100000}
2020-07-25 10:21:47.514108, Thread-3 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,24999.5],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"700e3f5dc808c7c48f0c9007"}
2020-07-25 10:21:47.514610, Thread-3 : {"réponse": {"result": {"marié": "oui", "enfants": 3, "salaire": 50000, "impôt": 0, "surcôte": 0, "taux": 0.14, "décôte": 720, "réduction": 0}}}
2020-07-25 10:21:47.514939, Thread-3 : fin du calcul de l'impôt de {"id": 3, "marié": "oui", "enfants": 3, "salaire": 50000, "impôt": 0, "surcôte": 0, "taux": 0.14, "décôte": 720, "réduction": 0}
2020-07-25 10:21:47.514939, Thread-3 : début du calcul de l'impôt de {"id": 4, "marié": "non", "enfants": 2, "salaire": 100000}
2020-07-25 10:21:47.527211, Thread-5 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,90000.0],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"9e14a5d4a3057f69ab95ab2d"}
2020-07-25 10:21:47.527211, Thread-2 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,22500.0],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"a06e8fd70a44c9e311f4dce0"}
2020-07-25 10:21:47.527211, Thread-5 : {"réponse": {"result": {"marié": "non", "enfants": 0, "salaire": 100000, "impôt": 22986, "surcôte": 0, "taux": 0.41, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.527211, Thread-1 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,90000.0],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"28c38df998f67685b3a482b8"}
2020-07-25 10:21:47.527211, Thread-2 : {"réponse": {"result": {"marié": "oui", "enfants": 2, "salaire": 50000, "impôt": 1384, "surcôte": 0, "taux": 0.14, "décôte": 384, "réduction": 347}}}
2020-07-25 10:21:47.528341, Thread-5 : fin du calcul de l'impôt de {"id": 8, "marié": "non", "enfants": 0, "salaire": 100000, "impôt": 22986, "surcôte": 0, "taux": 0.41, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.528341, Thread-1 : {"réponse": {"result": {"marié": "oui", "enfants": 2, "salaire": 55555, "impôt": 2814, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.528842, Thread-2 : fin du calcul de l'impôt de {"id": 2, "marié": "oui", "enfants": 2, "salaire": 50000, "impôt": 1384, "surcôte": 0, "taux": 0.14, "décôte": 384, "réduction": 347}
2020-07-25 10:21:47.529349, Thread-5 : début du calcul de l'impôt de {"id": 9, "marié": "oui", "enfants": 2, "salaire": 30000}
2020-07-25 10:21:47.529699, Thread-1 : fin du calcul de l'impôt de {"id": 1, "marié": "oui", "enfants": 2, "salaire": 55555, "impôt": 2814, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.529699, Thread-2 : fin du thread [Thread-2]
2020-07-25 10:21:47.531905, Thread-1 : fin du thread [Thread-1]
2020-07-25 10:21:47.536121, Thread-6 : cookie de session={"admindata":{"abattement_dixpourcent_max":12502.0,"abattement_dixpourcent_min":437.0,"coeffn":[0.0,1394.96,5798.0,13913.7,20163.4],"coeffr":[0.0,0.14,0.3,0.41,0.45],"id":1,"limites":[9964.0,27519.0,73779.0,156244.0,93749.0],"plafond_decote_celibataire":1196.0,"plafond_decote_couple":1970.0,"plafond_impot_celibataire_pour_decote":1595.0,"plafond_impot_couple_pour_decote":2627.0,"plafond_qf_demi_part":1551.0,"plafond_revenus_celibataire_pour_reduction":21037.0,"plafond_revenus_couple_pour_reduction":42074.0,"valeur_reduc_demi_part":3797.0},"client_id":"38499b63076516c02f2770ec"}
2020-07-25 10:21:47.537161, Thread-3 : {"réponse": {"result": {"marié": "non", "enfants": 2, "salaire": 100000, "impôt": 19884, "surcôte": 4480, "taux": 0.41, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.537161, Thread-6 : {"réponse": {"result": {"marié": "oui", "enfants": 3, "salaire": 200000, "impôt": 42842, "surcôte": 17283, "taux": 0.41, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.538156, Thread-3 : fin du calcul de l'impôt de {"id": 4, "marié": "non", "enfants": 2, "salaire": 100000, "impôt": 19884, "surcôte": 4480, "taux": 0.41, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.538557, Thread-6 : fin du calcul de l'impôt de {"id": 11, "marié": "oui", "enfants": 3, "salaire": 200000, "impôt": 42842, "surcôte": 17283, "taux": 0.41, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.538828, Thread-3 : fin du thread [Thread-3]
2020-07-25 10:21:47.538828, Thread-6 : fin du thread [Thread-6]
2020-07-25 10:21:47.546198, Thread-5 : {"réponse": {"result": {"marié": "oui", "enfants": 2, "salaire": 30000, "impôt": 0, "surcôte": 0, "taux": 0.0, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.546198, Thread-5 : fin du calcul de l'impôt de {"id": 9, "marié": "oui", "enfants": 2, "salaire": 30000, "impôt": 0, "surcôte": 0, "taux": 0.0, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.546198, Thread-5 : début du calcul de l'impôt de {"id": 10, "marié": "non", "enfants": 0, "salaire": 200000}
2020-07-25 10:21:47.739643, Thread-4 : {"réponse": {"result": {"marié": "oui", "enfants": 3, "salaire": 100000, "impôt": 9200, "surcôte": 2180, "taux": 0.3, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:47.739643, Thread-4 : fin du calcul de l'impôt de {"id": 6, "marié": "oui", "enfants": 3, "salaire": 100000, "impôt": 9200, "surcôte": 2180, "taux": 0.3, "décôte": 0, "réduction": 0}
2020-07-25 10:21:47.740668, Thread-4 : début du calcul de l'impôt de {"id": 7, "marié": "oui", "enfants": 5, "salaire": 100000}
2020-07-25 10:21:48.557469, Thread-5 : {"réponse": {"result": {"marié": "non", "enfants": 0, "salaire": 200000, "impôt": 64210, "surcôte": 7498, "taux": 0.45, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:48.558715, Thread-5 : fin du calcul de l'impôt de {"id": 10, "marié": "non", "enfants": 0, "salaire": 200000, "impôt": 64210, "surcôte": 7498, "taux": 0.45, "décôte": 0, "réduction": 0}
2020-07-25 10:21:48.558715, Thread-5 : fin du thread [Thread-5]
2020-07-25 10:21:48.753025, Thread-4 : {"réponse": {"result": {"marié": "oui", "enfants": 5, "salaire": 100000, "impôt": 4230, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}}}
2020-07-25 10:21:48.753318, Thread-4 : fin du calcul de l'impôt de {"id": 7, "marié": "oui", "enfants": 5, "salaire": 100000, "impôt": 4230, "surcôte": 0, "taux": 0.14, "décôte": 0, "réduction": 0}
2020-07-25 10:21:48.753540, Thread-4 : fin du thread [Thread-4]
  • There are a total of 6 threads, meaning 6 clients (lines 1, 3, 4, 6, 8, 9) that simultaneously query the tax calculation server;
  • we will follow thread [Thread-4], which handles 3 taxpayers (line 6). It will make three sequential requests to the tax calculation server;
  • Line 10: [Thread-4]’s first request;
  • line 13: [Thread-4] has received the response to its first request. Inside, it finds a session cookie containing the number [fa3c83b82761c83e13217967] assigned to it by the server;
  • line 14: the tax for the first taxpayer;
  • line 16: [Thread-4] makes a request for the second taxpayer;
  • line 43: [Thread-4] receives the tax amount for the second taxpayer;
  • line 45: [Thread-4] makes a request for the third taxpayer;
  • line 49: [Thread-4] receives the tax amount for the third taxpayer;
  • line 51: [Thread-4] has finished its work;

Now, let’s look at how the three requests from [Thread-4] were processed on the server side. We can track them in the server logs using its client ID [fa3c83b82761c83e13217967].

The server-side logs [data/logs/logs.txt] are as follows:


2020-07-25 10:21:39.187366, MainThread : [serveur] démarrage du serveur
2020-07-25 10:21:40.439093, MainThread : [serveur] démarrage du serveur
2020-07-25 10:21:46.502011, Thread-2 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=3&salaire=50000' [GET]>
2020-07-25 10:21:46.504049, Thread-2 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:46.505452, Thread-3 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=2&salaire=55555' [GET]>
2020-07-25 10:21:46.506257, Thread-3 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:46.507292, Thread-4 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=non&enfants=0&salaire=100000' [GET]>
2020-07-25 10:21:46.507292, Thread-4 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:46.508301, Thread-5 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=2&salaire=50000' [GET]>
2020-07-25 10:21:46.509293, Thread-5 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:46.511808, Thread-6 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=non&enfants=3&salaire=100000' [GET]>
2020-07-25 10:21:46.517604, Thread-7 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=3&salaire=200000' [GET]>
2020-07-25 10:21:46.517604, Thread-7 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:46.719504, Thread-6 : [index_controller] client [fa3c83b82761c83e13217967], données fiscales prises dans la couche dao
2020-07-25 10:21:46.720003, Thread-6 : [index] {'réponse': {'result': {'marié': 'non', 'enfants': 3, 'salaire': 100000, 'impôt': 16782, 'surcôte': 7176, 'taux': 0.41, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:46.736108, Thread-8 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=3&salaire=100000' [GET]>
2020-07-25 10:21:46.736108, Thread-8 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:47.506709, Thread-2 : [index_controller] client [700e3f5dc808c7c48f0c9007], données fiscales prises dans la couche dao
2020-07-25 10:21:47.507216, Thread-2 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 3, 'salaire': 50000, 'impôt': 0, 'surcôte': 0, 'taux': 0.14, 'décôte': 720, 'réduction': 0}}}
2020-07-25 10:21:47.507216, Thread-3 : [index_controller] client [28c38df998f67685b3a482b8], données fiscales prises dans la couche dao
2020-07-25 10:21:47.508442, Thread-4 : [index_controller] client [9e14a5d4a3057f69ab95ab2d], données fiscales prises dans la couche dao
2020-07-25 10:21:47.508940, Thread-3 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 2, 'salaire': 55555, 'impôt': 2814, 'surcôte': 0, 'taux': 0.14, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.510506, Thread-4 : [index] {'réponse': {'result': {'marié': 'non', 'enfants': 0, 'salaire': 100000, 'impôt': 22986, 'surcôte': 0, 'taux': 0.41, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.511513, Thread-5 : [index_controller] client [a06e8fd70a44c9e311f4dce0], données fiscales prises dans la couche dao
2020-07-25 10:21:47.514939, Thread-5 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 2, 'salaire': 50000, 'impôt': 1384, 'surcôte': 0, 'taux': 0.14, 'décôte': 384, 'réduction': 347}}}
2020-07-25 10:21:47.520727, Thread-7 : [index_controller] client [38499b63076516c02f2770ec], données fiscales prises dans la couche dao
2020-07-25 10:21:47.523162, Thread-7 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 3, 'salaire': 200000, 'impôt': 42842, 'surcôte': 17283, 'taux': 0.41, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.530835, Thread-9 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=non&enfants=2&salaire=100000' [GET]>
2020-07-25 10:21:47.531736, Thread-9 : [index_controller] client [700e3f5dc808c7c48f0c9007], données fiscales prises en session
2020-07-25 10:21:47.531905, Thread-9 : [index] {'réponse': {'result': {'marié': 'non', 'enfants': 2, 'salaire': 100000, 'impôt': 19884, 'surcôte': 4480, 'taux': 0.41, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.541899, Thread-10 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=2&salaire=30000' [GET]>
2020-07-25 10:21:47.542488, Thread-10 : [index_controller] client [9e14a5d4a3057f69ab95ab2d], données fiscales prises en session
2020-07-25 10:21:47.542488, Thread-10 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 2, 'salaire': 30000, 'impôt': 0, 'surcôte': 0, 'taux': 0.0, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.553628, Thread-11 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=non&enfants=0&salaire=200000' [GET]>
2020-07-25 10:21:47.553628, Thread-11 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:47.736910, Thread-8 : [index_controller] client [fa3c83b82761c83e13217967], données fiscales prises en session
2020-07-25 10:21:47.737191, Thread-8 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 3, 'salaire': 100000, 'impôt': 9200, 'surcôte': 2180, 'taux': 0.3, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:47.748226, Thread-12 : [index] requête : <Request 'http://127.0.0.1:5000/?marié=oui&enfants=5&salaire=100000' [GET]>
2020-07-25 10:21:47.748226, Thread-12 : [index] mis en pause du thread pendant 1 seconde(s)
2020-07-25 10:21:48.554695, Thread-11 : [index_controller] client [9e14a5d4a3057f69ab95ab2d], données fiscales prises en session
2020-07-25 10:21:48.555070, Thread-11 : [index] {'réponse': {'result': {'marié': 'non', 'enfants': 0, 'salaire': 200000, 'impôt': 64210, 'surcôte': 7498, 'taux': 0.45, 'décôte': 0, 'réduction': 0}}}
2020-07-25 10:21:48.748753, Thread-12 : [index_controller] client [fa3c83b82761c83e13217967], données fiscales prises en session
2020-07-25 10:21:48.748753, Thread-12 : [index] {'réponse': {'result': {'marié': 'oui', 'enfants': 5, 'salaire': 100000, 'impôt': 4230, 'surcôte': 0, 'taux': 0.14, 'décôte': 0, 'réduction': 0}}}
  • The client [fa3c83b82761c83e13217967] is encountered for the first time on line 14: to calculate the tax, the server had to retrieve data from the tax authority’s database;
  • then we see the client [fa3c83b82761c83e13217967] again on line 36. This time, the server retrieves the tax authority data from the session, which saves it a potentially costly access to the [DAO] layer;
  • We encounter the client [fa3c83b82761c83e13217967] a third time on line 42, where once again the server uses the client’s session;

This example clearly illustrates the value of the session for a client: it stores data shared by all of that client’s requests, which is costly to retrieve.

On the client side, the results in the file [data/output/results.json] are the same as in previous versions.

25.4. Testing the [DAO] layer

As we did in the |previous versions|, we test the client’s [dao] layer:

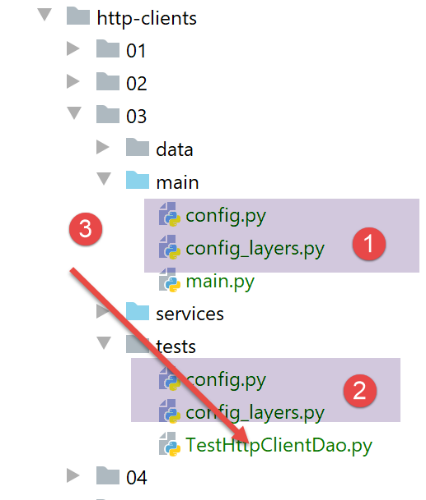

The test class will be executed in the following environment:


  • Configuration [2] is identical to configuration [1], which we just examined;

The [TestHttpClientDao] test class is as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
import unittest

from Logger import Logger


class TestHttpClientDao(unittest.TestCase):

    def test_1(self) -> None:
        from TaxPayer import TaxPayer

        #  { 'married': 'yes', 'children': 2, 'salary': 55555,
        #  tax': 2814, 'surcôte': 0, 'décôte': 0, 'réduction': 0, 'taux': 0.14}
        taxpayer = TaxPayer().fromdict({"marié": "oui", "enfants": 2, "salaire": 55555})
        dao.calculate_tax(taxpayer)
        #  check
        self.assertAlmostEqual(taxpayer.impôt, 2815, delta=1)
        self.assertEqual(taxpayer.décôte, 0)
        self.assertEqual(taxpayer.réduction, 0)
        self.assertAlmostEqual(taxpayer.taux, 0.14, delta=0.01)
        self.assertEqual(taxpayer.surcôte, 0)
…


if __name__ == '__main__':
    #  configure the application
    import config
    config = config.configure({})

    #  logger
    logger = Logger(config["logsFilename"])
    #  we save it in the config
    config["logger"] = logger
    #  retrieve the [dao] layer factory
    dao_factory = config["layers"]["dao_factory"]
    #  create an instance of the [dao] layer
    dao = dao_factory.new_instance()

    #  test methods are executed
    print("tests en cours...")
    unittest.main()
  • We create an |execution configuration| for this test;
  • We start the web server with its entire environment;
  • run the test;

The results are as follows:


C:\Data\st-2020\dev\python\cours-2020\python3-flask-2020\venv\Scripts\python.exe C:/Data/st-2020/dev/python/cours-2020/python3-flask-2020/impots/http-clients/03/tests/TestHttpClientDao.py
tests en cours...
...........
----------------------------------------------------------------------
Ran 11 tests in 3.392s

OK

Process finished with exit code 0
https://stahe.github.io
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
