14. [TD]: Web exposure of the [business] layer

Keywords: multi-tier architecture, Spring, dependency injection, web service / JSON, client / server.

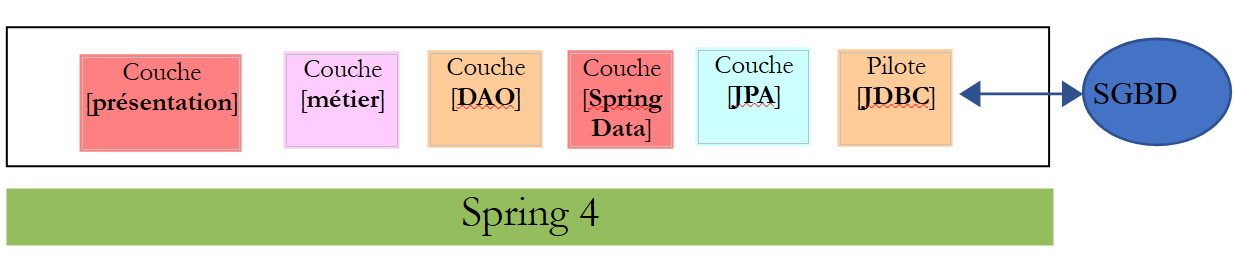

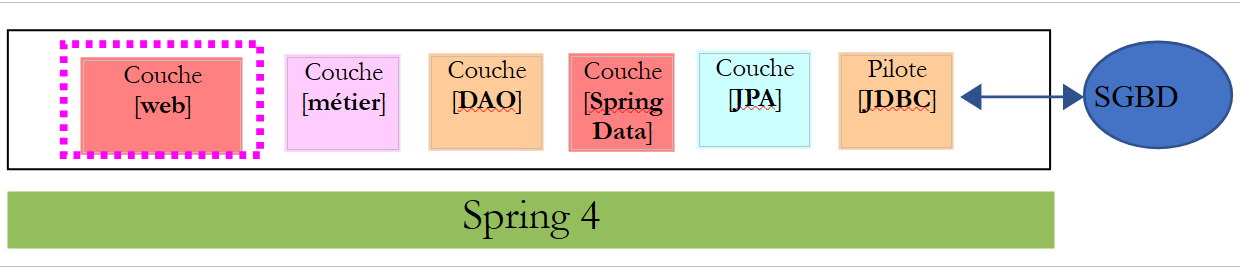

Let’s return to the current architecture of the TD application:

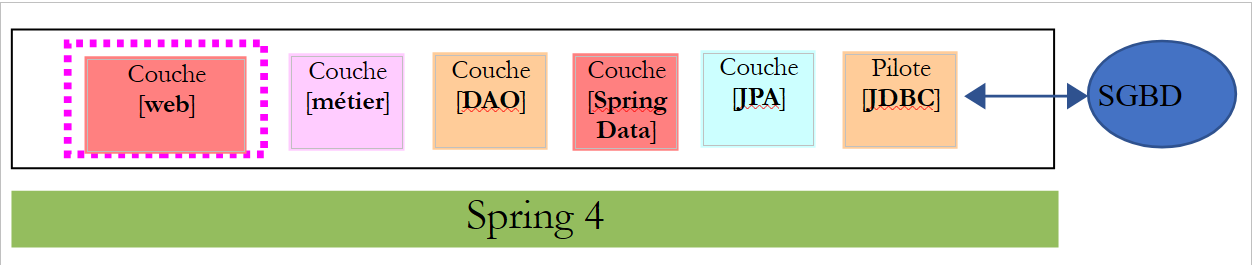

We will evolve this architecture into the following:

in order to expose the [IMetier] interface of the business layer on the web. To do this, we will follow the methodology described in section 13.5.

14.1. Support



The projects for this chapter can be found in the [support / chap-14] folder.

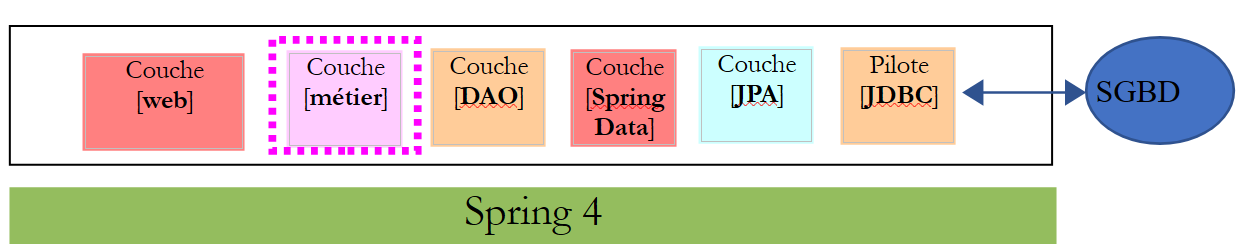

14.2. The Eclipse project for the [business] layer



14.2.1. Maven Configuration

The [business] layer project is a Maven project configured by the following [pom.xml] file:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <modelVersion>4.0.0</modelVersion>
    <groupId>istia.st.elections</groupId>
    <artifactId>elections-metier-dao-spring-data</artifactId>
    <version>0.1.0</version>

    <!-- dependencies -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.2.7.RELEASE</version>
    </parent>
    <dependencies>
        <!-- [DAO] layer -->
        <dependency>
            <groupId>istia.st.elections</groupId>
            <artifactId>elections-dao-spring-data-01</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <!-- Spring Boot -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- Spring Boot Test -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <properties>
        <!-- use UTF-8 for everything -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.18.1</version>
            </plugin>
        </plugins>
    </build>
</project>
  • lines 18–22: the dependency on the [DAO] layer built in paragraph 12;
  • lines 23–34: the dependencies required for testing;

14.2.2. Spring Configuration



The [business] layer project is a Spring project configured by the following [MetierConfig] file:


package elections.business.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Import;

import elections.dao.config.DaoConfig;

@Import({ DaoConfig.class })
@ComponentScan({ "elections.business.service" })
public class BusinessConfiguration {
}
  • We do not use the [@Configuration] annotation here, which would make the class a Spring configuration class. The presence of the [@Import] and [@ComponentScan] annotations automatically makes it a configuration class;
  • Line 8: We import the configuration file from the [DAO] layer. We then have access to all the beans defined by this file;
  • Line 9: Other Spring beans are to be found in the [elections.metier.service] folder;

14.2.3. Implementation of the [business] layer



The implementation of the [business] layer is the one defined in Section 8.5.

14.2.4. Testing the [business] layer



The test class is the one described in Section 8.6.

Task: Implement the [business] layer project and pass its unit test. Generate the layer archive in the local Maven repository (Run As / Maven / Install).

14.3. The Eclipse project for the [web] layer

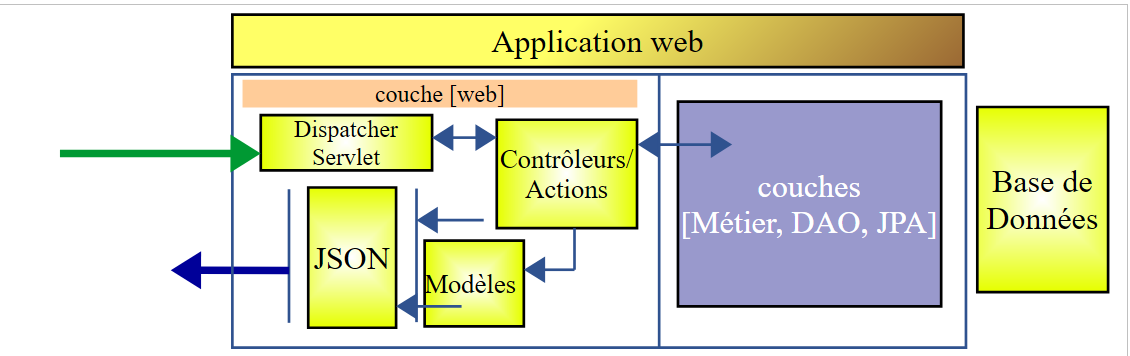

The web layer is a Spring MVC layer:

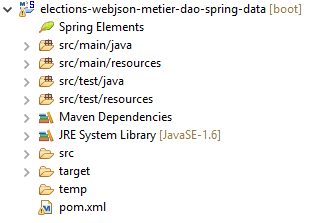

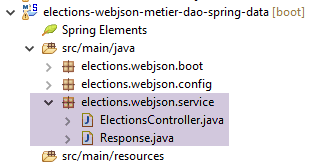

The Eclipse project has the following structure:

  • [Boot.java] is the class that launches the web service;
  • [WebConfig.java] is the web service configuration class;
  • [Response.java] is the response generated by the various URLs of the web service;
  • [ElectionsController] is the web service implementation class;

14.4. Maven Configuration

The project is a Maven project configured by the following [pom.xml] file:


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>istia.st.elections</groupId>
    <artifactId>elections-webjson-metier-dao-spring-data</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <name>elections-webjson-business-dao-spring-data</name>
    <description>business layer exposed as a web service / JSON</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.2.7.RELEASE</version>
    </parent>

    <dependencies>
        <!-- business layer -->
        <dependency>
            <groupId>istia.st.elections</groupId>
            <artifactId>elections-business-dao-spring-data</artifactId>
            <version>0.1.0</version>
        </dependency>
        <!-- MVC layer -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.18.1</version>
            </plugin>
        </plugins>
    </build>

</project>
  • lines 19–23: the dependency on the [business] layer archive. This is the one we created in paragraph 14;
  • lines 25–28: the dependency for a Spring MVC application;

14.5. Spring Configuration

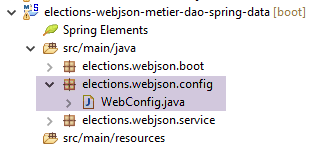

The [WebConfig] class configures the web service:


package elections.webjson.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.config.ConfigurableBeanFactory;
import org.springframework.boot.context.embedded.EmbeddedServletContainerFactory;
import org.springframework.boot.context.embedded.ServletRegistrationBean;
import org.springframework.boot.context.embedded.tomcat.TomcatEmbeddedServletContainerFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.Scope;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.servlet.DispatcherServlet;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

import com.fasterxml.jackson.databind.ObjectMapper;

import elections.business.config.BusinessConfig;

@EnableWebMvc
@Import({ MetierConfig.class })
@ComponentScan({ "elections.webjson.service" })
public class WebConfig {
    // -------------------------------- [web] layer configuration
    @Autowired
    private ApplicationContext context;

    @Bean
    public DispatcherServlet dispatcherServlet() {
        DispatcherServlet servlet = new DispatcherServlet((WebApplicationContext) context);
        return servlet;
    }

    @Bean
    public ServletRegistrationBean servletRegistrationBean(DispatcherServlet dispatcherServlet) {
        return new ServletRegistrationBean(dispatcherServlet, "/*");
    }

    @Bean
    public EmbeddedServletContainerFactory embeddedServletContainerFactory() {
        return new TomcatEmbeddedServletContainerFactory("", 8080);
    }
    // JSON mapper
    @Bean
    @Scope(value = ConfigurableBeanFactory.SCOPE_PROTOTYPE)
    public ObjectMapper jsonMapper() {
        return new ObjectMapper();
    }

}
  • The meaning of this configuration was explained in Section 13.5.3.1. We will only explain the new features:
  • line 22: we import the configuration file from the [business] layer to make use of all its beans;
  • line 23: we specify that other beans will be found in the [elections.webjson.server.service] folder;

14.6. The web service launch class

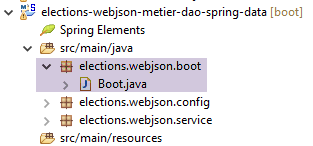

The [Boot] class launches the web service as follows:


package elections.webjson.boot;

import org.springframework.boot.SpringApplication;

import elections.webjson.config.WebConfig;

public class Boot {

    public static void main(String[] args) {
        SpringApplication.run(WebConfig.class, args);
    }
}
  • Line 10: The static method [SpringApplication.run] will use the configuration file [WebConfig]. Because of the [@EnableAutoConfiguration] annotation, Spring Boot will start the Tomcat server and deploy the web service on it;

14.7. The response from the web service URLs



All URLs of the web service / JSON send the same type of response:


package elections.webjson.service;

import java.util.List;

public class Response<T> {

    // ----------------- properties
    // operation status
    private int status;
    // any error messages
    private List<String> messages;
    // response body
    private T body;

    // constructors
    public Response() {

    }

    public Response(int status, List<String> messages, T body) {
        this.status = status;
        this.messages = messages;
        this.body = body;
    }

    // getters and setters
...
}

This class was introduced and discussed in Section 13.5.5.3.

14.8. Implementation of the web service / JSON



The /jSON web service is implemented by the following [ElectionsController] class:


package elections.webjson.service;

import java.util.ArrayList;
import java.util.List;

import javax.servlet.http.HttpServletRequest;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

import elections.dao.entities.ElectionsConfig;
import elections.dao.entities.ElectionsException;
import elections.business.service.IElectionsBusiness;

@Controller
public class ElectionsController {

    // Spring dependencies
    @Autowired
    private ObjectMapper jsonMapper;

    @Autowired
    private IElectionsMetier business;

    @RequestMapping(value = "/getElectionsConfig", method = RequestMethod.GET, produces = "application/json; charset=UTF-8")
    @ResponseBody
    public String getElectionsConfig() throws JsonProcessingException {
        // response
        Response<ElectionsConfig> response;
        try {
            response = new Response<>(0, null,
                    new ElectionsConfig(business.getNumberOfSeatsToBeFilled(), business.getVotingThreshold()));
        } catch (ElectionsException e1) {
            response = new Response<>(e1.getCode(), e1.getErrors(), null);
        } catch (RuntimeException e2) {
            response = new Response<>(1000, getErrorsForException(e2), null);
        }
        // response
        return jsonMapper.writeValueAsString(response);
    }

    @RequestMapping(value = "/getVoterLists", method = RequestMethod.GET, produces = "application/json; charset=UTF-8")
    @ResponseBody
    public String getVoterLists() throws JsonProcessingException {
        throw new UnsupportedOperationException("Not supported yet");
    }

    @RequestMapping(value = "/setListesElectorales", method = RequestMethod.POST, consumes = "application/json; charset=UTF-8", produces = "application/json; charset=UTF-8")
    @ResponseBody
    public String setVoterLists(HttpServletRequest request) throws JsonProcessingException {
        throw new UnsupportedOperationException("Not supported yet");
    }

    @RequestMapping(value = "/calculateSeats", method = RequestMethod.POST, consumes = "application/json; charset=UTF-8", produces = "application/json; charset=UTF-8")
    @ResponseBody
    public String calculateSeats(HttpServletRequest request) throws JsonProcessingException {
        throw new UnsupportedOperationException("Not supported yet");
    }

    // private methods -----------------------------
    // list of error messages from a RuntimeException
    private List<String> getErrorsForException(Exception e) {
        // retrieve the list of error messages for the exception
        Throwable cause = e;
        List<String> errors = new ArrayList<>();
        while (cause != null) {
            // retrieve the message only if it is not null and not empty
            String message = cause.getMessage();
            if (message != null) {
                message = message.trim();
                if (message.length() != 0) {
                    errors.add(message);
                }
            }
            // next cause
            cause = cause.getCause();
        }
        return errors;
    }

}

Task: Following the steps in Section 13.5.5, complete the code for the [ElectionsController] class.

Notes:

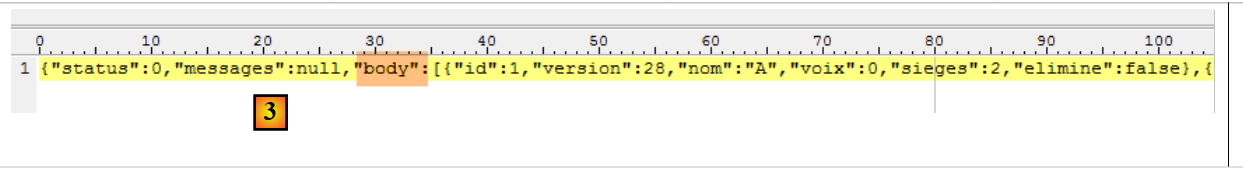

  • There are no JSON filters here because the [CONF] and [LISTES] tables are not linked by a foreign key relationship, which significantly simplifies the web service code;
  • Do not forget the various necessary Spring annotations;
  • The URLs will be named after the associated methods;

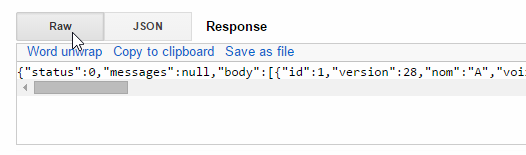

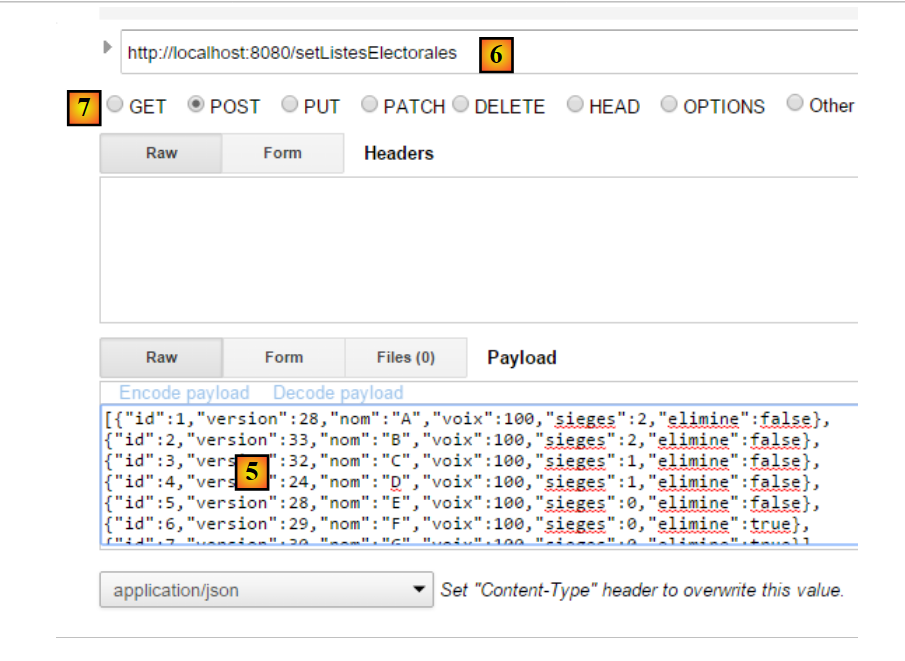

  • The [setListeElectorales] method is called with a [POST] operation. The posted value is the array of competing lists (of type ListeElectorale[]) with their attributes [seats, votes, eliminated], which must be saved to the database. This method returns a [Response<Void>] with a [status=0] field if there were no errors, otherwise something else;

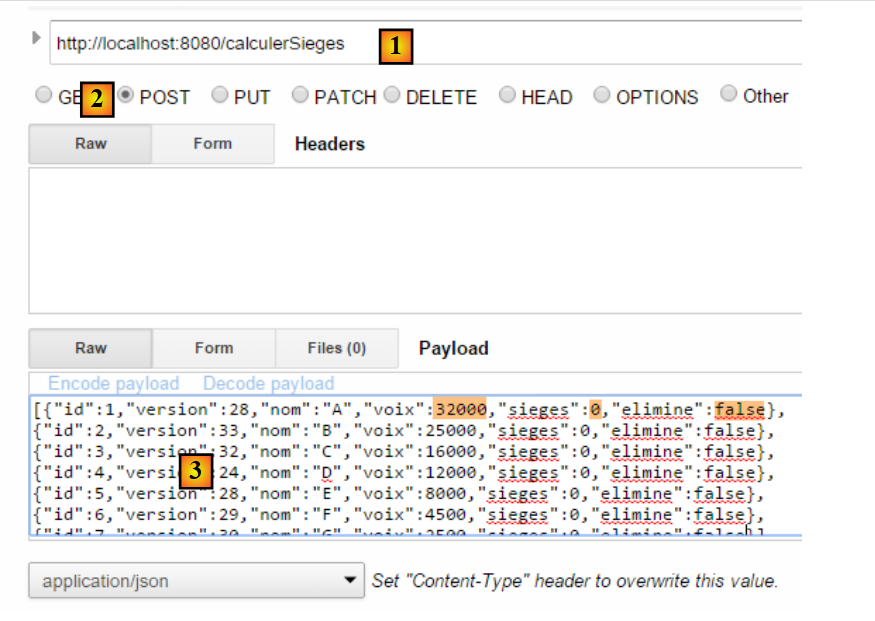

  • The [calculateSeats] method is called with a [POST] operation. The posted value is the array of competing lists (of type ElectoralList[]) with their attributes [name, votes]. This method returns a [Response<ElectoralList[]>] with, as its body, the electoral lists with their [seats, eliminated] fields initialized;

14.9. Tests

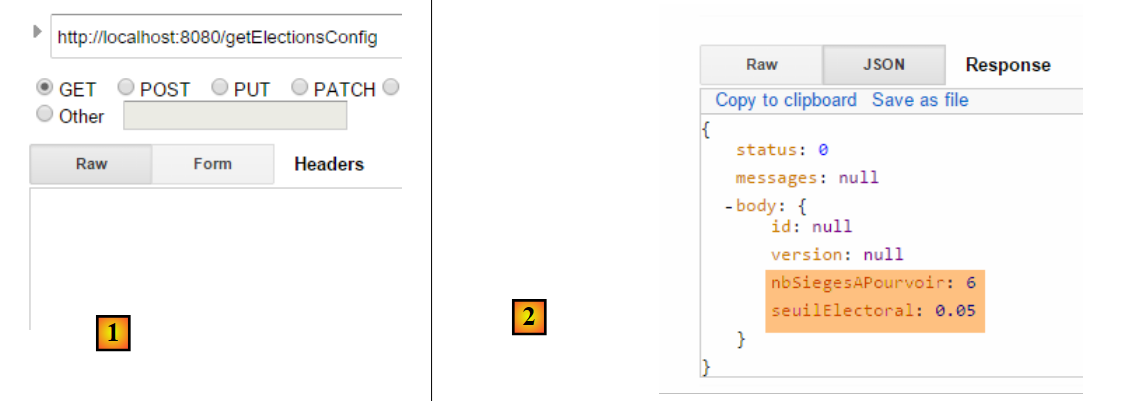

After launching the web service, perform the following tests to ensure the web service is functioning properly using the [Advanced Rest Client] utility:

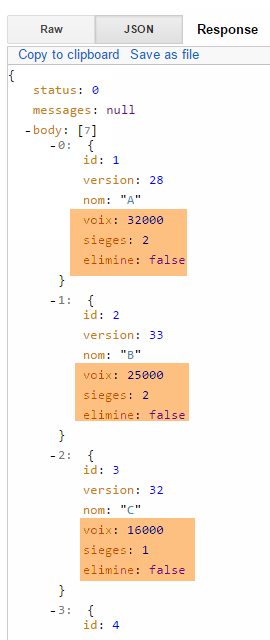

The JSON response to the previous request is as follows [1]:

1
2

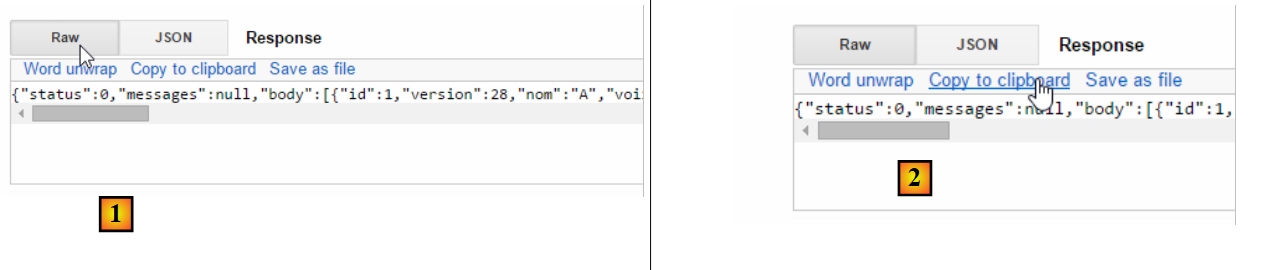

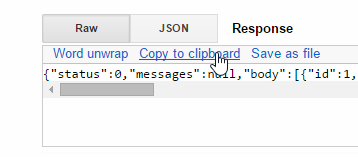

In [2], copy the response to the clipboard, then paste it into any text editor [3]:

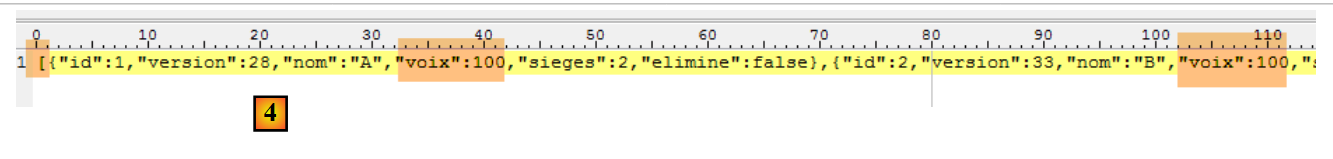

Isolate the value of the [body] field and change, for example, the votes for the lists. Below [4], we set the votes for all lists to 100:

Verify that your JSON string begins with [ and ends with ]. These characters are used to delimit a JSON array. In [5], paste the JSON string above. This will be the value posted to the next URL. To do this, select the HTTP method [POST] [7].

  • In [6], request the URL [setListesElectorales]. This URL is requested using a POST request. The posted value is the JSON array of the competing lists, whose results must be saved to the database;

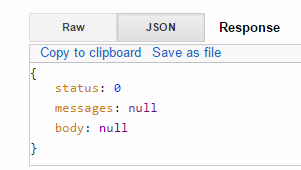

The following result is obtained:

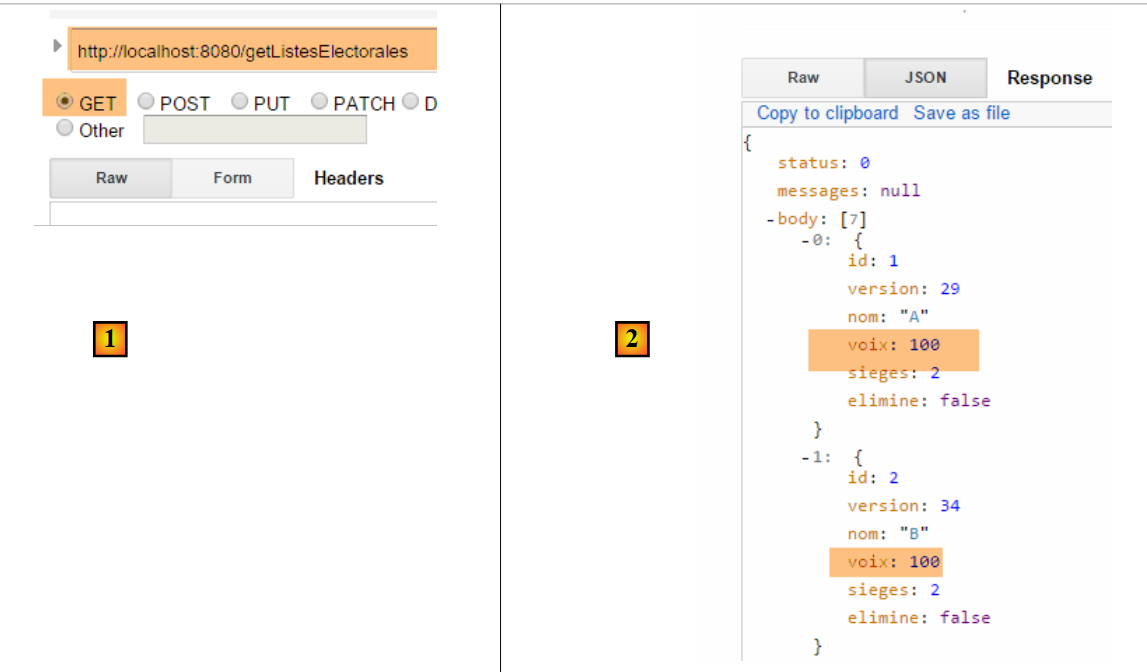

The [status=0] field indicates that there were no errors. To verify this, request the competing lists again and check that the changes you made to the lists have been applied:

We make another [POST] request to calculate the seats won by the lists:

  • in [1]: the URL for calculating seats;
  • in [2]: we send a [POST] request;
  • in [3]: the competing lists. We set the [votes] field to the values from the tutorial, all [seats] are set to 0, and all [eliminate] fields are set to false;

The result obtained is as follows:


https://tahe.developpez.com
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
