3. Tools Used in This Document

The examples in this document have been tested with the following tools:

  • Netbeans from version 6.8 to version 7.1.2. The installation of Netbeans is described in [ref3] in section 1.3.1.
  • Wampserver version 2.2. The installation of WampServer is described in [ref3] in section 1.3.3;
  • Maven is integrated into Netbeans. We will now describe this tool.

3.1. Maven

3.1.1. Introduction

Maven is available at URL [http://maven.apache.org/index.html ]. According to its creators:

Maven’s primary goal is to allow a developer to understand the complete state of a development effort in the shortest possible time. To achieve this goal, there are several key areas that Maven addresses:

  • Making the build process easy
  • Providing a uniform build system
  • Providing quality project information
  • Providing guidelines for best practices in development
  • Enabling seamless migration to new features

Maven is integrated into Netbeans, and we will use it for just one of its features: managing a project’s libraries. These consist of all the JAR files that must be included in the project’s classpath. There can be a large number of them. For example, our future projects will use the Hibernate ORM (Object Relational Mapper). This Hibernate ORM consists of dozens of JAR files. The advantage of Maven is that it frees us from having to know them all. We simply need to specify in our project that we need Hibernate by providing all the necessary information to locate the main archive for this ORM. Maven then also downloads all the libraries required by Hibernate. These are called Hibernate dependencies. A library required by Hibernate may itself depend on other archives. These will also be downloaded. All these libraries are placed in a folder called the Maven local repository.

A Maven project is easily shareable. If you transfer it from one computer to another and the project’s dependencies are not present in the new computer’s local repository, they will be downloaded.

Maven can be used on its own or integrated into an IDE (Integrated Development Environment) such as EDI or Eclipse.

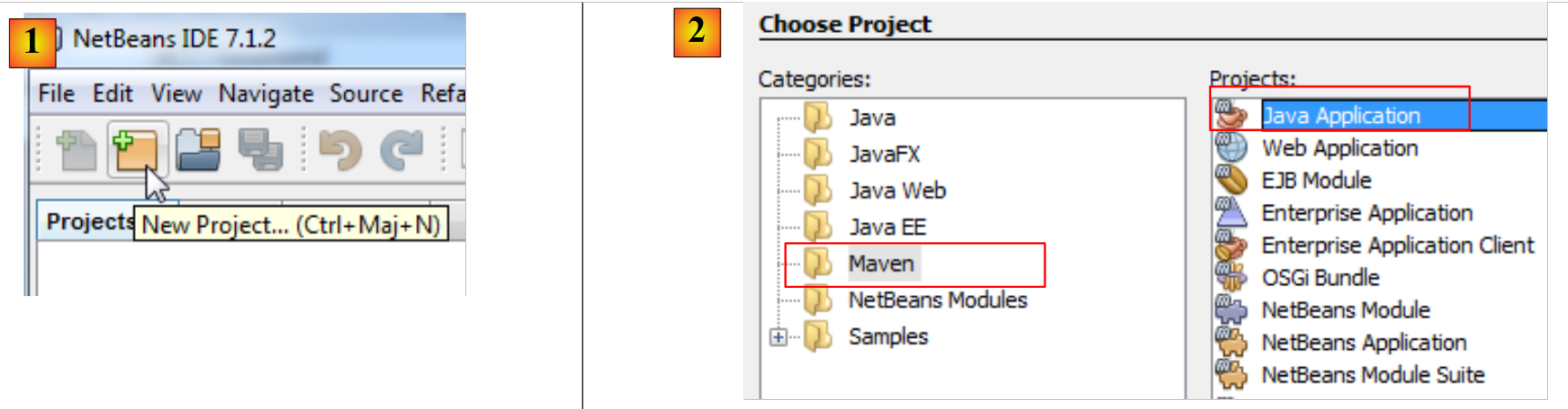

Let’s create a Maven project in Netbeans:

  • In [1], create a new project,
  • in [2], select the category [Maven] and the project type [Java Application],

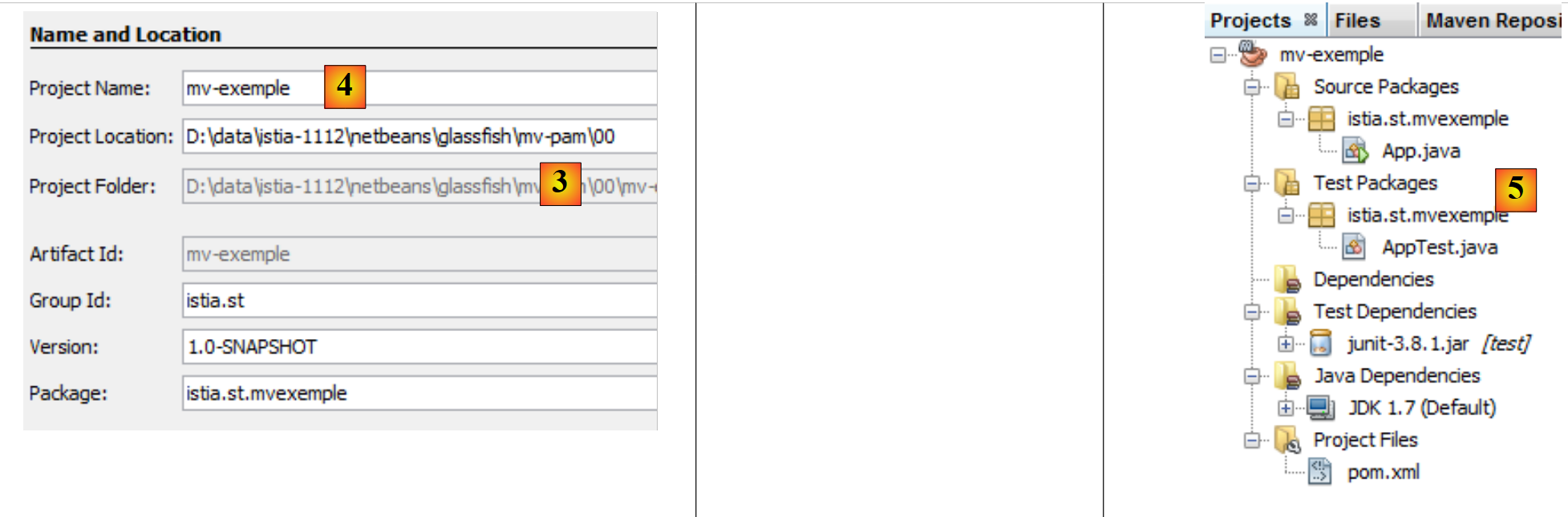

  • in [3], specify the parent folder for the new project,

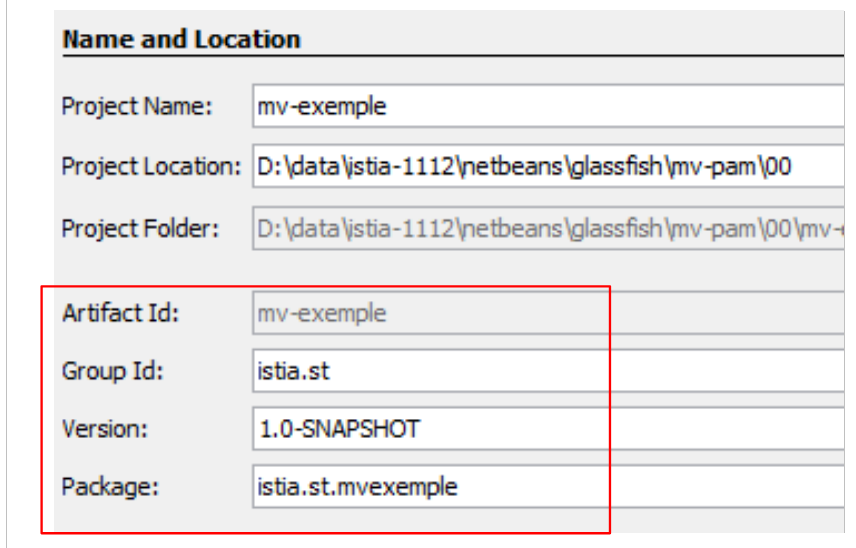

  • in [4], name the project,
  • in [5], the generated project.

Let’s examine the project components and explain the role of each.

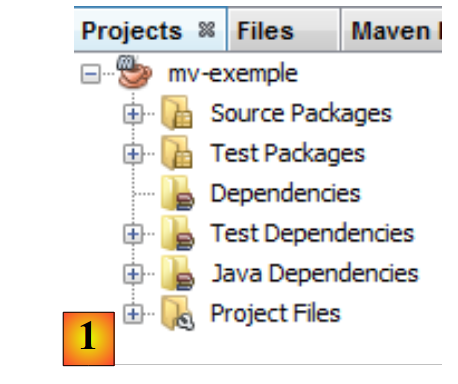

  • in [1]: the different branches of the project:
    • [Source packages]: the project’s Java classes;
    • [Test packages]: the project’s test classes;
    • [Dependencies]: the .jar archives required by the project and managed by Maven;
    • [Test Dependencies]: the .jar archives required for project testing and managed by Maven;
    • [Java Dependencies]: the .jar archives required for the project and not managed by Maven;
    • [Project Files]: Maven configuration files and Netbeans,

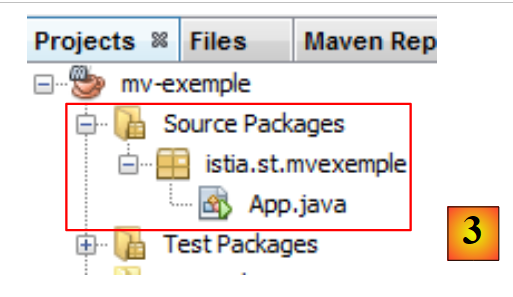

  • in [3], the [Source Packages] branch,

This branch contains the source code for the project's Java classes. Netbeans generated a default class:


package istia.st.mvexemple;

/**
 * Hello world!
 *
 */
public class App {
    public static void main(String[] args) {
        System.out.println("Hello World!");
    }
}

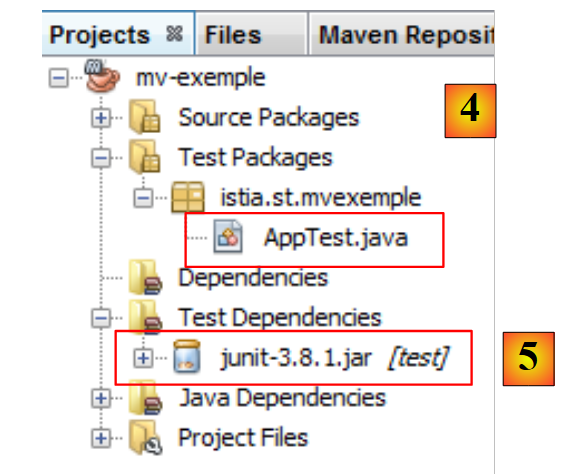

  • in [4], the [Test Packages] branch containing the source code for the project's test classes,
  • in [5], the JUnit 3.8 library required to run the tests,

Netbeans generated a default class:


package istia.st.mvexemple;

import junit.framework.Test;
import junit.framework.TestCase;
import junit.framework.TestSuite;

/**
 * Unit test for simple App.
 */
public class AppTest extends TestCase {
    /**
     * Create the test case
     *
     * @param testName
     *          name of the test case
     */
    public AppTest(String testName) {
        super(testName);
    }

    /**
     * @return the suite of tests being tested
     */
    public static Test suite() {
        return new TestSuite(AppTest.class);
    }

    /**
     * Rigourous Test :-)
     */
    public void testApp() {
        assertTrue(true);
    }
}

This is a JUnit 3.8 test. We will subsequently use JUnit 4.x tests.

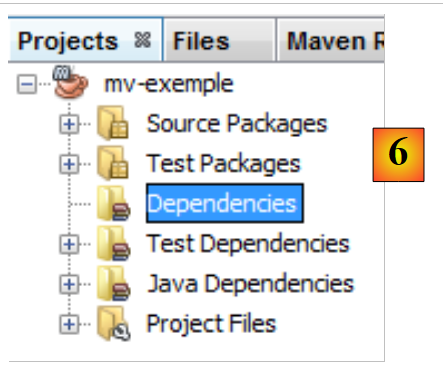

  • In [6], the [Dependencies] branch is empty here,

This branch displays all the libraries required for the project and managed by Maven. All libraries listed here are automatically downloaded by Maven. This is why a Maven project requires Internet access. The downloaded libraries will be stored locally. If another project needs a library already present locally, it will not be downloaded. We will see that this list of libraries, as well as the repositories where they can be found, are defined in the Maven project configuration file.

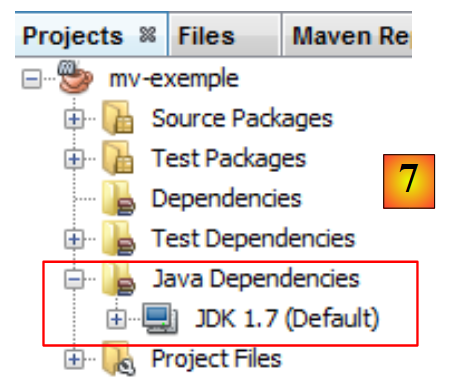

  • In [7], the libraries required for the project and not managed by Maven,

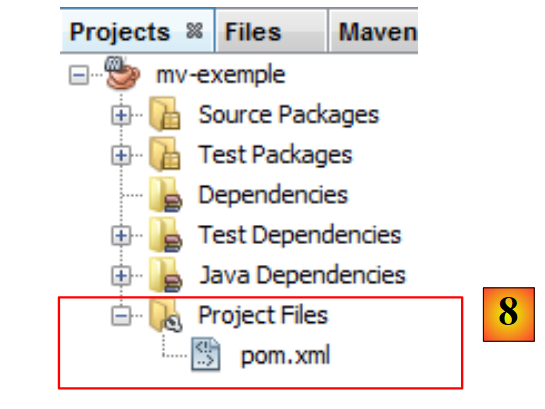

  • in [7], the [pom.xml] Maven project configuration file. POM stands for Project Object Model. We will need to edit this file directly.

The generated [pom.xml] file is as follows:


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>istia.st</groupId>
  <artifactId>mv-exemple</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>mv-exemple</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
</project>
  • Lines 5–8 define the Java artifact that will be created by the Maven project. This information comes from the wizard used when creating the project:

A Maven artifact is defined by four properties:

  • [groupId]: information that resembles a package name. Thus, the Spring framework libraries have groupId=org.springframework, those of the JSF framework have groupId=javax.faces,
  • [artifactId]: the name of the Maven object. In the [org.springframework] group, we thus find the following artifactId objects: spring-context, spring-core, spring-beans, ... In the [javax.faces] group, we find the artifactId jsf-api,
  • [version]: the version number of the Maven artifact. Thus, the artifact org.springframework.spring-core has the following versions: 2.5.4, 2.5.5, 2.5.6, 2.5.6.SECO1, ...
  • [packaging]: the format of the artifact, most often war or jar.

Our Maven project will generate a [jar] (line 8) in the [istia.st] (line 5), named [mv-exemple] (line 6), and version [1.0-SNAPSHOT] (line 7). These four pieces of information must uniquely identify a Maven artifact.

Lines 17–24 list the Maven project’s dependencies, i.e., the list of libraries required by the project. Each library is defined by the four pieces of information (groupId, artifactId, version, packaging). When the packaging information is missing, as it is here, the jar packaging is used. Another piece of information is added: scope, which determines at which stages of the project’s lifecycle the library is needed. The default value is compile, indicating that the library is required for both compilation and execution. The value "test" means that the library is required during project testing. This is the case here with the JUnit 3.8.1 library. If this library is not present in the local repository on the workstation, it is downloaded.

3.1.2. Running the project

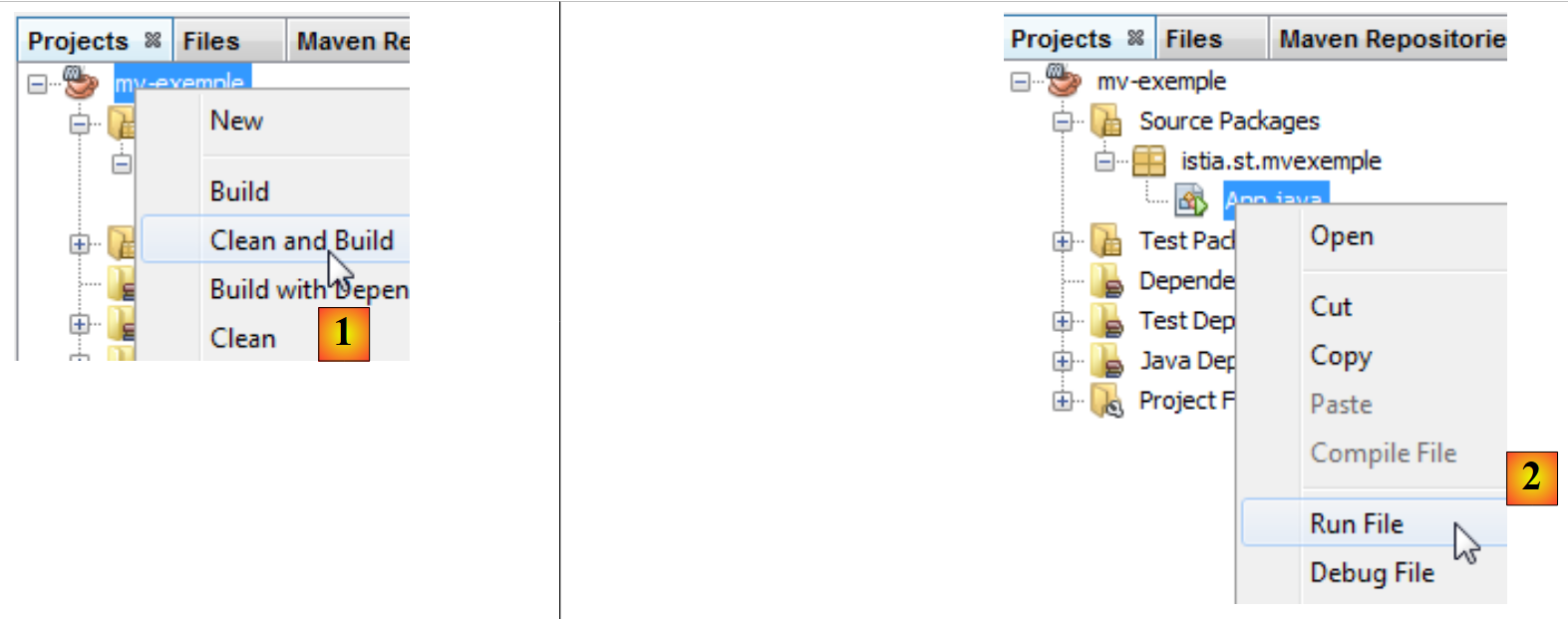

We run the project:

In [1], the Maven project is built and then executed in [1]. The logs in the Netbeans console are as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Scanning for projects...
...

------------------------------------------------------------------------
Building mv-exemple 1.0-SNAPSHOT
------------------------------------------------------------------------

[resources:resources]
[debug] execute contextualize
Using 'UTF-8' encoding to copy filtered resources.
skip non existing resourceDirectory D:\data\istia-1112\netbeans\glassfish\mv-pam\00\mv-exemple\src\main\resources

[compiler:compile]
Compiling 1 source file to D:\data\istia-1112\netbeans\glassfish\mv-pam\00\mv-exemple\target\classes

[exec:exec]
Downloading: http://repo.maven.apache.org/maven2/org/apache/commons/commons-exec/1.0.1/commons-exec-1.0.1.pom

Downloaded: http://repo.maven.apache.org/maven2/org/apache/commons/commons-exec/1.0.1/commons-exec-1.0.1.pom (8 KB at 113.5 KB/sec)
Downloading: http://repo.maven.apache.org/maven2/org/apache/commons/commons-exec/1.0.1/commons-exec-1.0.1.jar

Downloaded: http://repo.maven.apache.org/maven2/org/apache/commons/commons-exec/1.0.1/commons-exec-1.0.1.jar (49 KB at 763.6 KB/sec)
Hello World!
------------------------------------------------------------------------
BUILD SUCCESS
------------------------------------------------------------------------
Total time: 4.040s
Finished at: Thu Jun 21 10:10:40 CEST 2012
Final Memory: 13M/122M

The result is on line 23. We can see that even for this simple case, Maven downloaded some dependencies (lines 17 and 20).

3.1.3. The file system of a Maven project

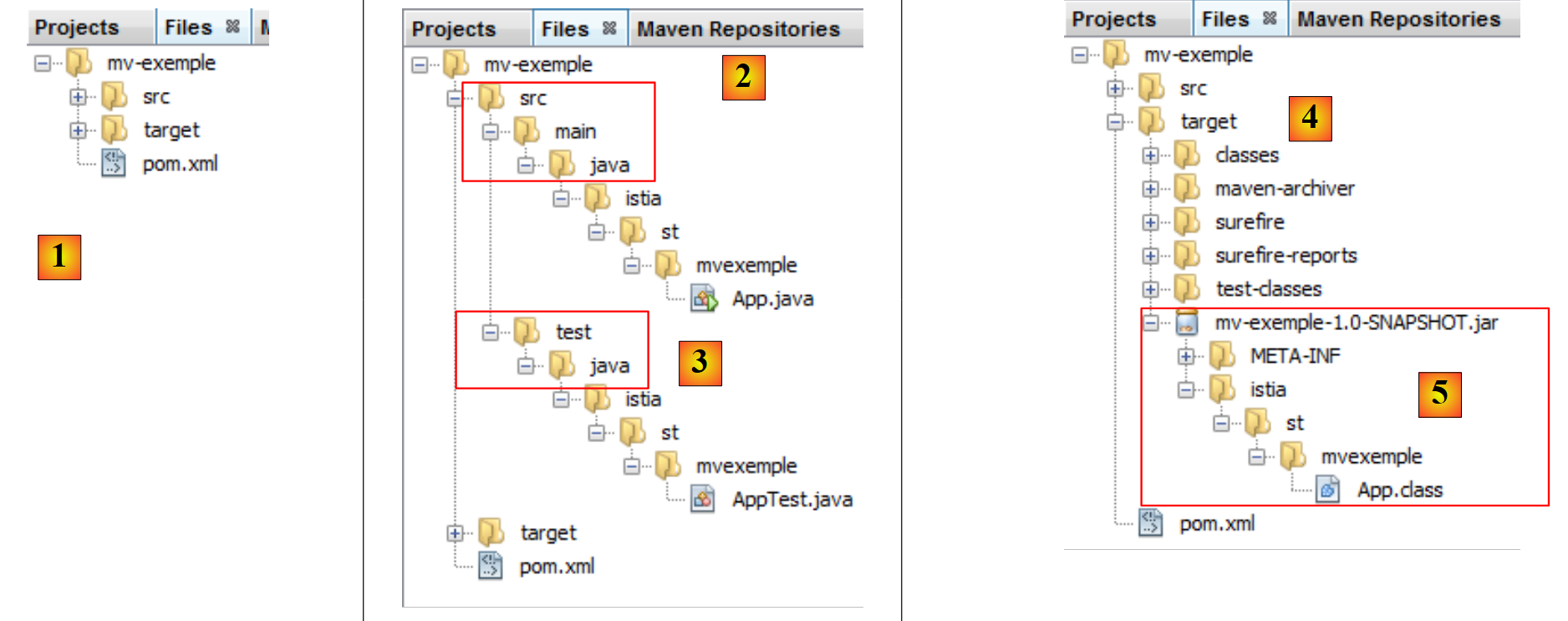

  • [1]: the project’s file system is in the [Files] tab,
  • [2]: the Java sources are in the [src / main / java] folder,
  • [3]: the Java test sources are in the [src / test / java] folder,
  • [4]: the [target] folder is created by the project build,
  • [5]: here, the project build created an archive named [mv-exemple-1.0-SNAPSHOT.jar].

3.1.4. The Local Maven Repository

We mentioned that Maven downloads the dependencies required for the project and stores them locally. You can explore this local repository:

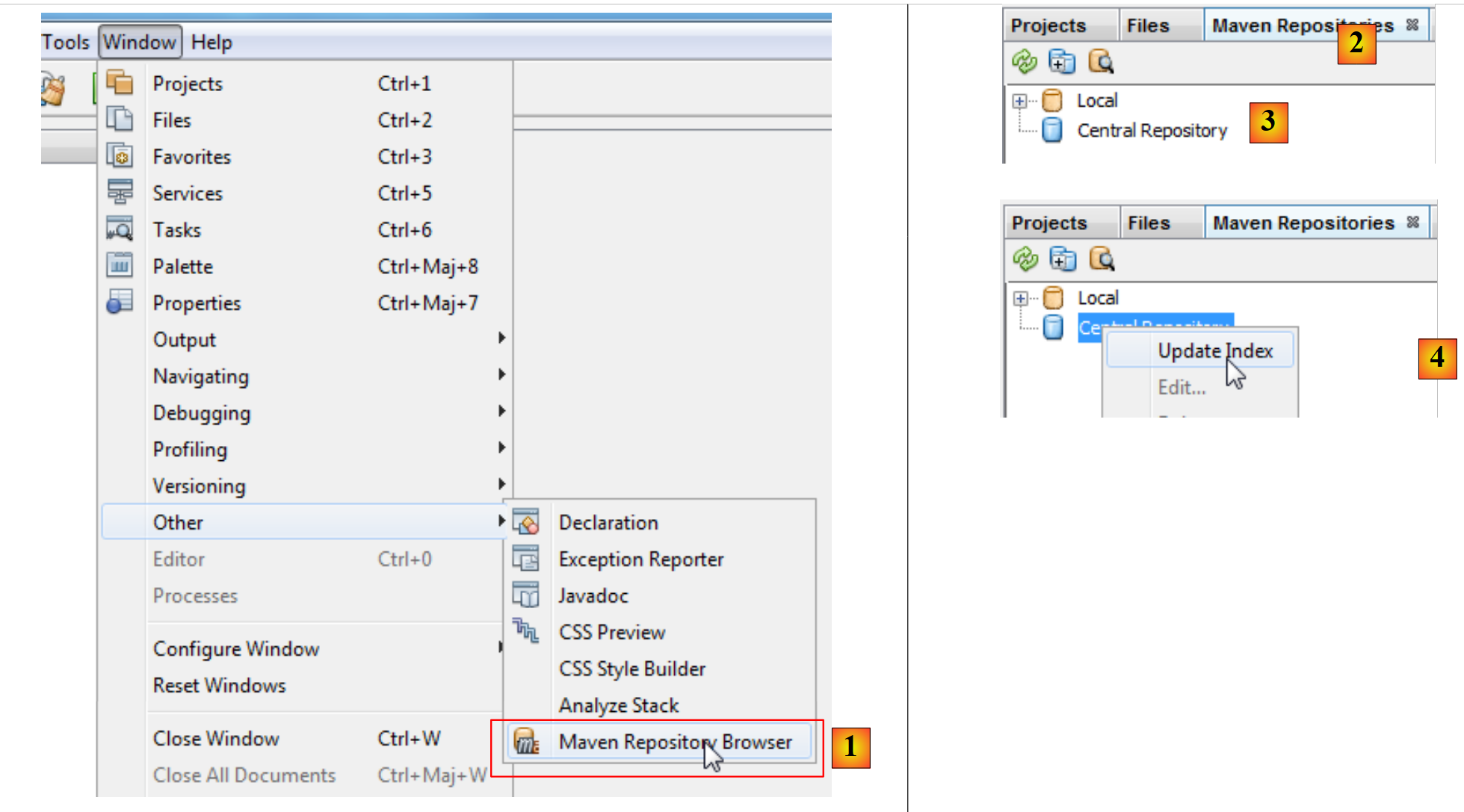

  • in [1], select option [Window / Other / Maven Repository Browser],
  • in [2], a [Maven Repositories] tab opens,
  • in [3], it contains two branches, one for the local repository and the other for the central repository. The latter is enormous. To view its contents, you must update its index [4]. This update takes several tens of minutes.

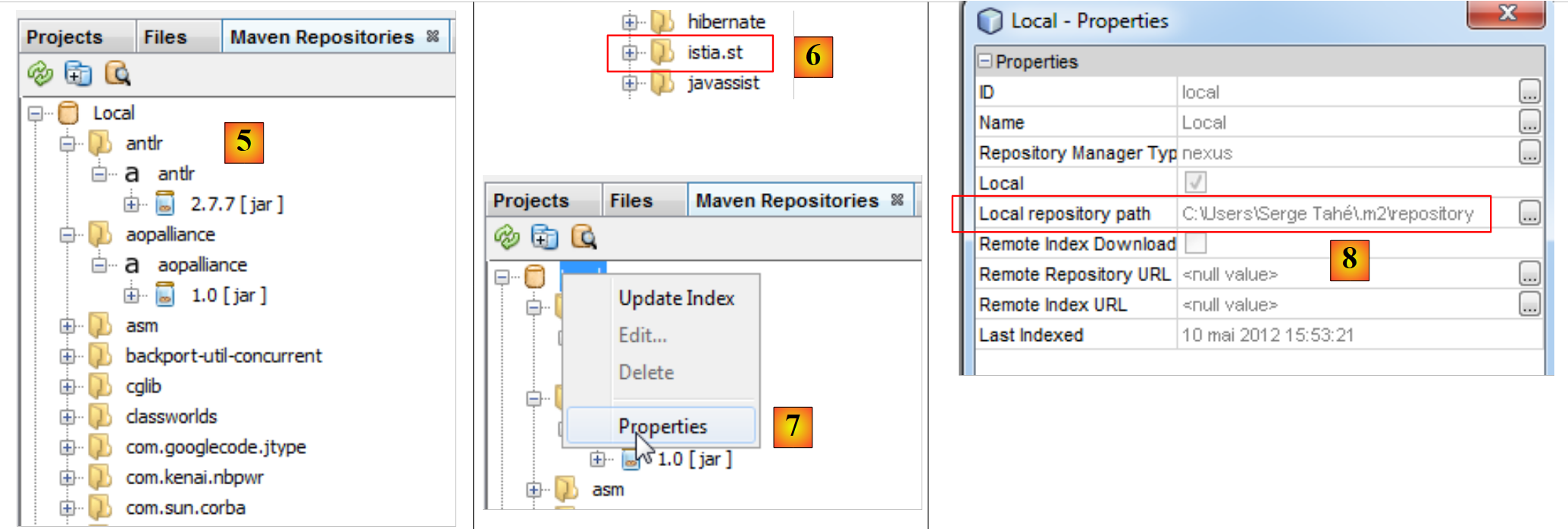

  • In [5], the libraries from the local repository,
  • in [6], there is a branch [istia.st] that corresponds to [groupId] in our project,
  • in [7], you can access the local repository properties,
  • In [8], we have the path to the local repository. It is useful to know this because sometimes (rarely) Maven no longer uses the latest version of the project. We make changes and notice that they aren’t being applied. We can then manually delete the local repository branch corresponding to our [groupId]. This forces Maven to recreate the branch from the project’s latest version.

3.1.5. Searching for an artifact with Maven

Now let’s learn how to search for an artifact with Maven. Let’s start with the list of current dependencies in the [pom.xml] file:


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>istia.st</groupId>
  <artifactId>mv-exemple</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>mv-exemple</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
</project>

Lines 17–23 define dependencies that we will modify to use the libraries in their latest version, version.

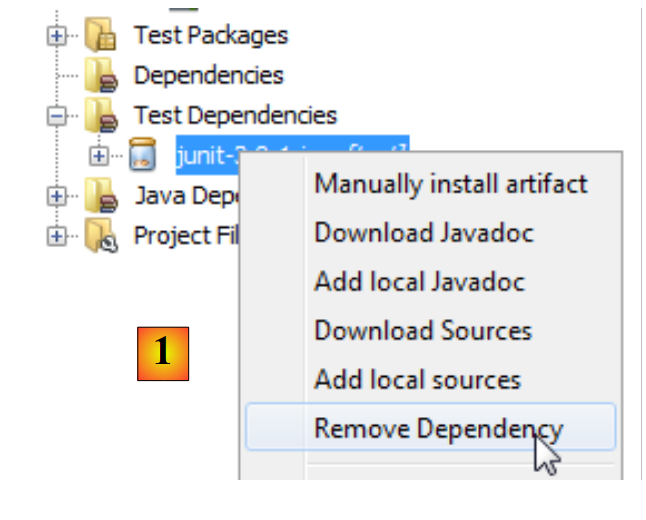

First, we remove the current [1] dependencies. The [pom.xml] file is then modified:


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>istia.st</groupId>
  <artifactId>mv-exemple</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>mv-exemple</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies></dependencies>
</project>

Line 17: The removed dependency no longer appears in [pom.xml]. Now, let’s search for it in the Maven repositories.

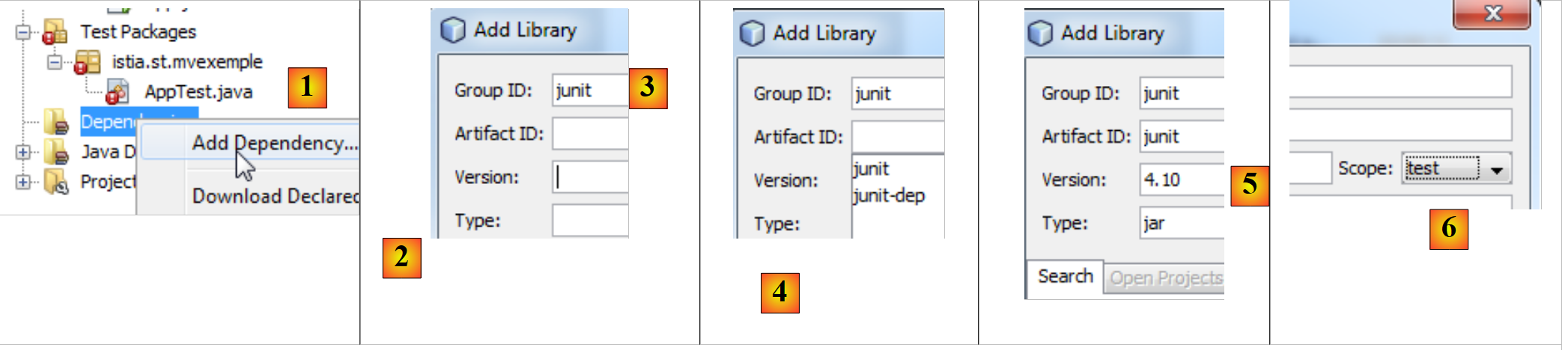

  • In [1], we add a dependency to the project;
  • In [2], we must specify information about the artifact being searched for (groupId, artifactId, version, packaging (Type), and scope). We start by specifying [groupId] [3],
  • in [4], we type [espace] to display the list of possible artifacts. Here, [junit] and [jnit-dep]. We select [junit],
  • then [5]; proceeding in the same way, we select the most recent version. The packaging type is jar,
  • in [6], we select the test scope to indicate that the dependency is only needed for testing.

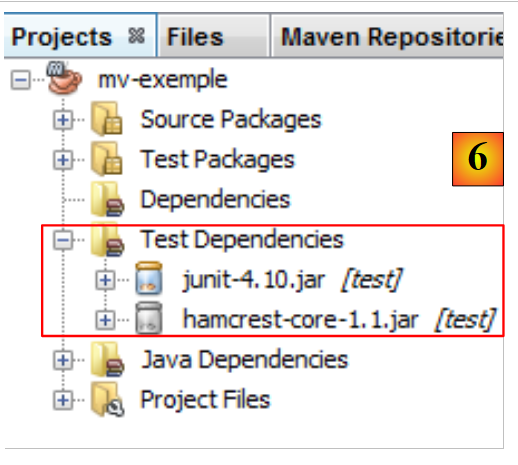

In [6], the added dependencies appear in the project. The [pom.xml] file reflects these changes:


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>istia.st</groupId>
  <artifactId>mv-exemple</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>mv-exemple</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.10</version>
      <scope>test</scope>
      <type>jar</type>
    </dependency>
  </dependencies>
</project>

Note that the file [pom.xml] does not mention the dependency [hamcrest-core-1.1] that we see in [6]. This is because it is a dependency of JUnit 4.10 and not of the project itself. This is indicated by a different icon in the [Dependencies] branch. It was downloaded automatically.

Now suppose we don’t know the [groupId] of the artifact we want. For example, we want to use Hibernate as ORM (Object Relational Mapper), and that’s all we know. We can then go to the [http://mvnrepository.com/] website:

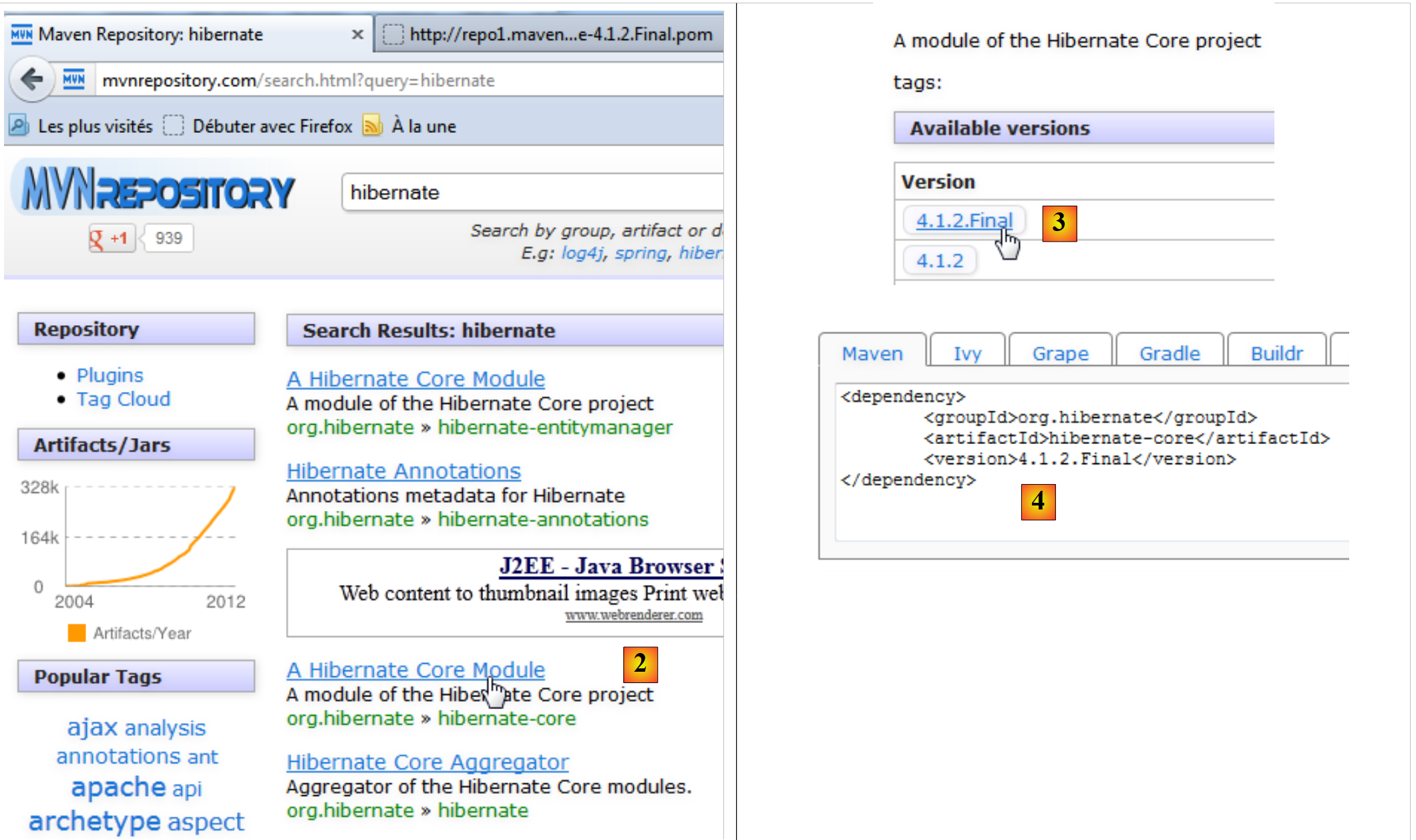

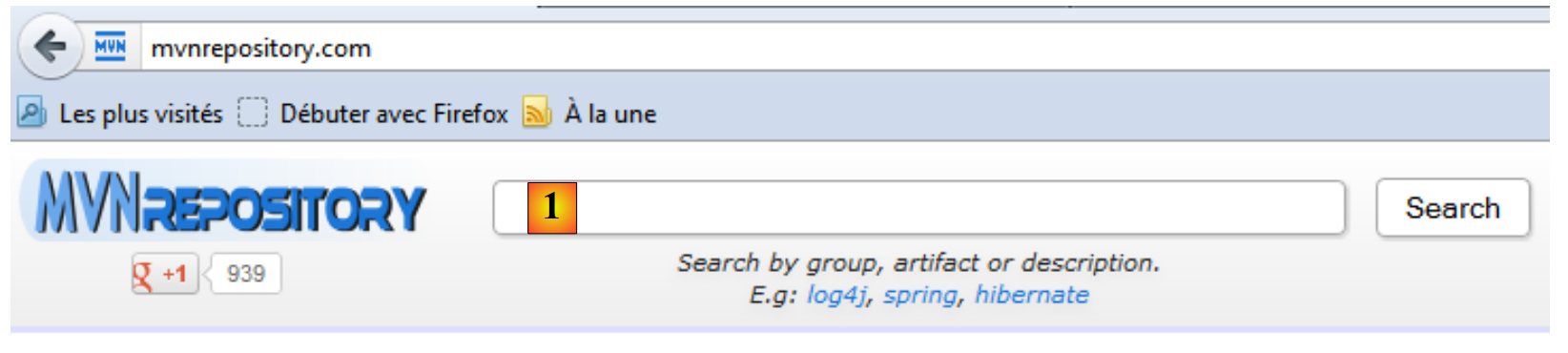

In [1], you can enter keywords. Type in "hibernate" and run the search.

  • In [2], let’s choose the [groupId], org.hibernate, and [artifactId] “hibernate-core”,
  • in [3], let’s choose version 4.1.2-Final,
  • in [4], we get the Maven code to paste into the [pom.xml] file. We do so.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>istia.st</groupId>
  <artifactId>mv-exemple</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>mv-exemple</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.10</version>
      <scope>test</scope>
      <type>jar</type>
    </dependency>
    <dependency>
      <groupId>org.hibernate</groupId>
      <artifactId>hibernate-core</artifactId>
      <version>4.1.2.Final</version>
    </dependency>
  </dependencies>
</project>

We save the file [pom.xml]. Maven then begins downloading the new dependencies. The project evolves as follows:

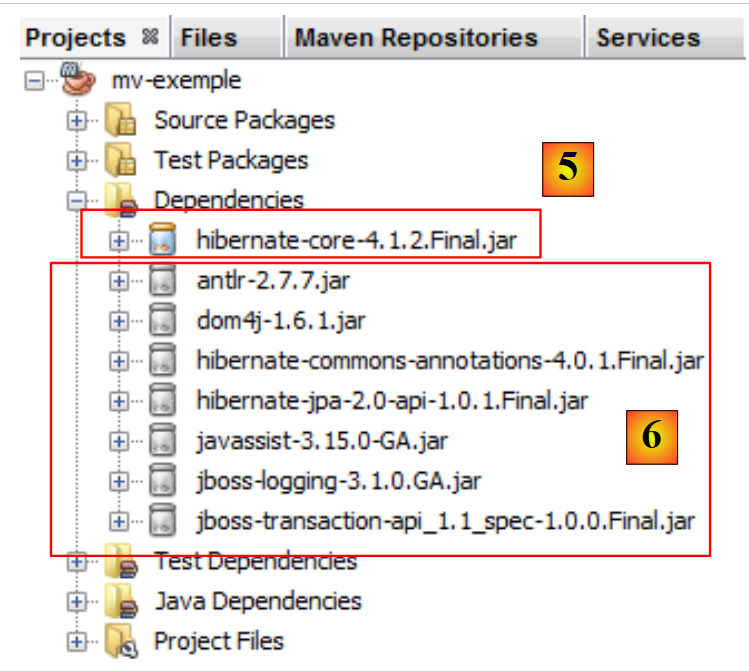

  • in [5], the dependency [hibernate-core-4.1.2-Final]. In the repository where it was found, this [artifactId] is also described by a file named [pom.xml]. This file was read, and Maven discovered that [artifactId] had dependencies. It downloads those as well. It will do this for every downloaded [artifactId]. Ultimately, [6] contains dependencies that we did not request directly. They are indicated by an icon different from that of the main [artifactId].

In this document, we use Maven primarily for this feature. This saves us from having to know all the dependencies of a library we want to use. We let Maven manage them. Furthermore, by sharing a [pom.xml] file among developers, we ensure that every developer is indeed using the same libraries.

In the examples that follow, we will simply provide the [pom.xml] file used. The reader need only use it to replicate the conditions described in the document. Furthermore, Maven projects are supported by the major Java IDEs (Eclipse, IntelliJ IDEA, Visual Studio, and others). Readers can therefore use their favorite IDE to test the examples.
