7. The RxJava Library
The RxJava library is based on the following concept: a stream of elements of type T Observable<T> is observed by one or more subscribers (subscribers, observers, consumers) Subscriber<T>. The RxJava library allows the Observable<T> stream to run in thread T1 and its Subscriber<T> observer in thread T2 without the developer having to worry about managing the lifecycle of these threads or naturally difficult problems, such as sharing data between threads and synchronizing them to execute a global task. It therefore facilitates asynchronous programming.
An Observable<T> stream produces elements of type T, which can be observed as they are produced. If the observer and the observable (a term used loosely to refer to the Observable<T> type) are in the same thread, then the observable can only produce element (i+1) once the observer has consumed element i. There are few cases where this architecture is useful. If the observer and the observable are not in the same thread, then the observable and its observer behave autonomously: the observable emits at its own pace and the observer consumes at its own pace. This is where the library’s value lies. So far, we have only discussed a single observer. In reality, an observable can have any number of observers.

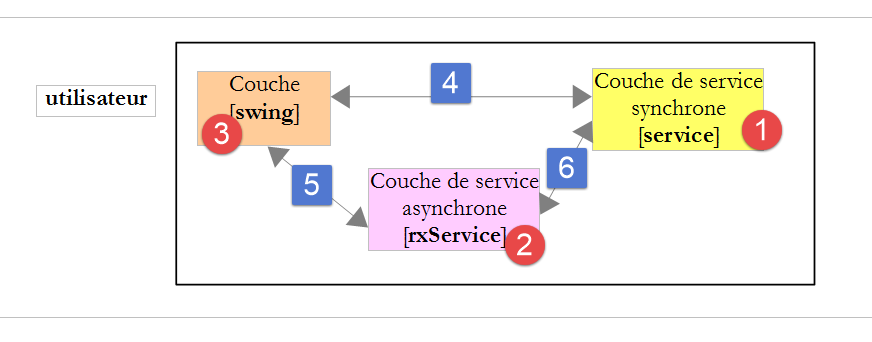

The RxJava library is particularly well-suited to the architecture described in Section 2 of the introduction and summarized here:
- in [1], a service layer provides services, some of which take a long time to obtain (network requests, for example);
- this service layer is invoked by a graphical user interface [1] (Swing, Android, JavaFX). If the service layer runs in the same thread as the [Swing] method that uses it, the graphical user interface freezes (becomes unresponsive) while waiting for the service result;
- In [2], a thin adaptation layer implemented with RxJava allows the GUI layer to be presented with an asynchronous implementation of the same service: this service can run in a different thread from the GUI layer method that invokes it. In this case, the GUI [3] remains responsive: the user can continue to interact with it, for example by triggering a new network request in parallel with the first one, and, most importantly, the user can be given the option to cancel processes that take too long—something impossible if the GUI is frozen;
- Call [4] is synchronous, whereas calls [5-6] are asynchronous;
In this architecture, layer [2] provides services that return Observable<T> types to which the methods of the graphical layer [3] can subscribe. A service in layer [2] then delivers its results one by one, and layer [3] can react to each of them, for example by updating one or more components of the graphical user interface.
The Observable<T> class has dozens of methods. This is one of the challenges of the library: it is very rich, and it is difficult to grasp all its possibilities. We will present some of them. Mastering the other methods will come with time.
7.1. Creating observables and subscribing to them
7.1.1. Example-01: the [Observable.from] method
 |
Consider the following code:
package dvp.rxjava.observables;
import rx.Observable;
import rx.functions.Action0;
import rx.functions.Action1;
import java.util.Arrays;
public class Example01 {
public static void main(String[] args) {
// Observables of integers
Observable<Integer> obs1 = Observable.from(Arrays.asList(1, 2, 3));
obs1.subscribe(new Action1<Integer>() {
@Override
public void call(Integer integer) {
System.out.printf("next : %s%n", integer);
}
}, new Action1<Throwable>() {
@Override
public void call(Throwable throwable) {
System.out.println(throwable);
}
}, new Action0() {
@Override
public void call() {
System.out.println("completed");
}
});
}
}
- Line 12: We create an Observable<Integer> type from a list of integers.
The Observable<T> class is a stream of elements of type T that can be observed—preferably asynchronously, but not necessarily—as they are produced. Its definition is as follows:
 |

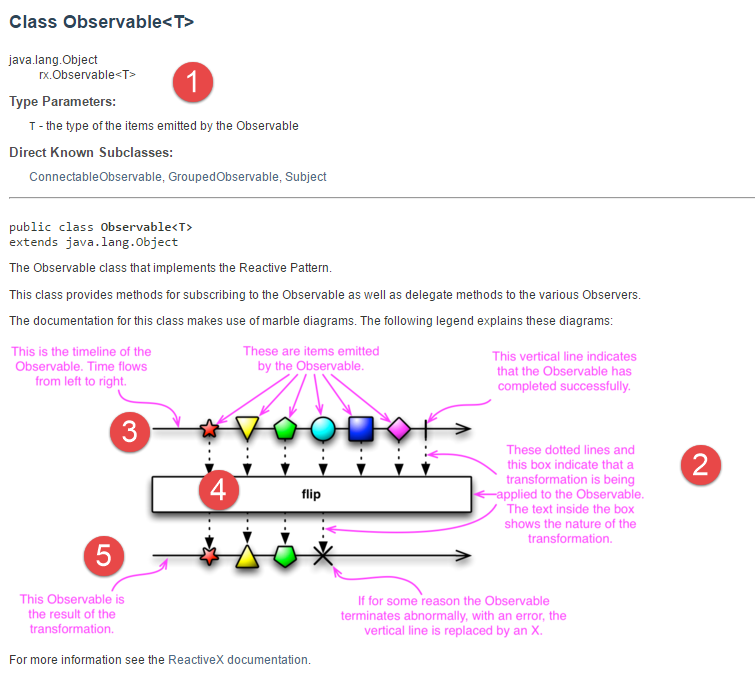

As previously mentioned, the Observable<T> class has dozens of methods. Some are similar to those of the Stream<T> class discussed in Section 5. The RxJava documentation includes "marble diagrams" [2] that illustrate how these methods work:
- Line 3 illustrates the observable’s emissions over time;
- the method [4] is applied to the elements emitted by the observable. It generally produces a new observable;
- line 5 shows the new observable obtained;

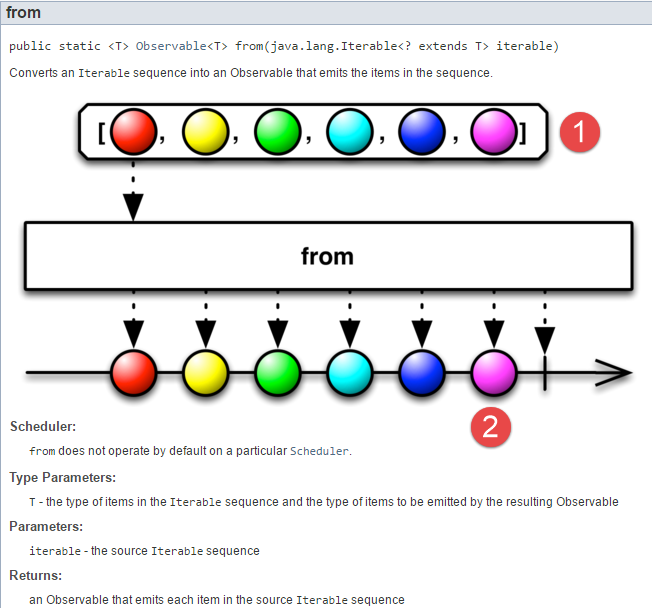

The [Observable.from] method has the following signature:
 |
The static method [Observable.from] allows you to create an Observable<T> from a collection of elements of type T. This is a very simple way to get started with observables. The line:
Observable<Integer> obs1 = Observable.from(Arrays.asList(1, 2, 3));
will therefore emit three elements. It does not emit them immediately. It will emit them in full each time a subscriber registers. This is called a cold observable. The observable re-emits its elements for each new subscriber.
We can think of the previous statement as a configuration action for the observable. It is configured once and executed n times if n subscribers appear.
How do you subscribe?

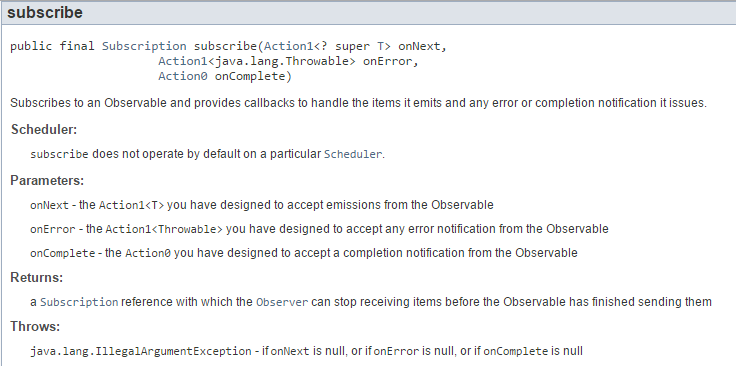

One way to do this is to use the [Observable.subscribe] method, whose definition used here is as follows:
 |
- the first parameter [Action1<T> onNext] (see Section 6.2) of the method is the method to be executed when the observable emits a new element T;
- the second parameter [Action1<Throwable> onError] of the method is the method to be executed when the observable throws an exception;
- the third parameter [Action0 onComplete] (see Section 6.1) of the method is the method to be executed when the observable emits an exception;
- the method returns a type [Subscription];

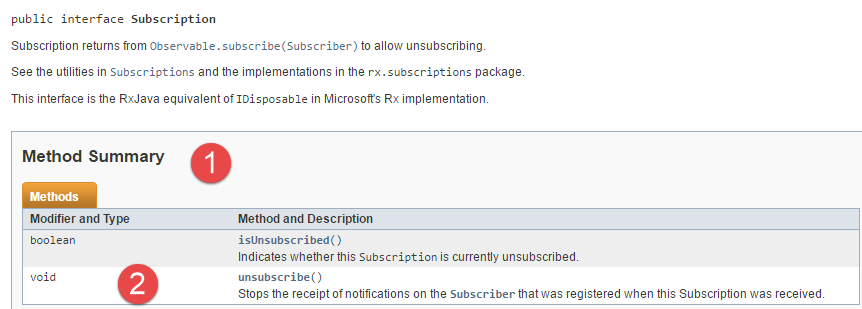

The type [Subscription] represents a subscription to the observable. Its definition is as follows:
 |
The value of this interface [1] lies in its method [2], which allows a subscription to be canceled.
In our example, the code for subscribing to the observable is as follows:
obs1.subscribe(new Action1<Integer>() {
@Override
public void call(Integer integer) {
System.out.printf("next : %s%n", integer);
}
}, new Action1<Throwable>() {
@Override
public void call(Throwable throwable) {
System.out.println(throwable);
}
}, new Action0() {
@Override
public void call() {
System.out.println("completed");
}
});
- line 1: the result of type [Subscription] is ignored;
- lines 1–15: the three parameters are instances of anonymous classes. We will also use lambdas. The advantage of anonymous classes is that the data types expected by the single method of these classes are clearly visible;
- lines 2–5: implementation of the first parameter of type [Action1<Integer>];
- lines 6–10: implementation of the second parameter of type [Action1<Throwable>];
- lines 11–15: implementation of the third parameter of type [Action0];
The complete code is as follows:
package dvp.rxjava.observables;
import rx.Observable;
import rx.functions.Action0;
import rx.functions.Action1;
import java.util.Arrays;
public class Example01 {
public static void main(String[] args) {
// Observables of integers
Observable<Integer> obs1 = Observable.from(Arrays.asList(1, 2, 3));
// subscription
obs1.subscribe(new Action1<Integer>() {
@Override
public void call(Integer integer) {
System.out.printf("next : %s%n", integer);
}
}, new Action1<Throwable>() {
@Override
public void call(Throwable throwable) {
System.out.println(throwable);
}
}, new Action0() {
@Override
public void call() {
System.out.println("completed");
}
});
}
}
The observable on line 12 begins emitting its three elements as soon as the [subscribe] method is called on line 14. From that point on:
- for each emitted element, lines 15–18 are executed.
- when the 3 elements are finished, lines 24–29 execute;
- lines 19–24 will never be executed because the observable does not emit an exception here;
By default, the observable and the observer run in the same thread. There are a few predefined observables that run in a thread other than the main thread (here, the thread of the main method), but for most of them, this is not the case. So here, everything happens in the thread of the main method:
- the observable emits the element 1;
- lines 15–18 execute and display this element;
- the observable emits the element 2;
- lines 15–18 execute and display this element;
- the observable emits element 3;
- lines 15–18 execute and display this element;
- the observable emits the [completed] notification;
- lines 24–29 execute;
This is what the results show:
The [Example02] class reuses [Example01], this time using lambda functions as parameters for the [Observable.subscribe] method:
package dvp.rxjava.observables;
import java.util.Arrays;
import rx.Observable;
public class Example02 {
public static void main(String[] args) {
// Observables of integers
Observable<Integer> obs1 = Observable.from(Arrays.asList(1, 2, 3));
// subscription
obs1.subscribe(
(Integer) -> System.out.printf("next : %s%n", Integer),
(th) -> System.out.println(th),
() -> System.out.println("completed"));
}
}
7.1.2. Example-03: The Observer Class
 |
The [Observable.subscribe] method, which allows you to subscribe to an observable, has several versions, including the following:
package dvp.rxjava.observables;
import java.util.Arrays;
import rx.Observable;
import rx.Observer;
public class Example03 {
public static void main(String[] args) {
// Observables of integers
Observable<Integer> obs1 = Observable.from(Arrays.asList(1, 2, 3));
// subscription
obs1.subscribe(new Observer<Integer>() {
@Override
public void onCompleted() {
System.out.println("completed");
}
@Override
public void onError(Throwable th) {
System.out.printf("throwable %s", th);
}
@Override
public void onNext(Integer integer) {
System.out.printf("next: %s%n", integer);
}
});
};
}
Line 13: Instead of passing three parameters to the [subscribe] method, we pass it an [Observer] type as follows:
 |

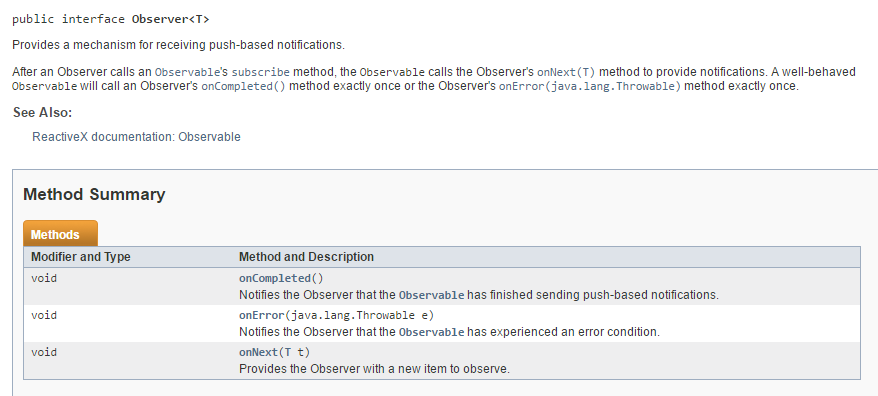

The [Observer] type is an interface with three methods:
- [onNext(T t)], which is called every time the observable emits an element t;
- [onError(Throwable th)] which is called when the observable throws an exception th;
- [onCompleted], which is called when the observable indicates that it has finished emitting;
The code works similarly to what was explained earlier. We get the following results:
7.1.3. Example-04: The [Observable.create] method
 |

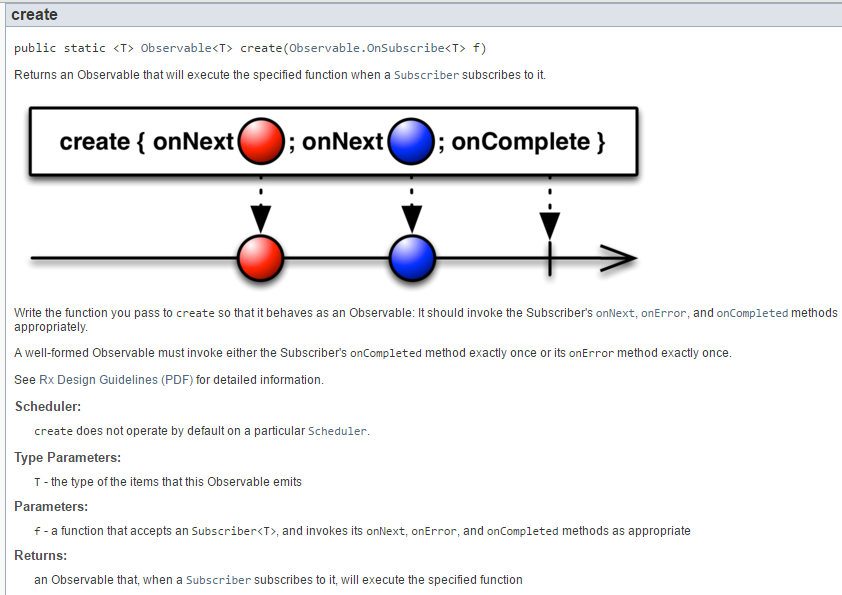

The static method Observable.create is defined as follows:
 |
- The [create] method returns a type Observable<T>;
- the parameter of the [create] method is a function of type [Observable.OnSubscribe<T>] defined as follows:
 |
The type [Observable.OnSubscribe<T>] is a functional interface that itself extends the functional interface [Action1<Subscriber<? super T>>]. The [call] method of this interface expects a type [Subscriber] (subscriber, observer) defined as follows:
 |

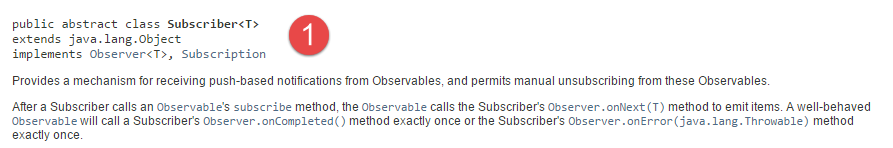

We see in [1] that the class [Subscriber<T>] implements the interface [Observer<T>] presented in Section 7.1.2.
Ultimately, the method [<T> Observable.create]:
- takes as a parameter an instance of type [Observable.OnSubscribe<T>] with a single method: void call(Subscriber<T> s). The type [Subscriber<T>] extends the type [Observer<T>] and therefore has the methods onNext, onError, and onCompleted;
- returns a type Observable<T>;
The [<T> Observable.create] method returns a configured observable. No elements have been emitted yet. When a subscriber [Subscriber<T> s] subscribes to this observable, the method [void call(s)] of the function passed as a parameter to the method [<T> Observable.create] is then called. Its role is to emit elements t of type T and to call the observer’s method [s.onNext(t)] on each emission. When this is complete, the observer’s [s.onCompleted(t)] method must be called and the [call] method must terminate. If the [call] method encounters an exception th, the observer’s [s.onError(th)] method must be called and the [call] method must terminate;
To illustrate this complex behavior, we will use the following code [Example04]:
package dvp.rxjava.observables;
import rx.Observable;
import rx.Subscriber;
import java.util.Random;
public class Example04 {
public static void main(String[] args) {
// Observable configuration for doubles
Observable<Double> obs1 = Observable.create(new Observable.OnSubscribe<Double>() {
@Override
public void call(Subscriber<? super Double> subscriber) {
for (int i = 0; i < 3; i++) {
// emit element i
subscriber.onNext(new Random((i + 1)).nextDouble());
}
// end of emission
subscriber.onCompleted();
}
});
// subscription and therefore broadcast
obs1.subscribe((d) -> System.out.printf("onNext %s%n", d), (th) -> System.out.printf("onError %s%n", th),
() -> System.out.println("onCompleted"));
}
}
- line 11: an observable emitting Double types is created;
- lines 11–21: the parameter of the [create] method is instantiated with an anonymous class containing the single [call] method from lines 12–20. The observable created on line 11 is ready to emit, but it will only emit when an observer arrives;
- lines 13–21: the [call] method receives a reference to an observer;
- lines 14–17: three elements are emitted to the observer;
- line 19: notifies the observer that emitting has finished;
- lines 23–24: Subscription to the observable from line 11. We implement the three parameters [onNext, onError, onCompleted] of the [subscribe] method using three lambdas. This subscription will create the subscriber [Subscriber<Double>], which will be passed to the [call] method in line 13. The emission of elements will then begin;
- everything happens in the same thread: observable and observer;
We obtain the following results:
The [Observable.create] method allows you to create an observable from any event. This is the method we used in Section 2 of the introduction to transform a synchronous interface into an asynchronous one.
7.1.4. Example-05: Refactoring of [Example-04]
 |
The following example presents a new version of the static method [Observable.subscribe]:
package dvp.rxjava.observables;
import rx.Observable;
import rx.Subscriber;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;
public class Example05 {
public static void main(String[] args) {
// configuration of a real-valued observable
Observable<Double> obs1 = Observable.create(new Observable.OnSubscribe<Double>() {
@Override
public void call(Subscriber<? super Double> subscriber) {
showInfos("Observable.call start");
for (int i = 0; i < 3; i++) {
// wait
try {
Thread.sleep(500 - i * 100);
} catch (InterruptedException e) {
// error
subscriber.onError(e);
}
// action
double value = new Random().nextInt(100) * 1.2;
showInfo(String.format("Observable.call onNext(%s)", value));
subscriber.onNext(value);
}
// done
showInfo(String.format("Observable.call onCompleted"));
subscriber.onCompleted();
}
});
// a subscriber
Subscriber<Double> subscriber = new Subscriber<Double>() {
@Override
public void onCompleted() {
showInfo("Subscriber.onCompleted");
}
@Override
public void onError(Throwable e) {
showInfo(String.format("Subscriber.onError (%s)", e));
}
@Override
public void onNext(Double aDouble) {
showInfo(String.format("Subscriber.onNext (%s)", aDouble));
}
};
// subscription
showInfo("before subscription");
obs1.subscribe(subscriber);
showInfo("after subscription");
}
private static void showInfo(String message) {
System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message, Thread.currentThread().getName(),
new SimpleDateFormat("ss:SSS").format(new Date()));
}
}

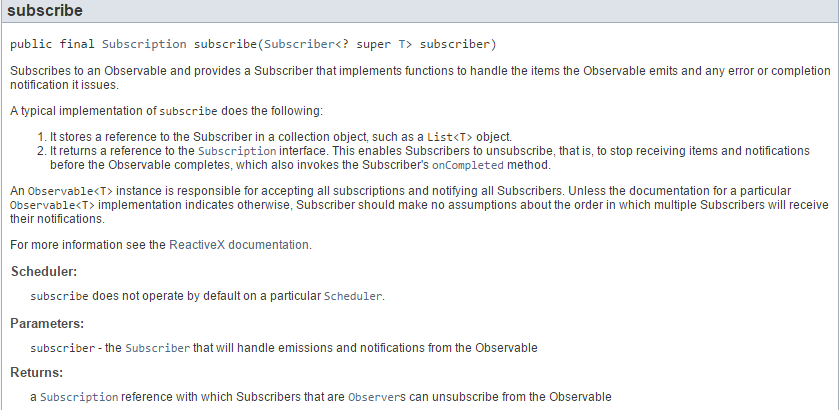

- line 56: the new version of the static method [Observable.subscribe] accepts the [Subscriber] type as a parameter, which we introduced in the previous paragraph;
- lines 37–52: the subscriber (observer). It implements the Observer interface with its three methods onNext, onError, and onCompleted;
- Lines 61–64: From here on, we’ll focus on the threads in which the observable and its observer run;
- line 62: the thread name;
- line 63: the current time expressed in seconds and milliseconds. This will allow us to track over time the emission of elements by the observable and their processing by the observer;
- This code has the same functionality as the previous code. We have simply refactored the latter;
The results obtained are as follows:
- Line 1 of the results: before line 56 of the code, nothing has happened yet. The observable has simply been configured;
- Line 2 of the results: Line 56 of the code triggers a call to the [call] method on line 15. Line 3: the real number 80.39 is emitted to the observer;
- Line 4: The observer receives the emitted number;
- lines 5–8: the previous process repeats twice;
- line 9: the observable sends the end-of-broadcast notification;
- line 10: the observer receives it;
- line 11: displayed by line 57 of the code;
We can see, therefore, that the single subscription line 56 caused lines 2–10 of the results to be displayed. When starting out with the RxJava library, one wonders how things are linked together, particularly the connections between the observer and the observable. Here we see that line 56, the subscription to the observable,
- triggered the emission of all elements of the observable;
- that the observable and the observer run in the same thread;
- and that, because of this, we observe the sequence: emit element i, observe element i, emit element (i+1), observe element (i+1), ...
Recall that the emitter was waiting before emitting its elements:
// wait
try {
Thread.sleep(500 - i * 100);
} catch (InterruptedException e) {
// error
subscriber.onError(e);
}
where i in line 3 represents the emission number (0 <= i < 3). If we look at the emission times of the observable's elements:
- lines 2, 3: element 0 was emitted approximately 500 ms after the subscription began;
- lines 3, 5: element 1 was emitted approximately 400 ms after element 0;
- lines 5, 7: element 2 was emitted approximately 300 ms after element 1;
7.2. Execution thread, observation thread
7.2.1. Example-06: Observable and observer in a thread other than [main]
 |
We refactor the previous example as follows [Example06]:
package dvp.rxjava.observables;
import rx.Observable;
import rx.Subscriber;
import rx.schedulers.Schedulers;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;
import java.util.concurrent.CountDownLatch;
public class Example06 {
public static void main(String[] args) {
// barrier
CountDownLatch latch = new CountDownLatch(1);
// configuration of a real-valued observable
Observable<Double> obs1 = Observable.create(new Observable.OnSubscribe<Double>() {
@Override
public void call(Subscriber<? super Double> subscriber) {
showInfos("Observable.call start");
for (int i = 0; i < 3; i++) {
// waiting
try {
Thread.sleep(500 - i * 100);
} catch (InterruptedException e) {
// error
subscriber.onError(e);
}
// action
double value = new Random().nextInt(100) * 1.2;
showInfo(String.format("Observable.call onNext(%s)", value));
subscriber.onNext(value);
}
// done
showInfo(String.format("Observable.call onCompleted"));
subscriber.onCompleted();
}
});
// a subscriber
Subscriber<Double> subscriber = new Subscriber<Double>() {
@Override
public void onCompleted() {
showInfos("Subscriber.onCompleted");
// lower the barrier
latch.countDown();
}
@Override
public void onError(Throwable e) {
showInfos(String.format("Subscriber.onError (%s)", e));
}
@Override
public void onNext(Double aDouble) {
showInfo(String.format("Subscriber.onNext (%s)", aDouble));
}
};
// continue observable configuration
obs1 = obs1.subscribeOn(Schedulers.computation());
// subscription
showInfo("before subscription");
obs1.subscribe(subscriber);
// waiting at the barrier
try {
showInfo("start waiting at barrier");
latch.await();
showInfo("end of barrier wait");
} catch (InterruptedException e1) {
System.out.println(e1);
}
showInfo("after subscription");
}
private static void showInfo(String message) {
System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message, Thread.currentThread().getName(),
new SimpleDateFormat("ss:SSS").format(new Date()));
}
}
- Line 16: We create a guardrail (semaphore) using a [CountDownLatch] object. This object is used to synchronize threads with each other. Here, it is initialized with the value 1, which we will refer to as the guardrail (or semaphore) value. A thread waits for the guardrail using the following operation:
latch.await();
The thread is blocked if the latch value is >0. A thread can increment or decrement the latch’s internal value. Line 48: the latch value is decremented by 1.

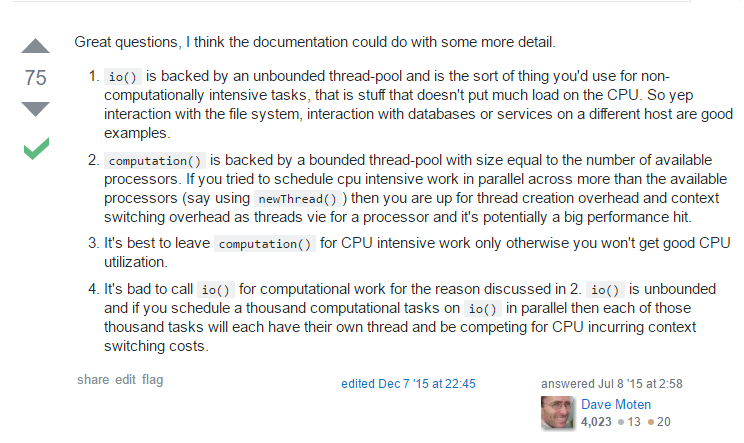

- Line 63: the observable is configured to run on a thread provided by the scheduler [Schedulers.computation()]. This scheduler can provide as many threads as there are cores on the execution machine. The section on the example application demonstrated the use of other schedulers (see Section 2.8);
The principle of the code is as follows:
- the [main] method runs in the main thread;
- line 66: starts emitting elements from the observable. These will be emitted on a thread other than the main thread;
- line 70: the main thread is blocked because the barrier has the value 1 (see line 16). It can only continue when this value changes to 0. This happens on line 48. It is the observer that lowers the barrier when it receives the notification that the observable has finished emitting;
Execution yields the following results:
before subscription ------Thread[main] ---- Time[09:268]
Observable.call start ------Thread[RxComputationThreadPool-1] ---- Time[09:278]
Start of barrier wait ------Thread[main] ---- Time[09:278]
Observable.call onNext(44.4) ------Thread[RxComputationThreadPool-1] ---- Time[09:783]
Subscriber.onNext (44.4) ------Thread[RxComputationThreadPool-1] ---- Time[09:783]
Observable.call onNext(18.0) ------Thread[RxComputationThreadPool-1] ---- Time[10:183]
Subscriber.onNext (18.0) ------Thread[RxComputationThreadPool-1] ---- Time[10:184]
Observable.call onNext(54.0) ------Thread[RxComputationThreadPool-1] ---- Time[10:486]
Subscriber.onNext (54.0) ------Thread[RxComputationThreadPool-1] ---- Time[10:488]
Observable.call onCompleted ------Thread[RxComputationThreadPool-1] ---- Time[10:489]
Subscriber.onCompleted ------Thread[RxComputationThreadPool-1] ---- Time[10:490]
end of barrier wait ------Thread[main] ---- Time[10:491]
after subscription ------Thread[main] ---- Time[10:493]
- line 1: the subscription is about to take place;
- line 2: this triggers the execution of the [call] method on thread [RxComputationThreadPool-1]. We now have parallel execution with two threads;
- line 3: for an unknown reason, the [RxComputationThreadPool-1] thread has yielded control. The [main] thread then takes control and is blocked by the barrier (line 70 of the code). From this point on, only the [RxComputationThreadPool-1] thread can operate;
- lines 4–11: we observe the behavior seen previously between the observable and its observer, but everything now takes place in the [RxComputationThreadPool-1] thread;
- lines 12-13: the observer has lowered the barrier (line 48 of the code) and the thread [RxComputationThreadPool-1] has terminated. The thread [main] takes control and displays two messages;
7.2.2. Example-07: Observable and observer in two different threads
|
We modify the previous example as follows:
package dvp.rxjava.observables;
import rx.Observable;
import rx.Subscriber;
import rx.schedulers.Schedulers;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;
import java.util.concurrent.CountDownLatch;
public class Example07 {
public static void main(String[] args) {
// barrier
CountDownLatch latch = new CountDownLatch(1);
// configuration of a real-valued observable
Observable<Double> obs1 = Observable.create(new Observable.OnSubscribe<Double>() {
@Override
public void call(Subscriber<? super Double> subscriber) {
showInfos("Observable.call start");
for (int i = 0; i < 3; i++) {
// waiting
try {
Thread.sleep(500 - i * 100);
} catch (InterruptedException e) {
// error
subscriber.onError(e);
}
// action
double value = new Random().nextInt(100) * 1.2;
showInfo(String.format("Observable.call onNext(%s)", value));
subscriber.onNext(value);
}
// done
showInfo(String.format("Observable.call onCompleted"));
subscriber.onCompleted();
}
});
// a subscriber
Subscriber<Double> subscriber = new Subscriber<Double>() {
@Override
public void onCompleted() {
showInfos("Subscriber.onCompleted");
// lower the barrier
latch.countDown();
}
@Override
public void onError(Throwable e) {
showInfo(String.format("Subscriber.onError (%s)", e));
}
@Override
public void onNext(Double aDouble) {
showInfo(String.format("Subscriber.onNext (%s)", aDouble));
}
};
// continue observable configuration
obs1 = obs1.subscribeOn(Schedulers.computation()).observeOn(Schedulers.computation());
// subscription
showInfos("before subscription");
obs1.subscribe(subscriber);
// waiting for the barrier
try {
showInfo("start waiting for barrier");
latch.await();
showInfo("end of barrier wait");
} catch (InterruptedException e1) {
System.out.println(e1);
}
showInfo("after subscription");
}
private static void showInfo(String message) {
System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message, Thread.currentThread().getName(),
new SimpleDateFormat("ss:SSS").format(new Date()));
}
}
The code is identical to that of the previous example except for line 63:
obs1 = obs1.subscribeOn(Schedulers.computation()).observeOn(Schedulers.computation());
which configures the observable (subscribeOn) and the observer (observeOn) to run on one of the threads provided by the scheduler [Schedulers.computation()].
The results obtained are as follows:
The following points can be noted:
- the observable runs in thread [RxComputationThreadPool-4] (lines 3–4, 6, 8–9);
- the observer runs in thread [RxComputationThreadPool-3] (lines 5, 7, 10-11);
- they run independently. Thus, in lines 8–9, the observable emits two notifications (onNext, onCompleted) before the observer retrieves the [onNext] notification (line 10);
The RxJava library handles the data transfer (emissions) from the observable’s thread to the observer’s thread. The developer does not need to worry about this.
We have seen how to create observables (Observable.from, Observable.create). Now let’s look at the predefined observables in the RxJava library.
7.3. Predefined Observables
7.3.1. Example-08: the [Observable.range] method
 |  |
From now on, we will use dedicated classes for the observed processes and their observers. The idea is to be able to log their names, their execution threads, and their execution times so that we can track them over time.
The [Process] class will simply be an Observable that we can name. It will implement the following [IProcess] interface:
package dvp.rxjava.observables.utils;
import rx.Observable;
public interface IProcess<T> {
// observable name
public String getName();
// observable
public Observable<T> getObservable();
}
This interface can be implemented by the following [Process<T>] class:
package dvp.rxjava.observables.utils;
import rx.Observable;
import rx.Scheduler;
public class Process<T> implements IProcess<T>{
// observable name
protected String name;
// observed process
protected Observable<T> observable;
// constructors
public Process(String name, Observable<T> observable) {
// local initializations
this.name = name;
this.observable = observable;
}
// getters and setters
public String getName() {
return name;
}
public Observable<T> getObservable() {
return observable;
}
}
- line 9: the name of the process;
- line 11: the observed observable;
- lines 14–18: the constructor;
The observer will be described by the following [Observer] class:
package dvp.rxjava.observables.utils;
import java.util.concurrent.CountDownLatch;
import java.util.function.Consumer;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import rx.Subscriber;
public class Observer<T> extends Subscriber<T> {
...
}
- Line 11: The Observateur<T> class extends the Subscriber<T> class, which we briefly introduced in Section 7.1.3. We will use it as an argument for the [Observable.subscribe] method:
// observable execution (observation)
obs1.subscribe(observer);
The [Observable.subscribe] method used in line 2 above has the following definition:
 |
The role of the [Subscriber] is primarily to manage the elements emitted by the observable to which it has subscribed using the methods of the [Observer] interface: onNext, onError, onCompleted. The [Subscriber] class has the following methods:
 |
In the code for the [Observer] class, we will use the [1] isUnsubscribed method to determine whether the subscriber’s subscription has been canceled or not. The complete [Observer<T>] class is as follows:
package dvp.rxjava.observables.utils;
import java.util.concurrent.CountDownLatch;
import java.util.function.Consumer;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import rx.Subscriber;
public class Observer<T> extends Subscriber<T> {
// a guardrail (semaphore)
private CountDownLatch latch;
// a display method
private Consumer<String> showInfo;
// the observer's name
private String observerName;
// the name of the observed process
private String processName;
// constructors
public Observer() {
}
public Observer(String name, CountDownLatch latch, Consumer<String> showInfo, String observedName) {
this.observerName = name;
this.latch = latch;
this.showInfos = showInfos;
this.processName = observedName;
}
// --------------------------- implementation of the Observer<T> interface
@Override
public void onCompleted() {
// end of broadcasts
if (!isUnsubscribed()) {
showInfos.accept(String.format("Subscriber [%s,%s].onCompleted", observerName, processName));
}
// end of main thread lock
latch.countDown();
}
@Override
public void onError(Throwable e) {
// transmission error
if (!isUnsubscribed()) {
showInfos.accept(String.format("Subscriber [%s, %s].onError (%s)", observerName, processName, e));
}
}
@Override
public void onNext(T value) {
// an additional emission
if (!isUnsubscribed()) {
try {
showInfos.accept(String.format("Subscriber [%s,%s]: onNext (%s)", observerName, processName,
new ObjectMapper().writeValueAsString(value)));
} catch (JsonProcessingException e) {
showInfos.accept(String.format("Subscriber [%s,%s].onNext (%s)", observerName, processName, e));
}
}
}
}
- In addition to the characteristics of a Subscriber, the Observer will carry the following information:
- line 14: a barrier or semaphore that will be used to block the main thread until the observer has received all the elements emitted by the observable. This will occur on line 36 of the code when the observer receives the end-of-emission notification from the observable;
- line 16: a Consumer<String> instance that will be used to display a message on the console;
- line 18: the observer’s name, used to distinguish between observers when there are multiple;
- line 20: the name of the observed process;
- lines 36, 46, 54: the [onCompleted, onError, onNext] methods of the [Observer<T>] interface implemented by the abstract class [Subscriber<T>]. This class does not implement them. This must therefore be done in its child classes. Before doing anything in these methods, we check whether the observer has been unsubscribed from the observable it is observing;
- line 59: the observer’s [onNext] method writes the JSON string of the received element. This will allow us to display various types of elements;

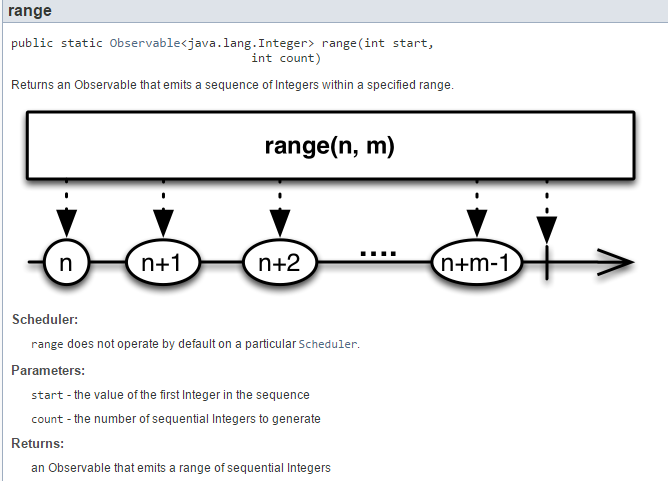

That said, let’s examine a new method of the Observable class, the [range] method:
 |
The Observable.range(n,m) observable emits (m) integers ranging from n to n+m-1. We’ll explore it with the following [Example08] code:
package dvp.rxjava.observables.examples;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.concurrent.CountDownLatch;
import java.util.function.Consumer;
import dvp.rxjava.observables.utils.Observer;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example08 {
public static void main(String[] args) throws InterruptedException {
// number of observers
final int numberOfObservers = 2;
// semaphore
CountDownLatch latch = new CountDownLatch(numberOfObservers);
// observable configuration
Observable<Integer> obs1 = Observable.range(15, 3).subscribeOn(Schedulers.computation());
// observable execution (observation)
showInfos.accept("main: start observation");
for (int i = 0; i < numberOfObservers; i++) {
obs1.subscribe(new Observer<>(String.format("observer[%d]", i), latch, showInfos, "obs1"));
}
// waiting
showInfo.accept("main: waiting for observation to end");
latch.await();
// end
showInfos.accept("main: end of observation");
}
// displays
static Consumer<String> showInfos = message -> System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message,
Thread.currentThread().getName(), new SimpleDateFormat("ss:SSS").format(new Date()));
}
- Line 16: We will use two observers;
- line 19: the guardrail (semaphore) is initialized to two because we will place each observer on a different thread. The main thread will therefore have to wait for both observer threads to finish;
- line 22: we configure the observable so that it runs on a thread from the scheduler [Schedulers.computation()]. The observer will be on the same thread as the observable;
- lines 25–27: we subscribe two observers to the observable. This will trigger the observable’s complete execution for each observer: the integers 15, 16, and 17 will be emitted;
- line 30: the main thread waits for the observers to finish;
The results obtained are as follows:
- line 2: the main thread is blocked, waiting for the two observers to finish;
- lines 3-4: we see that observer 0 is on thread [RxComputationThreadPool-1] and observer 1 on thread [RxComputationThreadPool-2];
- lines 3-10: we see that both observers receive exactly the same elements;
We will use the Observer class defined here to illustrate the behavior of other types of observables.
7.3.2. Example-09: the Observable.[interval, take, doNext] methods
 |
 |

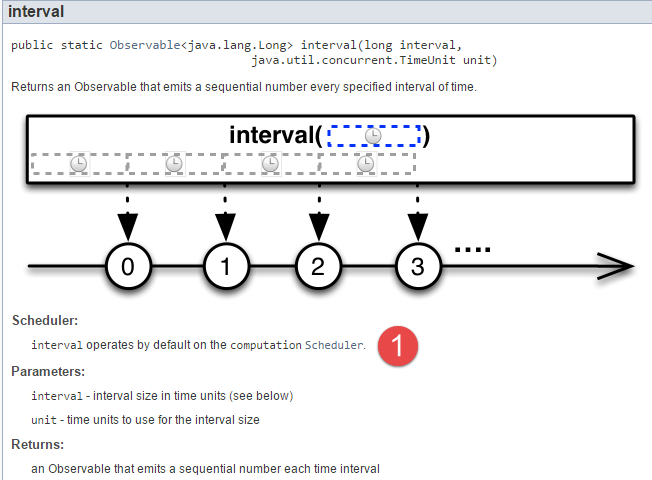

This example illustrates the use of the Observable.interval(long interval, TimeUnit unit) observable, which emits long integers at regular intervals. Note point [1]: by default, the [Observable.interval] observable runs on one of the threads of the [Schedulers.computation] scheduler.
The code will be as follows:
package dvp.rxjava.observables.examples;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.TimeUnit;
import java.util.function.Consumer;
import dvp.rxjava.observables.utils.Observer;
import rx.Observable;
public class Example09 {
public static void main(String[] args) throws InterruptedException {
// number of observers
final int numberOfObservers = 2;
// semaphore
CountDownLatch latch = new CountDownLatch(numberOfObservers);
// Observable configuration
Observable<Long> obs1 = Observable.interval(500L, TimeUnit.MILLISECONDS).take(3)
.doOnNext(l -> showInfos.accept(l.toString()));
// execute observable (observation)
showInfos.accept("main: start observation");
for (int i = 0; i < nbObservers; i++) {
obs1.subscribe(new Observer<>(String.format("observer [%d]", i), latch, showInfos,
"obs1"));
}
// waiting
showInfos.accept("main: waiting for observation to finish");
latch.await();
// end
showInfos.accept("main: end of observation");
}
// output
static Consumer<String> showInfos = message -> System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message,
Thread.currentThread().getName(), new SimpleDateFormat("ss:SSS").format(new Date()));
}
- line 22: the observable emits long integers every 500 milliseconds. The sequence starts with the number 0;
- line 22: this observable emits an infinite number of values. The [Observable.take(n)] method creates a new observable that retains only the first n emitted elements;
 |
Let’s revisit the observable’s code:
Observable<Long> obs1 = Observable.interval(500L, TimeUnit.MILLISECONDS).take(3)
.doOnNext(l -> showInfos.accept(l.toString()));

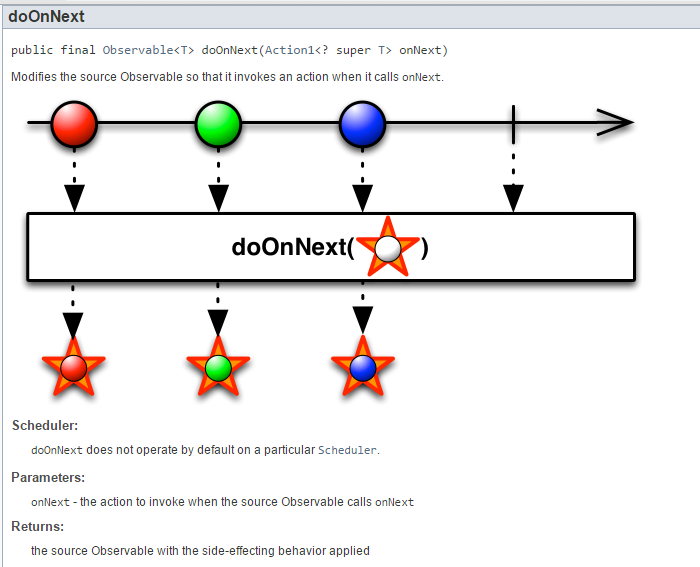

Line 2: The [Observable.doOnNext] method is executed every time the observable emits a new element. This is often used to log information. Here, we want to log the emission date of the elements to verify that the 500-millisecond interval is being maintained. The [Observable.doOnNext] method does not modify the observable to which it is applied. Its definition is as follows:
 |
Execution yields the following results:
- lines 3, 7, and 11: we see that the emission interval is approximately 500 ms;
- the two observers are indeed on two different threads even though the observable had not been configured to run with a specific scheduler. This is the default behavior of the [Observable.interval] observable that we see here;
7.3.3. Examples-10/12: the Observable.[error, empty, never] methods
 |  |
From now on, we will be more concise in our illustrations of the methods of the [Observable] class. The previous code was as follows:
package dvp.rxjava.observables;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.TimeUnit;
import java.util.function.Consumer;
import rx.Observable;
public class Example09 {
public static void main(String[] args) throws InterruptedException {
// number of observers
final int numberOfObservers = 2;
// semaphore
CountDownLatch latch = new CountDownLatch(numberOfObservers);
// observable configuration
Observable<Long> obs1 = Observable.interval(500L, TimeUnit.MILLISECONDS).take(3)
.doOnNext(l -> showInfos.accept(l.toString()));
// observable execution (observation)
showInfos.accept("main: start observation");
for (int i = 0; i < numberOfObservers; i++) {
obs1.subscribe(new Observer<>(String.format("observer [%d]", i), latch, showInfo,
"obs1"));
}
// wait
showInfos.accept("main: waiting for observation to finish");
latch.await();
// end
showInfos.accept("main: end of observation");
}
// output
static Consumer<String> showInfos = message -> System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message,
Thread.currentThread().getName(), new SimpleDateFormat("ss:SSS").format(new Date()));
}
This code was already used in the previous example. Only lines 21–22 changed. We will therefore factor out most of this code into the following [ProcessUtils] class:
package dvp.rxjava.observables.utils;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.concurrent.CountDownLatch;
import java.util.function.Consumer;
import rx.Observable;
public class ProcessUtils {
@SafeVarargs
public static void subscribe(int nbObservers, IProcess<?>... processes) throws InterruptedException {
// semaphore
CountDownLatch latch = new CountDownLatch(numberOfObservers * processes.length);
// observable execution (observation)
showInfos.accept("main: start observation");
for (int i = 0; i < numberOfObservers; i++) {
for (IProcess<?> process : processes) {
Observable<?> obs = process.getObservable();
obs.subscribe(new Observer<>(String.format("observer[%d]", i), latch, showInfos, process.getName()));
}
}
// waiting
showInfos.accept("main: waiting for observation to finish");
latch.await();
// end
showInfos.accept("main: end of observation");
}
// output
static Consumer<String> showInfos = message -> System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message,
Thread.currentThread().getName(), new SimpleDateFormat("ss:SSS").format(new Date()));
}
- line 13: the method takes two parameters:
- nbObservers: the number of observers for the processes passed as the second parameter;
- processes: the processes (named observables) to be observed. Thanks to the [IProcess<?>] notation, processes can emit elements of different types;
- line 16: the semaphore must turn green when all observers have completed all their observations. The initial value of the semaphore is therefore the number of observers multiplied by the number of observations;
- Lines 20–25: Each observer is subscribed to all the processes it needs to observe;
- line 23: retrieve the observable from the process (see Section 7.3.1);
- line 23: an observer is subscribed to it. Four pieces of information are passed to the observer:
- its name;
- the semaphore it must decrement when it receives the end-of-transmission notification from the observable it is observing;
- the method to use when it wants to log information to the console;
- the name of the process it will observe;
With these classes defined, Example 10 will be as follows:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example10 {
public static void main(String[] args) throws InterruptedException {
// Observable configuration
Observable<?> obs = Observable.error(new RuntimeException("Error!!!")).subscribeOn(Schedulers.computation());
// execute (observe) observable
ProcessUtils.subscribe(2, new Process<>("process1", obs));
}
}

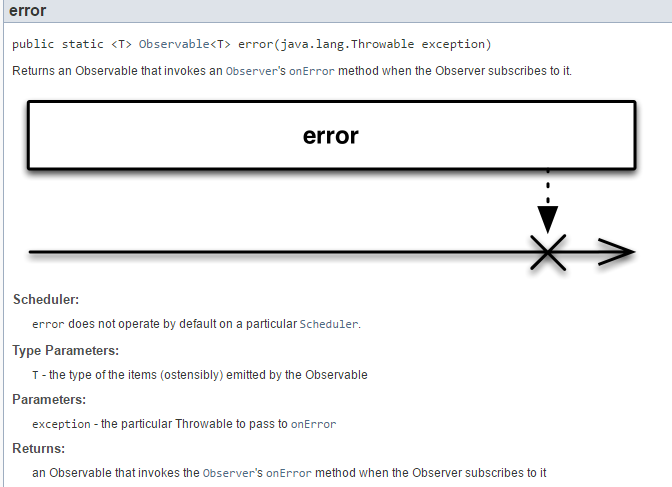

Line 11, the static method [Observable.error] is defined as follows:
 |
Line 8 therefore configures an observable that simply throws an exception to the [onError] method of its subscribers. The execution yields the following results:
main: start of observation ------Thread[main] ---- Time[22:618]
main: waiting for observation to end ------Thread[main] ---- Time[22:636]
Subscriber[observer[1], process1].onError (java.lang.RuntimeException: Error !!!) ------Thread[RxComputationThreadPool-2] ---- Time[22:638]
Subscriber[observer[0], process1].onError (java.lang.RuntimeException: Error!!!) ------Thread[RxComputationThreadPool-1] ---- Time[22:638]
Lines 3 and 4: the [onError] method of both subscribers received the exception thrown by the observable.
This execution has a peculiarity: the [onCompleted] methods of both observers were not called. As a result, the barrier was not lowered, and the main thread remains blocked in the static method [ProcessUtils.subscribe] at the following line 3:
// waiting
showInfos.accept("main: waiting for observation to complete");
latch.await();
// end
showInfos.accept("main: end of observation");
Here we see that if an error occurs in the observable, the subscribers' [onCompleted] method is not called. We therefore modify the [Observer.onError] method as follows:
@Override
public void onError(Throwable e) {
// emission error
if (!isUnsubscribed()) {
showInfos.accept(String.format("Subscriber[%s, %s].onError (%s)", observerName, processName, e));
}
// end main thread lock
latch.countDown();
}
We add lines 7–8 to release the lock in case of an observable error. With this new code, the execution yields the following results:
main: start of observation ------Thread[main] ---- Time[40:750]
main: waiting for observation to end ------Thread[main] ---- Time[40:764]
Subscriber[observer[0], process1].onError (java.lang.RuntimeException: Error !!!) ------Thread[RxComputationThreadPool-1] ---- Time[40:766]
Subscriber[observer[1], process1].onError (java.lang.RuntimeException: Error!!!) ------Thread[RxComputationThreadPool-2] ---- Time[40:766]
main: end of observation ------Thread[main] ---- Time[40:767]
We get line 5, which we didn't have before.
Example 11 will be as follows:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example11 {
public static void main(String[] args) throws InterruptedException {
// Observable configuration
Observable<?> obs1 = Observable.empty();
// execute (observe) observable
ProcessUtils.subscribe(2, new Process<>("process1", obs1));
}
}

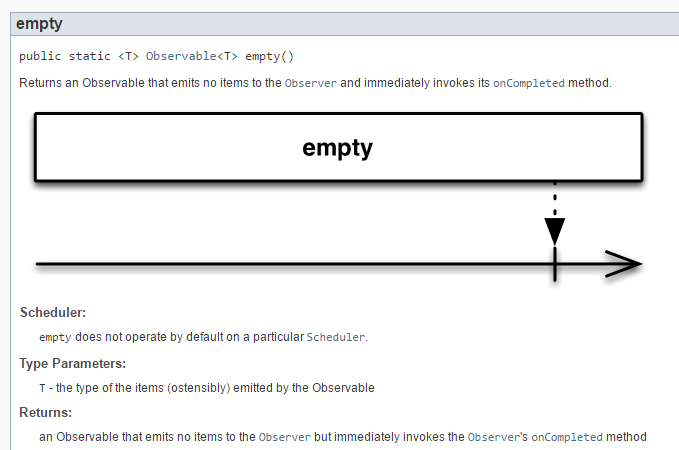

Line 10: The static method [Observable.empty] creates an observable that emits no elements. It emits only the end-of-emission notification;
 |
Executing the code in the example above yields the following results:
- Lines 2 and 3: We see that both observers receive the end-of-broadcast notification without having received any elements beforehand.
One might wonder what this method is actually used for. It can be used in a manner analogous to a collection, initially empty, into which elements are then added:

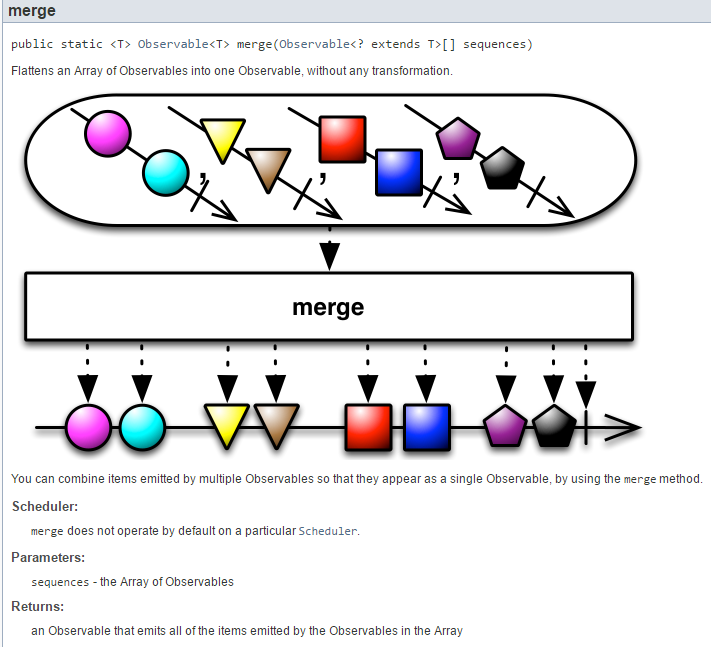

In line 3, we merge the initial observable obs (line 1) with other observables.
Example 12 illustrates the static method [Observable.never]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example12 {
public static void main(String[] args) throws InterruptedException {
// Observable configuration
Observable<?> obs1 = Observable.never();
// execution (observation) of the observable
ProcessUtils.subscribe(2, new Process<>("process1", obs1));
}
}

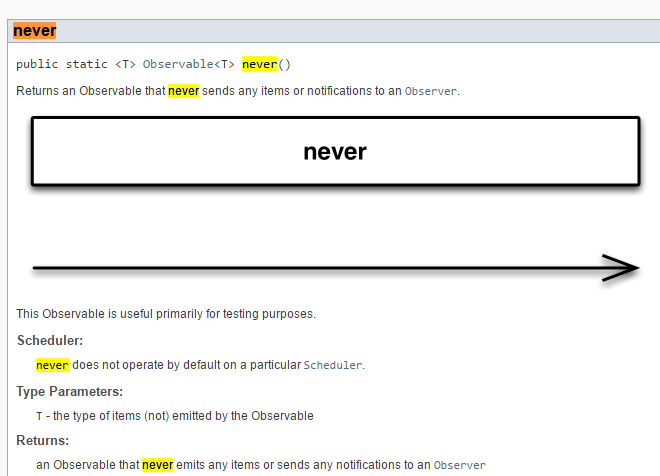

The static method [Observable.never] creates an observable that never emits:
 |
Running the example yields the following results:
Line 2: the main thread waits indefinitely. This is because no observable emits the [onCompleted] notification, which allows the semaphore (barrier) to turn green (lower the barrier).
7.4. Multithreading
7.4.1. Example-13: action thread, observer thread
In Section 7.1.3, we created an observable using the static method [Observable.create]:
|
- the [create] method returns a type Observable<T>;
- the parameter of the [create] method is a function of type [Observable.OnSubscribe<T>] defined as follows:
|
The type [Observable.OnSubscribe<T>] is a functional interface that itself extends the functional interface [Action1<Subscriber<? super T>>]. The [call] method of this interface expects a type [Subscriber] (subscriber, observer). In the rest of this document, we will sometimes refer to the type [Observable.OnSubscribe<T>] as an action. We will create custom actions that will have a name. These will be instances of the following [IProcessAction] interface:
 |
package dvp.rxjava.observables.utils;
import rx.Observable;
public interface IProcessAction<T> extends Observable.OnSubscribe<T> {
// the action has a name
public String getName();
}
- line 5: the interface [IProcessAction<T>] has all the characteristics of the interface [Observable.OnSubscribe<T>];
- line 8: it also has a [getName] method that returns the name of the instance implementing the interface;
We will use the following action named [ProcessAction01]:
package dvp.rxjava.observables.utils;
import java.util.Random;
import rx.Subscriber;
import rx.functions.Func1;
public class ProcessAction01<T> implements IProcessAction<T> {
// data
private String name;
private int nbValues;
private Func1<Integer, T> func1;
// constructors
public ProcessAction01(String name, int nbValues, Func1<Integer, T> func1) {
this.name = name;
this.nbValues = nbValues;
this.func1 = func1;
}
@Override
public void call(Subscriber<? super T> subscriber) {
ProcessUtils.showInfos.accept(String.format("Observable (%s) call start", getName()));
for (int i = 0; i < nbValues; i++) {
// wait
try {
Thread.sleep(new Random().nextInt(500));
} catch (InterruptedException e) {
// error
ProcessUtils.showInfos.accept(String.format("Observable (%s) onError", getName()));
subscriber.onError(e);
}
// emit an element
T value = func1.call(i);
ProcessUtils.showInfos.accept(String.format("Observable (%s,%s) onNext (%s)", getName(), i, value));
subscriber.onNext(value);
}
// done
ProcessUtils.showInfos.accept(String.format("Observable (%s) onCompleted", getName()));
subscriber.onCompleted();
}
@Override
public String getName() {
return name;
}
}
- line 8: the class [ProcessAction01<T>] implements the interface [IProcessAction<T>] and therefore the interface [Observable.OnSubscribe<T>];
- line 11: the name of the action;
- line 12: the number of values to emit;
- line 13: an instance of type [Func1<Integer, T>] that takes an integer and produces a type T to be emitted by the observable (lines 35 and 37);
- lines 16–20: we pass the action name, the number of values to emit, and the emission function to the constructor;
- lines 23–42: the process code;
- line 23: the [call] method takes as a parameter the subscriber to the observable associated with the process;
- line 28: the process emits its elements after a wait of random duration;
- line 32: emission of an error;
- line 37: a normal emission;
- line 41: emits the end-of-emission notification;
- lines 25–38: the action emits nbValues real numbers after a random wait time (line 30);
- line 35: the value to be emitted is provided by the [func1] function passed as a parameter to the constructor (line 16);
We refactor the [Process] class (see Section 7.3.1) so that it can also be constructed with a named action. We add the following constructor:
public Process(IProcessAction<T> na, Scheduler schedulerObserved, Scheduler schedulerObserver) {
// process name = action name
name = na.getName();
// action --> observable
observable = Observable.create(na);
// execution thread of the observed process
if (schedulerObserved != null) {
observable = observable.subscribeOn(schedulerObserved);
}
// observer's observation thread
if (schedulerObserver != null) {
observable = observable.observeOn(schedulerObserver);
}
}
- Line 1: The constructor takes 3 parameters:
- the named action that will be used to construct the observable (line 5);
- the scheduler of the observed process (may be null);
- the observer's scheduler (may be null);
- line 5: the observable is created from the action passed as a parameter;
The following code [Example13] observes different observables:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example13 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 1, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<String> process2 = new Process<>(
new ProcessAction01<String>("process2", 2, i -> String.format("value-%s", i)), Schedulers.computation(), null);
// process 3
Process<Integer> process3 = new Process<>(new ProcessAction01<Integer>("process3", 3, i -> i * 2), null,
Schedulers.computation());
// process 4
Process<Boolean> process4 = new Process<>(new ProcessAction01<Boolean>("process4", 4, i -> i % 2 == 0), null, null);
// subscriptions
ProcessUtils.subscribe(1, process1);
ProcessUtils.subscribe(1, process2);
ProcessUtils.subscribe(1, process3);
ProcessUtils.subscribe(1, process4);
}
}
- lines 13–15: process1 produces 1 real number on a computation thread that will be observed on another computation thread;
- lines 17–18: process2 produces 2 strings on a computation thread, and no indication is given regarding the observer’s thread. The results show that observation occurs by default on the same thread as the process execution;
- lines 20–21: process3 produces 3 integers on an unspecified thread, which will be observed on a computation thread. The results show that the process runs by default on the main thread;
- line 23: the process4 process produces 4 booleans on an unspecified thread, which will be observed on an unspecified thread. The results show that the process execution and its observation occur by default on the main thread;
The result of executing this code is as follows:
main: start of observation ------Thread[main] ---- Time[18:642]
main: waiting for observation to end ------Thread[main] ---- Time[18:660]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[18:660]
Observable (process1,0) onNext (68.39999999999999) ------Thread[RxComputationThreadPool-4] ---- Time[19:093]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[19:094]
Subscriber[observer[0],process1]: onNext (68.39999999999999) ------Thread[RxComputationThreadPool-3] ---- Time[19:396]
Subscriber[observer[0],process1].onCompleted ------Thread[RxComputationThreadPool-3] ---- Time[19:397]
main: end of observation ------Thread[main] ---- Time[19:397]
main: start observation ------Thread[main] ---- Time[19:398]
main: waiting for observation to end ------Thread[main] ---- Time[19:399]
Observable (process2) call start ------Thread[RxComputationThreadPool-5] ---- Time[19:399]
Observable (process2,0) onNext (value-0) ------Thread[RxComputationThreadPool-5] ---- Time[19:630]
Subscriber[observer[0],process2]: onNext ("value-0") ------Thread[RxComputationThreadPool-5] ---- Time[19:631]
Observable (process2,1) onNext (value-1) ------Thread[RxComputationThreadPool-5] ---- Time[20:094]
Subscriber[observer[0],process2]: onNext("value-1") ------Thread[RxComputationThreadPool-5] ---- Time[20:095]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-5] ---- Time[20:096]
Subscriber[observer[0],process2].onCompleted ------Thread[RxComputationThreadPool-5] ---- Time[20:096]
main: end of observation ------Thread[main] ---- Time[20:097]
main: start observation ------Thread[main] ---- Time[20:097]
Observable (process3) call start ------Thread[main] ---- Time[20:098]
Observable (process3,0) onNext (0) ------Thread[main] ---- Time[20:188]
Subscriber[observer[0],process3]: onNext (0) ------Thread[RxComputationThreadPool-6] ---- Time[20:213]
Observable (process3,1) onNext (2) ------Thread[main] ---- Time[20:336]
Subscriber[observer[0],process3]: onNext (2) ------Thread[RxComputationThreadPool-6] ---- Time[20:338]
Observable (process3,2) onNext (4) ------Thread[main] ---- Time[20:676]
Observable (process3) onCompleted ------Thread[main] ---- Time[20:677]
main: waiting for observation to end ------Thread[main] ---- Time[20:677]
Subscriber[observer[0],process3]: onNext (4) ------Thread[RxComputationThreadPool-6] ---- Time[20:678]
Subscriber[observer[0],process3].onCompleted ------Thread[RxComputationThreadPool-6] ---- Time[20:679]
main: end of observation ------Thread[main] ---- Time[20:679]
main: start observation ------Thread[main] ---- Time[20:680]
Observable (process4) call start ------Thread[main] ---- Time[20:680]
Observable (process4,0) onNext (true) ------Thread[main] ---- Time[21:065]
Subscriber[observer[0],process4]: onNext (true) ------Thread[main] ---- Time[21:067]
Observable (process4,1) onNext (false) ------Thread[main] ---- Time[21:187]
Subscriber[observer[0],process4]: onNext (false) ------Thread[main] ---- Time[21:188]
Observable (process4,2) onNext (true) ------Thread[main] ---- Time[21:624]
Subscriber[observer[0],process4]: onNext (true) ------Thread[main] ---- Time[21:625]
Observable (process4,3) onNext (false) ------Thread[main] ---- Time[21:765]
Subscriber[observer[0],process4]: onNext (false) ------Thread[main] ---- Time[21:766]
Observable (process4) onCompleted ------Thread[main] ---- Time[21:767]
Subscriber[observer[0],process4].onCompleted ------Thread[main] ---- Time[21:767]
main: waiting for observation to end ------Thread[main] ---- Time[21:767]
main: observation complete ------Thread[main] ---- Time[21:768]
- The process1 process produces 1 real number (line 4) on the computation thread [RxComputationThreadPool-4], which is observed on the computation thread [RxComputationThreadPool-3] (line 6);
- The process process2 produces 2 strings (lines 12, 14) on the computation thread [RxComputationThreadPool-5], which are observed on that same thread (lines 13, 15);
- process3 produces 3 integers (lines 21, 23, 25) on the main thread, which are observed on computation thread [RxComputationThreadPool-6] (lines 22, 24, 28);
- the process4 process produces 4 booleans (lines 34, 36, 38, 40) on the main thread, which are observed on that same main thread (lines 33, 35, 37, 39);
The reader is invited to follow the above:
- the lifecycle of the observed process and its thread;
- the lifecycle of its observer and its thread;
Much of the appeal of Rx libraries lies in this multithreading, which the developer does not have to manage themselves.
7.5. Combinations of multiple observables
7.5.1. Example-14: Merging two observables with [Observable.merge]
We now present static methods of the [Observable] class that allow combining multiple observables into a single result observable.
The first example of this type is as follows:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.ProcessAction01;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example14 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process2
Process<String> process2 = new Process<>(
new ProcessAction01<String>("process2", 2, i -> String.format("value-%s", i)), Schedulers.computation(), null);
// merge
Process<?> process12 = new Process<>("process12",
Observable.merge(process1.getObservable(), process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process12);
}
}
- lines 15–17: a process named [process1] will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 19–20: a process named [process2] will emit 2 strings on a computation thread. The observation thread is not specified. We saw earlier that in this case, the observation thread is the computation thread;
- line 23: the two processes are merged, i.e., an observable is created whose elements come simultaneously from both processes. The static method [Observable.merge] is used for this:
 |
Contrary to what the diagram above might suggest, during the merge, elements from stream 1 can be interleaved among the elements of stream 2. This is shown by the execution results:
main: start of observation ------Thread[main] ---- Time[56:053]
main: waiting for observation to end ------Thread[main] ---- Time[56:073]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[56:073]
Observable (process2) call start ------Thread[RxComputationThreadPool-5] ---- Time[56:074]
Observable (process1,0) onNext (64.8) ------Thread[RxComputationThreadPool-4] ---- Time[56:263]
Observable (process2,0) onNext (value-0) ------Thread[RxComputationThreadPool-5] ---- Time[56:403]
Observable (process2,1) onNext (value-1) ------Thread[RxComputationThreadPool-5] ---- Time[56:515]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-5] ---- Time[56:516]
Subscriber[observer[0],process12]: onNext (64.8) ------Thread[RxComputationThreadPool-3] ---- Time[56:552]
Subscriber[observer[0],process12]: onNext ("value-0") ------Thread[RxComputationThreadPool-3] ---- Time[56:553]
Subscriber[observer[0],process12]: onNext ("value-1") ------Thread[RxComputationThreadPool-3] ---- Time[56:553]
Observable (process1,1) onNext (56.4) ------Thread[RxComputationThreadPool-4] ---- Time[56:716]
Subscriber[observer[0],process12]: onNext (56.4) ------Thread[RxComputationThreadPool-3] ---- Time[56:718]
Observable (process1,2) onNext (22.8) ------Thread[RxComputationThreadPool-4] ---- Time[57:082]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[57:083]
Subscriber[observer[0],process12]: onNext (22.8) ------Thread[RxComputationThreadPool-3] ---- Time[57:084]
Subscriber[observer[0],process12].onCompleted ------Thread[RxComputationThreadPool-3] ---- Time[57:085]
main: end of observation ------Thread[main] ---- Time[57:085]
- line 3: process [process1] runs on the computation thread [RxComputationThreadPool-4];
- line 4: process [process2] is running on the computation thread [RxComputationThreadPool-5];
- line 9: process [process12] is observed on the computation thread [RxComputationThreadPool-3]. I do not know the rule that led to this choice;
- lines 9–11: we see that the observer observes elements from both processes [process1] (line 5) and [process2] (lines 6, 7) even though neither has finished (there is mixing);
- process [process12] terminates (line 17) when both processes, process1 and process2, have finished;

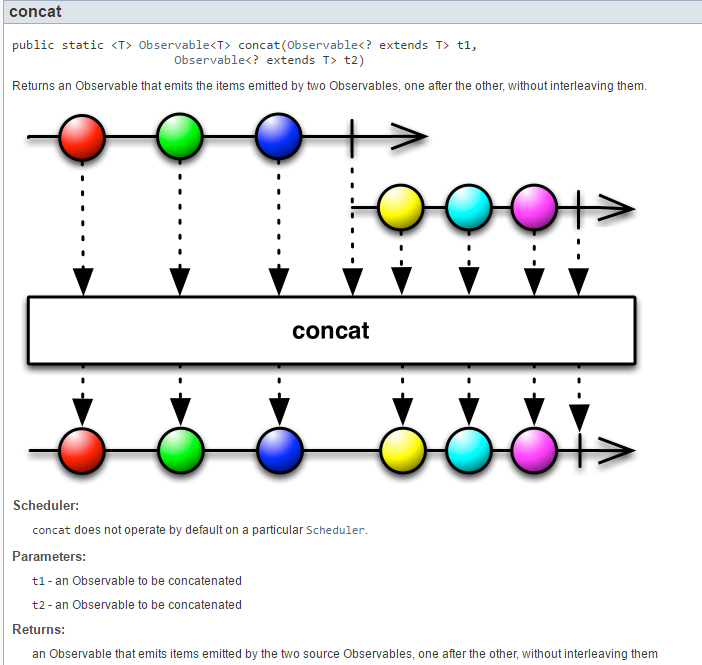

7.5.2. Example-15: Concatenating two observables with [Observable.concat]
We will now examine the following code:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.ProcessAction01;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example15 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process2
Process<String> process2 = new Process<>(
new ProcessAction01<String>("process2", 2, i -> String.format("value-%s", i)), null, Schedulers.computation());
// concat
Process<?> process12 = new Process<>("process12",
Observable.concat(process1.getObservable(), process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process12);
}
}
- lines 15–17: a process named [process1] will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 19–20: a process named [process2] will emit 2 strings on an unspecified thread, here the default main thread. It will be observed on a computation thread;
- line 23: the two processes are concatenated, i.e., an observable is created whose elements come from both processes. The emitted values are not mixed. The process [process12] will first emit all the values from process [process1] and then those from process [process2]. The static method [Observable.concat] is used for this:
 |
The results of the execution are as follows:
main: start observation ------Thread[main] ---- Time[30:162]
main: waiting for observation to finish ------Thread[main] ---- Time[30:189]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[30:190]
Observable (process1,0) onNext (79.2) ------Thread[RxComputationThreadPool-4] ---- Time[30:681]
Observable (process1,1) onNext (98.39999999999999) ------Thread[RxComputationThreadPool-4] ---- Time[30:792]
Subscriber[observer[0],process12]: onNext (79.2) ------Thread[RxComputationThreadPool-3] ---- Time[30:975]
Subscriber[observer[0],process12]: onNext (98.39999999999999) ------Thread[RxComputationThreadPool-3] ---- Time[30:976]
Observable (process1,2) onNext (84.0) ------Thread[RxComputationThreadPool-4] ---- Time[31:084]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[31:085]
Subscriber[observer[0],process12]: onNext (84.0) ------Thread[RxComputationThreadPool-3] ---- Time[31:086]
Observable (process2) call start ------Thread[RxComputationThreadPool-3] ---- Time[31:087]
Observable (process2,0) onNext (value-0) ------Thread[RxComputationThreadPool-3] ---- Time[31:556]
Subscriber[observer[0],process12]: onNext ("value-0") ------Thread[RxComputationThreadPool-5] ---- Time[31:557]
Observable (process2,1) onNext (value-1) ------Thread[RxComputationThreadPool-3] ---- Time[31:608]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-3] ---- Time[31:609]
Subscriber[observer[0],process12]: onNext("value-1") ------Thread[RxComputationThreadPool-5] ---- Time[31:609]
Subscriber[observer[0],process12].onCompleted ------Thread[RxComputationThreadPool-5] ---- Time[31:610]
main: end of observation ------Thread[main] ---- Time[31:611]
- lines 3-10: process [process1] runs and process [process12] emits the values emitted by [process1];
- line 9: process [process1] has finished;
- lines 11-17: process [process2] runs and process [process12] emits the values emitted by [process2];
There is an oddity regarding process2: we did not specify an execution thread. One might therefore expect the main thread to be used by default. However, this is not the case. The execution thread was the computation thread [RxComputationThreadPool-3] (line 11). Therefore, when no execution or observation thread is specified, we cannot make any assumptions about which thread will be chosen.
7.5.3. Example-16: Combining two observables with [Observable.zip]
We will now examine the following code:
package dvp.rxjava.observables.examples;
import java.util.Arrays;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.functions.FuncN;
import rx.schedulers.Schedulers;
public class Example16 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<String> process2 = new Process<>(
new ProcessAction01<String>("process2", 2, i -> String.format("value-%s", i)), null, null);
// function combining the two processes
FuncN<String> funcn = new FuncN<String>() {
@Override
public String call(Object... args) {
if (args.length == 2) {
return String.format("double=%s, string=%s", args[0], args[1]);
} else {
throw new RuntimeException("The function expects exactly 2 parameters");
}
}
};
// zip the two processes
Process<String> process12 = new Process<>("process12",
Observable.zip(Arrays.asList(process1.getObservable(), process2.getObservable()), funcn));
// subscriptions
ProcessUtils.subscribe(1, process12);
}
}
- lines 16–18: a process named [process1] will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 20–21: a process named [process2] will emit 2 strings on an unspecified thread. The observation thread is also unspecified;
- lines 23–32: instantiation of a type [FuncN<String>] with an anonymous class. FuncN is a functional interface:
 |
The [FuncN.call] method expects an array of objects and returns a type R. The [funcn] function will be used to combine the processes process1 and process2 in that order. In the [FuncN.call] method:
- args[0] will be a Double;
- args[1] will be a String;
Here, the result of [funcn.call] will be the string from line 27. Constructing this result does not require knowing the types of the arguments to the call method.
The two processes are combined as follows:
// zip the two processes
Process<String> process12 = new Process<>("process12",
Observable.zip(Arrays.asList(process1.getObservable(), process2.getObservable()), funcn));
The [Observable.zip] method works as follows:
 |
We see that:
- the first argument of zip is an Iterable<Observable>. In our example, we have an actual parameter of type List<Observable> consisting of our two observables;
- the second argument of zip is of type FuncN. In our example, the actual parameter is [funcn];
The execution yields the following results:
- lines 7, 11: process12 emits two elements;
- line 8: the additional element emitted by process1, which has no partner in process2, is not emitted by the result process process12;
We see that process2, to which neither an execution thread nor an observation thread had been assigned, used the main thread for both.
7.5.4. Example-17: Combining two observables with [Observable.combineLatest]
We will now examine the following code:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example17 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Double> process2 = new Process<>(
new ProcessAction01<Double>("process2", 2, i -> new Random().nextInt(200) * 1.4), null,
Schedulers.computation());
// combination of the two processes
Process<Double> process12 = new Process<>("process12",
Observable.combineLatest(process1.getObservable(), process2.getObservable(), (d1, d2) -> d1 + d2));
// subscriptions
ProcessUtils.subscribe(1, process12);
}
}
- lines 14–16: a process named [process1] will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 18–20: a process named [process2] will emit 2 real numbers on an unbound thread. They will be observed on a computation thread;
- line 23: the two observables are combined using the following static method [Observable.combineLatest]:
 |
The [combineLatest] observable works as follows: when one of the two observables emits an element E1, that element is combined by [combineFunction] with the last element emitted by the other observable.
Executing this code yields the following result:
- Line 5: The output from process2 (56) is combined with the last element output by process1 (54, line 4) and produces the result shown in line 7;
- line 6: the output from process1 (51.6) is combined with the last element output by process2 (56, line 5) and produces the result in line 8;
- line 9: the output from process2 (261.8) is combined with the last element output by process1 (51.6, line 6) and produces the result of line 12;
- line 13: the emission from process1 (80.39) is combined with the last element emitted by process2 (261.8, line 9) and produces the result of line 15;
This is a variant of the [zip] observable where, this time, the combined elements are not necessarily the elements at the same position in the streams. Note here that process2, to which no execution thread had been assigned, was executed on the main thread (line 2).
7.5.5. Example-18: Combining two observables with [Observable.amb]
We will now examine the following code:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example18 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Double> process2 = new Process<>(
new ProcessAction01<Double>("process2", 2, i -> new Random().nextInt(200) * 1.4), null, null);
// combination of the two processes
Process<Double> process12 = new Process<>("process12",
Observable.amb(process1.getObservable(), process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process12);
}
}
- lines 14–16: a process named [process1] will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 18–20: a process named [process2] will emit 2 real numbers on an unbound thread. They will be observed on an unbound thread;
- line 22: the two observables are combined using the following static method [Observable.amb]:
 |
As shown in the diagram above, the observable [Observable.amb(Observable o1, Observable o2)] emits the elements of the observable that emits first. This is confirmed by the results of the example presented:
- line 4: process2 is the first to emit;
- Lines 8, 12: process12 emits all elements emitted by process2 (lines 4, 11);
7.6. Processing chain for an observable
7.6.1. Example-19: transforming an observable with [Observable.map]
In the previous examples, we examined various combinations of two observables into a third observable. We now present static methods of the [Observable] class that allow for transformation, filtering, and aggregation operations on an observable. Here we will find methods analogous to those of the [Stream] class studied in Section 5.
Our first example will be as follows:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example19 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Double> process1 = new Process<>(
new ProcessAction01<Double>("process1", 3, i -> new Random().nextInt(100) * 1.2), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<String> process2 = new Process<>("process2",
process1.getObservable().map(d -> String.format("value-%s", d)));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- lines 14–16: a process named process1 will emit 3 real numbers on a computation thread. It will also be observed on a computation thread;
- lines 17–18: the numbers emitted by process1 will be converted into strings in a process2;
- line 20: we observe process2;
The [Observable.map] method in line 18 is analogous to the [Stream.map] method discussed in Section 5.5:
 |
The results of the example are as follows:
- lines 4, 5, and 8: the emissions from process1. These are real numbers;
- lines 6, 7, 10: the observed emissions from process2. These are strings;
7.6.2. Example-20: filtering an observable with [Observable.filter]
The example will be as follows:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example20 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>("process2", process1.getObservable().filter(i -> i % 2 == 0));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- lines 11-12: a process named process1 will emit integers from 0 to 2 on a worker thread. It will also be observed on a worker thread;
- line 14: the numbers emitted by process1 will be filtered so that only even numbers are retained in process2;
- line 20: we observe process2;
The [Observable.filter] method in line 18 is analogous to the [Stream.filter] method discussed in Section 5.4:
 |
The results of the example are as follows:
- lines 4, 5, and 7: emissions from process1;
- lines 6, 9: the observed emissions from process2. These are the even-numbered elements from process1;
7.6.3. Example-21: transforming an observable with [Observable.flatMap]
The example will be as follows:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example21 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>("process2", process1.getObservable().flatMap(i -> {
int value = i * 10;
return Observable.just(value, value + 1, value + 2);
}));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- lines 12-13: a process called process1 will emit integers from 0 to 2 on a computation thread. It will also be observed on a computation thread;
- lines 15–18: each number n emitted by process1 is transformed into an observable emitting the 3 numbers (10*n, 10*n+1, 10*n+2). If we had used the [map] method on line 15, process2 would emit a type Observable<Integer> rather than a type Integer. The [flatMap] method used allows us to flatten this sequence of elements of type Observable<Integer> into a sequence of elements of type Integer consisting of each element from each Observable<Integer>;
- line 20: we observe process2;
The [Observable.flatMap] method in line 15 is analogous to the [Stream.flatMap] method discussed in Section 5.6.12:
 |
The results of the example are as follows:
main: start of observation ------Thread[main] ---- Time[31:466]
main: waiting for observation to end ------Thread[main] ---- Time[31:486]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[31:486]
Observable (process1,0) onNext (0) ------Thread[RxComputationThreadPool-4] ---- Time[31:777]
Subscriber[observer[0],process2]: onNext (0) ------Thread[RxComputationThreadPool-3] ---- Time[32:082]
Subscriber[observer[0],process2]: onNext (1) ------Thread[RxComputationThreadPool-3] ---- Time[32:085]
Subscriber[observer[0],process2]: onNext (2) ------Thread[RxComputationThreadPool-3] ---- Time[32:087]
Observable (process1,1) onNext (1) ------Thread[RxComputationThreadPool-4] ---- Time[32:192]
Subscriber[observer[0],process2]: onNext (10) ------Thread[RxComputationThreadPool-3] ---- Time[32:194]
Subscriber[observer[0],process2]: onNext (11) ------Thread[RxComputationThreadPool-3] ---- Time[32:196]
Subscriber[observer[0],process2]: onNext (12) ------Thread[RxComputationThreadPool-3] ---- Time[32:197]
Observable (process1,2) onNext (2) ------Thread[RxComputationThreadPool-4] ---- Time[32:686]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[32:687]
Subscriber[observer[0],process2]: onNext (20) ------Thread[RxComputationThreadPool-3] ---- Time[32:688]
Subscriber[observer[0],process2]: onNext (21) ------Thread[RxComputationThreadPool-3] ---- Time[32:690]
Subscriber[observer[0],process2]: onNext (22) ------Thread[RxComputationThreadPool-3] ---- Time[32:692]
Subscriber[observer[0],process2].onCompleted ------Thread[RxComputationThreadPool-3] ---- Time[32:693]
main: end of observation ------Thread[main] ---- Time[32:693]
- lines 5-7: the three emissions from process2 following the emission on line 4 of process1;
- lines 9-11: the three emissions from process2 following the emission on line 8 of process1;
- lines 14-16: the three emissions from process2 following the emission on line 12 of process1;
The following code shows how to create an Observable<Integer[]> type from process1 [Example21b]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example21b {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer[]> process2 = new Process<>("process2", process1.getObservable().map(i -> {
int value = i * 10;
return new Integer[] { value, value + 1, value + 2 };
}));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- line 14: the [Observable.map] method is used;
- line 16: which returns an Integer[] type;
The results are as follows:
- lines 6, 7, 10: we see the results of the map;
All these observable transformations can be chained since each transformation produces a new observable. This is demonstrated in the following example [Example21c]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.schedulers.Schedulers;
public class Example21c {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>("process2", process1.getObservable().flatMap(i -> {
int value = i * 10;
return Observable.just(value, value + 1, value + 2);
}).filter(i -> i % 2 == 0));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- lines 15–18: the flatMap is followed by a filter;
The execution results are as follows:
- lines 8-13: process2 emitted only the even elements from flatMap;
A method similar to [flatMap] is the [flatMapIterable] method, illustrated by the following example [Example21d]:
package dvp.rxjava.observables.examples;
import java.util.Arrays;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example21d {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>("process2", process1.getObservable().flatMapIterable(i -> {
int value = i * 10;
return Arrays.asList(value, value + 1, value + 2);
}).filter(i -> i % 2 == 0));
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
Line 16: Instead of using the [flatMap] method, we use the [flatMapIterable] method. In this case, the transformation function must produce an Iterable<T> type (line 18) instead of an Observable<T> type.
We get the same results as before.
Let’s return to the definition of the [flatMap] method:
 |
As shown above, a blue element [3] has been inserted between the two green elements [1-2]. This means that when flattening Observable<T>s, the [flatMap] method preserves the emission order of these various internal observables. This is demonstrated by the following example [Example21e]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example21 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 2, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>(new ProcessAction01<>("process2", 3, i -> i + 10),
Schedulers.computation(), Schedulers.computation());
// process 3
Process<Integer> process3 = new Process<>("process3",
process1.getObservable().flatMap(i -> process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process3);
}
}
- lines 11-12: the process1 process emits the integers [0,1];
- lines 14-15: process2 emits the integers [10,11,12];
- lines 17-18: each element emitted by process1 is associated with the observable of process2. This means that:
- the element [0] of process1 will be associated with an observable emitting [10,11,12];
- the same applies to element 1;
In the end, the 6 numbers [10, 11, 12, 10, 11, 12] will be emitted. We want to see in what order.
The execution results are as follows:
main: start of observation ------Thread[main] ---- Time[22:540]
main: waiting for end of observation ------Thread[main] ---- Time[22:566]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[22:566]
Observable (process1,0) onNext (0) ------Thread[RxComputationThreadPool-4] ---- Time[22:949]
Observable (process2) call start ------Thread[RxComputationThreadPool-6] ---- Time[22:951]
Observable (process1,1) onNext (1) ------Thread[RxComputationThreadPool-4] ---- Time[23:159]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[23:160]
Observable (process2) call start ------Thread[RxComputationThreadPool-8] ---- Time[23:160]
Observable (process2,0) onNext (10) ------Thread[RxComputationThreadPool-6] ---- Time[23:286]
Observable (process2,0) onNext (10) ------Thread[RxComputationThreadPool-8] ---- Time[23:513]
Subscriber[observer[0],process3]: onNext (10) ------Thread[RxComputationThreadPool-5] ---- Time[23:597]
Subscriber[observer[0],process3]: onNext (10) ------Thread[RxComputationThreadPool-5] ---- Time[23:599]
Observable (process2,1) onNext (11) ------Thread[RxComputationThreadPool-6] ---- Time[23:645]
Subscriber[observer[0],process3]: onNext (11) ------Thread[RxComputationThreadPool-5] ---- Time[23:647]
Observable (process2,2) onNext (12) ------Thread[RxComputationThreadPool-6] ---- Time[23:789]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-6] ---- Time[23:790]
Subscriber[observer[0],process3]: onNext (12) ------Thread[RxComputationThreadPool-5] ---- Time[23:791]
Observable (process2,1) onNext (11) ------Thread[RxComputationThreadPool-8] ---- Time[23:976]
Subscriber[observer[0],process3]: onNext (11) ------Thread[RxComputationThreadPool-7] ---- Time[23:978]
Observable (process2,2) onNext (12) ------Thread[RxComputationThreadPool-8] ---- Time[24:184]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-8] ---- Time[24:184]
Subscriber[observer[0],process3]: onNext (12) ------Thread[RxComputationThreadPool-7] ---- Time[24:186]
Subscriber[observer[0],process3].onCompleted ------Thread[RxComputationThreadPool-7] ---- Time[24:187]
main: end of observation ------Thread[main] ---- Time[24:187]
We can see that the emission order of process3 was: [10, 10, 11, 12, 11, 12] (lines 11, 12, 14, 17, 19, 22). Therefore, the elements emitted by process2 were indeed mixed up. We can avoid this by using the [concatMap] method instead of the [flatMap] method. This is demonstrated by the following code [Example21ef]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example21ef {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 2, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>(new ProcessAction01<>("process2", 3, i -> i + 10),
Schedulers.computation(), Schedulers.computation());
// process 3
Process<Integer> process3 = new Process<>("process3",
process1.getObservable().concatMap(i -> process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process3);
}
}
On line 18, we replaced [flatMap] with [concatMap]. The results of the execution are as follows:
main: start of observation ------Thread[main] ---- Time[45:507]
main: waiting for observation to end ------Thread[main] ---- Time[45:530]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[45:530]
Observable (process1,0) onNext (0) ------Thread[RxComputationThreadPool-4] ---- Time[45:775]
Observable (process2) call start ------Thread[RxComputationThreadPool-6] ---- Time[45:778]
Observable (process2,0) onNext (10) ------Thread[RxComputationThreadPool-6] ---- Time[45:846]
Observable (process2,1) onNext (11) ------Thread[RxComputationThreadPool-6] ---- Time[45:890]
Observable (process1,1) onNext (1) ------Thread[RxComputationThreadPool-4] ---- Time[45:947]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[45:948]
Observable (process2,2) onNext (12) ------Thread[RxComputationThreadPool-6] ---- Time[46:096]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-6] ---- Time[46:097]
Subscriber[observer[0],process3]: onNext (10) ------Thread[RxComputationThreadPool-5] ---- Time[46:144]
Subscriber[observer[0],process3]: onNext (11) ------Thread[RxComputationThreadPool-5] ---- Time[46:147]
Subscriber[observer[0],process3]: onNext (12) ------Thread[RxComputationThreadPool-5] ---- Time[46:148]
Observable (process2) call start ------Thread[RxComputationThreadPool-8] ---- Time[46:149]
Observable (process2,0) onNext (10) ------Thread[RxComputationThreadPool-8] ---- Time[46:364]
Subscriber[observer[0],process3]: onNext (10) ------Thread[RxComputationThreadPool-7] ---- Time[46:366]
Observable (process2,1) onNext (11) ------Thread[RxComputationThreadPool-8] ---- Time[46:529]
Subscriber[observer[0],process3]: onNext (11) ------Thread[RxComputationThreadPool-7] ---- Time[46:531]
Observable (process2,2) onNext (12) ------Thread[RxComputationThreadPool-8] ---- Time[46:558]
Observable (process2) onCompleted ------Thread[RxComputationThreadPool-8] ---- Time[46:559]
Subscriber[observer[0],process3]: onNext (12) ------Thread[RxComputationThreadPool-7] ---- Time[46:560]
Subscriber[observer[0],process3].onCompleted ------Thread[RxComputationThreadPool-7] ---- Time[46:562]
main: end of observation ------Thread[main] ---- Time[46:562]
We see that the emission order of process3 was: [10, 11, 12, 10, 11, 12] (lines 12–14, 17, 19, 22). The elements emitted by process2 were not shuffled.
Another variant of the [map] method is the [switchMap] method:
 |
Above, from the observable [1], three other observables [2] with two elements are created, which are then flattened as in [flatMap] [3]. Note that the result has 5 elements, not 6. This is because before the second observable emits its second element [6], the third observable emits its first element [5], causing the second observable to be discarded. Therefore, element [6] is not found in the resulting observable [3].
To illustrate [switchMap], we will use the following example [Example21eg]:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example21 {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 2, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Integer> process2 = new Process<>(new ProcessAction01<>("process2", 3, i -> i + 10),
Schedulers.computation(), Schedulers.computation());
// process 3
Process<Integer> process3 = new Process<>("process3",
process1.getObservable().switchMap(i -> process2.getObservable()));
// subscriptions
ProcessUtils.subscribe(1, process3);
}
}
Running the example produces the following results:
- process1 emits 2 elements that give rise to 2 process2 observables of 3 elements;
- line 14: the observer receives element #0 emitted by the first process2 observable on line 6;
- line 15: the observer receives element #0 emitted by the second process2 observable on line 13. The story does not explain why it did not previously receive elements 1 and 2 emitted by the first process2 observable on lines 7 and 8. In any case, the first process2 observable is abandoned;
- in the end, the observer sees only 4 elements (lines 14, 15, 17, 20) instead of the 6 that were emitted;
7.6.4. Examples-22: Other Methods of the [Observable] Class
The [Observable] class includes many methods from the [Stream] class that work in a similar way. Here are a few of them. We will simply provide the code and its results.
[Example22a - take=limit]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22a {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.range(1, 10).take(3));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
results
[Example22b - takeLast]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22b {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.range(1, 10).takeLast(2));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
results
[Example22c - skip]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22c {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.range(1, 10).skip(5).take(2));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
results
[Example22d - reduce]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22d {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.range(1, 10).reduce(0, (i, a) -> i + a));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
- line 10: calculates the sum of the elements in the observable. The result is an observable that emits this sum;
results
[Example 22e - all]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22 {
public static void main(String[] args) throws InterruptedException {
// process
Process<Boolean> process = new Process<>("process", Observable.range(1, 10).all(i -> i > 10));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
- line 10: returns an Observable<Boolean> that emits the element true if the predicate of the [all] method is true for all elements, false otherwise;
results
main: start of observation ------Thread[main] ---- Time[59:866]
Subscriber[observer[0],process]: onNext (false) ------Thread[main] ---- Time[00:069]
Subscriber[observer[0],process].onCompleted ------Thread[main] ---- Time[00:070]
main: waiting for observation to end ------Thread[main] ---- Time[00:071]
main: observation complete ------Thread[main] ---- Time[00:071]
[Example22f - count]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22f {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.range(1, 10).count());
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
- line 10: [Observable.count] creates a 1-element observable that is the sum of the observed elements;
results
[Example22g - distinct]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
public class Example22g {
public static void main(String[] args) throws InterruptedException {
// process
Process<Integer> process = new Process<>("process", Observable.just(1, 2, 1, 3).distinct());
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
results
[ Example22h - groupBy, asObservable]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.observables.GroupedObservable;
public class Example22h {
public static void main(String[] args) throws InterruptedException {
// process
Observable<GroupedObservable<Boolean, Integer>> obs = Observable.range(1, 10).groupBy(i -> i % 2 == 0);
Process<Integer> process = new Process<>("process", obs.concatMap(g -> g.asObservable()));
// subscriptions
ProcessUtils.subscribe(1, process);
}
}
- Line 11: The [groupBy] method groups the 10 emitted elements into two groups: even numbers and odd numbers. The result is an Observable<GroupedObservable<Boolean, Integer>>, i.e., an observable whose elements are of type GroupedObservable<Boolean, Integer>, where Boolean is the type of the group key (false, true in this case) and is also the type of the result of the lambda passed as a parameter to the [groupBy] method, and Integer is the type of the group’s elements;
- line 12: the GroupedObservable type has an [asObservable] method that allows us to create an observable from this type. We will therefore have two Observable<Integer> types, one for even numbers and the other for odd numbers. From these two observables, the [concatMap] method will create a single one;
results
main: start of observation ------Thread[main] ---- Time[23:809]
Subscriber[observer[0],process]: onNext (1) ------Thread[main] ---- Time[24:034]
Subscriber[observer[0],process]: onNext (3) ------Thread[main] ---- Time[24:036]
Subscriber[observer[0],process]: onNext (5) ------Thread[main] ---- Time[24:037]
Subscriber[observer[0],process]: onNext (7) ------Thread[main] ---- Time[24:038]
Subscriber[observer[0],process]: onNext (9) ------Thread[main] ---- Time[24:039]
Subscriber[observer[0],process]: onNext (2) ------Thread[main] ---- Time[24:041]
Subscriber[observer[0],process]: onNext (4) ------Thread[main] ---- Time[24:043]
Subscriber[observer[0],process]: onNext (6) ------Thread[main] ---- Time[24:044]
Subscriber[observer[0],process]: onNext (8) ------Thread[main] ---- Time[24:045]
Subscriber[observer[0],process]: onNext (10) ------Thread[main] ---- Time[24:046]
Subscriber[observer[0],process].onCompleted ------Thread[main] ---- Time[24:047]
main: waiting for observation to end ------Thread[main] ---- Time[24:047]
main: observation complete ------Thread[main] ---- Time[24:048]
[Example22i - timestamp]
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
import rx.schedulers.Timestamped;
public class Example22i {
public static void main(String[] args) throws InterruptedException {
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
Schedulers.computation());
// process 2
Process<Timestamped<Integer>> process2 = new Process<>("process2", process1.getObservable().timestamp());
// subscriptions
ProcessUtils.subscribe(1, process2);
}
}
- line 15, the [timestamp] method associates a timestamp with each processed element of the observable;
results
main: start of observation ------Thread[main] ---- Time[59:362]
main: waiting for observation to end ------Thread[main] ---- Time[59:377]
Observable (process1) call start ------Thread[RxComputationThreadPool-4] ---- Time[59:378]
Observable (process1,0) onNext (0) ------Thread[RxComputationThreadPool-4] ---- Time[59:553]
Observable (process1,1) onNext (1) ------Thread[RxComputationThreadPool-4] ---- Time[59:692]
Subscriber[observer[0],process2]: onNext ({"timestampMillis":1462975259555,"value":0}) ------Thread[RxComputationThreadPool-3] ---- Time[59:789]
Subscriber[observer[0],process2]: onNext ({"timestampMillis":1462975259789,"value":1}) ------Thread[RxComputationThreadPool-3] ---- Time[59:791]
Observable (process1,2) onNext (2) ------Thread[RxComputationThreadPool-4] ---- Time[00:025]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[00:027]
Subscriber[observer[0],process2]: onNext ({"timestampMillis":1462975260026,"value":2}) ------Thread[RxComputationThreadPool-3] ---- Time[00:031]
Subscriber[observer[0],process2].onCompleted ------Thread[RxComputationThreadPool-3] ---- Time[00:033]
main: end of observation ------Thread[main] ---- Time[00:034]
In this example, it is difficult to tell what the timestamp information represents:
- lines 4-5: we see that element 1 of process1 was emitted 139 ms after element 0;
- lines 6 and 7: we see that element 1 of process2 was observed 234 ms after element 0;
- lines 5, 8: we see that element 2 of process1 was emitted 33 ms after element 1;
- lines 7 and 10: we see that element 2 of process2 was observed 37 ms after element 1;
These delays are due to the fact that the threads for observing and executing the observables are not the same. If we replace lines 12–13 with the following lines (Example22j):
// process 1
Process<Integer> process1 = new Process<>(new ProcessAction01<>("process1", 3, i -> i), Schedulers.computation(),
null);
- Lines 2–3: We do not specify the observation thread. We know that in this case, the observable is observed where it is executed;
This yields the following results:
- lines 4 and 6: process1 emits its element #1 587 ms after its element #0;
- lines 5 and 7: the observer observes these two elements with a 586 ms gap;
- lines 6 and 8: process1 emits its element #2 396 ms after its element #1;
- lines 7 and 9: the observer observes these two elements with a time difference of 396 ms;
Here, the timestamp values are consistent: they accurately represent the element’s transmission time.
7.7. Schedulers
7.7.1. Example-23: the [Schedulers.computation] scheduler
We will now examine the execution schedulers. The observation will be made on the execution thread.
The topic of schedulers is somewhat obscure. The various schedulers are presented in this question on the StackOverflow website [http://stackoverflow.com/questions/31276164/rxjava-schedulers-use-cases]:
 |
We will attempt to illustrate the use of these different schedulers with examples. The first illustrates the [Schedulers.computation] scheduler:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example23 {
public static void main(String[] args) throws InterruptedException {
// processes
@SuppressWarnings("unchecked")
Process<Double> processes[] = new Process[10];
for (int i = 0; i < processes.length; i++) {
processes[i] = new Process<>(
new ProcessAction01<Double>(String.format("process%s", i), 1, value -> new Random().nextInt(100) * 1.2),
Schedulers.computation(), null);
}
// subscriptions
ProcessUtils.subscribe(1, processes);
}
}
- lines 14–19: we create an array of 10 processes running on a computation thread;
- line 17: each process generates a random real number;
- line 21: we subscribe to all these processes;
The results are as follows:
main: start of observation ------Thread[main] ---- Time[01:034]
Observable (process0) call start ------Thread[RxComputationThreadPool-1] ---- Time[01:042]
Observable (process2) call start ------Thread[RxComputationThreadPool-3] ---- Time[01:042]
Observable (process1) call start ------Thread[RxComputationThreadPool-2] ---- Time[01:042]
Observable (process5) call start ------Thread[RxComputationThreadPool-6] ---- Time[01:043]
Observable (process7) call start ------Thread[RxComputationThreadPool-8] ---- Time[01:043]
Observable (process4) call start ------Thread[RxComputationThreadPool-5] ---- Time[01:042]
Observable (process3) call start ------Thread[RxComputationThreadPool-4] ---- Time[01:042]
main: waiting for observation to end ------Thread[main] ---- Time[01:043]
Observable (process6) call start ------Thread[RxComputationThreadPool-7] ---- Time[01:043]
Observable (process3,0) onNext (70.8) ------Thread[RxComputationThreadPool-4] ---- Time[01:115]
Observable (process1,0) onNext (13.2) ------Thread[RxComputationThreadPool-2] ---- Time[01:153]
Observable (process0,0) onNext (63.599999999999994) ------Thread[RxComputationThreadPool-1] ---- Time[01:215]
Subscriber[observer[0],process0]: onNext (63.599999999999994) ------Thread[RxComputationThreadPool-1] ---- Time[01:326]
Subscriber[observer[0],process3]: onNext (70.8) ------Thread[RxComputationThreadPool-4] ---- Time[01:326]
Subscriber[observer[0],process1]: onNext (13.2) ------Thread[RxComputationThreadPool-2] ---- Time[01:326]
Observable (process3) onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[01:326]
Observable (process0) onCompleted ------Thread[RxComputationThreadPool-1] ---- Time[01:326]
Observable (process1) onCompleted ------Thread[RxComputationThreadPool-2] ---- Time[01:327]
Subscriber[observer[0],process0].onCompleted ------Thread[RxComputationThreadPool-1] ---- Time[01:327]
Subscriber[observer[0],process3].onCompleted ------Thread[RxComputationThreadPool-4] ---- Time[01:327]
Subscriber[observer[0],process1].onCompleted ------Thread[RxComputationThreadPool-2] ---- Time[01:327]
Observable (process8) call start ------Thread[RxComputationThreadPool-1] ---- Time[01:329]
Observable (process9) call start ------Thread[RxComputationThreadPool-2] ---- Time[01:329]
...
main: end of observation ------Thread[main] ---- Time[01:610]
- lines 2-10: the first 8 processes start on 8 different threads (the machine used has 8 cores). Note that they all start at approximately the same time;
- lines 17-19: 3 processes terminate, thereby freeing up 3 threads;
- lines 23-24: the last two processes can then start by taking 2 of the threads thus freed;
We can therefore conclude that the [Schedulers.computation] scheduler provides a pool of n threads, where n is the number of cores on the machine. The threads are executed in parallel on these cores.
7.7.2. Example-24: the [Schedulers.io] scheduler
We run the previous code with the [Schedulers.io] scheduler:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example24 {
public static void main(String[] args) throws InterruptedException {
// processes
@SuppressWarnings("unchecked")
Process<Double> processes[] = new Process[10];
for (int i = 0; i < processes.length; i++) {
processes[i] = new Process<>(
new ProcessAction01<Double>(String.format("process%s", i), 1, value -> new Random().nextInt(100) * 1.2),
Schedulers.io(), null);
}
// subscriptions
ProcessUtils.subscribe(1, processes);
}
}
- line 18: processes run using the scheduler's threads [Schedulers.io];
This yields the following results:
main: start of observation ------Thread[main] ---- Time[03:451]
Observable (process0) call start ------Thread[RxCachedThreadScheduler-1] ---- Time[03:459]
Observable (process1) call start ------Thread[RxCachedThreadScheduler-2] ---- Time[03:459]
Observable (process2) call start ------Thread[RxCachedThreadScheduler-3] ---- Time[03:460]
Observable (process3) call start ------Thread[RxCachedThreadScheduler-4] ---- Time[03:460]
Observable (process4) call start ------Thread[RxCachedThreadScheduler-5] ---- Time[03:464]
Observable (process5) call start ------Thread[RxCachedThreadScheduler-6] ---- Time[03:464]
Observable (process6) call start ------Thread[RxCachedThreadScheduler-7] ---- Time[03:465]
Observable (process8) call start ------Thread[RxCachedThreadScheduler-9] ---- Time[03:465]
Observable (process9) call start ------Thread[RxCachedThreadScheduler-10] ---- Time[03:465]
main: waiting for observation to end ------Thread[main] ---- Time[03:465]
Observable (process7) call start ------Thread[RxCachedThreadScheduler-8] ---- Time[03:465]
Observable (process7,0) onNext (54.0) ------Thread[RxCachedThreadScheduler-8] ---- Time[03:473]
Observable (process8,0) onNext (116.39999999999999) ------Thread[RxCachedThreadScheduler-9] ---- Time[03:500]
Observable (process6,0) onNext (105.6) ------Thread[RxCachedThreadScheduler-7] ---- Time[03:506]
Observable (process0,0) onNext (96.0) ------Thread[RxCachedThreadScheduler-1] ---- Time[03:509]
Observable (process5,0) onNext (25.2) ------Thread[RxCachedThreadScheduler-6] ---- Time[03:583]
Observable (process3,0) onNext (97.2) ------Thread[RxCachedThreadScheduler-4] ---- Time[03:684]
Subscriber[observer[0],process7]: onNext (54.0) ------Thread[RxCachedThreadScheduler-8] ---- Time[03:685]
Subscriber[observer[0],process6]: onNext (105.6) ------Thread[RxCachedThreadScheduler-7] ---- Time[03:685]
Subscriber[observer[0],process0]: onNext (96.0) ------Thread[RxCachedThreadScheduler-1] ---- Time[03:685]
Subscriber[observer[0],process8]: onNext (116.39999999999999) ------Thread[RxCachedThreadScheduler-9] ---- Time[03:685]
Observable (process0) onCompleted ------Thread[RxCachedThreadScheduler-1] ---- Time[03:686]
Observable (process6) onCompleted ------Thread[RxCachedThreadScheduler-7] ---- Time[03:686]
Observable (process7) onCompleted ------Thread[RxCachedThreadScheduler-8] ---- Time[03:685]
...
main: end of observation ------Thread[main] ---- Time[03:933]
- lines 2-10: the 10 processes each start on a different thread. Unlike the previous case, all processes were able to launch. Note that these launches take 6 ms, whereas previously it was 1 ms;
- lines 13-18: the observables emit one after the other and not nearly in parallel as was the case previously;
What is the difference between the [Schedulers.io] and [Schedulers.computation] schedulers? An answer can be found at the URL [http://stackoverflow.com/questions/31276164/rxjava-schedulers-use-cases]:
 |
7.7.3. Example-25: the [Schedulers.newThread] scheduler
We run the previous code using the [Schedulers.newThread] scheduler:
package dvp.rxjava.observables.examples;
import java.util.Random;
import dvp.rxjava.observables.utils.Process;
import dvp.rxjava.observables.utils.ProcessAction01;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.schedulers.Schedulers;
public class Example25 {
public static void main(String[] args) throws InterruptedException {
// processes
@SuppressWarnings("unchecked")
Process<Double> processes[] = new Process[10];
for (int i = 0; i < processes.length; i++) {
processes[i] = new Process<>(
new ProcessAction01<Double>(String.format("process%s", i), 1, value -> new Random().nextInt(100) * 1.2),
Schedulers.newThread(), null);
}
// subscriptions
ProcessUtils.subscribe(1, processes);
}
}
The results obtained are the same as with the [Schedulers.io] scheduler:
main: start observation ------Thread[main] ---- Time[17:058]
Observable (process0) call start ------Thread[RxNewThreadScheduler-1] ---- Time[17:065]
Observable (process1) call start ------Thread[RxNewThreadScheduler-2] ---- Time[17:065]
Observable (process2) call start ------Thread[RxNewThreadScheduler-3] ---- Time[17:066]
Observable (process3) call start ------Thread[RxNewThreadScheduler-4] ---- Time[17:066]
Observable (process4) call start ------Thread[RxNewThreadScheduler-5] ---- Time[17:068]
Observable (process5) call start ------Thread[RxNewThreadScheduler-6] ---- Time[17:069]
Observable (process6) call start ------Thread[RxNewThreadScheduler-7] ---- Time[17:069]
Observable (process8) call start ------Thread[RxNewThreadScheduler-9] ---- Time[17:069]
Observable (process7) call start ------Thread[RxNewThreadScheduler-8] ---- Time[17:069]
Observable (process9) call start ------Thread[RxNewThreadScheduler-10] ---- Time[17:069]
main: waiting for observation to end ------Thread[main] ---- Time[17:069]
Observable (process6,0) onNext (25.2) ------Thread[RxNewThreadScheduler-7] ---- Time[17:120]
Observable (process3,0) onNext (39.6) ------Thread[RxNewThreadScheduler-4] ---- Time[17:193]
Observable (process5,0) onNext (21.599999999999998) ------Thread[RxNewThreadScheduler-6] ---- Time[17:212]
Observable (process0,0) onNext (19.2) ------Thread[RxNewThreadScheduler-1] ---- Time[17:273]
Observable (process8,0) onNext (81.6) ------Thread[RxNewThreadScheduler-9] ---- Time[17:308]
Subscriber[observer[0],process3]: onNext (39.6) ------Thread[RxNewThreadScheduler-4] ---- Time[17:331]
Subscriber[observer[0],process0]: onNext (19.2) ------Thread[RxNewThreadScheduler-1] ---- Time[17:331]
Subscriber[observer[0],process6]: onNext (25.2) ------Thread[RxNewThreadScheduler-7] ---- Time[17:331]
Subscriber[observer[0],process8]: onNext (81.6) ------Thread[RxNewThreadScheduler-9] ---- Time[17:331]
Subscriber[observer[0],process5]: onNext (21.599999999999998) ------Thread[RxNewThreadScheduler-6] ---- Time[17:331]
Observable (process8) onCompleted ------Thread[RxNewThreadScheduler-9] ---- Time[17:333]
Observable (process5) onCompleted ------Thread[RxNewThreadScheduler-6] ---- Time[17:333]
Observable (process6) onCompleted ------Thread[RxNewThreadScheduler-7] ---- Time[17:332]
Observable (process0) onCompleted ------Thread[RxNewThreadScheduler-1] ---- Time[17:332]
Observable (process3) onCompleted ------Thread[RxNewThreadScheduler-4] ---- Time[17:332]
...
main: end of observation ------Thread[main] ---- Time[17:571]
At the URL [http://stackoverflow.com/questions/33415881/retrofit-with-rxjava-schedulers-newthread-vs-schedulers-io], it is explained that the scheduler [Schedulers.io] provides a thread pool, which the scheduler [Schedulers.newThread] does not do. A thread pool automatically creates a set of threads. It allocates them to processes that need them. When these processes are finished, their threads are not deleted but return to the pool and can then be reused by another process. This is more efficient than constantly creating and deleting threads. Therefore, it is preferable to use the [Schedulers.io] scheduler.
7.7.4. Example 26: The schedulers [Schedulers.immediate, Schedulers.trampoline]
Let’s return to the explanation provided for these two schedulers:
|
The explanation is fairly easy to understand, but when you try to illustrate it, you realize you haven't really grasped it. It was the book *Learning Reactive Programming With Java 8* that helped me create an example based on one found in that book, but simplified. Here it is:
package dvp.rxjava.observables.examples;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.function.Consumer;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Scheduler;
import rx.Scheduler.Worker;
import rx.functions.Action0;
import rx.schedulers.Schedulers;
public class Example26 {
public static void main(String[] args) throws InterruptedException {
// a scheduler
Scheduler scheduler = Schedulers.immediate();
// a worker for this scheduler
Worker worker = scheduler.createWorker();
// an Action0 type to be executed on the worker
Action0 action02 = new Action0() {
@Override
public void call() {
// log action02
ProcessUtils.showInfos.accept("action02");
}
};
// an Action0 type to be executed on the worker
Action0 action01 = new Action0() {
@Override
public void call() {
// schedule a new action on the same worker
worker.schedule(action02);
// log action01
ProcessUtils.showInfos.accept("action01");
}
};
// action01 is scheduled on the worker
worker.schedule(action01);
}
// displays
static Consumer<String> showInfos = message -> System.out.printf("%s ------Thread[%s] ---- Time[%s]%n", message,
Thread.currentThread().getName(), new SimpleDateFormat("ss:SSS").format(new Date()));
}
- line 17: a scheduler. This will be either [Schedulers.immediate] as shown here or [Schedulers.trampoline] later;
- line 19: Actions of type Action0 (lines 21, 20) can be executed on the scheduler’s workers. The [Scheduler.createWorker] method creates a worker. The [Worker.schedule(Action0)] method executes an Action0 type via a worker;
- lines 21–27: a first action called [action02] that will be executed (line 40) by the worker from line 19;
- lines 30–38: a second action called [action01]. It has the particular feature of causing action02 to be executed on the same worker as itself (line 34). This is where the difference lies between [Schedulers.immediate] and [Schedulers.trampoline]:
- if the scheduler is [Schedulers.immediate], then on line 34, the action action02 will be executed immediately (hence the scheduler’s name) and the currently running action action01 will be interrupted. We will then see the message from line 25 appear. Once action02 is finished, action01 will resume and we will see the message from line 36;
- if the scheduler is [Schedulers.trampoline], then on line 34, action action02 is queued. It will not be executed until the current task, action01, is complete. The message on line 36 will then appear. Once action01 is complete, action02 will execute, and the message on line 25 will appear;
Executing the code above yields the following results:
action02 ------Thread[main] ---- Time[38:480]
action01 ------Thread[main] ---- Time[38:485]
If, on line 17, we use the scheduler [Schedulers.trampoline], we get the opposite results:
That said, it is difficult to make a connection with observables. I haven’t found a convincing example that could demonstrate the benefit of executing an observable on one of these two threads. Here is one, though, which I don’t find at all natural:
package dvp.rxjava.observables.examples;
import dvp.rxjava.observables.utils.ProcessUtils;
import rx.Observable;
import rx.Scheduler.Worker;
import rx.functions.Action1;
import rx.schedulers.Schedulers;
public class Example27 {
public static void main(String[] args) throws InterruptedException {
// Worker
Worker worker = Schedulers.immediate().createWorker();
// Worker worker = Schedulers.trampoline().createWorker();
// observable 1 on worker
worker.schedule(() -> Observable.range(1, 2).subscribe(new Action1<Integer>() {
@Override
public void call(Integer i) {
ProcessUtils.showInfos.accept(String.valueOf(i));
// observable 2 on the same worker
worker.schedule(() -> Observable.range(100, 2).subscribe(new Action1<Integer>() {
@Override
public void call(Integer i) {
ProcessUtils.showInfos.accept(String.valueOf(i));
}
}));
}
}));
}
}
- lines 13–14: a worker is created using one of the two schedulers [Schedulers.immediate] and [Schedulers.trampoline];
- line 16: a first observable obs1 is scheduled on this worker to emit the numbers [1,2]
- line 22: each time an element of this observable obs1 is observed, the observation of a second observable obs2 is launched on the same worker to emit the numbers [100,101];
With the [Schedulers.immediate] scheduler, we obtain the following results:
Whereas with the [Schedulers.trampoline] scheduler, we get the following results:
7.8. Conclusion
There is still much to be done. To gain a deeper understanding of the RxJava library, readers are encouraged to continue their learning using the references provided at the beginning of this document. Nevertheless, we now have the basics needed to use RxJava in Swing and Android environments. That is what we will demonstrate next.
