7. The Lifecycle of a Request

Between the arrival of a request and the execution of the action, [NestJS] involves several types of objects, each with a specific role. We’ve already encountered some of them: middleware ([res.locals], [cookie-parser]) and pipes ([ParseIntPipe], [ValidationPipe]). The case study uses all five:

Object	Role	In the case study
middleware	prepare the request; does not yet know the action	reading cookies, language, flash message
guard	authorize or deny access to the action	Authentication (JWT), roles
interceptor	code before and after the action	the logged-in user, exposed to views
pipe	convert and validate a parameter	[ParseIntPipe]
exception filter	Convert an exception into a response	Error pages HTML, redirection to /login

7.1. Example 24: The Five Steps

Example 24 has an action that calculates the square of a number and one object of each type. Each writes a line to the console, so we can see the order in which they occur.

The file [src/logger.middleware.ts]:

import { Injectable, NestMiddleware } from '@nestjs/common';
import { NextFunction, Request, Response } from 'express';

// 1. the MIDDLEWARE: the first to see the request. It does not know yet
//    which action will handle it
@Injectable()
export class LoggerMiddleware implements NestMiddleware {
  use(req: Request, res: Response, next: NextFunction): void {
    console.log(`\n--- ${req.method} ${req.originalUrl}`);
    console.log('1. middleware');
    next(); // we hand over to the rest of the chain
  }
}

Line 7: a middleware [NestJS] is a class that implements [NestMiddleware]. A simple function, as in the previous examples, would also work;
Line 11: The middleware must call [next()] to pass control to the next step (or send a response itself). Otherwise, the request remains blocked.

The file [src/app.module.ts]:

import { MiddlewareConsumer, Module, NestModule } from '@nestjs/common';
import { CalcController } from './calc.controller';
import { LoggerMiddleware } from './logger.middleware';

@Module({
  controllers: [CalcController],
})
export class AppModule implements NestModule {
  // a class middleware is registered in the module
  configure(consumer: MiddlewareConsumer): void {
    consumer.apply(LoggerMiddleware).forRoutes('*');
  }
}

Lines 10–12: A class-based middleware registers itself in a module that implements [NestModule]. [forRoutes('*')] applies it to all routes.

The file [src/block.guard.ts]:

import { CanActivate, ExecutionContext, Injectable } from '@nestjs/common';
import { Request } from 'express';

// 2. the GUARD: decides whether the request may reach the action.
//    false -> NestJS throws a ForbiddenException (403)
@Injectable()
export class BlockGuard implements CanActivate {
  canActivate(context: ExecutionContext): boolean {
    const req = context.switchToHttp().getRequest<Request>();
    // the guard knows the targeted action (which the middleware did not)
    console.log(`2. guard (targeted action: ${context.getHandler().name})`);
    return req.query.block !== '1';
  }
}

line 7: a guard implements [CanActivate];
line 8: its method [canActivate] receives the execution context and returns [true] (the request continues) or [false] ([NestJS] raises a [ForbiddenException], code 403);
line 11: unlike the middleware, the guard knows the target action ([getHandler()]) and its controller ([getClass()]). This is what allows a guard to read the decorators applied to the action (see [@Roles], next chapter).

The file [src/timing.interceptor.ts]:

import { CallHandler, ExecutionContext, Injectable, NestInterceptor } from '@nestjs/common';
import { Observable, tap } from 'rxjs';

// 3. the INTERCEPTOR: some code BEFORE the action, and AFTER it
@Injectable()
export class TimingInterceptor implements NestInterceptor {
  intercept(context: ExecutionContext, next: CallHandler): Observable<unknown> {
    console.log('3. interceptor (before)');
    const start = Date.now();
    // next.handle() runs what follows: pipes then action. The result
    // of the action arrives in the returned stream (Observable)
    return next.handle().pipe(tap(() => console.log(`6. interceptor (after, ${Date.now() - start} ms)`)));
  }
}

line 6: an interceptor implements [NestInterceptor];
line 8: the code placed before [next.handle()] executes before the action;
line 12: [next.handle()] executes the rest (pipes followed by the action) and returns a stream [RxJS] ([Observable]) that will produce the result of the action. The [tap] operator executes code after the action, without modifying its result (the [map] operator would allow it to be modified).

The file [src/integer.pipe.ts]:

import { BadRequestException, Injectable, PipeTransform } from '@nestjs/common';

// 4. the PIPE: converts and validates a parameter of the action
@Injectable()
export class IntegerPipe implements PipeTransform<string, number> {
  transform(value: string): number {
    console.log(`4. pipe (received value: "${value}")`);
    const n = Number(value);
    if (!Number.isInteger(n)) {
      throw new BadRequestException(`"${value}" is not an integer`);
    }
    return n;
  }
}

A pipe similar to [ParseIntPipe] (see Example 12).

The file [src/error-page.filter.ts]:

import { ArgumentsHost, Catch, ExceptionFilter, HttpException, HttpStatus } from '@nestjs/common';
import { Response } from 'express';

// x. the EXCEPTION FILTER: receives any unhandled exception, wherever
//    it comes from (guard, pipe, action...), and builds the response.
//    @Catch() without an argument: all the exceptions
@Catch()
export class ErrorPageFilter implements ExceptionFilter {
  catch(exception: unknown, host: ArgumentsHost): void {
    const res = host.switchToHttp().getResponse<Response>();
    const status = exception instanceof HttpException ? exception.getStatus() : HttpStatus.INTERNAL_SERVER_ERROR;
    const message = exception instanceof HttpException ? exception.message : 'Internal error';
    console.log(`x. exception filter (${status}: ${message})`);
    // an HTML page rather than the default NestJS JSON response
    res.status(status).render('error', { status, message });
  }
}

Line 7: [@Catch()] without an argument: the filter receives all exceptions. [@Catch(HttpException)] would limit it to the exceptions in HTTP;
Line 9: The [catch] method receives the exception and a [host] object that provides access to the request and the response;
Line 11: A [HttpException] contains its status code. Any other exception (a programming error, an unreachable database) results in a 500 error;
line 15: instead of the default JSON, the filter displays a HTML page with the correct status code.

The file [src/main.ts]:

import { NestFactory } from '@nestjs/core';
import { NestExpressApplication } from '@nestjs/platform-express';
import { dirname, join } from 'path';
import { AppModule } from './app.module';
import { TimingInterceptor } from './timing.interceptor';
import { ErrorPageFilter } from './error-page.filter';

async function bootstrap() {
  const app = await NestFactory.create<NestExpressApplication>(AppModule, { logger: ['error', 'warn'] });
  app.useStaticAssets(join(dirname(require.resolve('bootstrap/package.json')), 'dist'), { prefix: '/bootstrap/' });
  app.setBaseViewsDir(join(__dirname, '..', 'views'));
  app.setViewEngine('hbs');
  // a GLOBAL interceptor and filter: they apply to all the routes
  app.useGlobalInterceptors(new TimingInterceptor());
  app.useGlobalFilters(new ErrorPageFilter());
  await app.listen(3000);
  console.log('Server started on http://localhost:3000');
}

bootstrap();

line 9: we filter the messages from [NestJS] down to errors and warnings, so we can see our own more clearly;
lines 14–15: the interceptor and filter are global; they apply to all actions.

The file [src/calc.controller.ts]:

import { Controller, Get, Param, Render, UseGuards } from '@nestjs/common';
import { BlockGuard } from './block.guard';
import { IntegerPipe } from './integer.pipe';

@Controller('square')
@UseGuards(BlockGuard) // the guard applies to all the actions of the controller
export class CalcController {
  @Get(':n')
  @Render('square')
  square(@Param('n', IntegerPipe) n: number): object {
    console.log(`5. action square(${n})`);
    if (n === 13) {
      throw new Error('13 brings bad luck'); // an "unexpected" error
    }
    return { n, square: n * n };
  }
}

line 6: [@UseGuards] applies a guard to all controller actions (it can also be applied to a single action);
line 10: the pipe converts the parameter;
lines 12–14: an “unexpected” error, to see the filter in action.

Four requests: a normal calculation, an invalid parameter, a request blocked by the guard, and the unexpected error. The server console:

--- GET /square/7
1. middleware
2. guard (targeted action: square)
3. interceptor (before)
4. pipe (received value: "7")
5. action square(7)
6. interceptor (after, 2 ms)

--- GET /square/abc
1. middleware
2. guard (targeted action: square)
3. interceptor (before)
4. pipe (received value: "abc")
x. exception filter (400: "abc" is not an integer)

--- GET /square/7?block=1
1. middleware
2. guard (targeted action: square)
x. exception filter (403: Forbidden resource)

--- GET /square/13
1. middleware
2. guard (targeted action: square)
3. interceptor (before)
4. pipe (received value: "13")
5. action square(13)
x. exception filter (500: Internal error)

This log shows:

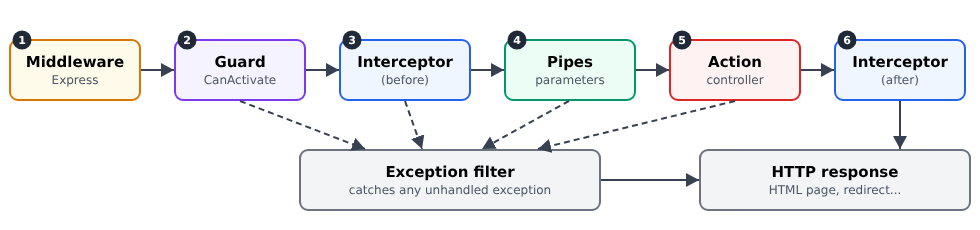

the order of the steps: middleware, guard, interceptor (before), pipe, action, interceptor (after);
an exception interrupts the chain, wherever it occurs, and the filter generates the response: the guard denies access (403), the pipe denies access (400), the action fails (500).

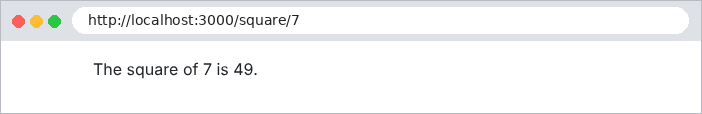

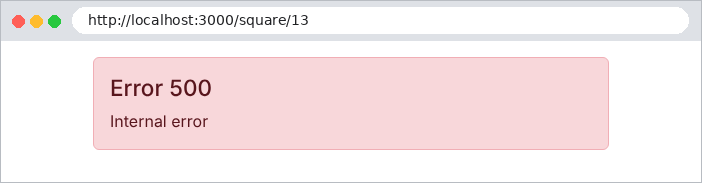

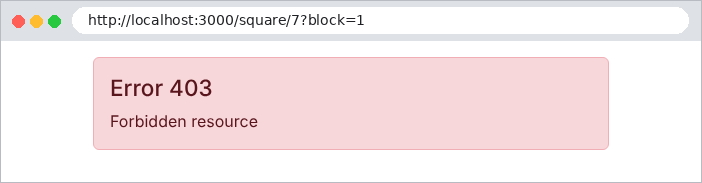

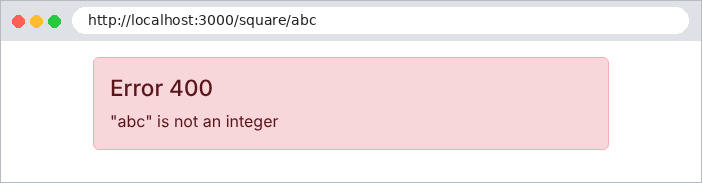

The resulting pages:

The exception filter in the case study ([web/html-exception.filter.ts]) follows this pattern, with one exception: a 401 error (user not logged in) does not display an error page but redirects to the login page.
