11. Python network functions

We will now discuss Python's network functions, which allow us to perform TCP/IP (Transmission Control Protocol/Internet Protocol) programming.



11.1. Getting the name or IP address of a machine on the Internet

Program (inet_01)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
import sys, socket

#------------------------------------------------
def getIPandName(nomMachine):
    # nomMachine: name of the machine whose address is required IP: name of the machine whose address is required IP: name of the machine whose address is required
    #    nomMachine-->adresse IP
    try:
        ip=socket.gethostbyname(nomMachine)
        print "ip[%s]=%s" % (nomMachine,ip)
    except socket.error, erreur:
        print "ip[%s]=%s" % (nomMachine,erreur)
        return

    #    address IP --> nomMachine
    try:
        name=socket.gethostbyaddr(ip)
        print "name[%s]=%s" % (ip,name[0])
    except socket.error, erreur:
        print "name[%s]=%s" % (ip,erreur)
        return


#    ---------------------------------------- main

#    constant
HOTES=["istia.univ-angers.fr","www.univ-angers.fr","www.ibm.com","localhost","","xx"]

#    IP addresses of HOTES machines
for i in range(len(HOTES)):
    getIPandName(HOTES[i])
#    end
sys.exit()

Notes:

  • Line 1: Python's network functions are encapsulated in the socket module.
Results
1
2
3
4
5
6
7
8
9
ip[istia.univ-angers.fr]=193.49.146.171
name[193.49.146.171]=istia.istia.univ-angers.fr
ip[www.univ-angers.fr]=193.49.144.40
name[193.49.144.40]=ametys-fo.univ-angers.fr
ip[www.ibm.com]=129.42.58.216
name[129.42.58.216]=[Errno 11004] host not found
ip[localhost]=127.0.0.1
name[127.0.0.1]=Gportpers3.ad.univ-angers.fr
ip[xx]=[Errno 11004] getaddrinfo failed

11.2. A web client

A script to retrieve the content of the index page of a website.

Program (inet_02)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
import sys,socket

  #-----------------------------------------------------------------------
def getIndex(site):
    #  reads the URL site/ and stores it in the site.html file

    #  initially no error
    erreur=""
    #  creation of the site.html file
    try:
        html=open("%s.html" % (site),"w")
    except IOError, erreur:
        pass
    #    mistake?
    if erreur:
        return "Erreur (%s) lors de la création du fichier %s.html" % (erreur,site)

    #    open a connection on site port 80
    try:
        connexion=socket.create_connection((site,80))
    except socket.error, erreur:
        pass
    #  return if error
    if erreur:
        return "Echec de la connexion au site (%s,80) : %s" % (site,erreur)

    #    connection represents a bidirectional communication flow
    #  between the client (this program) and the contacted web server
    #  this channel is used for the exchange of orders and information
    #  the dialog protocol is HTTP

    #  the customer sends the get command to request URL /
    #    syntax get URL HTTP/1.0
    #  protocol HTTP headers must end with an empty line
    connexion.send("GET / HTTP/1.0\n\n")

    #  the server will now respond on the connection channel. It will send all
    #  then close the channel. The customer reads everything that comes in from the connection
    #  until the channel closes
    ligne=connexion.recv(1000)
    while(ligne):
        html.write(ligne)
        ligne=connexion.recv(1000)

    #  the customer in turn closes the connection
    connexion.close()
    #    close html file
    html.close()
    #    return
    return "Transfert reussi du paragraphe index du site %s" % (site)

#    --------------------------------------------- main

#  get the text HTML from URL

#    list of websites
SITES=("istia.univ-angers.fr","www.univ-angers.fr","www.ibm.com","xx")

#  reading the index pages of the sites in the SITES table
for i in range(len(SITES)):
      #    read site index page SITES[i]
      resultat=getIndex(SITES[i])
      #    result display
      print resultat

#    end
sys.exit()

Notes:

  • line 57: the list of URLs for the websites whose index pages we want. This is stored in the text file [sitename.html];
  • line 62: the getIndex function does the work;
  • line 4: the getIndex function;
  • line 20: the create_connection((site,port)) method allows you to create a connection with a TCP/IP service running on port port on the site machine;
  • line 35: the send method allows data to be sent over a TCP/IP connection. Here, text is being sent. This text follows the HTTP (HyperText Transfer Protocol) protocol;
  • line 40: the recv method is used to receive data over a TCP/IP connection. Here, the web server’s response is read in blocks of 1,000 characters and saved to the text file [sitename.html].
Results
Transfert reussi du paragraphe index du site istia.univ-angers.fr
Transfert reussi du paragraphe index du site www.univ-angers.fr
Transfert reussi du paragraphe index du site www.ibm.com
Echec de la connexion au site (xx,80) : [Errno 11001] getaddrinfo failed

The file received for the site [www.ibm.com]:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
HTTP/1.1 302 Found
Date: Wed, 08 Jun 2011 15:43:56 GMT
Server: IBM_HTTP_Server
Content-Type: text/html
Expires: Fri, 01 Jan 1990 00:00:00 GMT
Pragma: no-cache
Cache-Control: no-cache, must-revalidate
Location: http://www.ibm.com/us/en/
Content-Length: 209
Kp-eeAlive: timeout=10, max=14
Connection: Keep-Alive

<!DOCTYPE HTML PUBLIC "-//IETF//DTD HTML 2.0//EN">
<html><head>
<title>302 Found</title>
</head><body>
<h1>Found</h1>
<p>The document has moved <a href="http://www.ibm.com/us/en/">here</a>.</p>
</body></html>
  • Lines 1–11 are the HTTP headers of the server’s response;
  • line 1: the server instructs the client to redirect to the URL specified in line 8;
  • line 2: date and time of the response;
  • line 3: web server identity;
  • line 4: content sent by the server. Here, an HTML page that begins on line 13;
  • line 12: the empty line that ends the HTTP headers;
  • Lines 13–19: the HTML page sent by the web server.

11.3. An SMTP client

Among TCP/IP protocols, SMTP (Simple Mail Transfer Protocol) is the communication protocol for the message delivery service.

Program (inet_03)
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
#    -*- coding=utf-8 -*-

import sys,socket

#-----------------------------------------------------------------------
def getInfos(fichier):
    #  returns the information (smtp,sender,recipient,message) taken from the text file [file]
    #  line 1: smtp, sender, recipient
    #  next lines: message text

    #    open [file]
    erreur=""
    try:
        infos=open(fichier,"r")
    except IOError, erreur:
        return ("Le fichier %s n'a pu etre ouvert en lecture : %s" % (fichier, erreur))

    #  read the 1st line
    ligne=infos.readline()
    #  delete end-of-line mark
    ligne=cutNewLineChar(ligne)
    #  retrieving smtp, sender and recipient fields
    champs=ligne.split(",")
    #  do we have the right number of fields?
    if len(champs)!=3 :
        return ("La ligne 1 du fichier %s (serveur smtp, expediteur, destinataire) a un nombre de champs incorrect" % (fichier))
    #  "processing" the recovered information
    #  we remove from each of the 3 fields the "blanks" that precede or follow the useful information
    for i in range(3):
        champs[i]=champs[i].strip()
    #  field recovery
    (smtpServer,expediteur,destinataire)=champs
    message=""
    #    read rest of message
    ligne=infos.readline()
    while ligne!='':
        message+=ligne
        ligne=infos.readline()
    infos.close()
    #    return
    return ("",smtpServer,expediteur,destinataire,message)

#-----------------------------------------------------------------------
def sendmail(smtpServer,expediteur,destinataire,message,verbose):
    #  sends message to smtp server smtpserver from sender
    #    as recipient. If verbose=True, tracks client-server exchanges

    #  retrieve the customer's name
    try:
        client=socket.gethostbyaddr(socket.gethostbyname("localhost"))[0]
    except socket.error, erreur:
        return "Erreur IP / Nom du client : %s" % (erreur)

    #    open a connection on port 25 of smtpServer
    try:
        connexion=socket.create_connection((smtpServer,25))
    except socket.error, erreur:
        return "Echec de la connexion au site (%s,25) : %s" % (smtpServer,erreur)

    #    connection represents a bidirectional communication flow
    #  between the client (this program) and the smtp server contacted
    #  this channel is used for the exchange of orders and information

    #  after connection, the server sends a welcome message which is read as follows
    erreur=sendCommand(connexion,"",verbose,1)
    if(erreur) :
        connexion.close()
        return erreur
    #    cmde ehlo:
    erreur=sendCommand(connexion,"EHLO %s" % (client),verbose,1)
    if erreur :
        connexion.close()
        return erreur
    # cmde mail from:
    erreur=sendCommand(connexion,"MAIL FROM: <%s>" % (expediteur),verbose,1)
    if erreur :
        connexion.close()
        return erreur
    #    cmde rcpt to:
    erreur=sendCommand(connexion,"RCPT TO: <%s>" % (destinataire),verbose,1)
    if erreur :
        connexion.close()
        return erreur
    #    cmde data
    erreur=sendCommand(connexion,"DATA",verbose,1)
    if erreur :
        connexion.close()
        return erreur
    #    prepare message to send
    #  it must contain the lines
    # From: expéditeur
    #    To: recipient
    #  empty line
    #    Message
    # .
    data="From: %s\r\nTo: %s\r\n%s\r\n.\r\n" % (expediteur,destinataire,message)
    #    send message
    erreur=sendCommand(connexion,data,verbose,0)
    if erreur :
        connexion.close()
        return erreur
    #    cmde quit
    erreur=sendCommand(connexion,"QUIT",verbose,1)
    if erreur :
        connexion.close()
        return erreur
    #    end
    connexion.close()
    return "Message envoye"

# --------------------------------------------------------------------------
def sendCommand(connexion,commande,verbose,withRCLF):
    #  sends command to connection channel
    #    verbose mode if verbose=1
    #  if withRCLF=1, adds sequence RCLF to command

    #    data
    RCLF="\r\n" if withRCLF else ""
    #  send cmde if order not empty
    if commande:
        connexion.send("%s%s" % (commande,RCLF))
        #    possible echo
        if verbose:
            affiche(commande,1)
        #    read response of less than 1000 characters
        reponse=connexion.recv(1000)
        #    possible echo
        if verbose:
            affiche(reponse,2)
        #  error code recovery
        codeErreur=reponse[0:3]
        #  error returned by the server?
        if int(codeErreur) >=500:
            return reponse[4:]
        #  error-free return
        return ""

# --------------------------------------------------------------------------
def affiche(echange,sens):
    #    displays exchange ? screen
    #    if sens=1 displays -->change
    #    if sens=2 displays <-- exchange without last 2 characters RCLF
    if sens==1:
        print "--> [%s]" % (echange)
        return
    elif sens==2:
        l=len(echange)
        print "<-- [%s]" % echange[0:l-2]
        return


# --------------------------------------------------------------------------
def cutNewLineChar(ligne):
    #  delete the [line] end-of-line mark if it exists
    l=len(ligne)
    while(ligne[l-1]=="\n" or ligne[l-1]=="\r"):
        l-=1
    return(ligne[0:l])

#    main ----------------------------------------------------------------

 #  client SMTP (SendMail Transfer Protocol) for sending a message
#  information is taken from a INFOS file containing the following lines
#  line 1: smtp, sender, recipient
#  next lines: message text

#    sender:email sender
#    recipient: email recipient
#  smtp: name of smtp server to use


#    communication protocol SMTP client-server
#    -> client connects to smtp server port 25
#    <- server sends him a welcome message
#  -> customer sends command EHLO: machine name
#  <- server responds OK or not
#  -> customer sends mail from: <exp?diteur> command
#  <- server responds OK or not
#  -> client sends the rcpt to command: <recipient>
#  <- server responds OK or not
#    -> customer sends data order
#  <- server responds OK or not
#  -> client sends all the lines of its message and ends with a line containing the single character .
#  <- server responds OK or not
#    -> customer sends quit order
#  <- server responds OK or not

#  server responses have the form xxx text where xxx is a 3-digit number. Any number xxx >=500
#  indicates an error. The answer may consist of several lines all beginning with xxx- except the last one
#  of the form xxx(space)

#  exchanged text lines must end with RC(#13) and LF(#10) characters

#    # Mailing parameters
MAIL="mail2.txt"
#    retrieve mail parameters
res=getInfos(MAIL)
#    mistake?
if res[0]:
      print "%s" % (erreur)
      sys.exit()
#  sending mail in verbose mode
(smtpServer,expediteur,destinataire,message)=res[1:]
print "Envoi du message [%s,%s,%s]" % (smtpServer,expediteur,destinataire)
resultat=sendmail(smtpServer,expediteur,destinataire,message,True)
print "Resultat de l'envoi : %s" % (resultat)
#    end
sys.exit()

Notes:

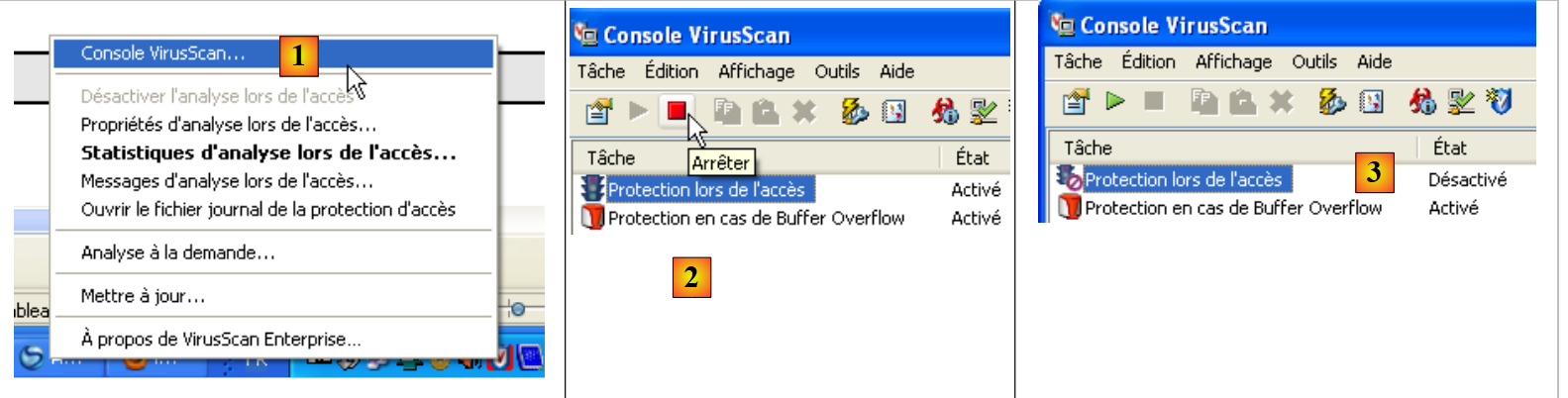

  • On a Windows machine with antivirus software, the antivirus may prevent the Python script from connecting to port 25 of an SMTP server. You must therefore disable the antivirus. For McAfee, for example, you can do the following:
  • In [1], open the VirusScan console
  • In [2], stop the [On-Access Protection] service
  • in [3], it is stopped
Results

The infos.txt file:

smtp.univ-angers.fr, serge.tahe@univ-angers.fr , serge.tahe@univ-angers.fr
Subject: test

ligne1
ligne2

ligne3

Screen results:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Envoi du message [smtp.univ-angers.fr,serge.tahe@univ-angers.fr,serge.tahe@univ-angers.fr]
--> [EHLO Gportpers3.ad.univ-angers.fr]
<-- [220 smtp.univ-angers.fr ESMTP Postfix
250-smtp.univ-angers.fr
250-PIPELINING
250-SIZE 20480000
250-VRFY
250-ETRN
250-ENHANCEDSTATUSCODES
250-8BITMIME
250 DSN]
--> [MAIL FROM: <serge.tahe@univ-angers.fr>]
<-- [250 2.1.0 Ok]
--> [RCPT TO: <serge.tahe@univ-angers.fr>]
<-- [250 2.1.5 Ok]
--> [DATA]
<-- [354 End data with <CR><LF>.<CR><LF>]
--> [From: serge.tahe@univ-angers.fr
To: serge.tahe@univ-angers.fr
Subject: test

ligne1
ligne2

ligne3

.
]
<-- [250 2.0.0 Ok: queued as 63412114203]
--> [QUIT]
<-- [221 2.0.0 Bye]
Resultat de l'envoi : Message envoye

The message as seen by the Thunderbird email client:



11.4. A second SMTP client

This second script does the same thing as the previous one but uses the features of the [smtplib] module.

Program (inet_04)
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
#    -*- coding=utf-8 -*-

import sys,socket, smtplib

#-----------------------------------------------------------------------
def getInfos(fichier):
    #  returns the information (smtp,sender,recipient,message) taken from the text file [file]
    #  line 1: smtp, sender, recipient
    #  next lines: message text

    #    open [file]
    erreur=""
    try:
        infos=open(fichier,"r")
    except IOError, erreur:
        return ("Le fichier %s n'a pu etre ouvert en lecture : %s" % (fichier, erreur))

    #  read the 1st line
    ligne=infos.readline()
    #  delete end-of-line mark
    ligne=cutNewLineChar(ligne)
    #  retrieve smtp, sender, recipient fields
    champs=ligne.split(",")
    #  do we have the right number of fields?
    if len(champs)!=3 :
        return ("La ligne 1 du fichier %s (serveur smtp, expediteur, destinataire) a un nombre de champs incorrect" % (fichier))
    #  "processing" the information recovered - removing the "blanks" that precede or follow them
    for i in range(3):
        champs[i]=champs[i].strip()
    #  field recovery
    (smtpServer,expediteur,destinataire)=champs
    #    read message to send
    message=""
    ligne=infos.readline()
    while ligne!='':
        message+=ligne
        ligne=infos.readline()
    infos.close()
    #    return
    return ("",smtpServer,expediteur,destinataire,message)

#-----------------------------------------------------------------------
def sendmail(smtpServer,expediteur,destinataire,message,verbose):
    #  sends message to smtp server smtpserver from sender
    #    as recipient. If verbose=True, tracks client-server exchanges

    #  we use the smtplib library
    try:
        server = smtplib.SMTP(smtpServer)
        if verbose:
            server.set_debuglevel(1)
            server.sendmail(expediteur, destinataire, message)
            server.quit()
    except Exception, erreur:
        return "Erreur envoi du message : %s" % (erreur)
    #    end
    return "Message envoye"

# --------------------------------------------------------------------------
def cutNewLineChar(ligne):
    #  delete the [line] end-of-line mark if it exists
    l=len(ligne)
    while(ligne[l-1]=="\n" or ligne[l-1]=="\r"):
        l-=1
    return(ligne[0:l])

#    main ----------------------------------------------------------------

 #  client SMTP (SendMail Transfer Protocol) for sending a message
#  information is taken from a INFOS file containing the following lines
#  line 1: smtp, sender, recipient
#  next lines: message text

#    sender:email sender
#    recipient: email recipient
#  smtp: name of smtp server to use


#    communication protocol SMTP client-server
#    -> client connects to smtp server port 25
#    <- server sends him a welcome message
#  -> customer sends command EHLO: machine name
#  <- server responds OK or not
#  -> customer sends mail order from: <sender>
#  <- server responds OK or not
#  -> client sends the rcpt to command: <recipient>
#  <- server responds OK or not
#    -> customer sends data order
#  <- server responds OK or not
#  -> client sends all the lines of its message and ends with a line containing the single character .
#  <- server responds OK or not
#    -> customer sends quit order
#  <- server responds OK or not

#  server responses have the form xxx text where xxx is a 3-digit number. Any number xxx >=500
#  indicates an error. The answer may consist of several lines all beginning with xxx- except the last one
#  of the form xxx(space)

#  exchanged text lines must end with RC(#13) and LF(#10) characters

#    # Mailing parameters
MAIL="mail2.txt"
#    retrieve mail parameters
res=getInfos(MAIL)
#    mistake?
if res[0]:
      print "%s" % (erreur)
      sys.exit()
#  sending mail in verbose mode
(smtpServer,expediteur,destinataire,message)=res[1:]
print "Envoi du message [%s,%s,%s]" % (smtpServer,expediteur,destinataire)
resultat=sendmail(smtpServer,expediteur,destinataire,message,True)
print "Resultat de l'envoi : %s" % (resultat)
#    end
sys.exit()

Notes:

  • This script is identical to the previous one except for the sendmail function. This function now uses the features of the [smtplib] module (line 3).
Results

The mail2.txt file:

smtp.univ-angers.fr, serge.tahe@univ-angers.fr , serge.tahe@univ-angers.fr
From: serge.tahe@univ-angers.fr
To: serge.tahe@univ-angers.fr
Subject: test

ligne1
ligne2

ligne3

Screen results:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Envoi du message [smtp.univ-angers.fr,serge.tahe@univ-angers.fr,serge.tahe@univ-
angers.fr]
send: 'ehlo Gportpers3.ad.univ-angers.fr\r\n'
reply: '250-smtp.univ-angers.fr\r\n'
reply: '250-PIPELINING\r\n'
reply: '250-SIZE 20480000\r\n'
reply: '250-VRFY\r\n'
reply: '250-ETRN\r\n'
reply: '250-ENHANCEDSTATUSCODES\r\n'
reply: '250-8BITMIME\r\n'
reply: '250 DSN\r\n'
reply: retcode (250); Msg: smtp.univ-angers.fr
PIPELINING
SIZE 20480000
VRFY
ETRN
ENHANCEDSTATUSCODES
8BITMIME
DSN
send: 'mail FROM:<serge.tahe@univ-angers.fr> size=99\r\n'
reply: '250 2.1.0 Ok\r\n'
reply: retcode (250); Msg: 2.1.0 Ok
send: 'rcpt TO:<serge.tahe@univ-angers.fr>\r\n'
reply: '250 2.1.5 Ok\r\n'
reply: retcode (250); Msg: 2.1.5 Ok
send: 'data\r\n'
reply: '354 End data with <CR><LF>.<CR><LF>\r\n'
reply: retcode (354); Msg: End data with <CR><LF>.<CR><LF>
data: (354, 'End data with <CR><LF>.<CR><LF>')
send: 'From: serge.tahe@univ-angers.fr\r\nTo: serge.tahe@univ-angers.fr\r\nSubje
ct: test\r\n\r\nligne1\r\nligne2\r\n\r\nligne3\r\n.\r\n'
reply: '250 2.0.0 Ok: queued as D4977114358\r\n'
reply: retcode (250); Msg: 2.0.0 Ok: queued as D4977114358
data: (250, '2.0.0 Ok: queued as D4977114358')
send: 'quit\r\n'
reply: '221 2.0.0 Bye\r\n'
reply: retcode (221); Msg: 2.0.0 Bye
Resultat de l'envoi : Message envoye

11.5. Echo client/server

We create an echo service. The server returns all text lines sent by the client in uppercase. The service can serve multiple clients at once using threads.

The server program (inet_08)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
#    -*- coding=utf-8 -*-

#    generic tcp server on Windows

#    loading header files
import re,sys,SocketServer,threading

#    multi-threaded tcp server
class ThreadedTCPRequestHandler(SocketServer.StreamRequestHandler):

  def handle(self):
    #    current thread
    cur_thread = threading.currentThread()
    #    customer data
    self.data="on"
    #    stop on empty chain
    while self.data:
      #  the client's text lines are read using the readline method
      self.data =self.rfile.readline().strip()
      #    console monitoring
      print "client %s : %s (%s)" % (self.client_address[0],self.data,cur_thread.getName())
      #    reply to customer
      response = "%s: %s" % (cur_thread.getName(), self.data.upper())
      #  self.wfile is the write stream to client
      self.wfile.write(response)

class ThreadedTCPServer(SocketServer.ThreadingMixIn, SocketServer.TCPServer):
    pass

#    ------------------------------------------------------ main
#    call syntax: argv[0] port
#  the server is launched on the port named

#    Data
syntaxe="syntaxe : %s port" % (sys.argv[0])

# ------------------------------------- check the call
#  there must be one argument and one argument alone
nbArguments=len(sys.argv)
if nbArguments!=2:
    print syntaxe
    sys.exit(1)

#  the port must be digital
port=sys.argv[1]
modele=r"^\s*\d+\s*$"
if not re.match(modele,port):
    print "Le port %s n'est pas un nombre entier positif\n" % (port)
    sys.exit(2)

#    server launch - serves each client on a thread
host="localhost"
server = ThreadedTCPServer((host,int(port)), ThreadedTCPRequestHandler)

#  the server is launched in a thread
#  each customer will be served in an additional thread
server_thread = threading.Thread(target=server.serve_forever)
#  starts the server - infinite waiting loop for clients
server_thread.start()
#    follow-up
print "Serveur d'echo a l'ecoute sur le port % s" % (port)

Notes:

  • line 39: sys.argv represents the script's arguments. Here, they must be in the form: script_name port. There must therefore be two of them. sys.argv[0] will then be script_name and sys.argv[1] will be port;
  • line 53: the echo server is an instance of the ThreadedTcpServer class. The constructor of this class expects two parameters:
    • parameter 1: a two-element tuple (host,port) that specifies the machine and the server’s listening port;
    • parameter 2: the name of the class responsible for handling client requests.
  • line 57: a thread is created (but not yet started). This thread executes the [serve_forever] method of the TCP server. This method is a loop that listens for client connections. As soon as a client connection is detected, an instance of the ThreadedTCPRequestHandler class will be created. Its handle method is responsible for communicating with the client;
  • Line 59: The echo service thread is launched. From this point on, clients can connect to the service;
  • line 27: the echo server class. It derives from two classes: *SocketServer.ThreadingMixIn* and SocketServer.TCPServer. This makes it a multithreaded TCP server: the server runs in one thread, and each client is served in an additional thread;
  • Line 9: the class that handles client requests. It derives from the SocketServer.StreamRequestHandler class. It thus inherits two attributes:
    • rfile: which is the read stream for data sent by the client—can be treated as a text file;
    • wfile: which is the write stream used to send data to the client—can be treated as a text file.
  • line 11: the handle method processes client requests;
  • line 13: the thread that executes this handle method;
  • line 17: loop for processing client requests. The loop ends when the client sends an empty line;
  • line 19: reads the client request;
  • line 21: self.client_address[0] represents the client’s IP address. cur_thread.getName() is the name of the thread executing the handle method;
  • line 23: the response to the client has two components—the name of the thread serving the client and the command the client sent, converted to uppercase.
The client program (inet_06)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
#    -*- coding=utf-8 -*-
import re,sys,socket

#    ------------------------------------------------------ main
#    generic tcp client
#    call syntax: argv[0] host port
#    client connects to echo service (host,port)
#  the server returns the lines typed by the client

#    syntax
syntaxe="syntaxe : %s hote port" % (sys.argv[0])

# ------------------------------------- check the call
#  there must be two arguments
nbArguments=len(sys.argv)
if nbArguments!=3:
    print syntaxe
    sys.exit(1)

#  we recover the arguments
hote=sys.argv[1]
#  the port must be digital
port=sys.argv[2]
modele=r"^\s*\d+\s*$"
if not re.match(modele,port):
    print "Le port %s foit être un nombre entier positif" % (port)
    sys.exit(2)

try:
  #    client connection to server
  connexion=socket.create_connection((hote,int(port)))
except socket.error, erreur:
  print "Echec de la connexion au site (%s,%s) : %s" % (hote,port,erreur)
  sys.exit(3)

try:
    #    input loop
    ligne=raw_input("Commande (rien pour arreter): ").strip()
    while ligne!="":
        #  send the line to the server
        connexion.send("%s\n" % (ligne))
        #  we're waiting for the answer
        reponse=connexion.recv(1000)
        print "<-- %s" % (reponse)
        ligne=raw_input("Commande (rien pour arreter): ")
except socket.error, erreur:
    print "Echec de la connexion au site (%s,%s) : %s" % (hote,port,erreur)
    sys.exit(3)
finally:
    #  close the connection
    connexion.close()
Results

The server is launched in a command window:

cmd>%python% inet_08.py 100
Serveur d'echo a l'ecoute sur le port 100

A first client is launched in a second window:

1
2
3
4
5
6
7
cmd>%python% inet_06.py localhost 100
Commande (rien pour arreter): cmde 1 du client 1
[cmde 1 du client 1]
<-- Thread-2: CMDE 1 DU CLIENT 1
Commande (rien pour arreter): cmde 2 du client 1
<-- Thread-2: CMDE 2 DU CLIENT 1
Commande (rien pour arreter):

The client receives, in response to the command it sends to the server, that same command in uppercase. A second client is launched in a third window:

1
2
3
4
5
6
cmd>%python% inet_06.py localhost 100
Commande (rien pour arreter): cmde 1 du client 2
<-- Thread-3: CMDE 1 DU CLIENT 2
Commande (rien pour arreter): cmde 2 du client 2
<-- Thread-3: CMDE 2 DU CLIENT 2
Commande (rien pour arreter):

The server console then looks like this:

1
2
3
4
5
6
cmd>%python% inet_08.py 100
Serveur d'echo a l'ecoute sur le port 100
client 127.0.0.1 : cmde 1 du client 1 (Thread-2)
client 127.0.0.1 : cmde 2 du client 1 (Thread-2)
client 127.0.0.1 : cmde 1 du client 2 (Thread-3)
client 127.0.0.1 : cmde 2 du client 2 (Thread-3)

Clients are properly served in different threads. To stop a client, simply enter an empty command.

11.6. Generic TCP Server

We propose to write a Python script that

  • will act as a TCP server capable of serving one client at a time,
  • accepts text lines sent by the client,
  • accepts text lines from the keyboard and sends them back to the client.

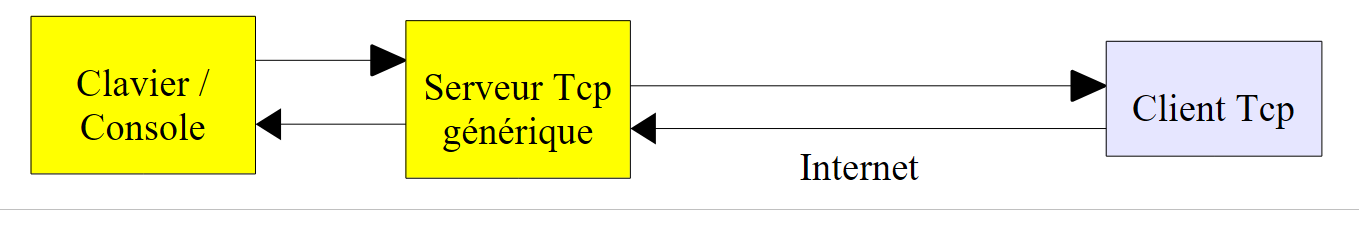

Thus, the user at the keyboard acts as the server:

  • they see the text lines sent by the client on their console;
  • he responds to the client by typing the reply on the keyboard.

It can thus adapt to any type of client. That is why we will call it a "generic TCP server." It is a practical tool for exploring TCP communication protocols. In the following example, the TCP client will be a web browser, which will allow us to explore the HTTP protocol used by web clients.

The program (inet_10)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#    -*- coding=utf-8 -*-

#    generic tcp server

#    loading header files
import re,sys,SocketServer,threading

#    generic tcp server
class MyTCPHandler(SocketServer.StreamRequestHandler):
    def handle(self):
        #  the customer is displayed
        print "client %s" % (self.client_address[0])
        #  create a thread for reading customer orders
        thread_lecture = threading.Thread(target=self.lecture)
        thread_lecture.start()
        #    stop on cmde 'bye
        #    cmde reading typed on keyboard
        cmde=raw_input("--> ")
        while cmde!="bye":
            #  send cmde to customer. self.wfile is the write flow to the customer
            self.wfile.write("%s\n" % (cmde))
            #    next cmde reading
            cmde=raw_input("--> ")

    def lecture(self):
        #  displays all lines sent by the client until the bye command is received
        ligne=""
        while ligne!="bye":
            #  the client's text lines are read using the readline method
            ligne = self.rfile.readline().strip()
            #    console monitoring
            print "<--- %s : %s" % (self.client_address[0], ligne)

#    ------------------------------------------------------ main
#    call syntax: argv[0] port
#  the server is launched on the port named

#    Data
syntaxe="syntaxe : %s port" % (sys.argv[0])

# ------------------------------------- check the call
#  there must be one argument and one argument alone
nbArguments=len(sys.argv)
if nbArguments!=2:
    print syntaxe
    sys.exit(1)

#  the port must be digital
port=sys.argv[1]
modele=r"^\s*\d+\s*$"
if not re.match(modele,port):
    print "Le port %s n'est pas un nombre entier positif\n" % (port)
    sys.exit(2)

#    server launch
host="localhost"
server = SocketServer.TCPServer((host, int(port)), MyTCPHandler)
print "Service tcp generique lance sur le port %s. Arret par Ctrl-C" % (port)
server.serve_forever()

Notes:

  • Line 57: The TCP server will be an instance of the SocketServer.TCPServer class. Its constructor accepts two parameters:
    • the first parameter is a two-element tuple (host, port) where host is the machine on which the service runs (usually localhost) and port is the port on which the service waits (listens) for client requests;
    • the second parameter specifies the client’s service class. When a client connects, an instance of the service class is created, and its handle method must manage the connection with the client.

The Tcp SocketServer.TCPServer is not multithreaded. It serves one client at a time;

  • line 59: the Tcp server’s serve\_forever method is executed. This is an infinite loop that waits for clients;
  • line 9: the TCP server here is a class derived from the SocketServer.StreamRequestHandler class. This allows the data streams exchanged with the client to be treated as text files. We have already encountered this class. We have the following methods:
    • *readline* to read a line of text from the client;
    • write to send text lines back to the client.
  • Line 12: self.client_address[0] is the client’s IP address;
  • line 14: the TCP server will communicate with the client using two threads
    • a thread for reading lines from the client;
    • a thread for writing lines to the client.
  • line 14: the thread for reading lines from the client is created. Its target parameter specifies the method executed by the thread. This is the one defined on line 25;
  • Line 25: The read thread is launched;
  • Lines 25–32: The method executed by the read thread;
  • line 28: the read thread reads all lines of text sent by the client until the line "bye" is received;
  • line 18: we are now in the thread that writes to the client. The idea is to send the client all the lines of text typed by the user on the keyboard.
The results

The server

dos>%python% inet_10.py 100
Service tcp generique lance sur le port 100. Arret par Ctrl-C

The client browser



The request received by the server

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
dos>%python% inet_10.py 100
Service tcp generique lance sur le port 100. Arret par Ctrl-C
client 127.0.0.1
<--- 127.0.0.1 : GET / HTTP/1.1
<--> --- 127.0.0.1 : Host: localhost:100
<--- 127.0.0.1 : User-Agent: Mozilla/5.0 (Windows; U; Windows NT 5.1; fr; rv:1.9.2.10) Gecko/20100914 Firefox/3.6.10 GTB7.1 ( .NET CLR 3.5.30729)
<--- 127.0.0.1 : Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
<--- 127.0.0.1 : Accept-Language: fr,fr-fr;q=0.8,en;q=0.5,en-us;q=0.3
<--- 127.0.0.1 : Accept-Encoding: gzip,deflate
<--- 127.0.0.1 : Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.7
<--- 127.0.0.1 : Keep-Alive: 115
<--- 127.0.0.1 : Connection: keep-alive
<--- 127.0.0.1 : Cache-Control: max-age=0
<--- 127.0.0.1 :

The server's response typed by the user on the keyboard (without the --> sign)

1
2
3
4
5
6
7
HTTP/1.1 200 OK
--> Server: serveur tcp generique
--> Connection: close
--> Content-Type: text/html
-->
--> <html><body><h2>Serveur tcp generique</h2></body></html>
--> bye
  • Lines 1-5: HTTP response sent to the client;
  • line 6: HTML page sent to the client;
  • Line 7: End of the dialogue with the client. The client service will terminate and the connection will be closed, which will abruptly interrupt the thread reading the text lines sent by the client;
  • Lines 1–5 of the HTTP response sent to the client have the following meanings:
  • Line 1: The resource requested by the client was found;
  • Line 2: Server identification;
  • Line 3: The server will close the connection after sending the resource;
  • Line 4: Type of resource sent by the server: an HTML document;
  • line 5: an empty line.

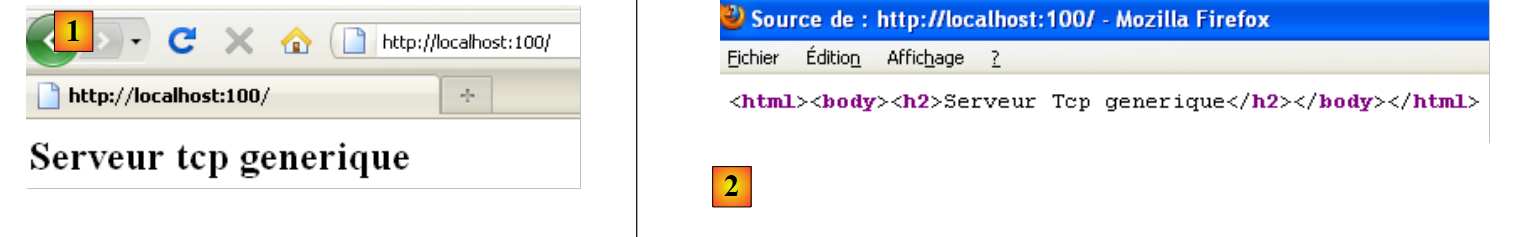

The page displayed by the browser [1]:

If we view the source code received by the browser [2], we can see that the HTML code received by the web browser is indeed the one we sent to it.

https://stahe.github.io
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
