10. Exercise [Tax Calculation] with MySQL

10.1. Transferring a text file to a MySQL table

The following script will transfer data from the following text file:

12620:13190:15640:24740:31810:39970:48360:55790:92970:127860:151250:172040:195000:0
0:0.05:0.1:0.15:0.2:0.25:0.3:0.35:0.4:0.45:0.5:0.55:0.6:0.65
0:631:1290.5:272.5:3309.5:4900:6898.5:9316.5:12106:16754.5:23147.5:30710:39312:49062

in the [impots] table of the following MySQL database [dbimpots]:



The connection to the [dbimpots] database will be made using the credentials (root,"").

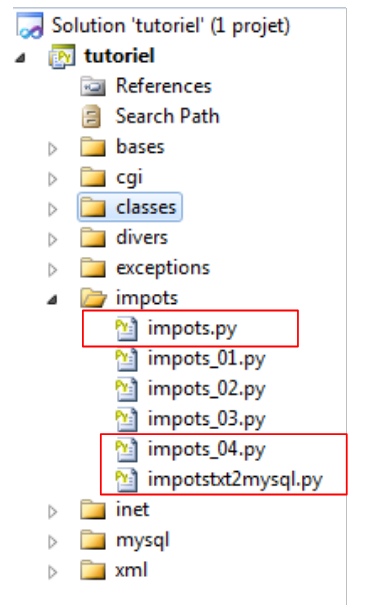

Program (impotstxt2mysql)

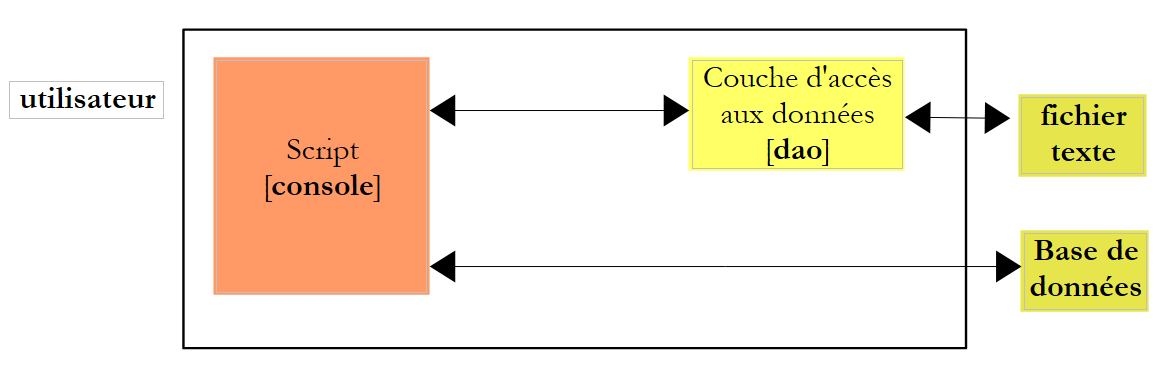

We will use the following architecture:

The [console] script we are going to write will use the [ImpotsFile] class to access the data in the text file. Write access to the database will be performed using the methods discussed previously.

The script code is as follows:


# -*- coding=utf-8 -*-

# Import the Impots class module
from impots import *
import re

# --------------------------------------------------------------------------
def copyToMysql(limits, coeffR, coeffN, HOST, USER, PWD, BASE, TABLE):
    # Copies the three numerical arrays limits, coeffR, and coeffN
    # into the TABLE table in the BASE MySQL database
    # the MySQL database is on the HOTE machine
    # the user is identified by USER and PWD

    # we put the SQL queries in a list
    # Delete the table
    queries=["drop table %s" % (TABLE)]
    # Create the table
    query = "create table %s (limits decimal(10,2), coeffR decimal(6,2), coeffN decimal(10,2))" % (TABLE)
    queries.append(query)
    # populating
    for i in range(len(limits)):
        # Insert query
        queries.append("insert into %s (limits,coeffR,coeffN) values (%s,%s,%s)" % (TABLE,limits[i],coeffR[i],coeffN[i]))
    # execute the SQL commands
    return executeCommands(HOST, USER, PWD, DATABASE, queries, False, False)


def executeCommands(HOST, ID, PWD, DATABASE, queries, tracking=False, stop=True):
    # use the connection (HOST, ID, PWD, DATABASE)
    # execute the SQL commands contained in the queries list on this connection
    # if tracking=True, then each execution of an SQL command is followed by a message indicating whether it succeeded or failed
    # if stop=False, the function stops at the first error encountered; otherwise, it executes all SQL commands
    # the function returns a list (number of errors, error1, error2, ...)

    # connection
    try:
        connection = MySQLdb.connect(host=HOST, user=ID, passwd=PWD, db=DATABASE)
    except MySQLdb.OperationalError as error:
        return [1, "Error connecting to MySQL as (%s,%s,%s,%s): %s" % (HOST, ID, PASSWORD, DATABASE, error)]

    # Request a cursor
    cursor = connection.cursor()
    # execute the SQL queries contained in the queries list
    # execute them - initially no errors
    errors=[0]
    for i in range(len(queries)):
        # store the query in a local variable
        query = queries[i]
        # Is the query empty?
        if re.match(r"^\s*$", query):
            continue
        # execute query i
        error=""
        try:
            cursor.execute(query)
        except Exception, error:
            pass
        # Was there an error?
        if error:
            # one more error
            errors[0] += 1
            # error message
            msg = "%s: Error (%s)" % (request[0:len(request)-1], error)
            errors.append(msg)
            # Log to screen or not?
            if tracking:
                print msg
            # Should we stop?
            if stop:
                return errors
        else:
            if continued:
                # Display the query without the line break
                print "%s: Execution successful" % (cutNewLineChar(query))
                # information about the result of the executed query
                displayInfo(cursor)
    # Close connection
    try:
        connection.commit()
        connection.close()
    except MySQLdb.OperationalError, error:
        # another error
        errors[0] += 1
        # error message
        msg = "%s: Error (%s)" % (query, error)
        errors.append(msg)

    # return
    return errors


# ------------------------------------------------ main
# user identity
USER="root"
PWD=""
# the DBMS host machine
HOST="localhost"
# database name
DATABASE="dbimpots"
# data table name
TABLE="taxes"
# data file
IMPOTS="impots.txt"

# instantiate [dao] layer
try:
    dao = ImpotsFile(IMPOTS)
except (IOError, ImpotsError) as info:
    print("An error occurred: {0}".format(infos))
    sys.exit()

# Transfer the retrieved data to a MySQL table
errors = copyToMysql(dao.limits, dao.coeffR, dao.coeffN, HOST, USER, PWD, BASE, TABLE)
if errors[0]:
    for i in range(1, len(errors)):
        print errors[i]
else:
    print "Transfer completed"
# end
sys.exit()

Notes:

  • lines 106–110: we instantiate the [ImpotsFile] class presented in section 8.1;
  • line 113: the arrays limites, coeffR, and coeffN are transferred to a MySQL database;
  • line 8: the copyToMysql function performs this transfer. The copyToMysql function creates an array of queries to be executed and has them executed by the executerCommandes function, line 25;
  • lines 28–89: the executerCommandes function is the one already presented earlier in section 9.7, with one difference: instead of being in a text file, the queries are in a list;
Results

The text file impots.txt:

12620:13190:15640:24740:31810:39970:48360:55790:92970:127860:151250:172040:195000:0
0:0.05:0.1:0.15:0.2:0.25:0.3:0.35:0.4:0.45:0.5:0.55:0.6:0.65
0:631:1290.5:272.5:3309.5:4900:6898.5:9316.5:12106:16754.5:23147.5:30710:39312:49062

Screen results:

Transfer completed

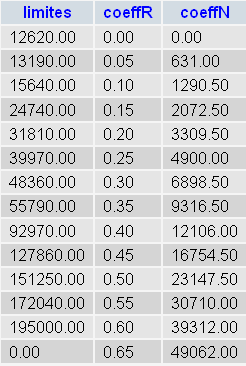

Verification with phpMyAdmin:



10.2. The tax calculation program

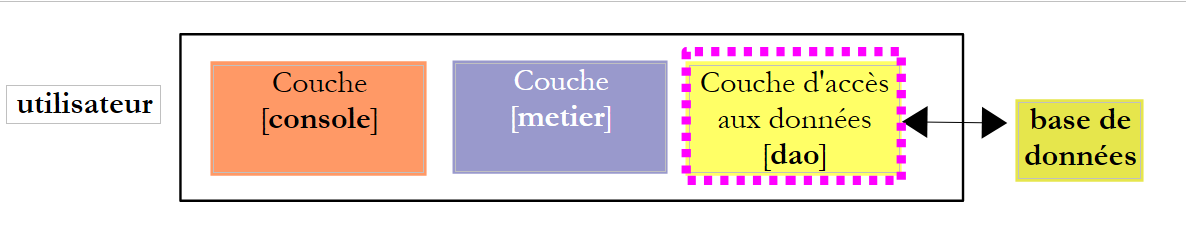

Now that the data needed to calculate the tax is in a database, we can write the tax calculation script. We are again using a three-tier architecture:

The new [dao] layer will be connected to the MySQL DBMS and will be implemented by the [ImpotsMySQL] class. It will provide the [business] layer with the same interface as before, consisting of the single getData method that returns the tuple (limits, coeffR, coeffN). Thus, the [business] layer will remain unchanged from the previous version.

10.3. The [ImpotsMySQL] class

The [dao] layer is now implemented by the following [ImpotsMySQL] class (impots.py file):


class ImpotsMySQL:

    # constructor
    def __init__(self, HOST, USER, PWD, BASE, TABLE):
        # initializes the limits, coeffR, and coeffN attributes
        # The data required to calculate the tax has been placed in the MySQL table TABLE
        # belonging to the BASE database. The table has the following structure
        # limits decimal(10,2), coeffR decimal(10,2), coeffN decimal(10,2)
        # the connection to the MySQL database on the HOTE machine is made using the credentials (USER,PWD)
        # throws an exception if an error occurs

        # Connect to the MySQL database
        connection = MySQLdb.connect(host=HOTE, user=USER, passwd=PWD, db=BASE)
        # request a cursor
        cursor = connection.cursor()

        # read the TABLE table in blocks
        query="select limits,coeffR,coeffN from %s" % (TABLE)
        # execute the query [query] on the database [database] of the connection [connection]
        cursor.execute(query)
        # process the query result
        row = cursor.fetchone()
        self.limits = []
        self.coeffR = []
        self.coeffN = []
        while(row):
            # current row
            self.limits.append(row[0])
            self.coeffR.append(row[1])
            self.coeffN.append(row[2])
            # next row
            row = cursor.fetchone()
        # disconnect
        connection.close()

    def getData(self):
        return (self.limits, self.coeffR, self.coeffN)

Notes:

  • line 18: the SELECT SQL query that retrieves data from the MySQL database. The result rows from the SELECT are then processed one by one using [cursor.fetchone] (lines 22 and 32) to create the limits, coeffR, and coeffN arrays (lines 28–30);
  • the getData method of the [dao] layer interface.

10.4. The console script

The console script code (impots_04) is as follows:


# -*- coding=utf-8 -*-

# Import the Impots* class module
from impots import *

# ------------------------------------------------ main
# user identity
USER="root"
PWD=""
# the DBMS host machine
HOST="localhost"
# database name
DATABASE="dbimpots"
# data table name
TABLE="taxes"
# input file
DATA="data.txt"
# output file
RESULTS="results.txt"

# instantiate [business] layer
try:
    business=TaxBusiness(TaxMySQL(HOST,USER,PWD,DATABASE,TABLE))
except (IOError, TaxError) as info:
    print("An error occurred: {0}".format(infos))
    sys.exit()

# The data needed to calculate the tax has been placed in the IMPOTS file
# with one line per table in the form
# val1:val2:val3,...

# reading the data
try:
    data = open(DATA, "r")
except:
    print "Unable to open the data file [DATA] for reading"
    sys.exit()

# Open the results file
try:
    results = open(RESULTS, "w")
except:
    print "Unable to create the results file [RESULTS]"
    sys.exit()

# utilities
u = Utilities()

# process the current line of the data file
line = data.readline()
while(line != ''):
    # remove any end-of-line characters
    line = u.cutNewLineChar(line)
    # retrieve the 3 fields married:children:salary that make up the line
    (spouse, children, salary) = line.split(",")
    children = int(children)
    salary = int(salary)
    # Calculate the tax
    tax = profession.calculate(spouse, children, salary)
    # print the result
    results.write("{0}:{1}:{2}:{3}\n".format(spouse, children, salary, tax))
    # read a new line
    line = data.readline()
# close the files
data.close()
results.close()

Notes:

  • Line 23: instantiation of the [dao] and [business] layers;
  • The rest of the code is familiar.
Results

The same as with previous versions of the exercise.

https://tahe.developpez.com
This tutorial written by Serge Tahé is made available to the public under the terms of the Creative Commons Attribution – Non-Commercial – ShareAlike 3.0 Unported.
