6. Database Management with the JDBC API
6.1. Overview
There are many databases on the market. To standardize database access under MS Windows, Microsoft developed an interface called ODBC (Open DataBase Connectivity). This layer hides the specific features of each database behind a standard interface. There are many ODBC drivers available under MS Windows that facilitate database access. Here, for example, is a list of ODBC drivers installed on a Win95 machine:
An application relying on these drivers can use any of the above databases without modification.

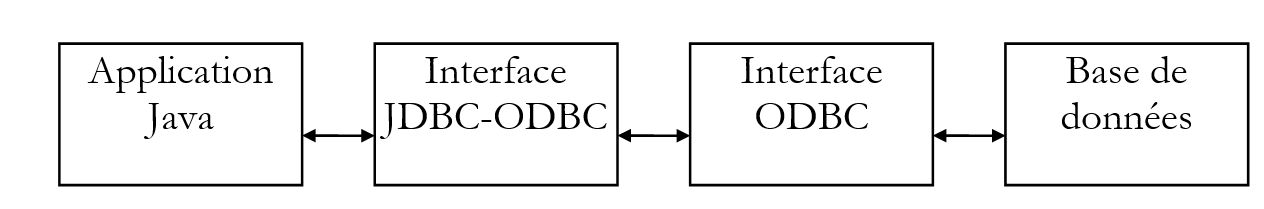

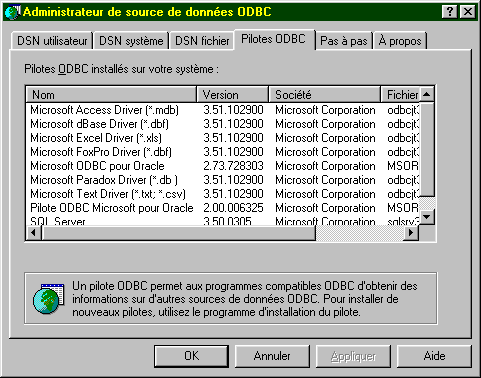

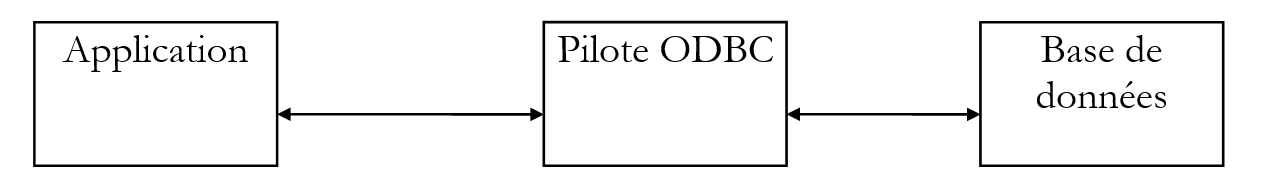

To enable Java applications to also take advantage of the ODBC interface, Sun created the JDBC (Java Database Connectivity) interface, which acts as an intermediary between the Java application and the ODBC interface:
6.2. Key steps in database operations
6.2.1. Introduction
In a Java application using a database with the JDBC interface, the following steps are generally involved:
- Connecting to the database
- Sending SQL queries to the database
- Receiving and processing the results of these queries
- Closing the connection
Steps 2 and 3 are performed repeatedly, with the connection being closed only at the end of database operations. This is a relatively standard pattern that you may be familiar with if you have used a database interactively. We will detail each of these steps using an example. We will consider an Access database named ARTICLES with the following structure:
name | type |
code | 4-character item code |
name | its name (string) |
price | its price (actual) |
current_stock | current stock (integer) |
min_stock | the minimum stock (integer) below which the item must be restocked |

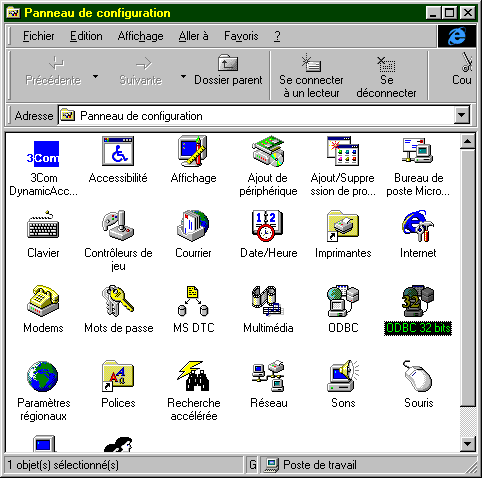

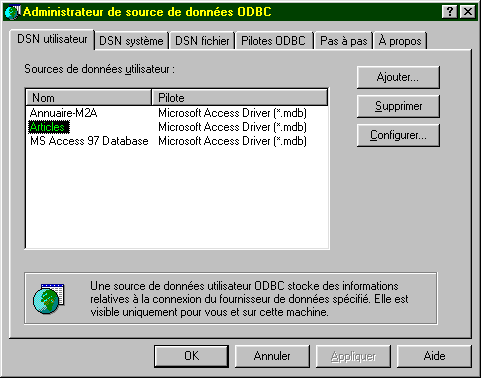

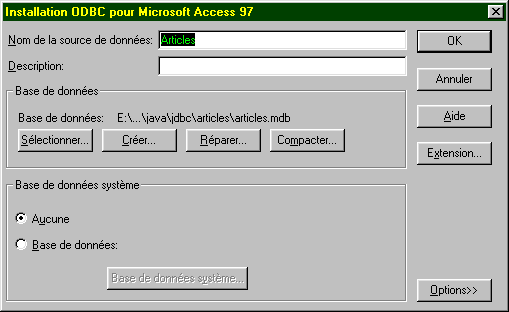

This ACCESS database is defined as a "user" data source in the ODBC Database Manager:
Its properties are specified using the Configure button as follows:
This configuration essentially involves associating the ARTICLES database with the Access file articles.mdb corresponding to this database. Once this is done, the ARTICLES database is accessible to applications using the ODBC interface.
6.2.2. The connection step
To use a database, a Java application must first establish a connection. This is done using the following class method:
where
DriverManager: a Java class containing the list of drivers available to the application
Connection: a Java class that establishes a link between the application and the database, through which the application will send SQL queries to the database and receive results
URL: name identifying the database. This name is analogous to Internet URLs. This is why it is part of the URL class. However, the Internet is not involved here at all. The URL has the following form:
**jdbc:driver\_name:source\_name;param=val1;param2=val2**
In our examples, where we will use only ODBC drivers, the driver is called **odbc**. The third part of the URL consists of the source name and any parameters. In our examples, these will be ODBC sources known to the system. Thus, the URL for the *Articles* data source defined earlier will be
**jdbc:odbc:Articles**
id: User ID (login)
mdp: User password
In summary, the program connects to a database:
- identified by a name (URL)
- under a user’s credentials (id, password)
If these three parameters are correct, and if the driver capable of establishing the connection between the Java application and the specified database exists, then a connection is established between the Java application and the database. This connection is represented in the program by the Connection object returned by the DriverManager class. Since this connection may fail for various reasons, it may throw an exception. We will therefore write:
Connection connexion=null;
URL base=...;
String id=...;
String mdp=...;
try{
connexion=DriverManager.getConnection(base,id,mdp);
} catch (Exception e){
// traiter l’exception
}
To connect to a database, you must have the appropriate driver. In our examples, this will be the ODBC driver capable of handling the requested database. While this driver must be available in the list of ODBC drivers on the machine, you must also have the Java class that will interface with it. To do this, the application will request the necessary class as follows:
The Class class is in no way related to the JDBC interface. It is a general class management class. Its static method forName allows a class to be loaded dynamically, thereby making its static attributes and methods available. The class that interfaces with the MS Windows ODBC drivers is called “sun.jdbc.odbc.JdbcOdbcDriver”. We would therefore write (the method may throw an exception):
try{
Class.forName(« sun.jdbc.odbc.JdbcOdbcDriver ») ;
} catch (Exception e){
// handle exception (non-existent class)
}
The classes required for the JDBC interface are located in the java.sql package. Therefore, at the beginning of the program, we write:
Here is a program that allows you to connect to a database:
import java.sql.*;
import java.io.*;
// call: pg PILOTE URL UID MDP
// connects to the URL database using class JDBC PILOTE
// user UID is identified by password MDP
public class connexion1{
static String syntaxe="pg PILOTE URL UID MDP";
public static void main(String arg[]){
// check number of arguments
if(arg.length<2 || arg.length>4)
erreur(syntaxe,1);
// connection to base
Connection connect=null;
String uid="";
String mdp="";
if(arg.length>=3) uid=arg[2];
if(arg.length==4) mdp=arg[3];
try{
Class.forName(arg[0]);
connect=DriverManager.getConnection(arg[1],uid,mdp);
System.out.println("Connexion avec la base " + arg[1] + " établie");
} catch (Exception e){
erreur("Erreur " + e,2);
}
// closing the base
try{
connect.close();
System.out.println("Base " + arg[1] + " fermée");
} catch (Exception e){}
}// hand
public static void erreur(String msg, int exitCode){
System.err.println(msg);
System.exit(exitCode);
}
}// class
Here is an example of execution:
E:\data\java\jdbc\0>java connexion1 sun.jdbc.odbc.JdbcOdbcDriver jdbc:odbc:articles
Connexion avec la base jdbc:odbc:articles établie
Base jdbc:odbc:articles fermée
6.2.3. Sending queries to the database
The JDBC interface allows SQL queries to be sent to the database connected to the Java application, as well as the processing of the results of these queries. SQL (Structured Query Language) is a standardized query language for relational databases. There are several types of queries:
- database query statements (SELECT)
- database update queries (INSERT, DELETE, UPDATE)
- queries for creating/deleting tables (CREATE, DELETE)
We assume here that the reader is familiar with the basics of the SQL language.
6.2.3.1. The Statement class
To send any SQL query to a database, the Java application must have an object of type Statement. This object will store, among other things, the text of the query. This object is necessarily linked to the current connection. It is therefore a method of the established connection that allows you to create the Statement objects needed to issue SQL queries. If connection is the object representing the connection to the database, a Statement object is obtained as follows:
Once a Statement object has been obtained, SQL queries can be executed. This is done differently depending on whether the query is a query to retrieve data or to update the database.
6.2.3.2. Executing a query to retrieve data from the database
A query is typically of the following type:
Only the keywords in the first line are required; the others are optional. There are other keywords not shown here.
- A join is performed with all tables listed after the `FROM` keyword
- Only the columns following the `select` keyword are retained
- Only the rows that satisfy the condition of the `where` keyword are retained
- The resulting rows, sorted according to the expression in the `ORDER BY` keyword, form the result of the query.
The result of a SELECT is a table. If we consider the previous ARTICLES table and want the names of the items whose current stock is below the minimum threshold, we would write: SELECT name FROM articles WHERE current\_stock < min\_stock**. If we want them sorted alphabetically by name, we would write: select name from articles where current_stock < minimum_stock order by name
To execute this type of query, the Statement class provides the executeQuery method:
where query is the text of the SELECT query to be executed.
Thus, if
- connection is the object representing the connection to the database
- Statement s = connection.createStatement() creates the Statement object needed to execute SQL queries
- ResultSet rs = s.executeQuery("select name from articles where current_stock < minimum_stock") executes a SELECT query and assigns the query's result rows to an object of type ResultSet.
6.2.3.3. The ResultSet class: result of a SELECT query
A ResultSet object represents a table, i.e., a set of rows and columns. At any given time, only one row of the table is accessible, known as the current row. Upon initial creation of the ResultSet, the current row is row #1 if the ResultSet is not empty. To move to the next row, the ResultSet class provides the next method:
This method attempts to move to the next row in the ResultSet and returns true if successful, false otherwise. If successful, the next row becomes the new current row. The previous row is lost and cannot be retrieved. The ResultSet table has columns col1, col2, ... To access the various fields of the current row, the following methods are available:
to retrieve the "coli" field from the current row. Type refers to the type of the coli field. The getString method is often used on all fields, which allows you to retrieve the field’s content as a string. You can then convert it if necessary. If you do not know the column name, you can use the methods
where i is the index of the desired column (i>=1).
6.2.3.4. A first example
Here is a program that displays the contents of the ARTICLES database created earlier:
import java.sql.*;
import java.io.*;
// displays the contents of a ARTICLES system database
public class articles1{
static final String DB="ARTICLES"; // database to exploit
public static void main(String arg[]){
Connection connect=null; // connection to base
Statement S=null; // purpose of queries
ResultSet RS=null; // query result table
try{
// base connection
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
connect=DriverManager.getConnection("jdbc:odbc:"+DB,"","");
System.out.println("Connexion avec la base " + DB + " établie");
// creation of a Statement object
S=connect.createStatement();
// execute a select query
RS=S.executeQuery("select * from " + DB);
// using the results table
while(RS.next()){ // as long as there's a line to operate
// it is displayed on screen
System.out.println(RS.getString("code")+","+
RS.getString("nom")+","+
RS.getString("prix")+","+
RS.getString("stock_actu")+","+
RS.getString("stock_mini"));
}// next line
} catch (Exception e){
erreur("Erreur " + e,2);
}
// closing the base
try{
connect.close();
System.out.println("Base " + DB + " fermée");
} catch (Exception e){}
}// hand
public static void erreur(String msg, int exitCode){
System.err.println(msg);
System.exit(exitCode);
}
}// class
The results are as follows:
Connexion avec la base ARTICLES établie
a300,vélo,1202,30,2
d600,arc,5000,10,2
d800,canoé,1502,12,6
x123,fusil,3000,10,2
s345,skis nautiques,1800,3,2
f450,essai3,3,3,3
f807,cachalot,200000,0,0
z400,léopard,500000,1,1
g457,panthère,800000,1,1
Base ARTICLES fermée
6.2.3.5. The ResultSetMetadata class
In the previous example, we know the names of the ResultSet columns. If we don’t know them, we cannot use the getType(column_name) method. Instead, we use getType(column_number). However, to obtain all the columns, we would need to know how many columns the ResultSet has. The ResultSet class does not provide this information. It is the ResultSetMetaData class that provides it. More generally, this class provides information about the table’s structure, i.e., the nature of its columns.
We access information about the structure of a ResultSet by first instantiating a ResultSetMetaData object. If RS is a ResultSet, the associated ResultSetMetaData is obtained by:
There are two useful methods in the ResultSetMetaData class:
- int getColumnCount(), which returns the number of columns in the ResultSet
- String getColumnLabel(int i), which returns the name of column i in the ResultSet (i >= 1)
6.2.3.6. A second example
The previous program displayed the contents of the ARTICLES database. Here, we write a program that executes any SQL SELECT query the user types on the keyboard against the ARTICLES database.
import java.sql.*;
import java.io.*;
// displays the contents of a ARTICLES system database
public class sql1{
static final String DB="ARTICLES"; // database to exploit
public static void main(String arg[]){
Connection connect=null; // connection to base
Statement S=null; // purpose of queries
ResultSet RS=null; // query result table
String select; // query text SQL select
int nbColonnes; // no. of columns in ResultSet
// creation of a keyboard input stream
BufferedReader in=null;
try{
in=new BufferedReader(new InputStreamReader(System.in));
} catch(Exception e){
erreur("erreur lors de l'ouverture du flux clavier ("+e+")",3);
}
try{
// base connection
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
connect=DriverManager.getConnection("jdbc:odbc:"+DB,"","");
System.out.println("Connexion avec la base " + DB + " établie");
// creation of a Statement object
S=connect.createStatement();
// execution loop for SQL requests typed on keyboard
System.out.print("Requête : ");
select=in.readLine();
while(!select.equals("fin")){
// query execution
RS=S.executeQuery(select);
// number of columns
nbColonnes=RS.getMetaData().getColumnCount();
// using the results table
System.out.println("Résultats obtenus\n\n");
while(RS.next()){ // as long as there's a line to operate
// it is displayed on screen
for(int i=1;i<nbColonnes;i++)
System.out.print(RS.getString(i)+",");
System.out.println(RS.getString(nbColonnes));
}// next line
// following request
System.out.print("Requête : ");
select=in.readLine();
}// while
} catch (Exception e){
erreur("Erreur " + e,2);
}
// closing the base and input stream
try{
connect.close();
System.out.println("Base " + DB + " fermée");
in.close();
} catch (Exception e){}
}// hand
public static void erreur(String msg, int exitCode){
System.err.println(msg);
System.exit(exitCode);
}
}// class
Here are some of the results obtained:
Connexion avec la base ARTICLES établie
Requête : select * from articles order by prix desc
Résultats obtenus
g457,panthère,800000,1,1
z400,léopard,500000,1,1
f807,cachalot,200000,0,0
d600,arc,5000,10,2
x123,fusil,3000,10,2
s345,skis nautiques,1800,3,2
d800,canoé,1502,12,6
a300,vélo,1202,30,2
f450,essai3,3,3,3
Requête : select nom, prix from articles where prix >10000 order by prix desc
Résultats obtenus
panthère,800000
léopard,500000
cachalot,200000
6.2.3.7. Execute a database update query
A Statement object is used to store SQL queries. The method this object uses to execute SQL update queries (INSERT, UPDATE, DELETE) is no longer the executeQuery method discussed earlier, but the executeUpdate method:
The difference lies in the result: while executeQuery returned the result set (ResultSet), executeUpdate returns the number of rows affected by the update operation.
6.2.3.8. A third example
We’ll revisit the previous program and modify it slightly: the queries typed on the keyboard are now update queries for the ARTICLES database.
import java.sql.*;
import java.io.*;
// displays the contents of a ARTICLES system database
public class sql2{
static final String DB="ARTICLES"; // database to exploit
public static void main(String arg[]){
Connection connect=null; // connection to base
Statement S=null; // purpose of queries
ResultSet RS=null; // query result table
String sqlUpdate; // text of SQL update request
int nbLignes; // no. of lines affected by an update
// creation of a keyboard input stream
BufferedReader in=null;
try{
in=new BufferedReader(new InputStreamReader(System.in));
} catch(Exception e){
erreur("erreur lors de l'ouverture du flux clavier ("+e+")",3);
}
try{
// base connection
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
connect=DriverManager.getConnection("jdbc:odbc:"+DB,"","");
System.out.println("Connexion avec la base " + DB + " établie");
// creation of a Statement object
S=connect.createStatement();
// execution loop for SQL requests typed on keyboard
System.out.print("Requête : ");
sqlUpdate=in.readLine();
while(!sqlUpdate.equals("fin")){
// query execution
nbLignes=S.executeUpdate(sqlUpdate);
// follow-up
System.out.println(nbLignes + " ligne(s) ont été mises à jour");
// following request
System.out.print("Requête : ");
sqlUpdate=in.readLine();
}// while
} catch (Exception e){
erreur("Erreur " + e,2);
}
// closing the base and input stream
try{
// free up resources linked to the base
RS.close();
S.close();
connect.close();
System.out.println("Base " + DB + " fermée");
// keyboard flow closure
in.close();
} catch (Exception e){}
}// hand
public static void erreur(String msg, int exitCode){
System.err.println(msg);
System.exit(exitCode);
}
}// class
Here are the results of various runs of the sql1 and sql2 programs:
List of rows in the ARTICLES database:
E:\data\java\jdbc\0>java sql1
Connexion avec la base ARTICLES établie
Requête : select nom,stock_actu from articles
Résultats obtenus
vélo,30
arc,10
canoé,12
fusil,10
skis nautiques,3
essai3,3
cachalot,0
léopard,1
panthère,1
We modify certain lines:
E:\data\java\jdbc\0>java sql2
Connexion avec la base ARTICLES établie
Requête : update articles set stock_actu=stock_actu+1 where stock_actu>10
2 ligne(s) ont été mises à jour
Verification:
E:\data\java\jdbc\0>java sql1
Connexion avec la base ARTICLES établie
Requête : select nom,stock_actu from articles
Résultats obtenus
vélo,31
arc,10
canoé,13
fusil,10
skis nautiques,3
essai3,3
cachalot,0
léopard,1
panthère,1
Add a line:
E:\data\java\jdbc\0>java sql2
Connexion avec la base ARTICLES établie
Requête : insert into articles (code,nom,prix,stock_actu,stock_mini) values ('x400','nouveau',200,20,10)
1 ligne(s) ont été mises à jour
Verification:
E:\data\java\jdbc\0>java sql1
Connexion avec la base ARTICLES établie
Requ_te : select nom,stock_actu from articles
Résultats obtenus
vélo,31
arc,10
canoé,13
fusil,10
skis nautiques,3
essai3,3
cachalot,0
léopard,1
panthère,1
nouveau,20
Deleting a row:
E:\data\java\jdbc\0>java sql2
Connexion avec la base ARTICLES établie
Requête : delete from articles where code='x400'
1 ligne(s) ont été mises à jour
Requête : fin
Verification:
E:\data\java\jdbc\0>java sql1
Connexion avec la base ARTICLES établie
Requête : select nom,stock_actu from articles
Résultats obtenus
vélo,31
arc,10
cano_,13
fusil,10
skis nautiques,3
essai3,3
cachalot,0
léopard,1
panthère,1
6.2.3.9. Execute any SQL query
The Statement object required for executing SQL queries has an execute method capable of executing any type of SQL query:
The returned value is the Boolean true if the query returned a ResultSet* (executeQuery*), and false if it returned a number (executeUpdate*). The resulting ResultSet can be retrieved using the getResultSet method, and the number of updated rows using the getUpdateCount* method. Thus, we would write:
Statement S=...;
ResultSet RS=...;
int nbLignes;
String requête=...;
// exécution d’une requête SQL
if (S.execute(requête)){
// on a un resultset
RS=S.getResultSet();
// exploitation du ResultSet
...
} else {
// c’était une requête de mise à jour
nbLignes=S.getUpdateCount();
...
}
6.2.3.10. Fourth example
We take the concept from programs sql1 and sql2 and apply it to a program sql3 that can now execute any SQL query typed on the keyboard. To make the program more general, the characteristics of the database to be used are passed as parameters to the program.
import java.sql.*;
import java.io.*;
// call: pg PILOTE URL UID MDP
// connects to the URL database using class JDBC PILOTE
// user UID is identified by password MDP
public class sql3{
static String syntaxe="pg PILOTE URL UID MDP";
public static void main(String arg[]){
// check number of arguments
if(arg.length<2 || arg.length>4)
erreur(syntaxe,1);
// init connection parameters
Connection connect=null;
String uid="";
String mdp="";
if(arg.length>=3) uid=arg[2];
if(arg.length==4) mdp=arg[3];
// other data
Statement S=null; // purpose of queries
ResultSet RS=null; // result table of a query request
String sqlText; // text of query SQL to be executed
int nbLignes; // no. of lines affected by an update
int nbColonnes; // nb of columns in a ResultSet
// creation of a keyboard input stream
BufferedReader in=null;
try{
in=new BufferedReader(new InputStreamReader(System.in));
} catch(Exception e){
erreur("erreur lors de l'ouverture du flux clavier ("+e+")",3);
}
try{
// base connection
Class.forName(arg[0]);
connect=DriverManager.getConnection(arg[1],uid,mdp);
System.out.println("Connexion avec la base " + arg[1] + " établie");
// creation of a Statement object
S=connect.createStatement();
// execution loop for SQL requests typed on keyboard
System.out.print("Requête : ");
sqlText=in.readLine();
while(!sqlText.equals("fin")){
// query execution
try{
if(S.execute(sqlText)){
// we have obtained a ResultSet - we exploit it
RS=S.getResultSet();
// number of columns
nbColonnes=RS.getMetaData().getColumnCount();
// using the results table
System.out.println("\nRésultats obtenus\n-----------------\n");
while(RS.next()){ // as long as there's a line to operate
// it is displayed on screen
for(int i=1;i<nbColonnes;i++)
System.out.print(RS.getString(i)+",");
System.out.println(RS.getString(nbColonnes));
}// next line of ResultSet
} else {
// it was an update request
nbLignes=S.getUpdateCount();
// follow-up
System.out.println(nbLignes + " ligne(s) ont été mises à jour");
}//if
} catch (Exception e){
System.out.println("Erreur " +e);
}
// following request
System.out.print("\nNouvelle Requête : ");
sqlText=in.readLine();
}// while
} catch (Exception e){
erreur("Erreur " + e,2);
}
// closing the base and input stream
try{
// free up resources linked to the base
RS.close();
S.close();
connect.close();
System.out.println("Base " + arg[1] + " fermée");
// keyboard flow closure
in.close();
} catch (Exception e){}
}// hand
public static void erreur(String msg, int exitCode){
System.err.println(msg);
System.exit(exitCode);
}
}// class
We create the following query file:
select * from articles
update articles set stock_mini=stock_mini+5 where stock_mini<5
select nom,stock_mini from articles
insert into articles (code,nom,prix,stock_actu,stock_mini) values ('x400','nouveau',100,20,10)
select * from articles
delete from articles where code='x400'
select * from articles
fin
The program is run as follows:
The program reads its input from the queries file and writes its output to the results file. The results obtained are as follows:
Connexion avec la base jdbc:odbc:articles établie
Requête : (requete 1 du fichier des requetes : select * from articles)
Résultats obtenus
-----------------
a300,vélo,1202,31,3
d600,arc,5000,10,3
d800,canoé,1502,13,7
x123,fusil,3000,10,3
s345,skis nautiques,1800,3,3
f450,essai3,3,3,4
f807,cachalot,200000,0,1
z400,léopard,500000,1,2
g457,panthère,800000,1,2
Nouvelle Requête : (requete 2 du fichier des requetes : update articles set stock_mini=stock_mini+5 where stock_mini<5)
8 ligne(s) ont été mises à jour
Nouvelle Requête : (requete 3 du fichier des requetes : select nom,stock_mini from articles)
Résultats obtenus
-----------------
vélo,8
arc,8
canoé,7
fusil,8
skis nautiques,8
essai3,9
cachalot,6
léopard,7
panthère,7
Nouvelle Requête : (requete 4 du fichier des requetes : insert into articles (code,nom,prix,stock_actu,stock_mini) values ('x400','nouveau',100,20,10))
1 ligne(s) ont été mises à jour
Nouvelle Requête : (requete 5 du fichier des requetes : select * from articles)
Résultats obtenus
-----------------
a300,vélo,1202,31,8
d600,arc,5000,10,8
d800,canoé,1502,13,7
x123,fusil,3000,10,8
s345,skis nautiques,1800,3,8
f450,essai3,3,3,9
f807,cachalot,200000,0,6
z400,léopard,500000,1,7
g457,panthère,800000,1,7
x400,nouveau,100,20,10
Nouvelle Requête : (requete 6 du fichier des requêtes : delete from articles where code='x400')
1 ligne(s) ont été mises à jour
Nouvelle Requête : (requete 7 du fichier des requêtes : select * from articles)
Résultats obtenus
-----------------
a300,vélo,1202,31,8
d600,arc,5000,10,8
d800,canoé,1502,13,7
x123,fusil,3000,10,8
s345,skis nautiques,1800,3,8
f450,essai3,3,3,9
f807,cachalot,200000,0,6
z400,léopard,500000,1,7
g457,panthère,800000,1,7
6.3. Tax Calculation with a database
The last time we addressed the problem of calculating taxes, we used a graphical interface and the data was stored in a file. We’ll revisit this version, now assuming the data is in an ODBC-MySQL database. MySQL is an open-source DBMS that can be used on various platforms, including Windows and Linux. With this DBMS, a database named dbimpots has been created, containing a single table called impots. Access to the database is controlled by a username/password, in this case admimpots/mdpimpots. The screenshot shows how to use the dbimpots database with MySQL:
C:\Program Files\EasyPHP\mysql\bin>mysql -u admimpots -p
Enter password: *********
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 18 to server version: 3.23.49-max-nt
Type 'help;' or '\h' for help. Type '\c' to clear the buffer.
mysql> use dbimpots;
Database changed
mysql> show tables;
+--------------------+
| Tables_in_dbimpots |
+--------------------+
| impots |
+--------------------+
1 row in set (0.00 sec)
mysql> describe impots;
+---------+--------+------+-----+---------+-------+
| Field | Type | Null | Key | Default | Extra |
+---------+--------+------+-----+---------+-------+
| limites | double | YES | | NULL | |
| coeffR | double | YES | | NULL | |
| coeffN | double | YES | | NULL | |
+---------+--------+------+-----+---------+-------+
3 rows in set (0.02 sec)
mysql> select * from impots;
+---------+--------+---------+
| limites | coeffR | coeffN |
+---------+--------+---------+
| 12620 | 0 | 0 |
| 13190 | 0.05 | 631 |
| 15640 | 0.1 | 1290.5 |
| 24740 | 0.15 | 2072.5 |
| 31810 | 0.2 | 3309.5 |
| 39970 | 0.25 | 4900 |
| 48360 | 0.3 | 6898 |
| 55790 | 0.35 | 9316.5 |
| 92970 | 0.4 | 12106 |
| 127860 | 0.45 | 16754 |
| 151250 | 0.5 | 23147.5 |
| 172040 | 0.55 | 30710 |
| 195000 | 0.6 | 39312 |
| 0 | 0.65 | 49062 |
+---------+--------+---------+
14 rows in set (0.00 sec)
mysql>quit

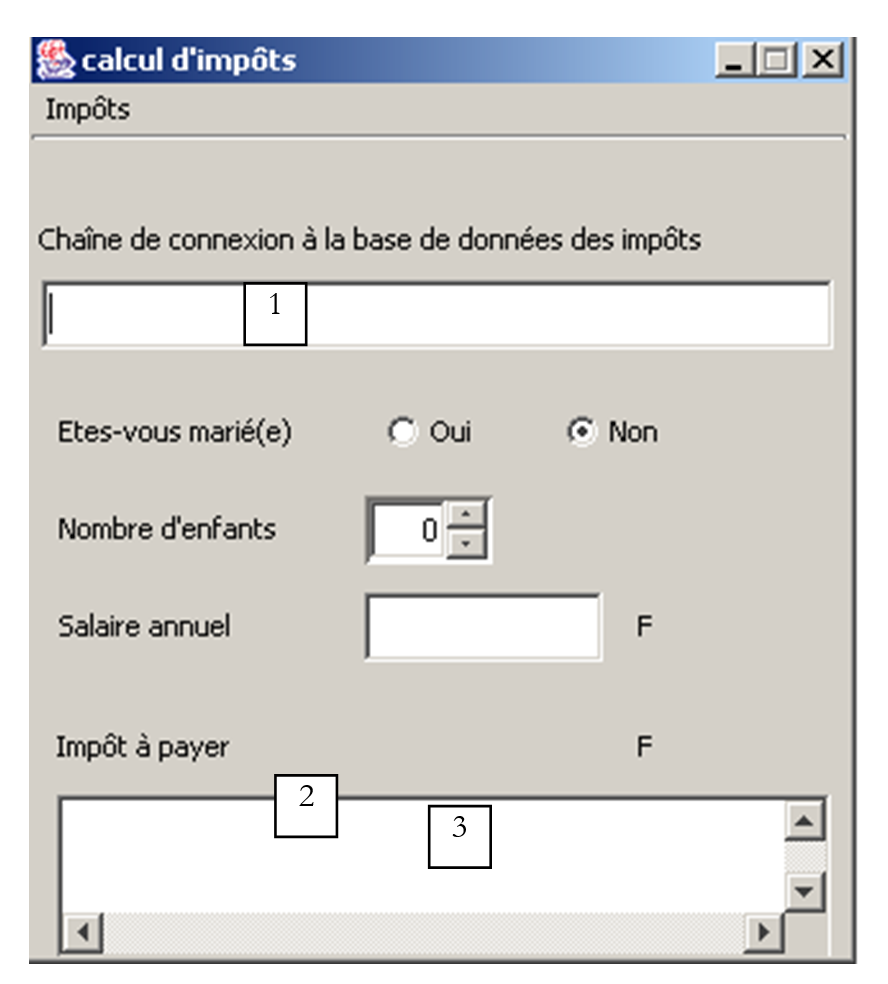

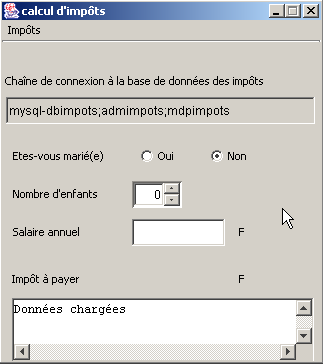

The application's graphical interface is as follows:
The graphical interface has undergone some changes:
No. | type | name | role |
1 | JTextField | txtConnection | ODBC database connection string |
2 | JScrollPane | JScrollPane1 | container for the Textarea 3 |
3 | JTextArea | txtStatus | displays status messages, including error messages |
The connection string entered in (1) has the following format: DSN;login;password with
being the DSN name of the ODBC data source | |
| the identity of a user with read access to the database |
| their password |
The dbimpots database was created manually using MySQL. It is converted into an ODBC data source as follows:
- Launch the 32-bit ODBC Data Source Administrator
- use the [Add] button to add a new ODBC data source

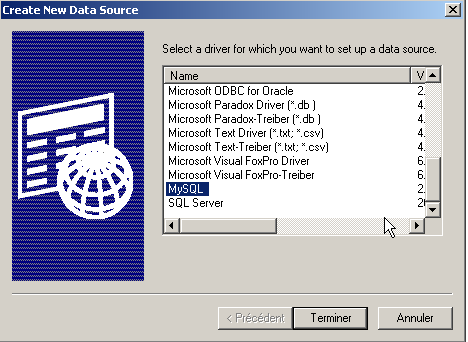

- Select the MySQL driver and click [Finish]

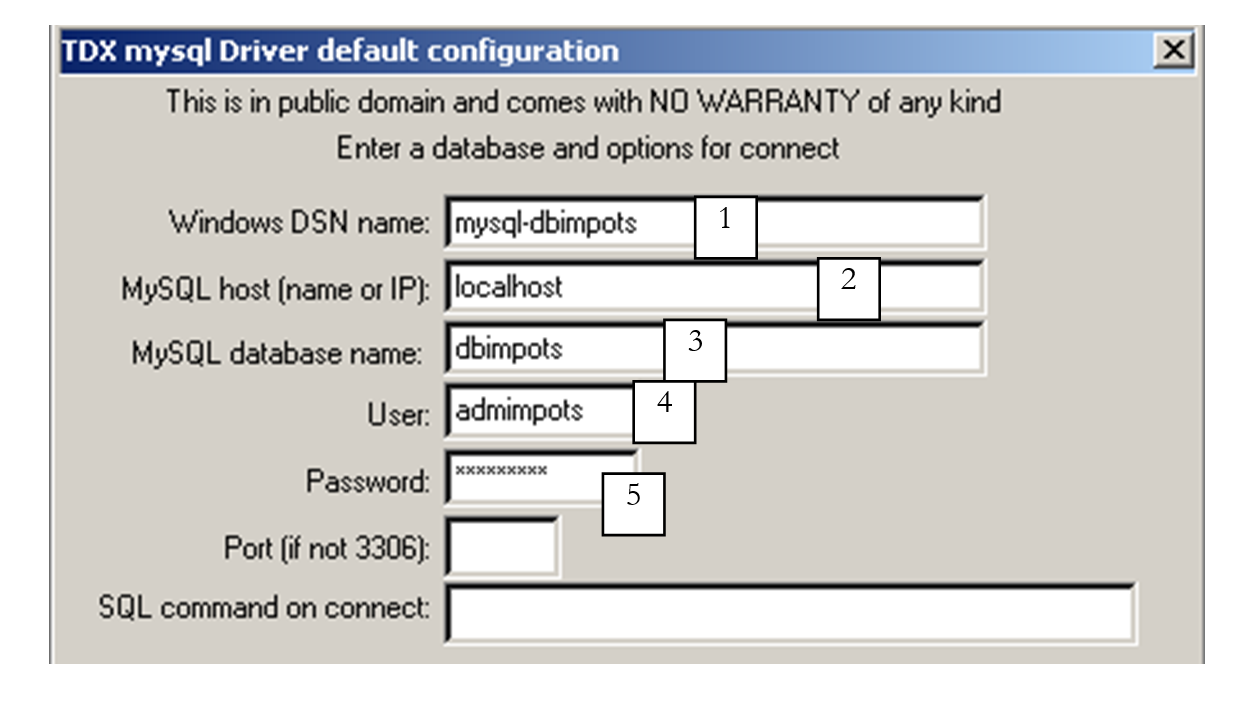

- The MySQL driver requests some information:
1 | The DSN name to give the ODBC data source—it can be anything |
2 | the machine on which the MySQL DBMS is running—here, localhost. It is worth noting that the database could be a remote database. Local applications using the ODBC data source would not notice this. This would be the case, in particular, for our Java application. |
3 | the MySQL database to use. MySQL is a DBMS that manages relational databases, which are sets of tables linked together by relationships. Here, we specify the name of the database being managed. |
4 | The name of a user with access rights to this database |
5 | their password |

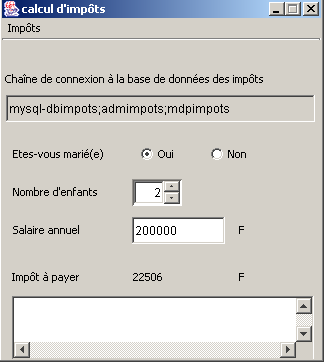

Once the ODBC data source has been defined, we can test our program:
 |  |
Let's take a look at the code that has been modified compared to the graphical version without a database. Here is the code for the *impots* class used so far:
// creation of an impots class
public class impots{
// data required for tax calculation
// come from an external source
private double[] limites, coeffR, coeffN;
// manufacturer
public impots(double[] LIMITES, double[] COEFFR, double[] COEFFN) throws Exception{
// check that the 3 arrays have the same size
boolean OK=LIMITES.length==COEFFR.length && LIMITES.length==COEFFN.length;
if (! OK) throw new Exception ("Les 3 tableaux fournis n'ont pas la même taille("+
LIMITES.length+","+COEFFR.length+","+COEFFN.length+")");
// it's good
this.limites=LIMITES;
this.coeffR=COEFFR;
this.coeffN=COEFFN;
}//manufacturer
// tAX CALCULATION
public long calculer(boolean marié, int nbEnfants, int salaire){
// calculating the number of shares
double nbParts;
if (marié) nbParts=(double)nbEnfants/2+2;
else nbParts=(double)nbEnfants/2+1;
if (nbEnfants>=3) nbParts+=0.5;
// calculation of taxable income & family quota
double revenu=0.72*salaire;
double QF=revenu/nbParts;
// tAX CALCULATION
limites[limites.length-1]=QF+1;
int i=0;
while(QF>limites[i]) i++;
// return result
return (long)(revenu*coeffR[i]-nbParts*coeffN[i]);
}//calculate
}//class
This class constructs the three arrays limits, coeffR, and coeffN from three arrays passed as parameters to its constructor. We decide to add a new constructor that allows us to construct the same three arrays from a database:
public impots(String dsnIMPOTS, String userIMPOTS, String mdpIMPOTS)
throws SQLException,ClassNotFoundException{
// dsnIMPOTS: DSN database name
// userIMPOTS, mdpIMPOTS: database login/password
For this example, we decide not to implement this new constructor in the *impots* class but in a derived class, *impotsJDBC*:
// imported packages
import java.sql.*;
import java.util.*;
public class impotsJDBC extends impots{
// addition of a constructor for building
// limit tables, coeffr, coeffn from table
// database taxes
public impotsJDBC(String dsnIMPOTS, String userIMPOTS, String mdpIMPOTS)
throws SQLException,ClassNotFoundException{
// dsnIMPOTS: DSN database name
// userIMPOTS, mdpIMPOTS: database login/password
// data tables
ArrayList aLimites=new ArrayList();
ArrayList aCoeffR=new ArrayList();
ArrayList aCoeffN=new ArrayList();
// connection to base
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
Connection connect=DriverManager.getConnection("jdbc:odbc:"+dsnIMPOTS,userIMPOTS,mdpIMPOTS);
// creation of a Statement object
Statement S=connect.createStatement();
// select request
String select="select limites, coeffr, coeffn from impots";
// query execution
ResultSet RS=S.executeQuery(select);
while(RS.next()){
// running line operation
aLimites.add(RS.getString("limites"));
aCoeffR.add(RS.getString("coeffr"));
aCoeffN.add(RS.getString("coeffn"));
}// next line
// closing resources
RS.close();
S.close();
connect.close();
// data transfer to bounded arrays
int n=aLimites.size();
limites=new double[n];
coeffR=new double[n];
coeffN=new double[n];
for(int i=0;i<n;i++){
limites[i]=Double.parseDouble((String)aLimites.get(i));
coeffR[i]=Double.parseDouble((String)aCoeffR.get(i));
coeffN[i]=Double.parseDouble((String)aCoeffN.get(i));
}//for
}//manufacturer
}//class
The constructor reads the contents of the impots table from the database passed to it as parameters and populates the three arrays: limites, coeffR, and coeffN. A number of errors may occur. The constructor does not handle them but "passes them up" to the calling program:
public impotsJDBC(String dsnIMPOTS, String userIMPOTS, String mdpIMPOTS)
throws SQLException,ClassNotFoundException{
If we look closely at the previous code, we can see that the impotsJDBC class directly uses the limits, coeffR, and coeffN fields of its base class impots. Since these are declared private:
the impotsJDBC class does not have direct access to these fields. We therefore make an initial modification to the base class by writing:
The protected attribute allows classes derived from the impots class to have direct access to fields declared with this attribute. We need to make a second modification. The constructor of the child class impotsJDBC is declared as follows:
public impotsJDBC(String dsnIMPOTS, String userIMPOTS, String mdpIMPOTS)
throws SQLException,ClassNotFoundException{
We know that before constructing an object of a child class, we must first construct an object of the parent class. To do this, the child class’s constructor must explicitly call the parent class’s constructor using a super(....) statement. Here, this is not done because we cannot see which constructor of the parent class we could call. There is currently only one, and it is not suitable. The compiler will then search the parent class for a parameterless constructor that it could call. It does not find one, and this generates a compilation error. We therefore add a parameterless constructor to our impots class:
We declare it as "protected" so that it can only be used by child classes. The skeleton of the impots class now looks like this:
public class impots{
// data required for tax calculation
// come from an external source
protected double[] limites=null;
protected double[] coeffR=null;
protected double[] coeffN=null;
// empty builder
protected impots(){}
// manufacturer
public impots(double[] LIMITES, double[] COEFFR, double[] COEFFN) throws Exception{
...........
}//manufacturer
// tAX CALCULATION
public long calculer(boolean marié, int nbEnfants, int salaire){
.............
}//calculate
}//class
The action for the Initialize menu in our application becomes the following:
void mnuInitialiser_actionPerformed(ActionEvent e) {
// retrieve the connection string
Pattern séparateur=Pattern.compile("\\s*;\\s*");
String[] champs=séparateur.split(txtConnexion.getText().trim());
// three fields are required
if(champs.length!=3){
// error
txtStatus.setText("Chaîne de connexion (DSN;uid;mdp) incorrecte");
// back to visual interface
txtConnexion.requestFocus();
return;
}//if
// load data
try{
// creation of impotsJDBC object
objImpots=new impotsJDBC(champs[0],champs[1],champs[2]);
// confirmation
txtStatus.setText("Données chargées");
// salary can be modified
txtSalaire.setEditable(true);
// no more chgt possible
mnuInitialiser.setEnabled(false);
txtConnexion.setEditable(false);
}catch(Exception ex){
// problem
txtStatus.setText("Erreur : " + ex.getMessage());
// end
return;
}//catch
}
Once the objImpots object has been created, the application is identical to the graphical application already written. The reader is invited to refer to it.
6.4. Exercises
6.4.1. Exercise 1
Provide a graphical interface for the previous sql3 program.
6.4.2. Exercise 2
A Java applet can only access a database through the server from which it was loaded. Since an applet does not have access to the disk of the machine on which it is running, the database cannot be on the client machine using the applet. We are therefore in the following situation:

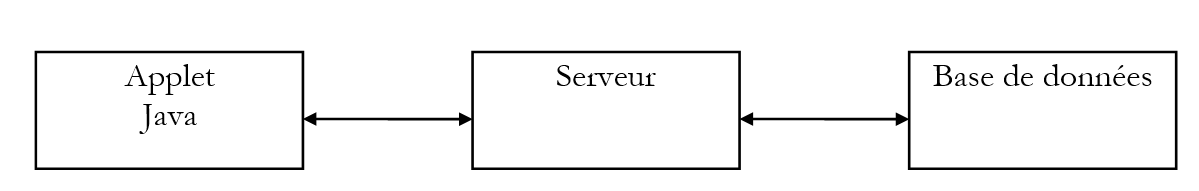

The machine running the applet, the server, and the machine hosting the database may be three different machines. Here, we assume that the database is located on the server.
Problem 1
Write the following server application in Java:
- The server application runs on a port passed to it as a parameter
- When a client connects, the server application sends the message
- The client then sends the parameters needed to connect to a database and the query it wants to execute in the following format:
The parameters are separated by a slash. The first four parameters are those of the sql3 program described in this chapter.
- The server application then establishes a connection with the specified database, which must be located on the same machine as the server, and executes the SQL query on it. The results are returned to the client in the following format:
...
if it is the result of a Select query, or
to return the number of rows affected by an update query. If a database connection error or query execution error occurs, the application returns
- Once the query has been executed, the server application closes the connection.
Problem 2
Create a Java applet that queries the server described above. You may draw inspiration from the graphical interface in Exercise 1. Since the server port may vary, it will be entered via the applet’s interface. The same applies to all parameters required to send the row:
that the client must send to the server.
6.4.3. Exercise 3
The following text describes a problem originally intended to be solved in Visual Basic. Adapt it for processing in Java within an applet. This applet will rely on the server from Exercise 2. The graphical interface may be modified to account for the new execution context.
We propose to create an application that highlights the various possible update operations on a table in an ACCESS database. The ACCESS database is named articles.mdb. It has a single table named articles that lists the items sold by a company. Its structure is as follows:
name | type |
code | 4-character item code |
name | its name (string) |
price | its price (actual) |
current_stock | current stock (integer) |
min_stock | the minimum stock (integer) below which the item must be restocked |

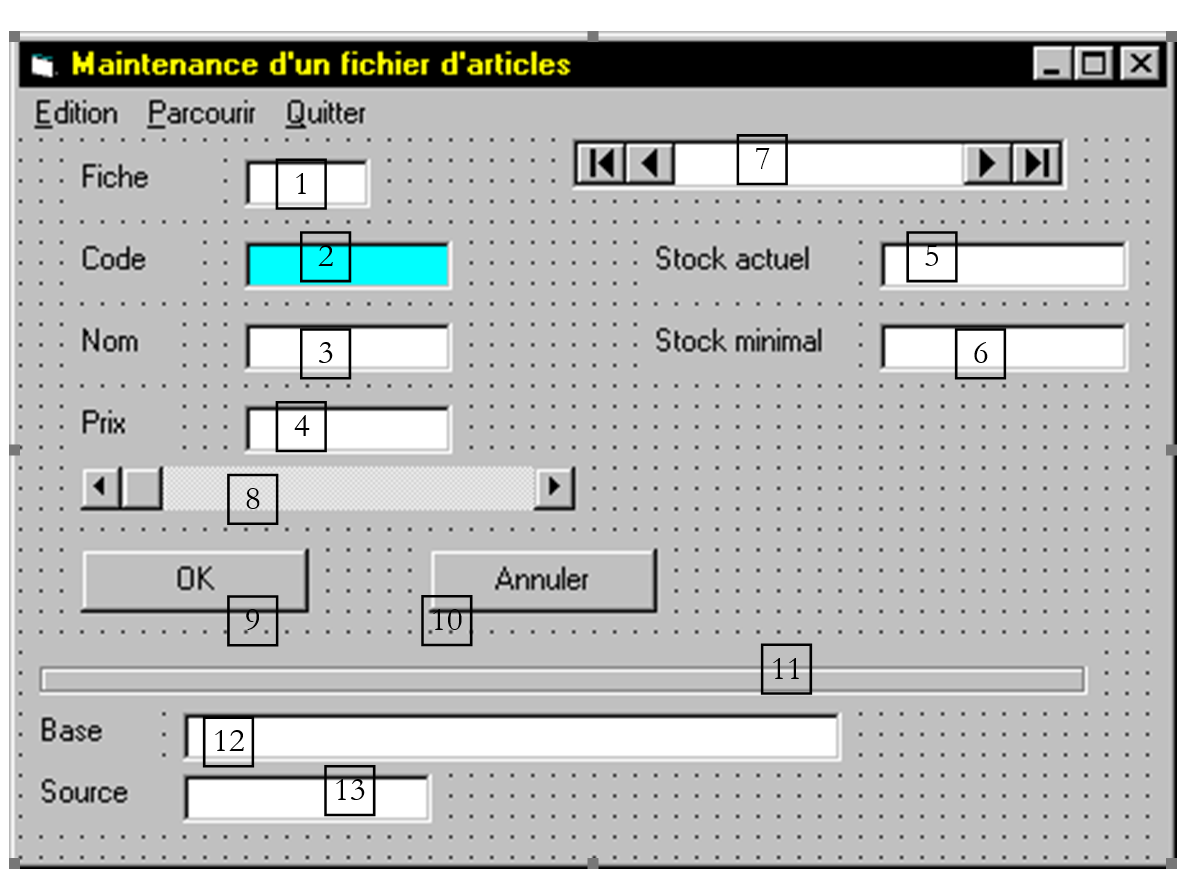

We propose to view and update this table using the following form:
The controls on this form are as follows:
No. | type | Name | Function |
1 | textbox | record | Number of the displayed record enabled is false |
2 | textbox | code | item code |
3 | textbox | name | item name |
4 | textbox | price | item price |
5 | textbox | current | current stock of the item |
6 | textbox | minimum | minimum stock of the item |
7 | data | data1 | Data control associated with the database databasename=path to the articles.mdb file recordsource=articles connect=access |
8 | HScrollBar | position | allows you to navigate the table |
9 | button | OK | allows you to confirm an update - appears only during an update |
10 | button | Cancel | allows you to cancel an update - appears only during the update |
11 | frame | frame1 | for aesthetic purposes |
12 | textbox | basename | name of the open database enabled is set to false |
13 | textbox | sourcename | name of the open table enabled is set to false |
control | Special features |
data1 | The databasename and recordsource fields are filled in. databasename must refer to the Access database articles.mdb in your directory, and recordsource to the articles table. |
code | This is a text box that we want to link to the code field of the current record in data1. To do this, we fill in two fields: datasource: Enter data1 to indicate that the text box is linked to the table associated with data1 datafield: select the code field from the articles table After these steps, the code text box will always contain the code field of the current record in data1. Conversely, changing the content of this text box will update the code field of the current record. Do the same for the other textboxes |
name | datasource: data1 datafield: name |
price | data source: data1 data field: price |
current | data source: data1 data field: current_stock |
minimum | data source: data1 data field: stock_min |
The menu structure is as follows
Edit | Browse | Exit |
Add | Back | |
Edit | Next | |
Delete | First | |
Last |
The roles of the various options are as follows:
Menu | name | function |
mnuadd | to add a new record to the items table | |
delete | to delete the currently displayed record from the items table | |
edit | to edit the currently displayed record in the items table | |
mnuprecedent | to go to the previous record | |
down-next | to skip to the next recording | |
prev | to skip to the first track | |
mnunlast | to skip to the last recording | |
mnuquit | to exit the application |
During the form_load event, the table associated with data1 is opened (data1.refresh). If the table fails to open, an error message is displayed and the program terminates (end). Otherwise, the form is displayed with the first record from the articles table visible. No input is allowed in the fields (enabled property set to false). Input is only possible using the Add and Edit options. The OK and Cancel buttons are hidden (visible=false).
We propose to build the procedures related to the various menu options as well as the OK and Cancel buttons. For now, we will ignore the following points:
- enabling/disabling certain menu options: for example, the Next option must be disabled if the cursor is on the last record in the table
- managing the horizontal scrollbar
Browse/Next menu
- moves to the next record (data1.RecordSet.MoveNext) if we are not at the end of the file (data1.RecordSet.EOF). Updates the record textbox (data1.RecordSet.AbsolutePosition / data1.RecordSet.RecordCount).
Browse/Previous menu
- moves to the previous record (data1.RecordSet.MovePrevious) if not at the beginning of the file (data1.RecordSet.BOF). Updates the record textbox.
Browse/First menu
- Moves to the first record (data1.RecordSet.MoveFirst) if the file is not empty (data1.RecordSet.RecordCount = 0). Updates the record textbox.
Browse/Last menu
- Moves to the last record (data1.RecordSet.MoveLast) if the file is not empty (data1.RecordSet.RecordCount = 0). Updates the record textbox.
Edit/Add menu
- allows you to add a record to the table
- enters Add Record mode (data1.recordset.addnew)
- Enables data entry in the 5 fields: code, name, price, etc. (enabled=true)
- Disables the Edit, Browse, and Exit menus (enabled=false)
- displays the OK and Cancel buttons (visible=true)
OK button
- saves a record update (data1.recordset.Update)
- hides the OK and Cancel buttons (visible=false)
- enables the Edit, Browse, and Exit options (enabled=true)
- updates the form text box
Cancel button
- cancels a record update (data1.recordset.CancelUpdate)
- hides the OK and Cancel buttons (visible=false)
- enables the Edit, Browse, and Exit options (enabled=true)
- updates the form text box
Edit/Modify menu
- allows you to edit the record displayed on the form
- enters record edit mode (data1.recordset.edit)
- Enables input in the 4 fields: name, price, etc. (enabled=true) but not in the code field (enabled=false)
- disables the Edit, Browse, and Exit menus (enabled=false)
- displays the OK and Cancel buttons (visible=true)
Edit/Delete menu
- allows you to delete (data1.recordset.delete) the displayed record from the table
- moves to the next record (data1.recordset.movenext)
Exit menu
- unloads the form (unload me)
form_unload event (cancel as integer)
- triggered by the unload me operation or by closing the form using Alt-F4 or a double-click on the system tray icon, so not necessarily by the exit option.
- displays the question “Do you really want to exit the application?” with two Yes/No buttons (msgbox with style=vbyes+vbno)
- if the answer is No (=vbno), set cancel to -1 and exit the form_unload procedure. cancel set to -1 indicates that closing the window is denied.
- If the answer is Yes (=vbyes), the database is closed (data1.recordset.close, data1.database.close).
Here, we focus on enabling/disabling menus. After each operation that changes the current record, we will call a procedure that we can call Oueston. This procedure will check the following conditions:
. If the file is empty, we
- disable the Browse, Edit/Delete menus,
- enable the others
. If the current record is the first record, we
- disable Browse/Previous
- will allow the rest
. If the current record is the last one,
- disable Browse/Next
- will allow the rest
A horizontal slider has three important fields:
- min: its minimum value
- max: its maximum value
- value: its current value
Initializing the slider
Upon loading (form_load), the slider will be initialized as follows:
- min=0
- max=data1.recordset.recordcount-1
- value=1
Note that immediately after opening the database (data1.refresh), the number of records in the table represented by data1.recordset.recordcount is incorrect. You must move to the end of the table (MoveLast), then return to the beginning of the table (MoveFirst) for it to be correct.
Direct action on the drive
The position of the slider’s cursor represents the position in the table.
When the user changes the slider (named position here), the position_change event is triggered. In this event, we will change the current record in the table so that it reflects the movement made on the slider. To do this, we will use the absoluteposition field of data1.recordset. When we assign the value i to this field, record #i in the table becomes the current record. Records are numbered starting from 0 and therefore have a number in the range [0,data1.recordset.recordcount-1]. In the position_change procedure, we simply write
so that the current record displayed on the form reflects the movement made on the joystick.
Once this is done, we will then call the Oueston procedure to update the menus.
Updating the DCS
Since the position of the drive’s cursor must reflect the position in the table, the drive’s value must be updated every time there is a change in the current record in the table, triggered by one of the menus. Since each of these calls the Oueston procedure, it is best to place this update within that procedure as well. Simply write here:
We add the Browse/Search option, which allows the user to view an item by entering its code.
When this option is enabled, the following steps occur:
- the system switches to Add New mode (Addnew), solely to avoid modifying the current record that was open when the option was enabled,
- We enable input in the code field and clear the contents of the record field,
- the menus are disabled, and the OK and Cancel buttons are displayed
- When the user clicks OK, we must search for the record corresponding to the code entered by the user. However, the OK_click procedure is already used for the Browse/Add and Browse/Modify options. To distinguish between these cases, we need to manage a global variable, which we will call "state" here, that will have three possible values: "add," "modify," and "search." The procedures linked to the OK and Cancel buttons will use this variable to determine the context in which they are called.
- If state is “search,” in the procedure linked to OK, we
- cancel the addnew operation (data1.recordset.cancelupdate) because we did not intend to add a record. Note that the current record then reverts to the one that was on the screen before the Browse/Search operation.
- Build the search criteria based on the code and launch the search (data1.recordset.findfirst criteria),
- if the search fails (data1.recordset.nomatch=true), we notify the user, then return to add mode (addnew) and exit the OK procedure. The user will need to re-enter a new code or select the Cancel option.
- If the search is successful, the found record becomes the new active record. We restore the menus, hide the OK/Cancel buttons, disable input in the code field, and exit the procedure.
- . If the status is "search," in the procedure linked to Cancel, we
- cancel the addnew operation (data1.recordset.cancelupdate). The system will then automatically return to the record that was active before the Browse/Search operation.
- Restore the menus, hide the OK/Cancel buttons, disable input in the code field, and exit the procedure.
An item must be uniquely identified by its code. Ensure that in the Browse/Add option, the addition is rejected if the record to be added has an item code that already exists in the table.
6.4.4. Exercise 4
Here we present a web application based on the server from Exercise 2. It is a basic e-commerce application.

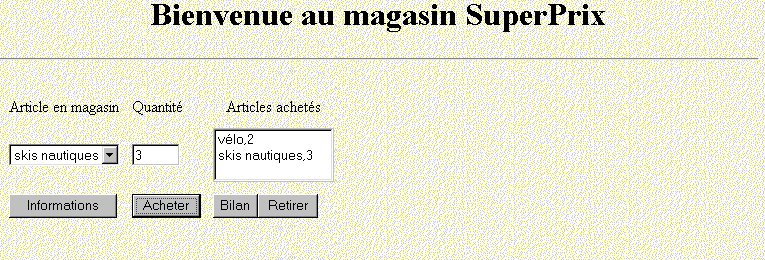

The customer orders items using the following web interface:
They can perform the following operations:
- select an item from the drop-down list
- specify the desired quantity
- confirm their purchase by clicking the Buy button
- Their purchase is displayed in the list of purchased items
- he can remove items from this list by selecting an item and clicking the Remove button

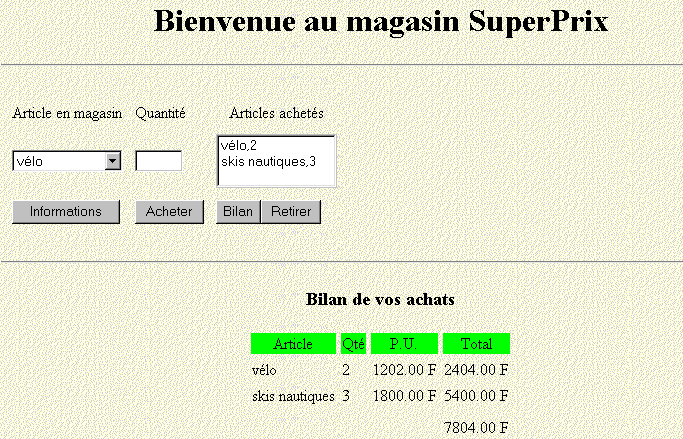

- When they click the Summary button, they see the following summary:

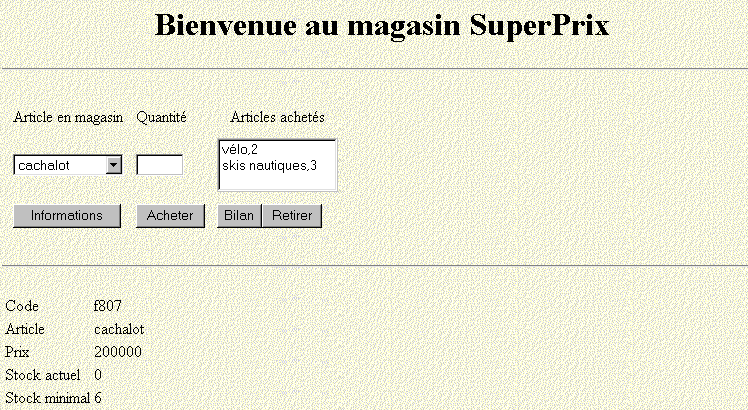

The summary allows the user to view the details of their invoice. The user can access details about a selected item in the dropdown list by clicking the "Information" button:

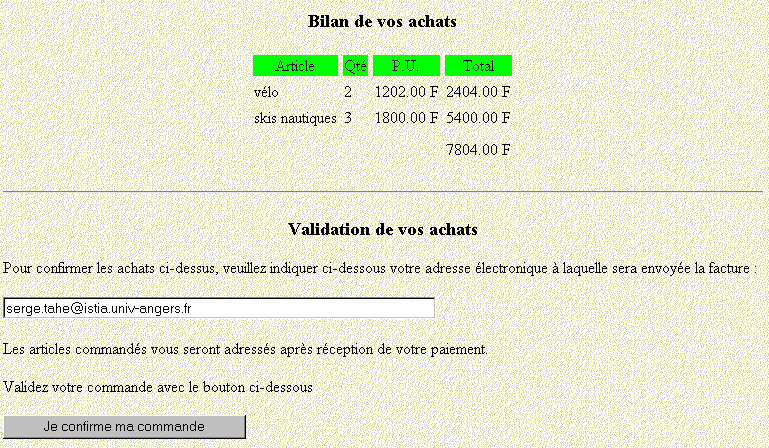

Once the user has requested the invoice summary, they can confirm it on the next page. To do so, they must enter their email address and confirm their order using the appropriate button.

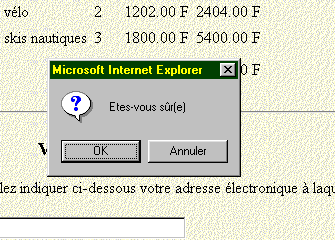

Before submitting the order, the app asks for confirmation:

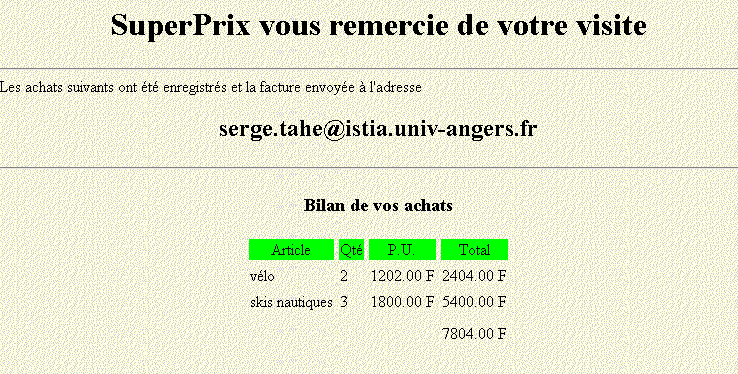

Once the order is confirmed, the app processes it and displays a confirmation page:
In reality, the app does not process the order. It simply sends an email to the user asking them to pay for their purchases:
Cher client,
Vous trouverez ci-dessous le détail de votre commande au magasin SuperPrix. Elle vous sera livrée après réception de votre chèque établi à l'ordre de SuperPrix et à envoyer à l'adresse suivante :
SuperPrix
ISTIA
62 av Notre-Dame du Lac
49000 Angers
France
Nous vous remercions vivement de votre commande
----------------------------------------
Votre commande
----------------------------------------
article, quantité, prix unitaire, total
========================================
vélo, 2, 1202.00 F, 2404.00 F
skis nautiques, 3, 1800.00 F, 5400.00 F
Total à payer : 7804 F
Question: Create the equivalent of this web application using a Java applet.
