4. SQL expressions

4.1. Introduction

In most SQL commands, it is possible to use an expression. Take, for example, the SELECT command:

syntax

SELECT expr1, expr2, ... from table

WHERE expression

SELECT selects the rows for which expression is true and displays the values of expr1, expr2, ... for each of them.

Examples

SQL> select price*1.186 from library
SQL> select title from library where price between 100 and 150

In this section, we will explain the concept of an expression. A basic expression is of the form:

operand1 operator operand2

or

function(parameters)

Example

In the expression GENRE = 'ROMAN'

GENRE is operand1
'ROMAN' is operand2
= is the operator

In the expression upper(genre)

upper is a function
'genre' is a parameter of this function.

We will first cover expressions with operators, then we will present the functions available in Firebird.

4.2. Expressions with operators

We will classify expressions with operators according to the type of their operands:

numeric
string
date
Boolean or logical

4.2.1. Expressions with numeric operands

4.2.1.1. List of operators

Let number1, number2, and number3 be numbers. The following operators can be used:

Relational operators

`number1 > number2`	: number1 is greater than number2
`number1 >= number2`	: number1 is greater than or equal to number2
`number1 < number2`	: number1 is less than number2
`number1 <= number2`	: number1 is less than or equal to number2
`number1 = number2`	: number1 is equal to number2
`number1 != number2`	: number1 is not equal to number2
`number1 ≠ number2`	: same as
`number1 BETWEEN number2 AND number3`	: number1 is in the range [number2, number3]
`number1 IN (list of numbers)`	: number1 belongs to list of numbers
`number1 IS NULL`	: number1 has no value
`number1 IS NOT NULL`	: number1 has a value

Arithmetic operators

`number1 + number2`	: addition
`number1 - number2`	: subtraction
`number1 * number2`	: multiplication
`number1 / number2`	: division

4.2.1.2. Relational operators

A relational expression expresses a relationship that is either true or false. The result of such an expression is therefore a Boolean or logical value.

Examples:

SQL> select title,price from library where price between 100 and 150

SQL> select title,price from library where price not between 100 and 150

SQL> select title,price from library where price in (200,210)

4.2.1.3. Arithmetic operators

We are familiar with arithmetic expressions. They express a calculation to be performed on numerical data. We have already encountered such expressions: suppose that the price stored in the records of the BIBLIO file is a pre-tax price. We want to display each title with its price including tax for a VAT rate of 18.6%:

    SELECT TITLE, PRICE*1.186 FROM BIBLIO

If prices are to increase by 3%, the command will be

    UPDATE BIBLIO SET PRICE = PRICE*1.03

An expression may contain multiple arithmetic operators, as well as functions and parentheses. These elements are processed according to different priorities:

1	`functions`	<---- highest priority
2	`()`
3	`* and /`
4	`+ and -`	<---- lower priority

When two operators of the same priority are present in an expression, the one on the far left is evaluated first.

Examples

The expression PRICE*RATE+TAXES will be evaluated as (PRICE*RATE)+TAXES. This is because the multiplication operator is used first. The expression PRICE*RATE/100 will be evaluated as (PRICE*RATE)/100.

4.2.2. Expressions with character operands

4.2.2.1. List of operators

The following operators can be used:

Let string1, string2, string3, and string pattern be

`string1 > string2`	: string1 is greater than string2
`string1 >= string2`	: string1 is greater than or equal to string2
`string1 < string2`	: string1 is less than string2
`string1 <= string2`	: string1 is less than or equal to string2
`string1 = string2`	: string1 equals string2
`string1 != string2`	: string1 is not equal to string2
`string1 ≠ string2`	: same
`string1 BETWEEN string2 AND string3`	: string1 is in the range [string2, string3]
`string1 IN list of strings`	: string1 belongs to list of strings
`string1 IS NULL`	: string1 has no value
`string1 IS NOT NULL`	: channel1 has a value
`string1 LIKE pattern`	: string1 matches pattern

Concatenation operator

string1 || string2 : string2 concatenated to string1

4.2.2.2. Relational operators

What does it mean to compare strings using operators such as <, <=, etc.?

Every character is encoded as an integer. When comparing two characters, their integer codes are compared. The encoding used follows the natural order of the dictionary:

space <..< 0 < 1 < ...< 9 < ...< A < B <... < Z < ... < a < b < ... < z

Numbers come before letters, and uppercase letters before lowercase letters.

4.2.2.3. Comparing Two Strings

Consider the relation 'CAT' < 'DOG'. Is it true or false? To perform this comparison, the DBMS compares the two strings character by character based on their integer codes. As soon as two characters are found to be different, the string containing the smaller of the two is said to be smaller than the other string. In our example, 'CAT' is compared to 'DOG'. We get the following successive results:

    'CAT'    'DOG'
----------------------------
    'C'    =    'C'
    'H'    =    'H'
    'A'    <    'I'

After this last comparison, the string 'CAT' is declared to be shorter than the string 'DOG'. The relation 'CAT' < 'DOG' is therefore true.

Now let's compare 'CHAT' and 'chat'.

    'CAT'    'cat'
--------------------------
    'C'    <    'c'

After this comparison, the relation 'CHAT' < 'chat' is declared true.

Examples

SQL> select title from library

SQL> select title from library where upper(title) between 'L' and 'M'

4.2.2.4. The LIKE operator

The LIKE operator is used as follows: string LIKE pattern

The condition is true if string matches pattern. The pattern is a string that may contain two wildcard characters:

`%`	which denotes any sequence of characters
`_`	which stands for any single character

Examples

SQL> select title from library

SQL> select title from library where title like 'M%';

SQL> select title from library where title like 'L_ %';

4.2.2.5. The concatenation operator

SQL > select '[' || title || ']' from library where uppercase(title) LIKE 'L_ %'

4.2.3. Expressions with date-type operands

Let date1, date2, and date3 be dates. The following operators can be used:

Relational operators

`date1 < date2`	is true if date1 is earlier than date2
`date1 <= date2`	is true if date1 is earlier than or equal to date2
`date1 > date2`	is true if date1 is later than date2
`date1 >= date2`	is true if date1 is on or after date2
`date1 = date2`	is true if date1 and date2 are identical
`date1 ≠ date2`	is true if date1 and date2 are different.
`date1 != date2`	same as
`date1 BETWEEN date2 AND date3`	is true if date1 is between date2 and date3
`date1 IN (list of dates)`	is true if date1 is in the list of dates
`date1 IS NULL`	is true if date1 has no value
`date1 IS NOT NULL`	is true if date1 has a value
`date1 LIKE pattern`	is true if date1 matches the pattern
`ALL, ANY, EXISTS`

Arithmetic operators

`date1 - date2`	: number of days between date1 and date2
`date1 - number`	: date2 such that date1 - date2 = number
`date1 + number`	: date2 such that date2 - date1 = number

Examples

SQL> select purchase from library

SQL> select purchase from library
   where purchase between '01/01/1988' and '12/31/1988';

SQL> select title, purchase from library
where cast(purchase as char(10)) like '1988'

How old are the books in the library?

SQL> select title, cast('now' as date) - purchase "age(days)" from library

4.2.4. Expressions with Boolean operands

Recall that a Boolean or logical value has two possible values: true or false. The logical operand is often the result of a relational expression.

Let boolean1 and boolean2 be two booleans. There are three possible operators, which are, in order of precedence:

`boolean1 AND boolean2`	is true if both boolean1 and boolean2 are true.
`boolean1 OR boolean2`	is true if either boolean1 or boolean2 is true.
`NOT boolean1`	has a value that is the inverse of the value of boolean1.

Examples

SQL> select title, genre, price from library order by price desc

We are looking for books within a price range:

SQL> select title, genre, price from library
     where price >= 130 and price <= 170

Reverse search:

SQL> select title, genre, price from biblio
     where price < 130 or price > 170
     order by price asc

Be careful with operator precedence!

SQL> select title, genre, price from library
  where genre='NOVEL' and price>200 or price<100
  order by price asc

Use parentheses to control operator precedence:

SQL> select title, genre, price from library
  where genre='NOVEL' and (price>200 or price<100)
  order by price asc

4.3. Firebird's predefined functions

Firebird has predefined functions. They cannot be used immediately in SQL statements. You must first run the SQL script <firebird>\UDF\ib_udf.sql, where <firebird> refers to the installation directory of the Firebird DBMS:

With IBExpert, we proceed as follows:

we use the [Script Executive] tool accessed via the [Tools/Script Executive] option:

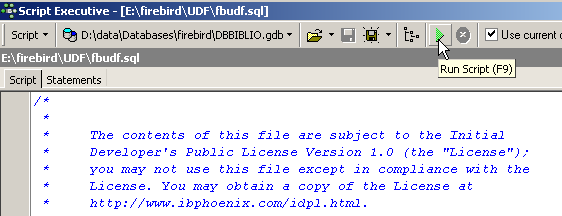

Once the tool is open, we load the script <firebird>\UDF\ib_udf.sql:

then we execute the script:

Once this is done, Firebird's predefined functions are available for the database you were connected to when the script was run. To see this, simply go to the database explorer and click on the [UDF] node for the database into which the functions were imported:

Above are the functions available to the database. To test them, it’s handy to have a one-row table. Let’s call it TEST:

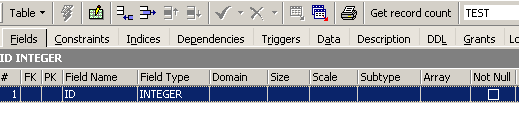

and define it as follows (right-click on Tables / New Table):

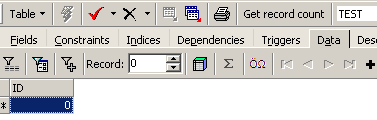

Let’s add a single row to this table:

Now let’s go to the SQL Editor (F12) and execute the following SQL statement:

SQL> select cos(0) from test

which uses the predefined cos (cosine) function. The command above evaluates cos(0) for each row in the TEST table, so in fact for a single row. It therefore simply displays the value of cos(0):

UDFs (User-Defined Functions) are functions that users can create, and libraries of UDFs can be found on the web. Here, we describe only some of those available with the downloadable version of Firebird (2005). We classify them according to the predominant type of their parameters or according to their role:

functions with numeric parameters
functions with string-type parameters

4.3.1. Functions with numeric parameters

`abs(number)`	absolute value of number abs(-15) = 15
`ceil(number)`	the smallest integer greater than or equal to number ceil(15.7) = 16
`floor(number)`	the largest integer less than or equal to number floor(14.3) = 14
`div(number1, number2)`	quotient of the integer division (the quotient is an integer) of number1 by number2 div(7,3)=2
`mod(number1, number2)`	remainder of the integer division (the quotient is an integer) of number1 by number2 mod(7,3)=1
`sign(number)`	-1 if number < 0 0 if number=0 +1 if number > 0 sign(-6) = -1
`sqrt(number)`	square root of number if number >= 0 -1 if number < 0 sqrt(16) = 4

4.3.2. Functions with string parameters

ascii_char(number)	ASCII code character number ascii_char(65) = 'A'
lower(string)	converts string to lowercase lower('INFO')='info'
ltrim(string)	Left Trim - Spaces preceding the text in string are removed: ltrim(' kitten')='kitten'
replace(string1, string2, string3)	Replaces string2 with string3 in string1. replace('cat and dog','cat','')='at and **og'
rtrim(string1, string2)	Right Trim - same as ltrim but on the right rtrim('cat ')='cat'
substr(string, p, q)	substring of string starting at position p and ending at position q. substr('kitten',3,5)='to'
ascii_val(character)	ASCII code of character ascii_val('A')=65
strlen(string)	number of characters in string strlen('kitten')=6
