3. The Basics of VBScript Programming

After describing the possible execution contexts for a VBScript script, we will now discuss the language itself. For the remainder of this section, we will assume the following conditions:

1. the script container is WSH
2. the script is placed in a file with the .vbs extension

To introduce a concept, we generally proceed as follows:

• we introduce the concept if necessary
• we present an illustrative program along with its results
• we comment on the results and the program if necessary

VBScript containers are not case-sensitive in the script text. Therefore, you can write either wscript.echo "hello" or WSCRIPT.ECHO "hello".

The programs described below involve a lot of text output, so we will review the text output methods of the wscript object.

3.1. Displaying Information

We have already used the wscript object’s echo method, but it has other methods for writing to the screen, as shown in the following script:

Program	Results
	one two three four five

Note the following points:

• Any text placed after an apostrophe is treated as a script comment and is not interpreted by WSH (line 1).
• The echo method prints its arguments and moves to the next line, as does the writeLine method (lines 2 and 6)
• The write method prints its arguments and does not move to the next line (line 3)
• An end-of-line character is represented by the sequence of two ASCII characters 13 and 10. Thus, line 4 is represented by the expression chr(13) & chr(10), where chr(i) is the ASCII character i and & is the string concatenation operator. Thus, "chat" & "eau" is the string "chateau".
• The end-of-line character can be represented more easily by the constant vbCRLF (line 5)

3.2. Writing Instructions in a VBScript Script

By default, one instruction is written per line. However, multiple instructions can be written on a single line by separating them with the character: as in inst1:inst2:inst3. If a line is too long, it can be split into parts. In this case, the different parts of the instruction must be terminated by the two characters (space)_. Let’s revisit the previous example by rewriting the instructions differently:

Program	Results
	one two three four five

3.3. Writing with the msgBox function

While in this document we use the wscript object almost exclusively to display text on the screen, there is a more sophisticated function for displaying information in a window. This is the msgbox function, which is generally used with three parameters:

msgbox message, icons+buttons, title

• message is the text of the message to be displayed
• icons+buttons (optional) is actually a number that specifies the type of icon and the buttons to be placed in the message window. This number is most often the sum of two numbers: the first determines the icon, the second the buttons
• title is the text to be placed in the title bar of the message window

The values to use to specify the icon and buttons in the display window are as follows:

Constant	Value	Description
vbOKOnly	0	Displays only the OK button.
vbOKCancel	1	Displays the OK and Cancel buttons.
vbAbortRetryIgnore	2	Displays the Abort, Retry, and Ignore buttons.
vbYesNoCancel	3	Displays the Yes, No, and Cancel buttons.
vbYesNo	4	Displays the Yes and No buttons.
vbRetryCancel	5	Displays the Retry and Cancel buttons.
vbCritical	16	Displays the Critical Message icon.
vbQuestion	32	Displays the Warning Request icon.
vbExclamation	48	Displays the Warning Message icon.
vbInformation	64	Displays the Information message icon.
vbDefaultButton1	0	The first button is the default button.
vbDefaultButton2	256	The second button is the default button.
vbDefaultButton3	512	The third button is the default button.
vbDefaultButton4	768	The fourth button is the default button.
vbApplicationModal	0	Modal application; the user must respond to the message before continuing to work in the current application.
vbSystemModal	4096	System modal; all applications are suspended until the user responds to the message.

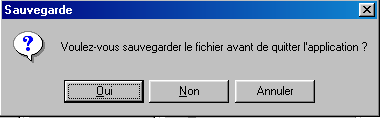

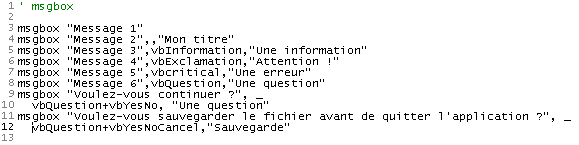

Here are some examples:

Program

Results

In some cases, an information window is displayed that also serves as an input window. If a question is asked, for example, we want to know whether the user clicked the Yes button or the No button. The msgBox function returns a result that we did not use in the previous program. This result is an integer representing the button the user clicked to close the display window:

Constant	Value	Selected button
vbOK	1	OK
vbCancel	2	Cancel
vbAbort	3	Abort
vbRetry	4	Retry
vbIgnore	5	Ignore
vbYes	6	Yes
vbNo	7	No

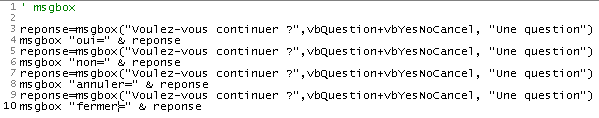

The following program demonstrates how to use the result of the msgBox function. A window with Yes, No, and Cancel buttons is displayed four times. You respond as follows:

1. Click Yes
2. click No
3. click Cancel
4. close the window without using a button. The program shows that this is equivalent to using the Cancel button.

Program

Results

3.4. Data usable in VBScript

VBScript recognizes only one data type: the variant. The value of a variant can be a number (4, 10.2), a string ("hello"), a Boolean (true/false), a date (#01/01/2002#), the address of an object, or a collection of all these data types placed in a structure called an array.

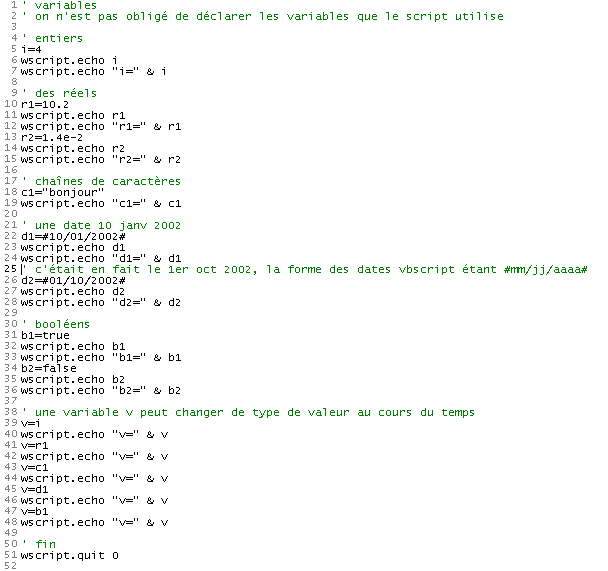

Let’s examine the following program and its results:

Program	Results
	4 i=4 10.2 r1=10.2 0.014 r2=0.014 c1=hello 10/01/02 d1=10/01/02 10/01/02 d2=10/01/02 -1 b1=True 0 b2=False v=4 v=10.2 v=hello v=10/01/02 v=True

Comments:

• A number of programming languages (C, C++, Pascal, Java, C#, etc.) require that a variable be declared before it is used. This declaration involves specifying the variable’s name and the data type it can hold (integer, floating-point, string, date, boolean, etc.). Declaring variables allows you to:
  • determining the memory space required for the variable, since different data types require different amounts of memory
  • to verify the program’s consistency. For example, if `i` is an integer and `c` is a string, multiplying `i` by `c` makes no sense. If the types of variables `i` and `c` have been declared by the programmer, the program responsible for analyzing the code before execution can flag such an inconsistency.

Like most single-data-type scripting languages (Perl, Python, JavaScript, etc.), VBScript allows variables to be omitted. This is what was done in the example above.

• Note the syntax of different data types
  • 10.2 on line 10 (decimal point, not a comma). Note that 10.2 is displayed on the screen.
  • 1.4e-2 on line 13 (scientific notation). The number 0.014 is displayed.
  • [#01/10/2002#] (line 26) to represent the date January 10, 2002. VBScript therefore uses the format #mm/dd/yyyy# to represent the date dd of the month mm of the year yyyy
  • the Booleans true and false in lines 31 and 34. These two values are represented by the integers -1 and 0, respectively, as shown in lines 32 and 35. When a Boolean is concatenated with a string, these values become the strings "True" and "False," respectively, as shown in lines 33 and 36. Note that the concatenation operator & can be used to concatenate more than just strings.

• Since a variable v has no assigned type, it can successively hold values of different types over time.

3.5. Subtypes of the Variant Type

Here is what the official documentation says about the different data types a variant can contain:

Beyond the simple number/string distinction, a Variant can distinguish between different types of numeric information. For example, some numeric information represents a date or a time. When this information is used with other date or time data, the result is always expressed as a date or a time. You also have other types of numerical information, ranging from Boolean values to large floating-point numbers. These different categories of information that can be contained in a Variant are subtypes. In most cases, you simply place your data in a Variant, and it behaves in the most appropriate way based on that data.

The following table lists the different subtypes that can be contained within a Variant.

Subtype	Description
Empty	The Variant is not initialized. Its value is zero for numeric variables and a null string ("") for string variables.
Null	The Variant intentionally contains incorrect data.
Boolean	Contains True or False.
Byte	Contains an integer from 0 to 255.
Integer	Contains an integer from -32,768 to 32,767.
Currency	-922,337,203,685,477.5808 to 922,337,203,685,477.5807.
Long	Contains an integer from -2,147,483,648 to 2,147,483,647.
Single	Contains a single-precision floating-point number ranging from -3.402823E38 to -1.401298E-45 for negative values; from 1.401298E-45 to 3.402823E38 for positive values.
Double	Contains a double-precision floating-point number ranging from -1.79769313486232E308 to -4.94065645841247E-324 for negative values; from 4.94065645841247E-324 to 1.79769313486232E308 for positive values.
Date (Time)	Contains a number representing a date between January 1, 100 and December 31, 9999.
String	Contains a string of variable length limited to approximately 2 billion characters.
Object	Contains an object.
Error	Contains an error number.

3.6. Knowing the exact type of data contained in a variant

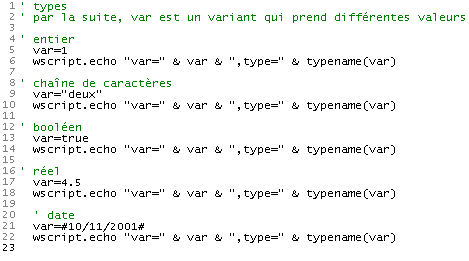

A variant-type variable can contain data of various types. Sometimes we need to know the exact nature of this data. If in a program we write product = number1 * number2, we assume that number1 and number2 are two numerical values. Sometimes we are not sure because these values may come from keyboard input, a file, or some external source. We must then verify the nature of the data stored in number1 and number2. The typename(var) function allows us to determine the data type contained in the variable var. Here are some examples:

Program	Results
	var=1,type=Integer var=two,type=String var=True, type=Boolean var=4.5,type=Double var=11/10/01,type=Date

Another possible function is vartype(var), which returns a number representing the type of the data contained in the variable var:

Constant	Value	Description
vbEmpty	0	Empty (uninitialized)
vbNull	1	Null (no valid data)
vbInteger	2	Integer
vbLong	3	Long integer
vbSingle	4	Single-precision floating-point number
vbDouble	5	Double-precision floating-point number
vbCurrency	6	Currency
vbDate	7	Date
vbString	8	String
vbObject	9	Automation object
vbError	10	Error
vbBoolean	11	Boolean
vbVariant	12	Variant (used only with Variant arrays)
vbDataObject	13	Non-Automation object
vbByte	17	Byte
vbArray	8192	Array

Note: These constants are defined by VBScript. Consequently, the names can be used anywhere in your code in place of the actual values.

The information above comes from the VBScript documentation. This is sometimes incorrect, likely due to copy-pasting from the VB documentation. The VBScript vartype function does only part of what is described above.

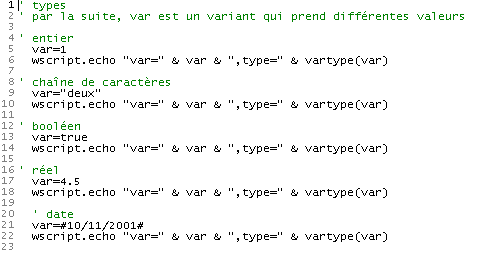

The previous program, rewritten for vartype, yields the following results:

Program	Results
	var=1,type=2 var=two,type=8 var=True,type=11 var=4.5,type=5 var=11/10/01,type=7

3.7. Declaring variables used by the script

We mentioned that it is not mandatory to declare the variables used by the script. In this case, if we write:

1) sum=4
...
2) sum=smme+10

with a typo—using "smme" instead of "sum" in line 2—VBScript will not report any errors. It will assume that "smme" is a new variable. It will create it and, in the context of line 2, use it by initializing it to 0.

This type of error can be very difficult to find. Therefore, it is recommended to enforce variable declaration using the Option Explicit directive placed at the beginning of the script. Then, every variable must be declared with a Dim statement before its first use:

option explicit
...
dim sum
1) sum=4
...
2) sum = sum + 10

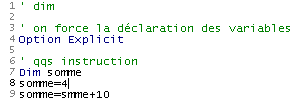

In this example, VBScript will indicate that there is an undeclared variable smme in 2), as shown in the following example:

Program	Results
	dim1.vbs(9, 1) Microsoft Runtime Error VBScript: Undefined variable: 'smme'

While variables are mostly undeclared in the short examples in this document, we will require their declaration as soon as we write our first meaningful scripts. The Option Explicit directive will then be used systematically.

3.8. The conversion functions

VBScript converts variant data into strings, numbers, Booleans, etc., depending on the context. Most of the time, this works well, but sometimes it leads to unexpected results, as we will see later. You may therefore want to "force" the variant's data type. VBScript has conversion functions that transform an expression into various data types. Here are a few of them:

Cint (expression)	converts expression to a short integer
Clng (expression)	converts expression to a long integer
Cdbl (expression)	converts expression to a double
Csng (expression)	converts expression to a single-precision floating-point number (single)
Ccur (expression)	converts expression to currency

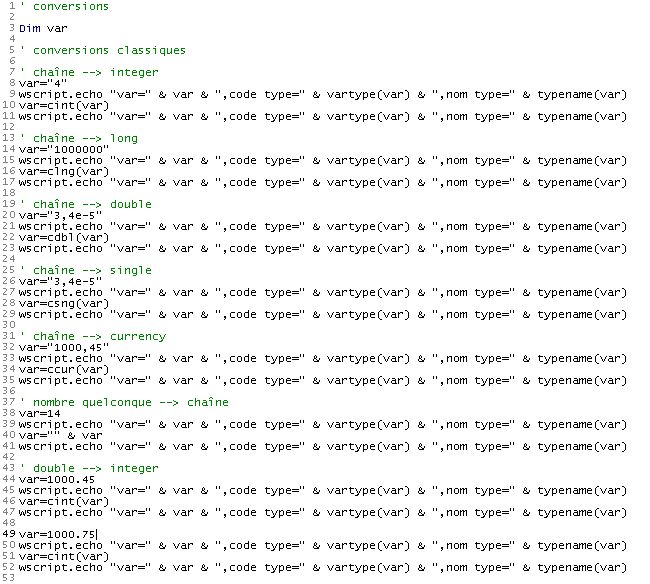

Here are a few examples:

Program

Results

var=4,code type=8,type name=String var=4,code type=2,name type=Integer var=1000000,type code=8,type name=String var=1000000,type code=3,type name=Long var=3.4e-5,type code=8,type name=String var=0.000034,type code=5,type name=Double var=3.4e-5,type code=8,type name=String var=0.000034,type code=4,type name=Single var=1000.45,type code=8,type name=String var=1000.45,type code=6,type name=Currency var=14,type code=2,type name=Integer var=14,type code=8,type name=String var=1000,45,type code=5,type name=Double var=1000,type code=2,type name=Integer var=1000,75,type code=5,type name=Double var=1001,type code=2,type name=Integer

3.9. Data typed on the keyboard

The wscript object allows a script to retrieve data entered via the keyboard. The wscript.stdin.readLine method reads a line of text entered via the keyboard and confirmed by pressing the "Enter" key. This read line can be assigned to a variable.

Program	Results
	Type your name: st Hello st

Comments:

• In the results column and in the row [Type your name: st], st is the text entered by the user.

If the text typed on the keyboard represents a number, it is still treated primarily as a string of characters, as shown in the example below:

Program	Results
	Enter a number: 14 number read=14,type=String

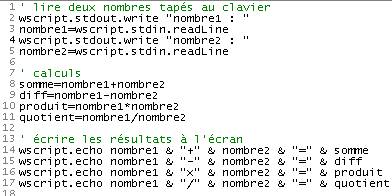

If this number is used in an arithmetic operation, VBScript will automatically convert the string to a number, but not always. Let’s look at the following example:

Program	Results
	number1: 3 number2: 4 3+4=34 3-4=-1 3 × 4 = 12 3/4=0.75

In the results, we see that line 8 of the script did not behave as expected. This is because (unfortunately) in VBScript, the + operator has two meanings: addition of two numbers or concatenation of two strings (the two strings are joined together). We saw earlier that numbers typed on the keyboard were read as strings and that VBScript converted them into numbers as needed. It did this correctly for the operations -, *, /, which can only involve numbers, but not for the + operator, which can also involve strings. Here, it assumed that we wanted to concatenate strings.

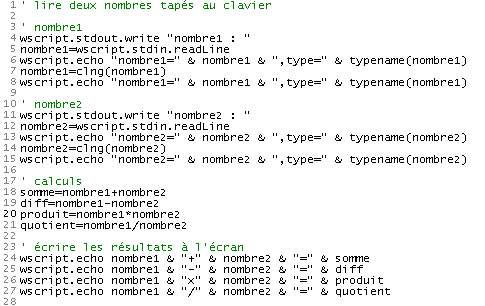

A simple solution to this problem is to convert the strings into numbers as soon as they are read, as shown in the following improvement to the previous program:

Program	Results
	number1: 3 number1=3,type=String number1=3,type=Long number2: 4 number2=4,type=String number2=4,type=Long 3+4=7 3-4=-1 3 × 4 = 12 3/4=0.75

3.10. Entering data with the inputBox function

You may want to enter data via a graphical interface rather than the keyboard. In that case, use the inputBox function. This function accepts many parameters, but only the first two are commonly used:

response = inputBox(message, title)

• message: the question you ask the user
• title (optional): the title you give to the input window
• response: the text typed by the user. If the user closed the window without responding, response is an empty string.

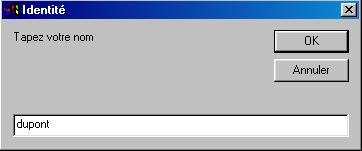

Here is an example where we ask for a person’s name and age. For the name, we enter information and click OK. For the age, we also enter information but click Cancel.

Program

Results

3.11. Using Structured Objects

It is possible to create objects with methods and properties using VBScript. To keep things simple, we will present an object here with properties but no methods. Consider a person. They have many properties that characterize them: height, weight, skin color, eye color, hair color, etc. We will focus on just two: their name and age. Before you can use objects, you must create the template that will allow you to build them. In VBScript, this is done using a class. The Person class could be defined as follows:

class person
    Dim name, age
End class

It is the [Dim name, age] statement that defines the two properties of the Person class. To create copies (called instances) of the Person class, we write:

set person1 = new person
set person2 = new person

Why not write

person1 = new person
person2 = new Person

Because a variable cannot hold an object. It can only hold the object's address. When you write *set person1 = new Person*, the following sequence of events occurs:

1. A Person object is created. This means that memory is allocated to it.
2. The address of this Person object is assigned to the variable person1

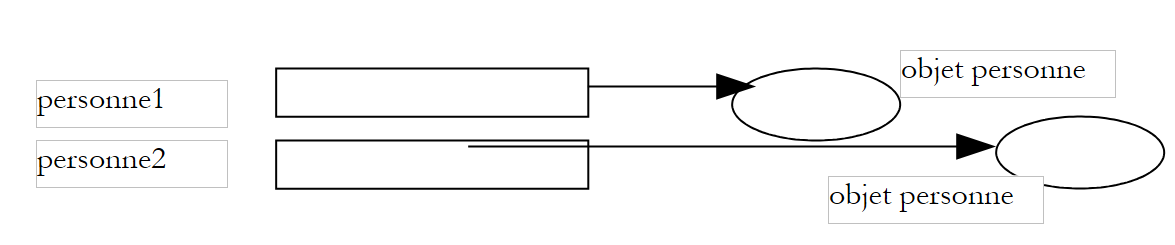

We then have the following memory layout for the variables person1 and person2:

By way of a figure of speech, we could say that person1 is a person object. We can accept this figure of speech if we remember that person1 is in fact the address of a person object and not the person object itself.

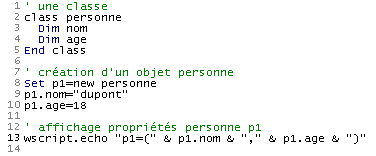

We said that a person object has two properties: name and age. How do we access these properties? Using the notation object.property, as explained earlier. Thus

person1.name refers to the name of person 1 and person1.age to their age. Here is a short program to illustrate this:

Program	Results
	p1=(dupont,18)

The previous program could be modified as follows:

Program	Results
	name=dupont age=18

Here we used the with ... end with structure, which allows us to "factor out" object names in expressions. The with p1 ... end with* structure in lines 9–12 and 15–18 allows us to use the syntax .name instead of p1.name* and .age* instead of p1.age*. This simplifies the writing of instructions where the same object name is used repeatedly.

3.12. Assigning a Value to a Variable

There are two statements for assigning a value to a variable:

1. variable=expression
2. set variable=expression

Form 2 is reserved for expressions whose result is an object reference. For all other types of expressions, form 1 is appropriate. The difference between the two forms is as follows:

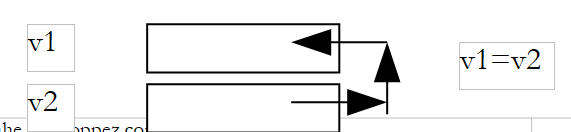

• In the statement variable=expression, variable receives a value. If v1 and v2 are two variables, writing v1=v2 assigns the value of v1 to v2. This results in the duplication of a value in two different locations. If the value of v2 is subsequently modified, the value of v1 remains unchanged.

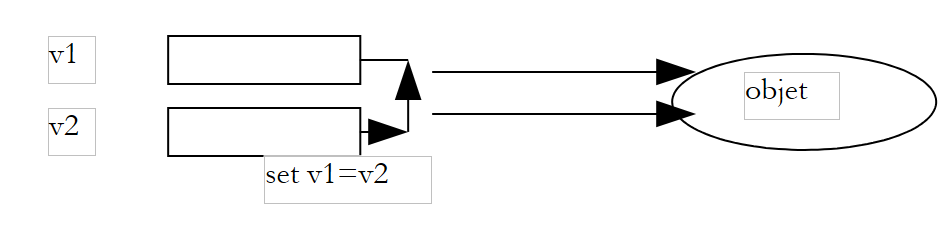

• In the statement `set variable=expression`, `variable` is assigned the address of an object. If `v1` and `v2` are two variables and `v2` is the address of an object `obj2`, writing `set v1=v2` assigns the value of `v1` to `v2`, i.e., the address of the object `obj2`. When the script subsequently manipulates v1 and v2, it is not the "values" of v1 and v2 that are being manipulated, but rather the objects "pointed to" by v1 and v2—in this case, the same object. We say that v1 and v2 are two references to the same object, and manipulating it via v1 or v2 makes no difference. In other words, modifying the object referenced by v2 modifies the one referenced by v1.

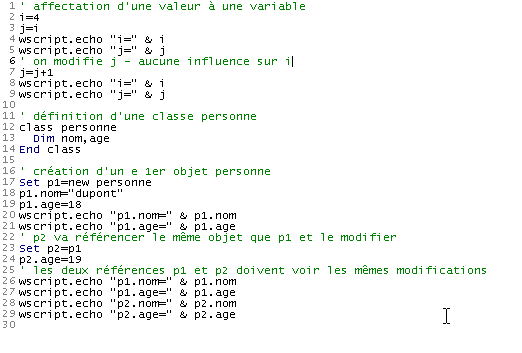

Here is an example:

Program	Results
	i=4 j=4 i=4 j=5 p1.last_name=dupont p1.age=18 p1.last_name=dupont p1.age=19 p2.name=dupont p2.age=19

3.13. Evaluating expressions

The main operators used to evaluate expressions are as follows:

Type of operators	Operators	Example
Arithmetic	+,-,*,/
		mod
		\
		^
Comparison	<,<= >, >= =,<>	a<>b is true if a is not equal to b a=b is true if a is equal to b a and b can both be numbers or both be strings. In the latter case, string1<string2 if string1 comes before string2 in alphabetical order. In string comparison, uppercase letters come before lowercase letters in alphabetical order.
		is
Logic	and, or, not, xor	All operands here are Boolean. bool1 or bool2 is true if bool1 or bool2 is true bool1 and bool2 is true if both bool1 and bool2 are true not bool1 is true if bool1 is false, and vice versa bool1 xor bool2 is true if only one of the Booleans bool1 or bool2 is true
Concatenation	&, +	It is not recommended to use the + operator to concatenate two strings because of the potential confusion with the addition of two numbers. Therefore, the & operator should be used exclusively.

3.14. Controlling Program Execution

3.14.1. Execute actions conditionally

The VBScript statement used to perform actions based on whether a condition is true or false is as follows:

if expression then true-action-1 true-action-2 .. else action-false-1 action-false-2 ... end if

The expression is evaluated first. This expression must have a Boolean value. If it evaluates to true, the actions in the then block are executed; otherwise, the actions in the else block are executed, if present.

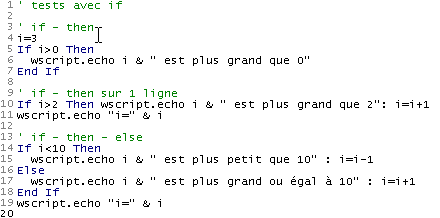

Here is a program demonstrating different variations of the if-then-else statement:

Program	Results
	3 is greater than 0 3 is greater than 2 i=4 4 is less than 10 i=3

Comments:

• In VBScript, you can write instruction1:instruction2:... : instructionn instead of writing one instruction per line. This feature is used in line 10, for example.

3.14.2. Executing actions repeatedly

Loop with a known number of iterations for i=start to end step step actions next

The variable i is called the loop variable here. It can have any name i takes the value start The value of i is compared to ifin. If i <= ifin, the actions between the for... next are executed i is incremented by the amount ipas (i = i + ipas) We return to step 3 above. After a finite number of steps, the value of i will exceed ifin. Script execution continues with the statement following the next if the increment ipas is negative, the condition in step 3 is changed. The actions within the for...next are executed only if i >= ifin. You can exit a for loop at any time using the exit for statement.

Loop with an unknown number of iterations do while condition actions loop

The condition expression is evaluated. If it is true, the actions in the while...loop are executed The executed actions may have changed the value of the condition. The process returns to step 1 above. When the condition expression becomes false, the loop ends You can exit a do-while loop at any time using the exit do statement.

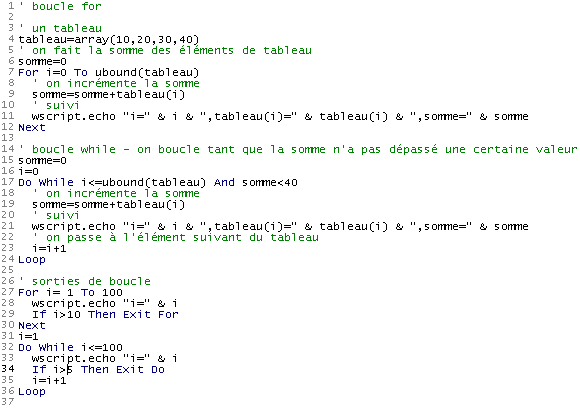

The program below illustrates these points:

Program

Results

i=0,array[i]=10,sum=10 i=1,array(i)=20,sum=30 i=2,array(i)=30,sum=60 i=3,array(i)=40,sum=100 i=0,array(i)=10,sum=10 i=1,array(i)=20,sum=30 i=2,array(i)=30,sum=60 i=1 i=2 i=3 i=4 i=5 i=6 i=7 i=8 i=9 i=10 i=11 i=1 i=2 i=3 i=4 i=5 i=6

Note: During the development phase of a program, it is not uncommon for a program to "loop," i.e., to never stop. Generally, the program executes a loop whose exit condition cannot be verified, as in the following example:

' infinite loop
i=0
Do While 1=1
  i = i + 1
  wscript.echo i
Loop

' another one like that
i=0
Do While true
  i = i + 1
  wscript.echo i
Loop

If you run the previous program, the first loop will never stop on its own. You can force it to stop by pressing CTRL-C on the keyboard (hold down the CTRL and C keys at the same time).

3.14.3. Ending program execution

The wscript.quit n statement terminates the program by returning an error code equal to n. Under DOS, this error code can be checked using the if ERRORLEVEL n statement, which evaluates to true if the error code returned by the last executed program is >=n. Consider the following program and its results:

	start

Immediately after running the program, the following three DOS commands are issued:

C:\>if ERRORLEVEL 5 echo 5

C:\>if ERRORLEVEL 4 echo 4
4

C: >if ERRORLEVEL 3 echo 3
3

The DOS command 1 checks if the error code returned by the program is >=5. If so, it displays (echo) 5; otherwise, nothing.

DOS command 3 checks whether the error code returned by the program is >=4. If so, it displays 4; otherwise, nothing.

DOS command 5 checks if the error code returned by the program is >=3. If so, it displays 3; otherwise, nothing.

From the displayed results, we can deduce that the error code returned by the program was 4.

3.15. Data arrays in a variant

A variant T can contain a list of values. We then say that it is an array. An array T has various properties:

• We access element i of array T using the syntax T(i), where i is an integer called an index between 0 and n-1 if T has n elements.
• The index of the last element of array T can be determined using the expression ubound(T). The number of elements in array T is then ubound(T)+1. This number is often referred to as the size of the array.
• A variant T can be initialized with an empty array using the syntax T=array() or with a sequence of elements using the syntax T=array(element0, element1, ...., elementn)
• You can add elements to an array T that has already been created. To do this, use the statement redim preserve T(N), where N is the new index of the last element of array T. This operation is called resizing (redim). The keyword preserve indicates that during this resizing, the current contents of the array must be preserved. In the absence of this keyword, T is resized and its elements are cleared.
• An element T(i) of the array T is of type variant and can therefore contain any value, including another array. In this case, the notation T(i)(j) refers to the jth element of the array T(i).

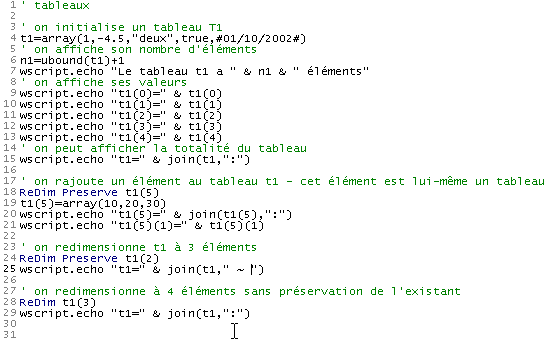

These various properties of arrays are illustrated by the following program:

Program	Results
	The array t1 has 5 elements t1(0)=1 t1(1)=-4.5 t1(2)=2 t1(3)=True t1(4)=1/10/02 t1=1:-4.5:two:True:10/01/02 t1(5)=10:20:30 t1(5)(1)=20 t1=1 ~ -4.5 ~ two t1=:::

Comments

• Here we used a function called join, which is explained in more detail below.

3.16. Array variables

In VBScript, there is another way to use an array: by using an array variable. Unlike scalar variables, such a variable must be declared using a dim statement. Various declarations are possible:

• dim array(n) declares a static array of n+1 elements numbered from 0 to n. This type of array cannot be resized
• dim array() declares an empty dynamic array. It must be resized to be used via the redim statement, in the same way as for a variant containing an array
• dim array(n,m) declares a two-dimensional array of (n+1)*(m+1) elements. The element (i,j) of the array is denoted as array(i,j). Note the difference from a variant, where the same element would have been denoted as array(i)(j).

Why are there two types of arrays that are ultimately very similar? The VBScript documentation does not address this and does not indicate whether one is more efficient than the other. Moving forward, we will use arrays within variants almost exclusively in our examples. However, it is worth noting that VBScript is derived from the Visual Basic language, which itself contains typed data (integer, double, boolean, etc.). In this case, if we need to use an array of real numbers, for example, the array variable will be more efficient than the variant variable. We would then declare something like dim array(1000) as double to declare an array of real numbers, or simply dim array() as double if the array is dynamic.

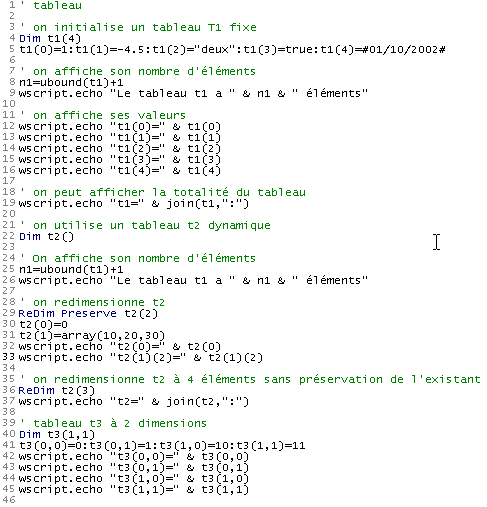

Here is an example illustrating the use of array variables:

Program	Results
	The array t1 has 5 elements t1(0)=1 t1(1)=-4.5 t1(2)=2 t1(3)=True t1(4)=1/10/02 t1=1:-4.5:two:True:10/01/02 The array t1 has 5 elements t2(0)=0 t2(1)(2)=30 t2=::: t3(0,0)=0 t3(0,1)=1 t3(1,0)=10 t3(1,1)=11

3.17. The split and join functions

The split and join functions allow you to convert a string into an array and vice versa:

• If T is an array and car is a string, join(T,car) is a string formed by concatenating all the elements of the array T, each separated from the next by the string car. Thus, join(array(1,2,3),"abcd") will yield the string "1abcd2abcd3"
• If C is a string consisting of a sequence of fields separated by the string car, the split(C,car) function returns an array whose elements are the individual parts of the string C. Thus, split("1abcd2abcd3", "abcd") will return the array (1,2,3)

Here is an example:

Program	Results
' array-to-string conversion and vice versa ' array --> string array = array("one", 2, "three") string = join(array, ",") wscript.echo string ' string --> array array2 = split(string, ",") For i=0 To ubound(array2) wscript.echo array2(i) Next	one,2,three one 2 three

3.18. Dictionaries

We can access an element of an array T when we know its index i. It is then accessible using the notation T(i). There are arrays whose elements are accessed not by an index but by a string. A typical example of this type of array is a dictionary. When looking up the meaning of a word in "Larousse" or "Le petit Robert," we access it by the word. We could represent this dictionary as a two-column array:

word1	description1
word2	description2
word3	description3
....

We could then write things like:

dictionary("word1") = "description1"

dictionary("word2") = "description2"

...

This is similar to how an array works, except that the array indices are not integers but strings. This type of array is called a dictionary (or associative array, hashtable), and the string indices are called the dictionary keys. Dictionaries are extremely common in the world of computing. We all have a social security card with a number on it. This number uniquely identifies us and grants access to information about us. In the dictionary("key")="information" model, "key" would be the social security number, and "information" would be all the information stored about us on the social security computers.

In Windows, there is an ActiveX object called "Scripting.Dictionary" that allows you to create and manage dictionaries. An ActiveX object is a software component that exposes an interface usable by programs written in various languages, as long as they comply with the ActiveX object usage standard. The Scripting.Dictionary object can therefore be used by Windows programming languages such as JavaScript, Perl, Python, C, C++, VB, VBA, and others—not just VBScript.

1	A Scripting.Dictionary object is created using the following statement set dico=wscript.CreateObject("Scripting.Dictionary") or simply set dico=CreateObject("Scripting.Dictionary") CreateObject is a method of the WScript object used to create instances of ActiveX objects. Version 2 shows that wscript can be an implicit object. When a method cannot be "resolved" to an object, the WSH container will attempt to resolve it to the wscript object.
2	Once the dictionary is created, we can add elements to it using the add method: dico.add "key",value will create a new entry in the dictionary associated with the key "key". The associated value is a Variant containing any data.
3	To retrieve the value associated with a given key, we use the dictionary's item method: var = dic.item("key") or set var = dic.item("key") if the value associated with the key is an object.
4	All the keys in the dictionary can be retrieved in a variable array using the `keys` method: keys = dic.keys keys is an array whose elements can be iterated over.
5	All the values in the dictionary can be retrieved into a variable array using the items method: values = dic.items items is an array whose elements can be iterated over.
6	The existence of a key can be tested using the exists method: dico.exists("key") is true if the key "key" exists in the dictionary
7	You can remove an entry from the dictionary (key+value) using the remove method: dico.remove("key") removes the entry from the dictionary associated with the key "key". dico.removeall removes all keys, i.e., empties the dictionary.

The following program uses these various options:

Program

' Creating and using a dictionary Set dico=CreateObject("Scripting.Dictionary") ' populating the dictionary dico.add "key1", "value1" dico.add "key2", "value2" dico.add "key3", "value3" ' number of elements wscript.echo "The dictionary has " & dico.count & " elements" ' list of keys wscript.echo "list of keys" keys = dic.keys For i=0 To ubound(keys) wscript.echo keys(i) Next ' list of values wscript.echo "list of values" values = dic.items For i=0 To ubound(values) wscript.echo values(i) Next ' list of keys and values wscript.echo "list of keys and values" keys = dic.keys For i=0 To ubound(keys) wscript.echo "dico(" & keys(i) & ")=" & dico.item(keys(i)) Next ' search for elements ' key1 If dictionary.exists("key1") Then wscript.echo "The key 'key1' exists in the dictionary and the associated value is " & dictionary.item("key1") Else wscript.echo "The key 'key1' does not exist in the dictionary" End If ' key4 If dictionary.exists("key4") Then wscript.echo "The key key4 exists in the dictionary and the associated value is " & dico.item("key4") Else wscript.echo "The key 'key4' does not exist in the dictionary" End If ' Remove key 1 dico.remove("key1") ' list of keys and values wscript.echo "List of keys and values after removing key1" keys = dic.keys For i=0 To ubound(keys) wscript.echo "dico(" & keys(i) & ")=" & dico.item(keys(i)) Next ' delete everything dico.removeall ' list of keys and values wscript.echo "list of keys and values after removing all elements" keys=dico.keys For i=0 To ubound(keys) wscript.echo "dico(" & keys(i) & ")=" & dico.item(keys(i)) Next ' end wscript.quit 0

Results

The dictionary has 3 elements list of keys key1 key2 key3 list of values value1 value2 value3 list of keys and values dico(key1)=value1 dico(key2)=value2 dico(key3)=value3 The key key1 exists in the dictionary, and its associated value is value1 The key key4 does not exist in the dictionary List of keys and values after deleting key1 dico(key2)=value2 dico(key3)=value3 List of keys and values after deleting all elements

3.19. Sorting an array or a dictionary

It is common to want to sort an array or a dictionary in ascending or descending order by its values or, for a dictionary, by its keys. While most languages have sorting functions, there do not appear to be any in VBScript. This is a shortcoming.

3.20. Program arguments

It is possible to call a VBScript program by passing parameters to it, as in:

cscript prog1.vbs arg1 arg2 .... argn

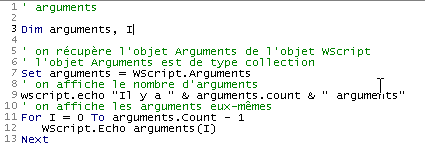

This allows the user to pass information to the program. How does the program retrieve this information? Let’s look at the following program:

Program	Results
	C:\>cscript arg1.vbs a b c There are 3 arguments a b c

Comments

• WScript.Arguments is the collection of arguments passed to the script
• A C collection is an object that has
  • a count property, which is the number of elements in the collection
  • a method C(i) that returns the i-th element of the collection

3.21. A first application: Tax Calculation

We propose to write a program to calculate a taxpayer’s tax. We consider the simplified case of a taxpayer who has only their salary to report:

• We calculate the number of tax brackets for the employee: nbParts = nbEnfants / 2 + 1 if they are unmarried, nbEnfants / 2 + 2 if they are married, where nbEnfants is the number of children.
• We calculate their taxable income R = 0.72 * S, where S is their annual salary
• We calculate their family coefficient Q = R/N

Calculate their tax I based on the following data

12620.0	0	0
13,190	0.05	631
15,640	0.1	1,290.5
24,740	0.15	2,072.5
31,810	0.2	3,309.5
39,970	0.25	4,900
48,360	0.3	6,898.5
55,790	0.35	9,316.5
92,970	0.4	12,106
127,860	0.45	16,754.5
151,250	0.50	23,147.5
172,040	0.55	30,710
195,000	0.60	39,312
0	0.65	49,062

Each row has 3 fields. To calculate tax I, we look for the first row where QF <= field1. For example, if QF = 30000, we will find the row

    24740        0.15        2072.5

Tax I is then equal to 0.15*R - 2072.5*numberOfShares. If QF is such that the condition QF <= field1 is never satisfied, then the coefficients in the last row are used. Here:

    0                0.65        49062

which gives tax I = 0.65*R - 49062*nbParts.

The program is as follows:

Program

' Calculation of a taxpayer's tax ' the program must be called with three parameters: married children salary ' married: character O if married, N if unmarried ' children: number of children ' salary: annual salary without cents ' no data validation is performed, but we ' we do check that there are exactly three ' mandatory variable declaration Option Explicit ' we check that there are 3 arguments Dim nbArguments nbArguments = wscript.arguments.count If nbArguments <> 3 Then wscript.echo "Syntax: pg married children salary" wscript.echo "married: O if married, N if unmarried" wscript.echo "children: number of children" wscript.echo "salary: annual salary without cents" ' Exit with error code 1 wscript.quit 1 End If ' retrieve the arguments without checking their validity Dim marie, children, salary If wscript.arguments(0) = "O" Or wscript.arguments(0) = "o" Then marie = true Else marie = false End If ' children is an integer children = Int(WScript.Arguments(1)) ' salary is a long integer salary = clng(wscript.arguments(2)) ' we define the data needed to calculate the tax in 3 arrays Dim limits, coeffn, coeffr limits = array(12620, 13190, 15640, 24740, 31810, 39970, 48360, _ 55790,92970,127860,151250,172040,195000,0) coeffr=array(0,0.05,0.1,0.15,0.2,0.25,0.3,0.35,0.4,0.45, _ 0.5,0.55,0.6,0.65) coeffn=array(0,631,1290.5,2072.5,3309.5,4900,6898.5,9316.5, _ 12106,16754.5,23147.5,30710,39312,49062) ' we calculate the number of parts Dim nbParts If marie=true Then nbParts=(children/2)+2 Else nbParts = (children / 2) + 1 End If If children >= 3 Then nbParts = nbParts + 0.5 ' Calculate the family quotient and taxable income Dim income, qf income = 0.72 * salary qf = income / nbParts ' Calculate the tax Dim i, tax i = 0 Do While i < ubound(limits) And qf > limits(i) i = i + 1 Loop tax = int(income * coeffr(i) - nbParts * coeffn(i)) ' display the result wscript.echo "tax=" & tax ' exit without error wscript.quit 0

Results

C:\>cscript impots1.vbs o 2 200000 tax=22504 C:\>cscript impots1.vbs o 2 20000 tax=0 C:\>cscript impots1.vbs o 2 2000000 tax=746064 C:\>cscript impots1.vbs n 2 200000 tax=33388 C:\>cscript impots1.vbs n 3 200000 tax=22504 C:\>cscript impots1.vbs Syntax: pg married children salary married: character O if married, N if unmarried children: number of children Salary: annual salary (rounded to the nearest dollar)

Comments:

• The program uses what was covered previously (variable declarations, arguments, type conversions, tests, loops, array in a variant)
• It does not check the validity of the data, which would be unusual in a real-world program
• Only the while loop presents a challenge. It seeks to determine the index i of the limits array for which limits(i) > qf, and this for i < ubound(limits) (i.e., here i < 13) because the last element of the limits array is not significant. It was added solely so that the test [Do While i<ubound(limits) And qf>limits(i)] could be performed for i=13. The test then becomes 13<13 and qf>limits(13), and therefore (in VBScript) limits(13) must exist. When exiting the while loop, the last calculated value of i is used to calculate the tax: [tax=int(income*coeffr(i)-nbParts*coeffn(i))].
